Steering Wheel: Inspection

  1. Check steering wheel freeplay  :
    1. Stop the vehicle and face the tires straight ahead.
    2. Rock the steering wheel gently up and down with a finger lightly, check the steering wheel freeplay.

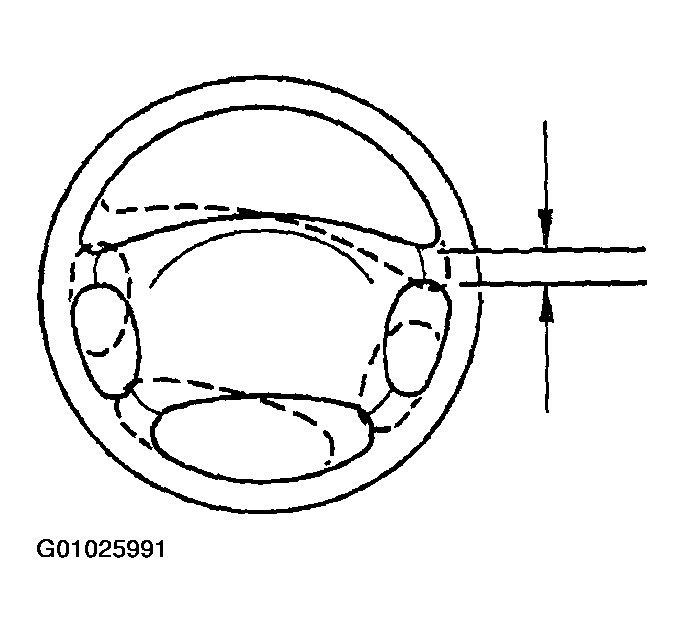

      Fig 1: Identifying Steering Wheel Freeplay Measurement Points
      G01025991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Maximum freeplay: 30 mm (1.18 in.)
  2. Check steering effort  :
    1. Center the steering wheel.
    2. Remove the steering wheel pad. See REMOVAL .
    3. Start the engine and run it at idle.
      4. NOTE: Take the tire type, pressure and contact surface into consideration before making your diagnosis.

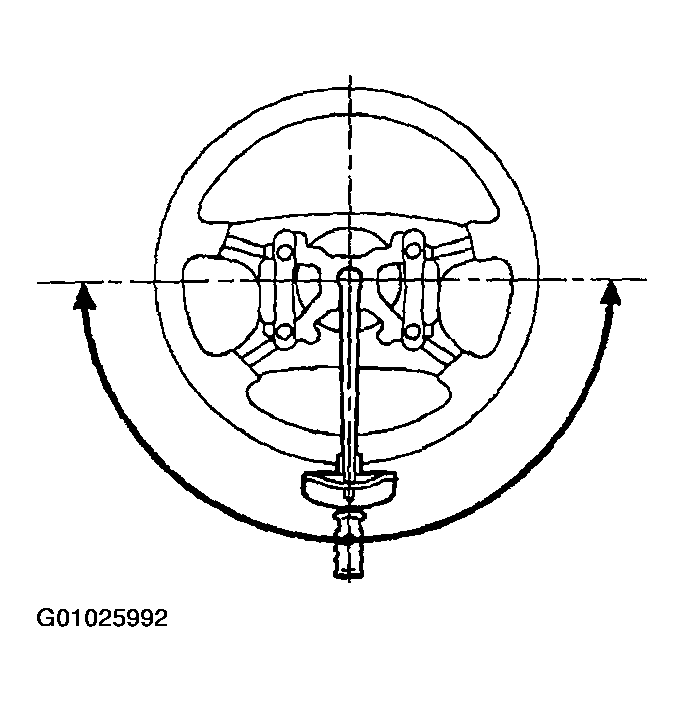

      Fig 2: Determining Steering Wheel Effort
      G01025992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Measure the steering effort in both directions.
      1. Steering effort (Reference): 4.9 N.m (50 kgf.cm, 43 in..lbf)
    5. Torque the steering wheel set nut.
      1. Torque: 50 N.m (510 kgf.cm, 37 ft.lbf)
    6. Install the steering wheel pad. See INSTALLATION .
