Shift Lock System: Inspection

NOTE: Do not disconnect the ECU connector.

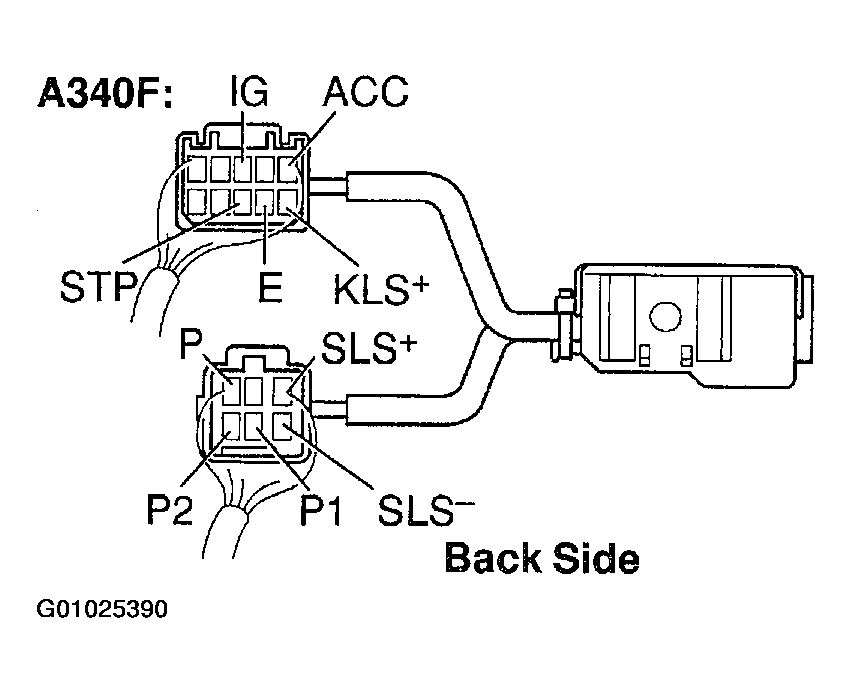

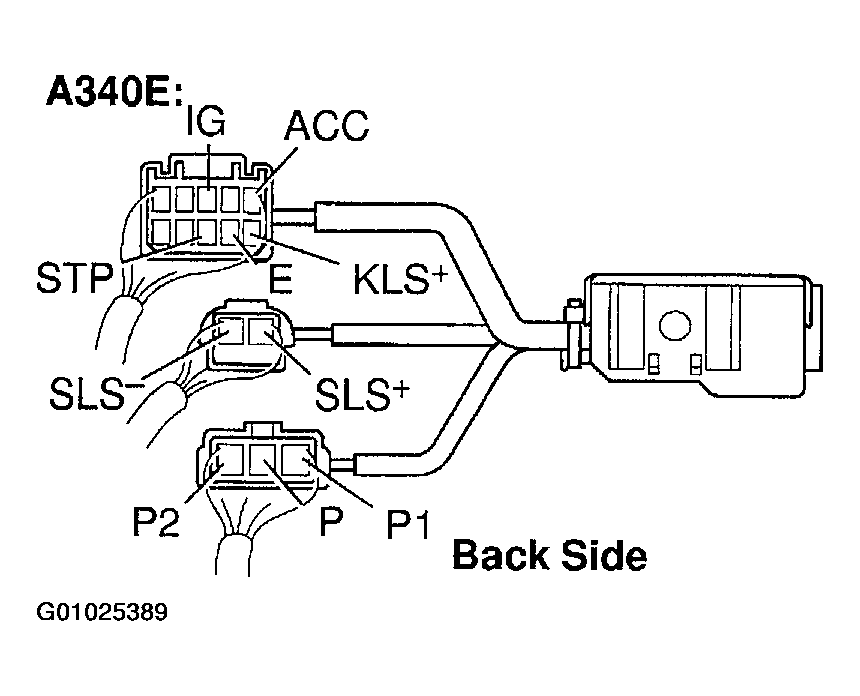

Fig 1: Identifying Terminals For Step 1 Procedure (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Terminals For Step 1 Procedure (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

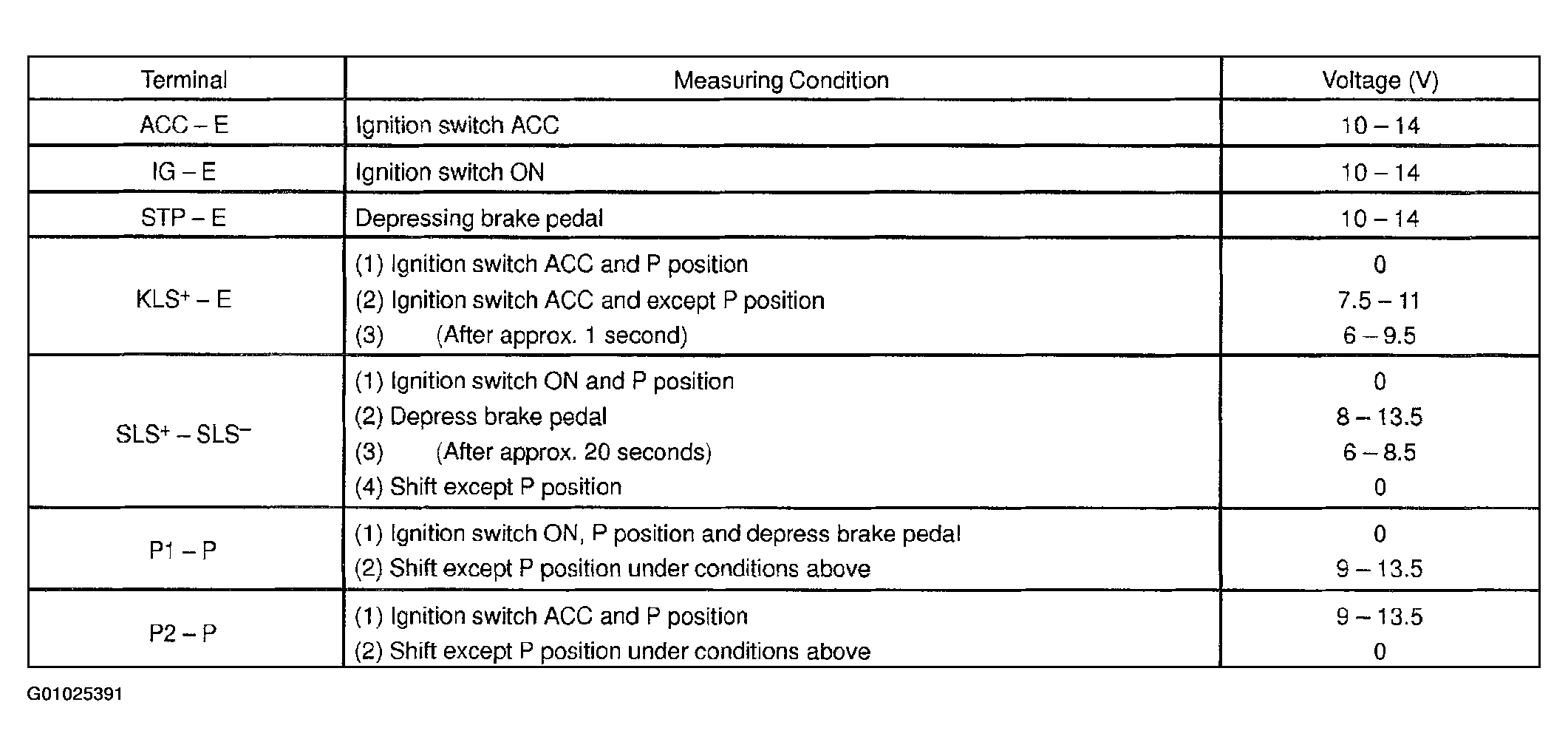

Fig 3: Terminal Specifications For Step 1

Inspect Shift Lock Control ECU :
Using a voltmeter, measure voltage at each terminal.
Inspect Shift Lock Solenoid :
1. Disconnect the solenoid connector.
2. Using an ohmmeter, measure resistance between terminals.
  1. Standard resistance 21 - 27 Ω

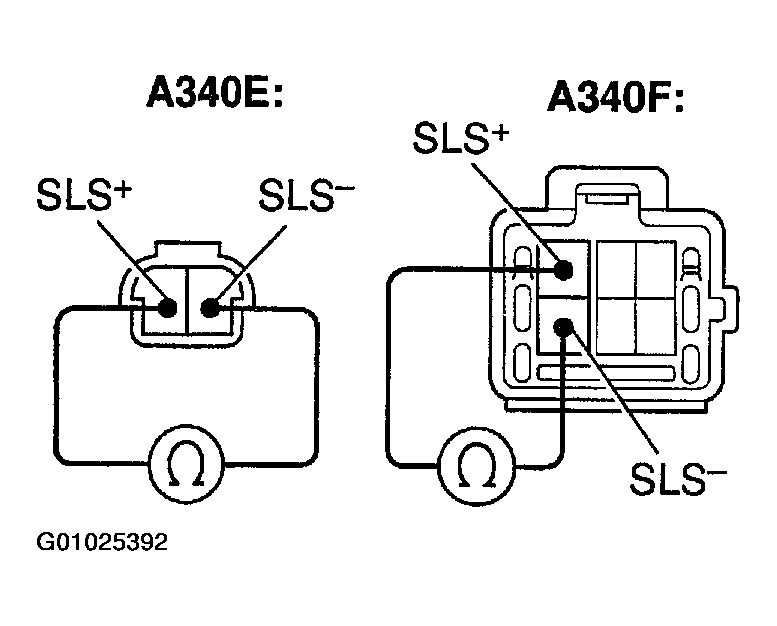

  Fig 4: Identifying SLS+ & SLS- Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If resistance value is not as specified, replace the solenoid.
3. Apply battery positive voltage between terminals. Check that operation noise can be heard from the solenoid.
  If the solenoid dose not operate, replace the solenoid.

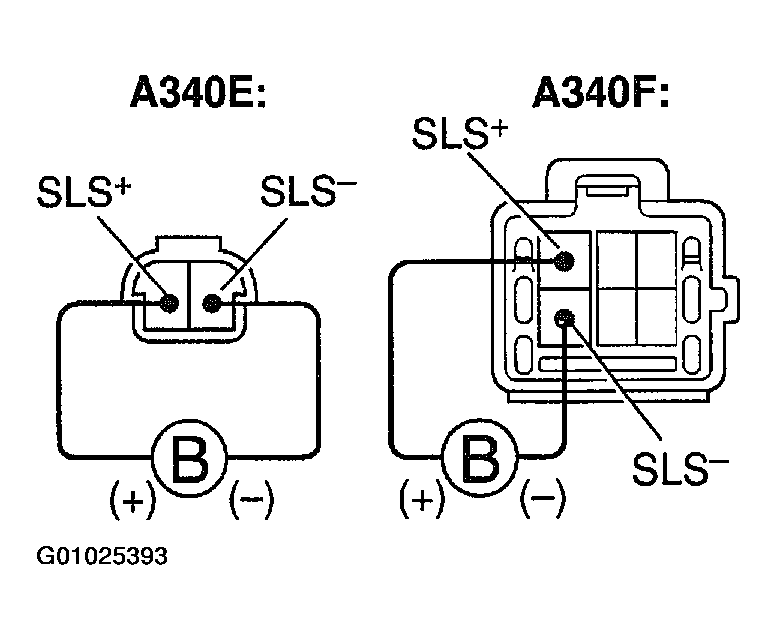

  Fig 5: Identifying SLS+ & SLS- Terminals Battery Voltage Applied
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Inspect Key Interlock Solenoid :
1. Disconnect the solenoid connector.
2. Using an ohmmeter, measure resistance between terminals.
  1. Standard resistance: 12.5 - 16.5 Ω
  If resistance valve is not as specified, replace the solenoid.

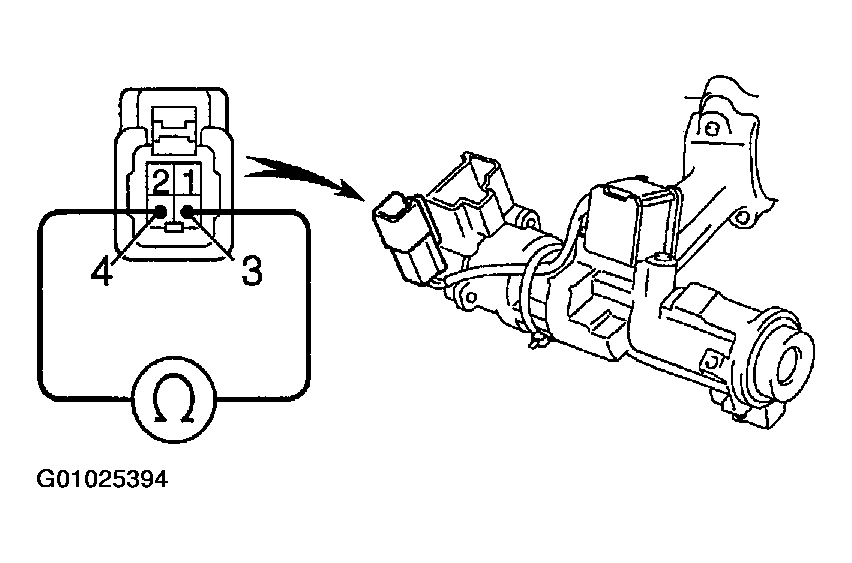

  Fig 6: Testing Key Interlock Solenoid Resistance
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Apply battery positive voltage between terminals. Check that an operation noise can be heard from the solenoid.
  If the solenoid dose not operate, replace the solenoid.

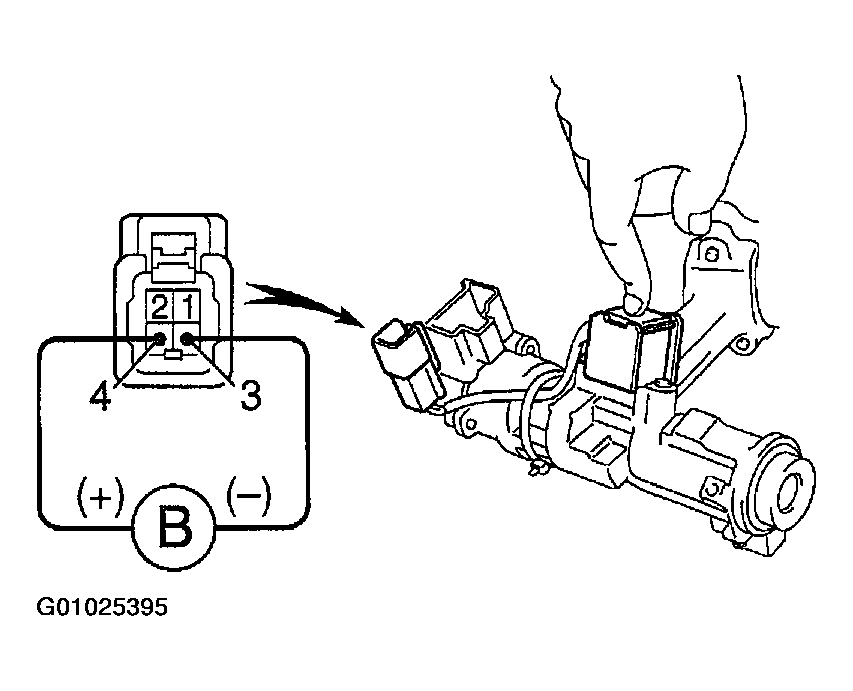

  Fig 7: Testing Key Interlock Solenoid With Battery Voltage Applied
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Inspect Shift Lock Control Switch :
Inspect that continuity exists between at each terminal.

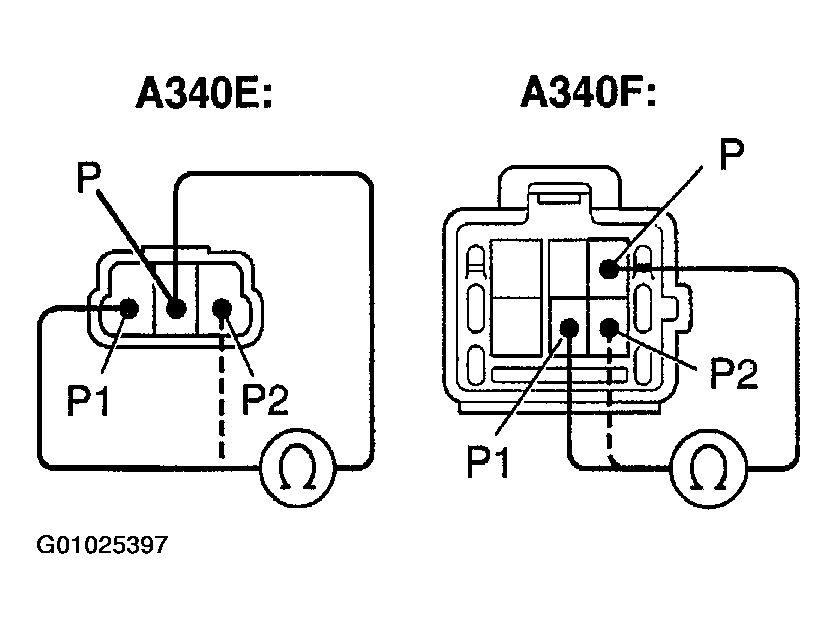

Fig 8: Identifying Shift Lock Control Switch Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

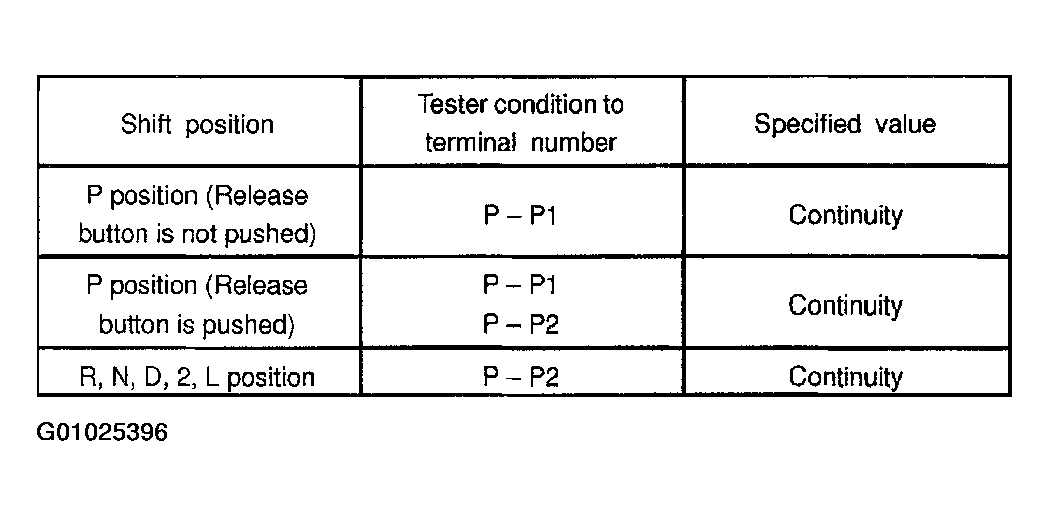

Fig 9: Shift Lock Control Switch Terminal Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
