Driver Window UP Operation

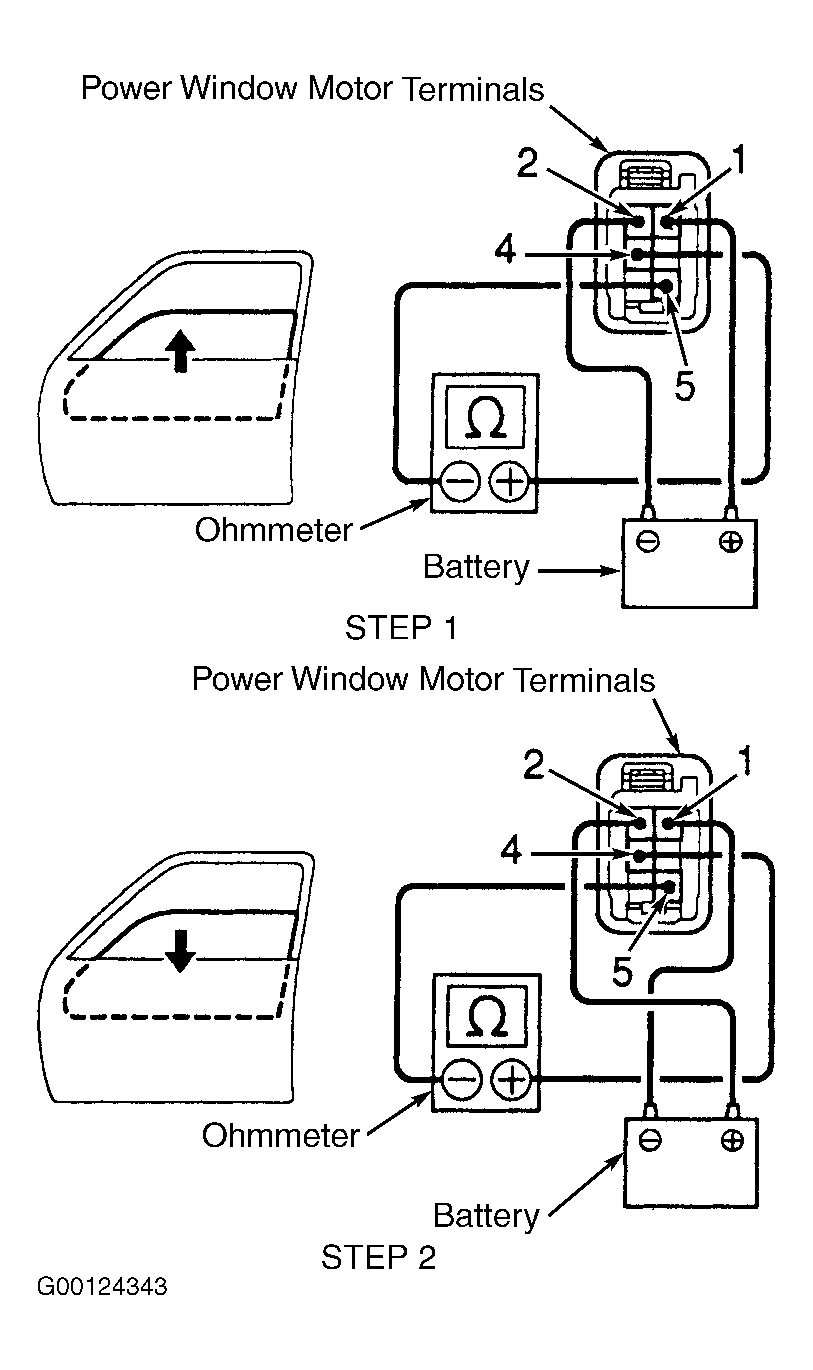

Disconnect power window motor 6-pin electrical harness connector. Connect ohmmeter positive lead to terminal No. 4 and ohmmeter negative lead to terminal No. 5 of power window motor. Apply battery positive voltage to terminal No. 1 and battery negative voltage to terminal No. 2 of power window motor. See STEP 1 in illustration. See Figure. Ensure continuity exists when window goes up, and does not exist when window is fully closed. If continuity is not as specified, replace power window motor. See POWER WINDOW MOTOR  under REMOVAL & INSTALLATION.
