Diagnostic Tests: Notes

NOTE: Before performing any diagnostic test, refer to SELF-DIAGNOSTIC SYSTEM for diagnostic system functions and system diagnostic procedures. Also check for any related Technical Service Bulletins (TSBs).

NOTE: When performing diagnostic tests, it may be necessary to identify Engine Control Module (ECM) electrical connector terminals which are referenced to in testing procedure. See Fig 1.

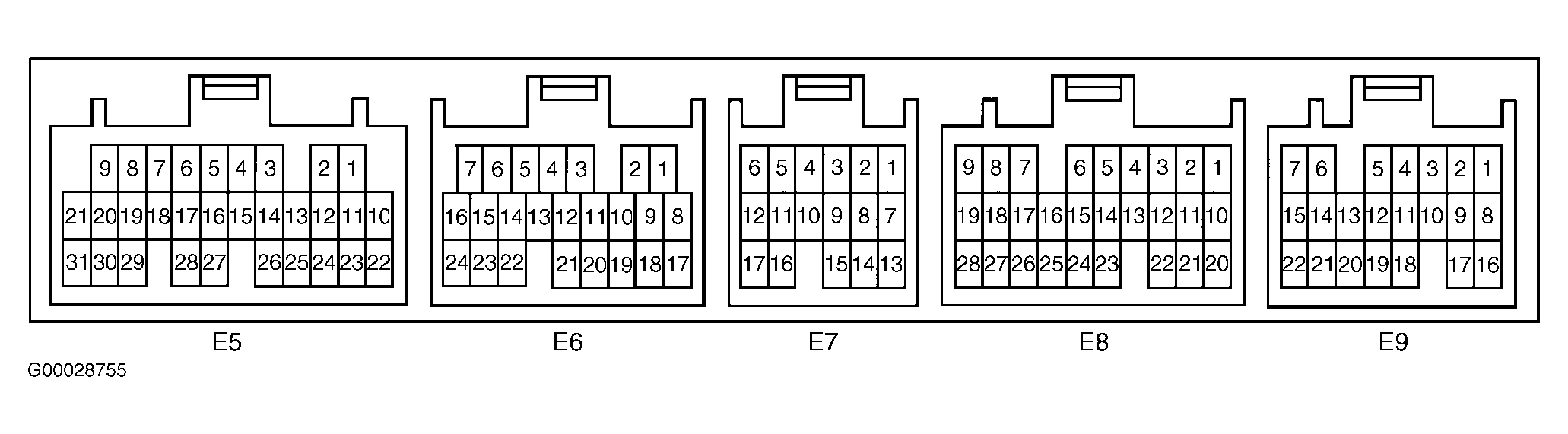

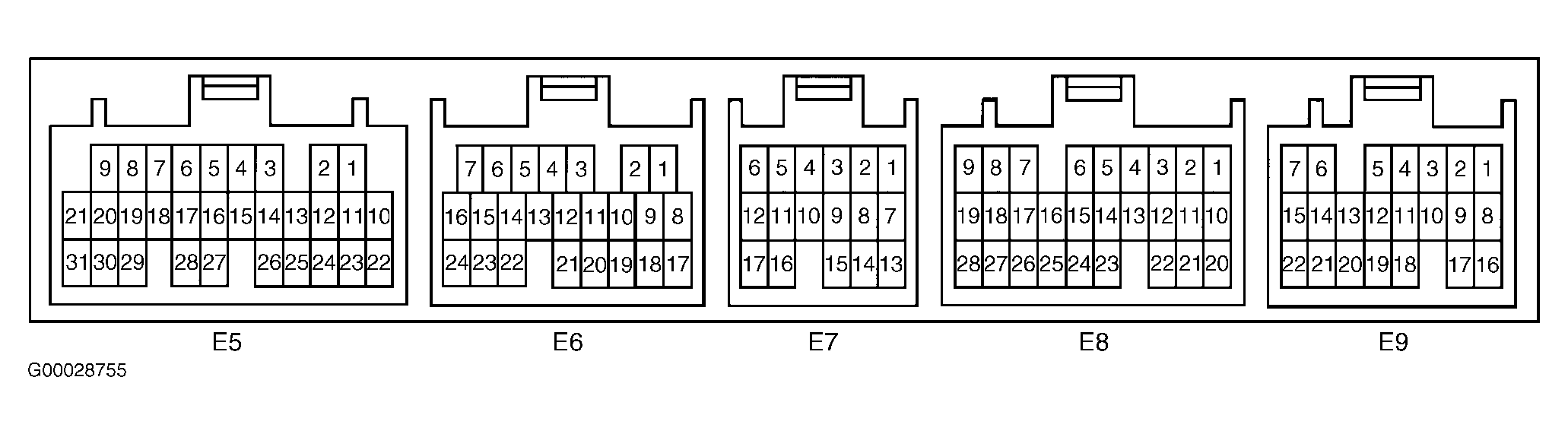

Fig 1: Identifying Engine Control Module Electrical Connector Terminals
