Ignition Switch And Key Unlock Warning Switch: Inspection

INSPECT IGNITION SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

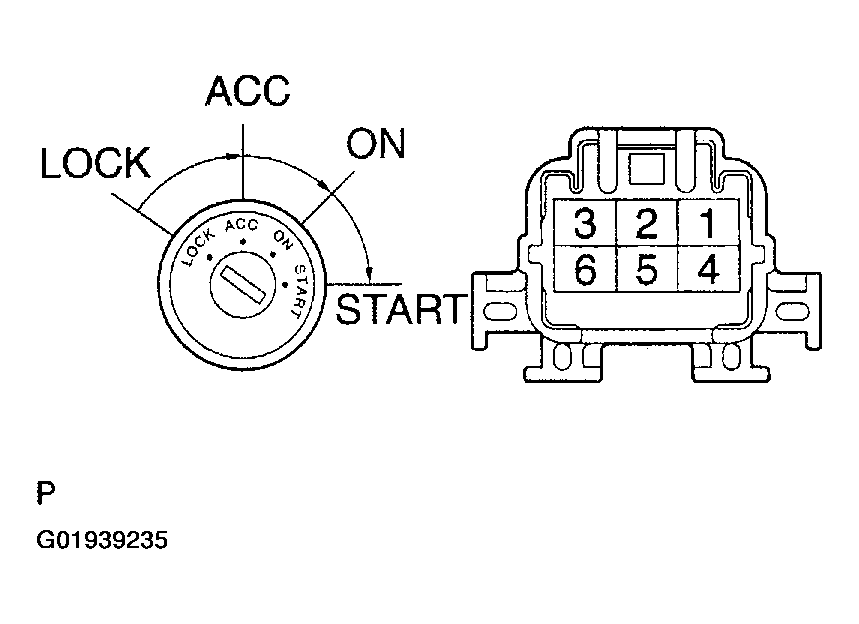

Fig 1: Identifying Ignition Switch Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

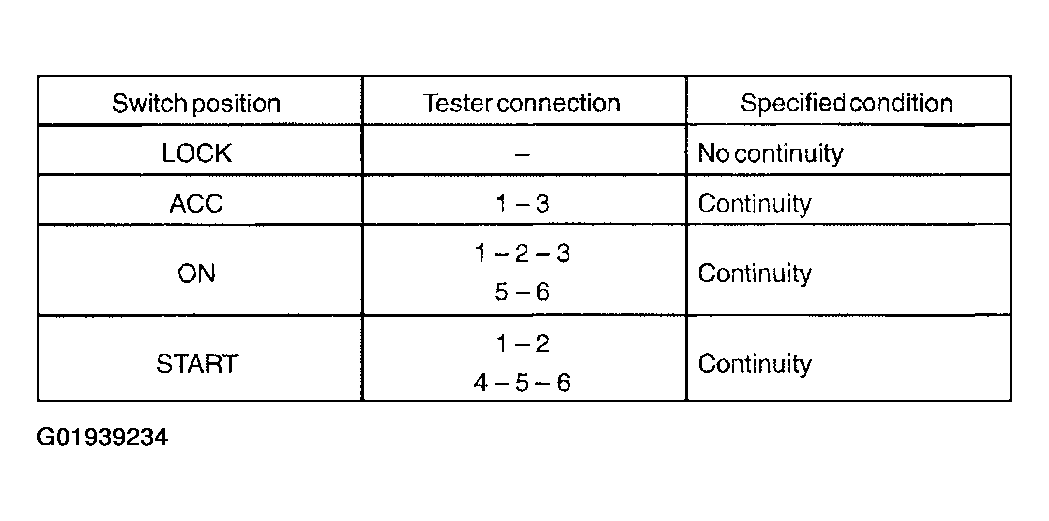

Fig 2: Identifying Ignition Switch Test Parameters
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT KEY UNLOCK WARNING SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

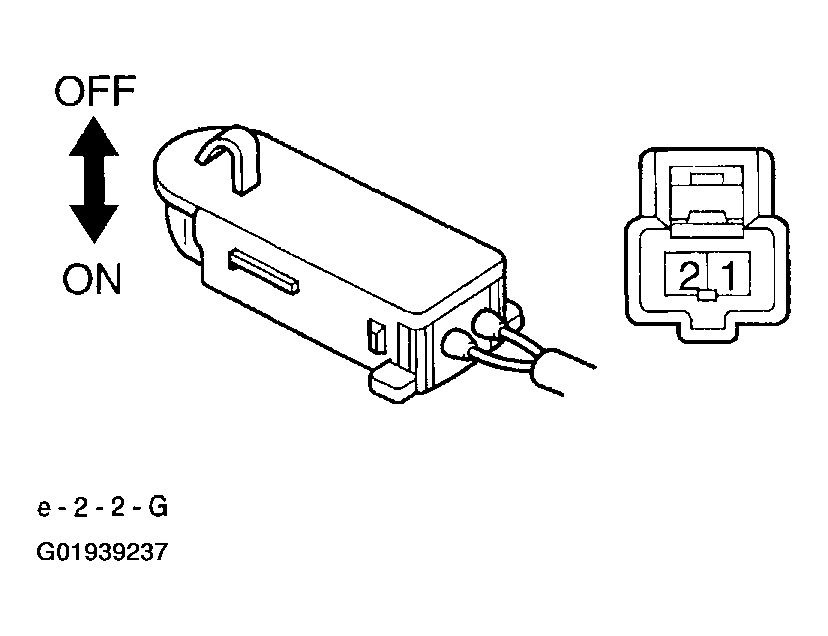

Fig 3: Identifying Key Unlock Warning Switch Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

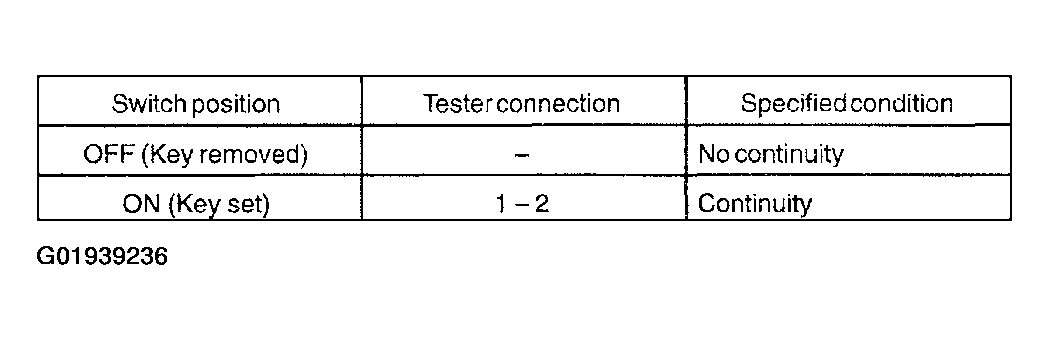

Fig 4: Identifying Key Unlock Warning Switch Test Parameters
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT IGNITION RELAY (Marking: IG1) CONTINUITY
If continuity is not as specified, replace the relay.

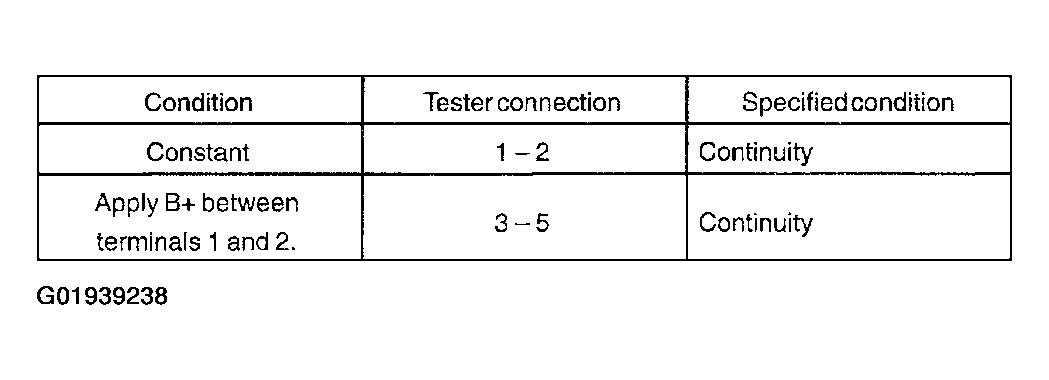

Fig 5: Identifying Ignition Relay Test Parameters
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

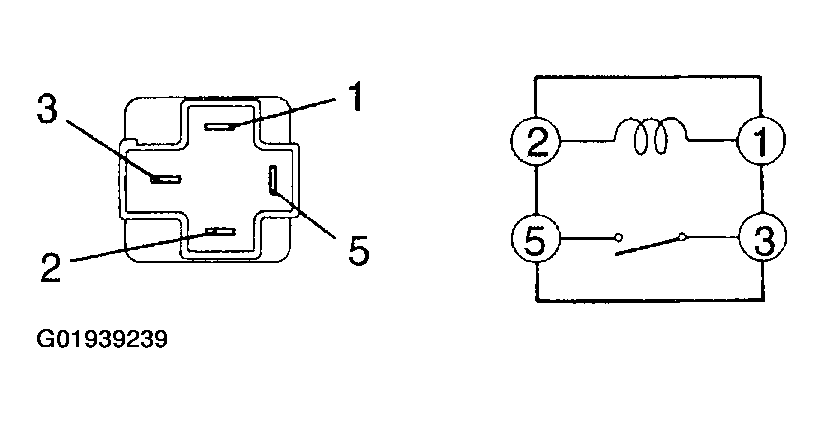

Fig 6: Identifying Ignition Relay Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT KEY UNLOCK WARNING BUZZER
Check the buzzer sound when driver's door is opened and key inserted.

If operation is not as specified, replace the combination meter.

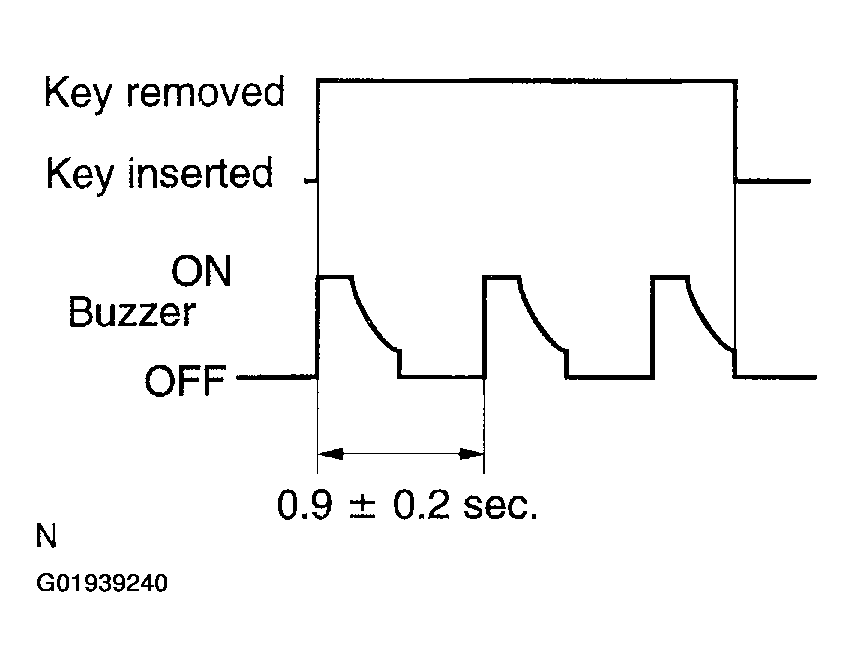

Fig 7: Identifying Buzzer On/Off Cycles
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
