4. Inspect Crankshaft Position Sensor

Remove the front engine under cover.
Disconnect the A/C compressor. See REMOVAL .
Disconnect the connector from the oil level gauge clamp.
Using an ohmmeter, measure the resistance between the terminals.

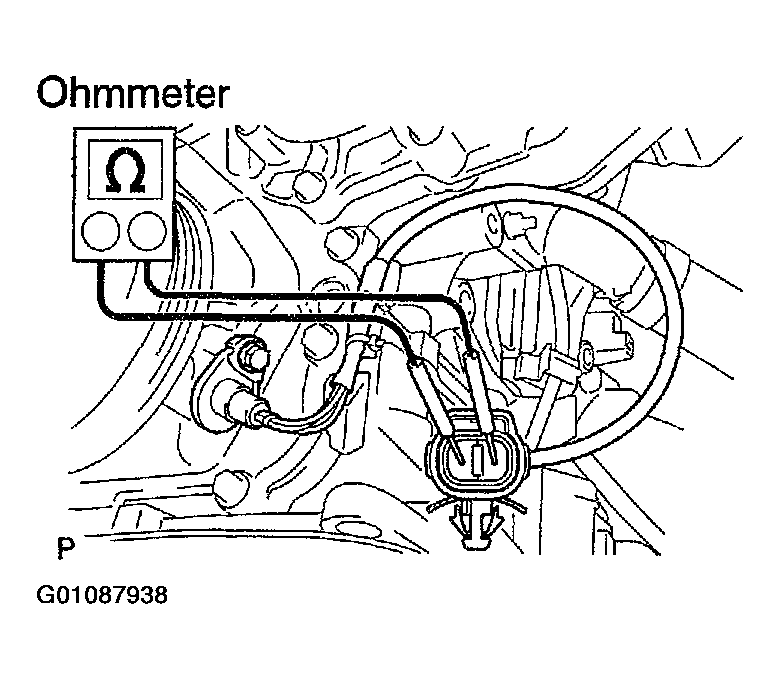

Fig 1: Measuring Crankshaft Position Sensor Resistance
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Specifying Crankshaft Position Sensor Resistance
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the resistance is not as specified, replace the sensor.
Reinstall the connector with the oil level gauge clamp.
Reconnect the A/C compressor. See INSTALLATION .
Reinstall the front engine under cover.
