Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

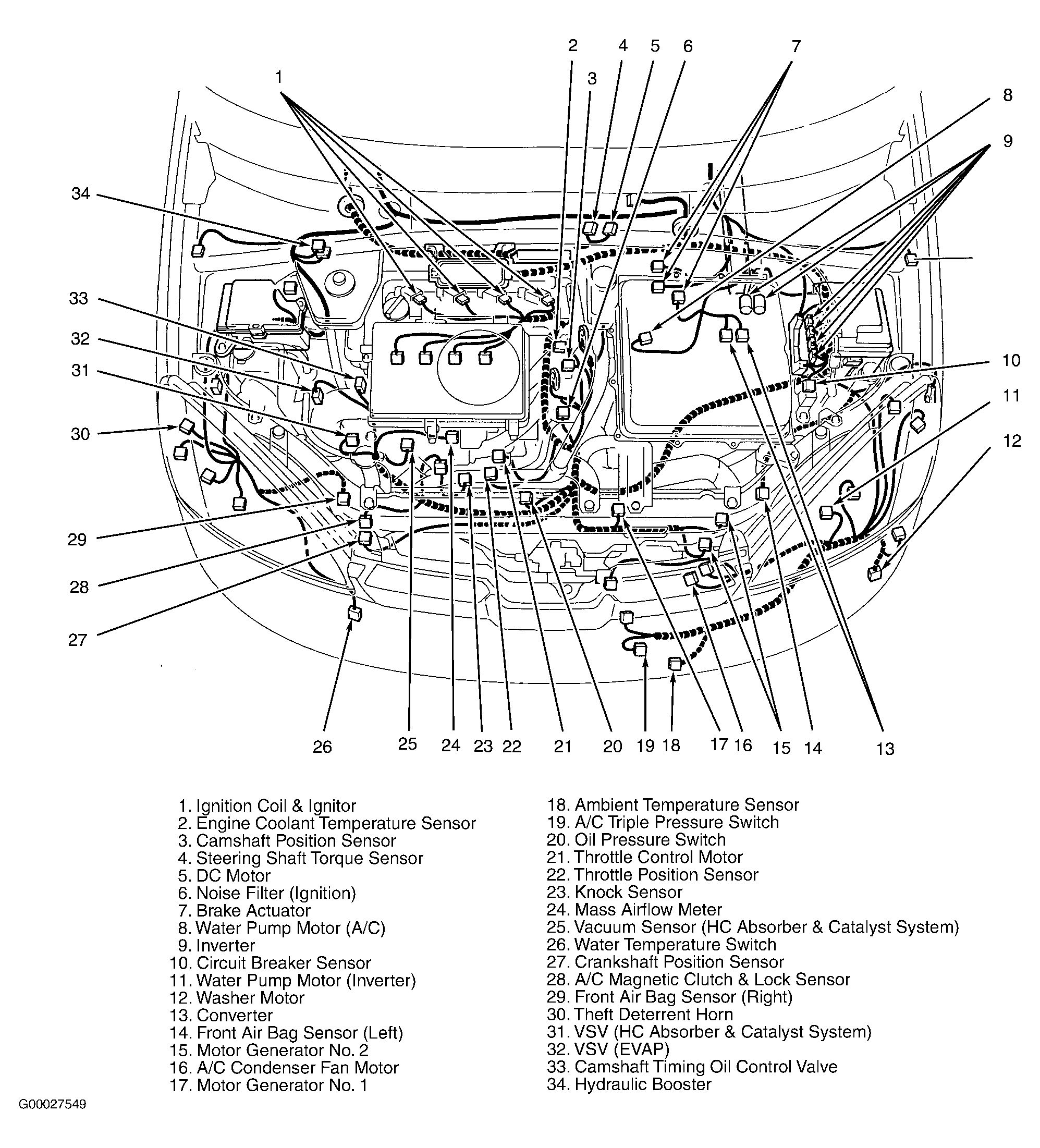

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Dash Relays And Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL & PASSENGER ROOM RELAY IDENTIFICATION

RELAY DESCRIPTION
Daytime Running Light Main Relay
Turn Signal Flasher Relay
Back-Up Light Relay

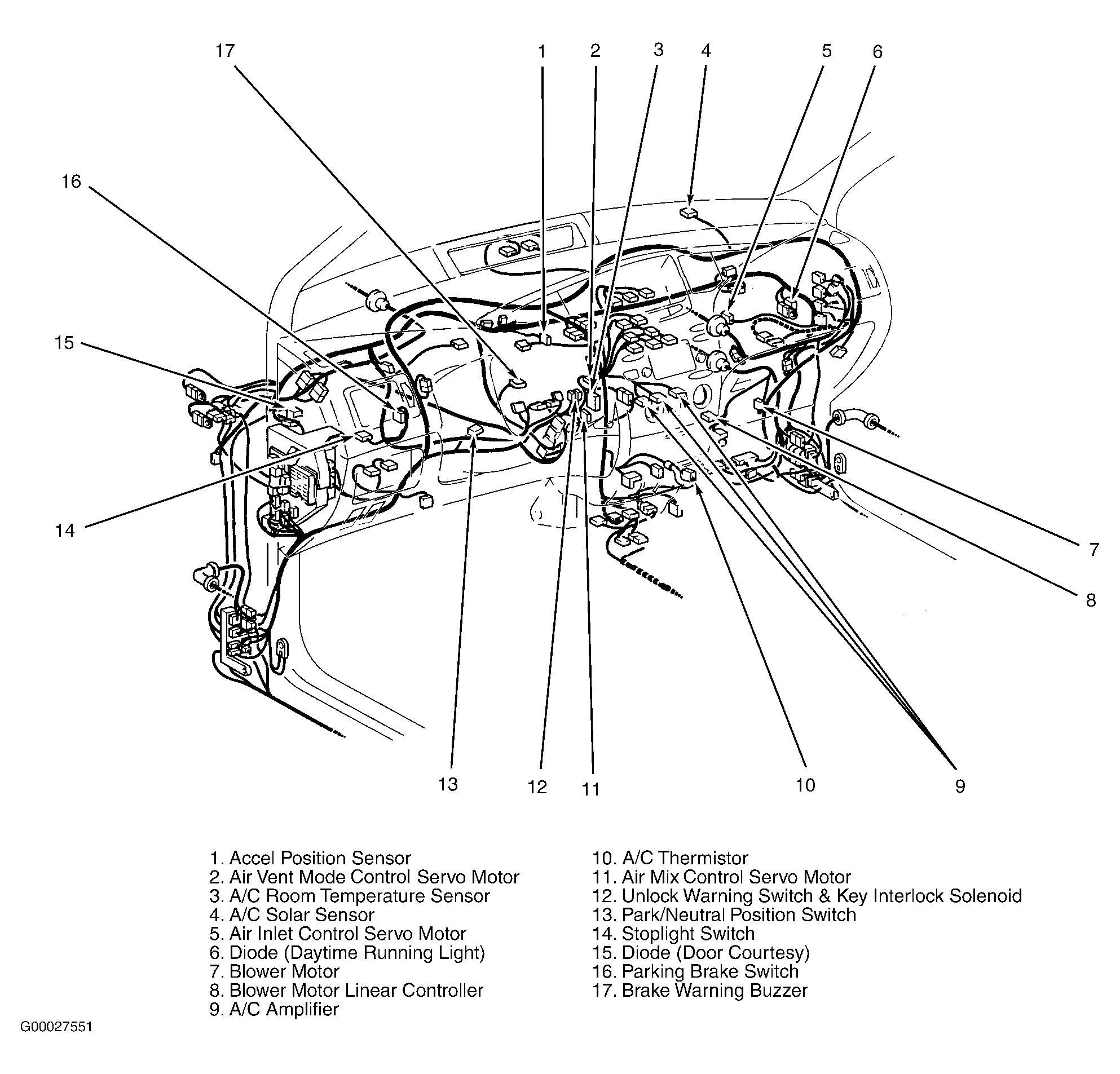

Fig 3: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Vehicle Overview

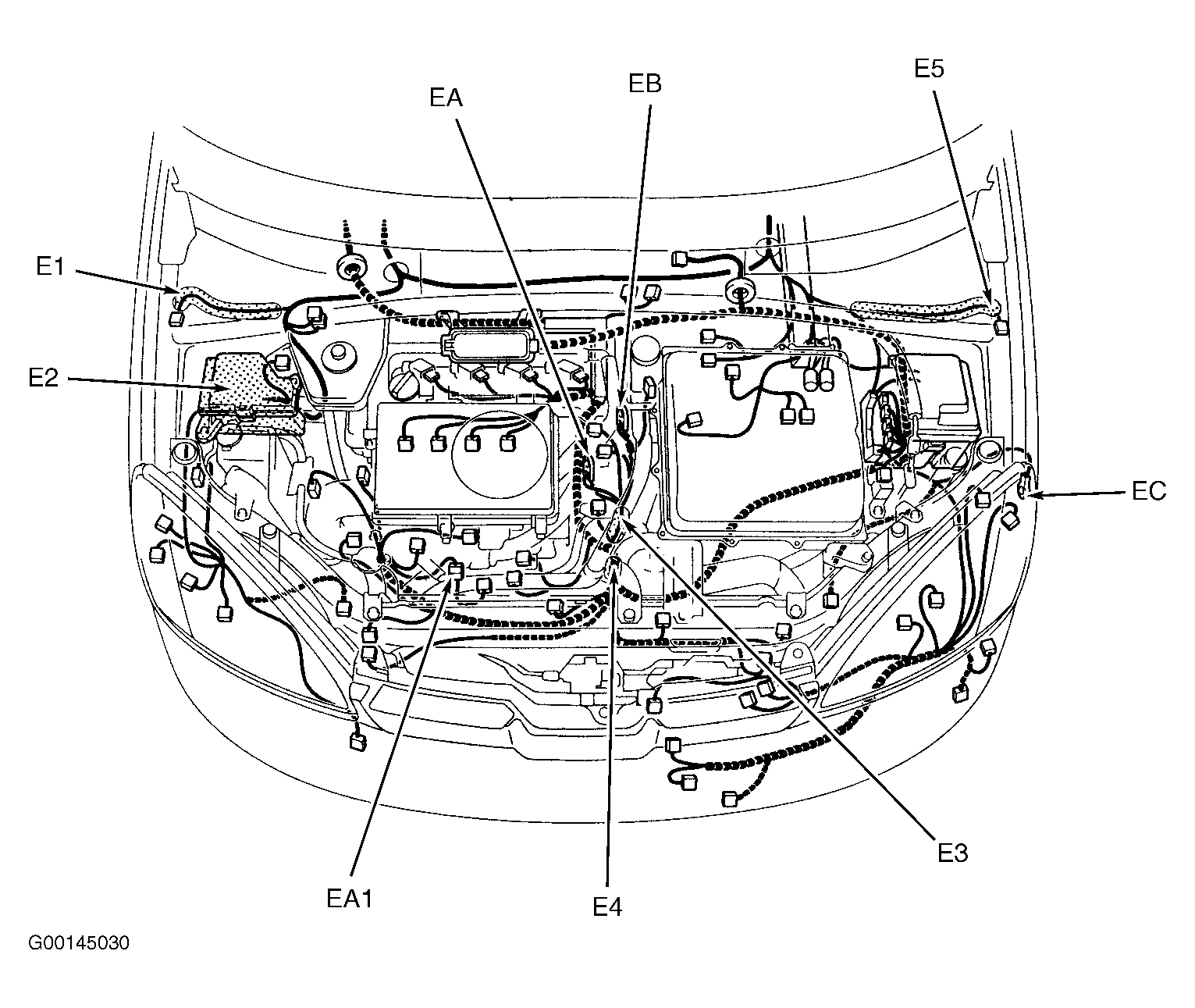

Fig 5: Engine Compartment

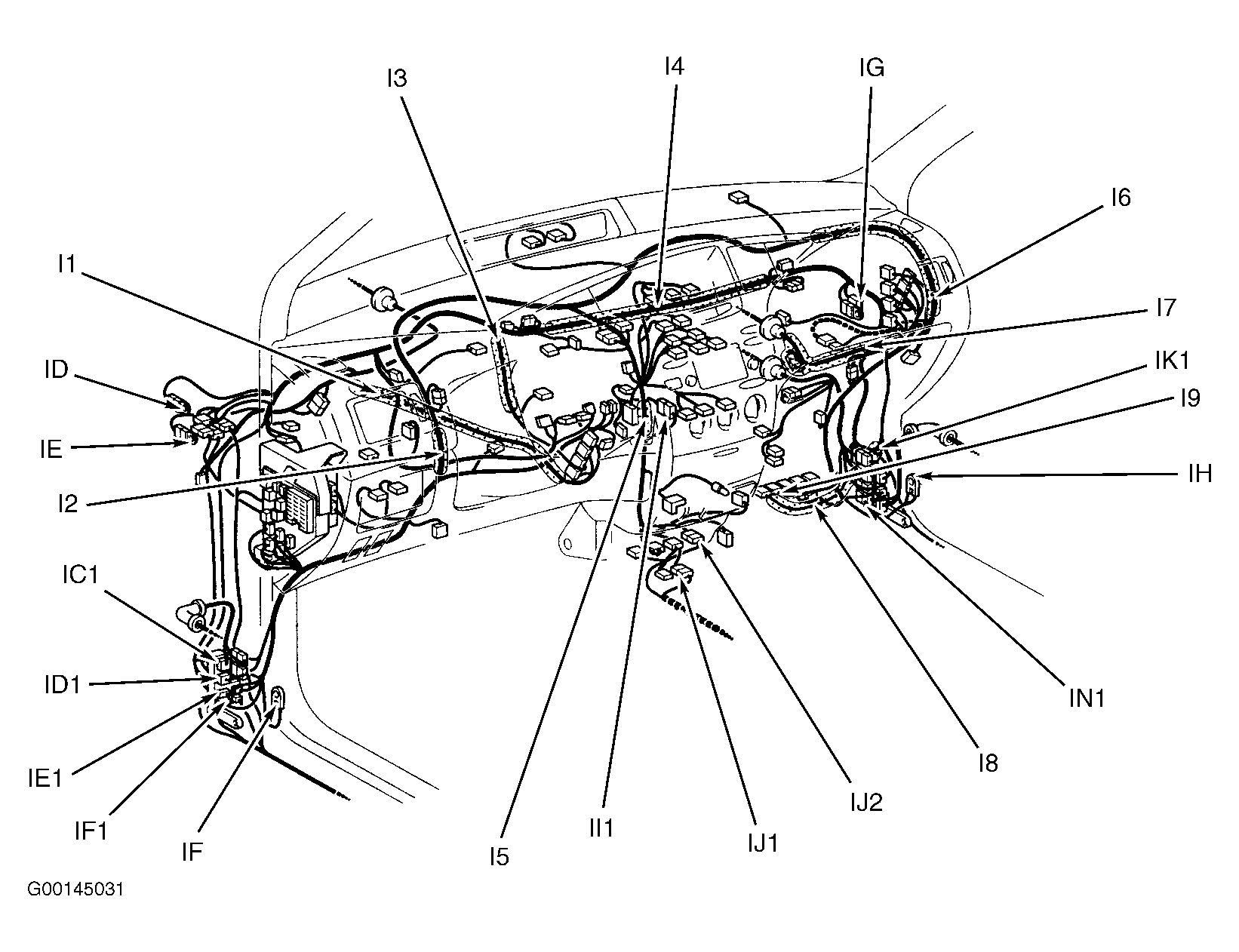

Fig 6: Dash
