Starter Signal Circuit: Tacoma
- If Toyota hand-held tester is available, go to next step. If Toyota hand-held tester is not available, go to step 5.

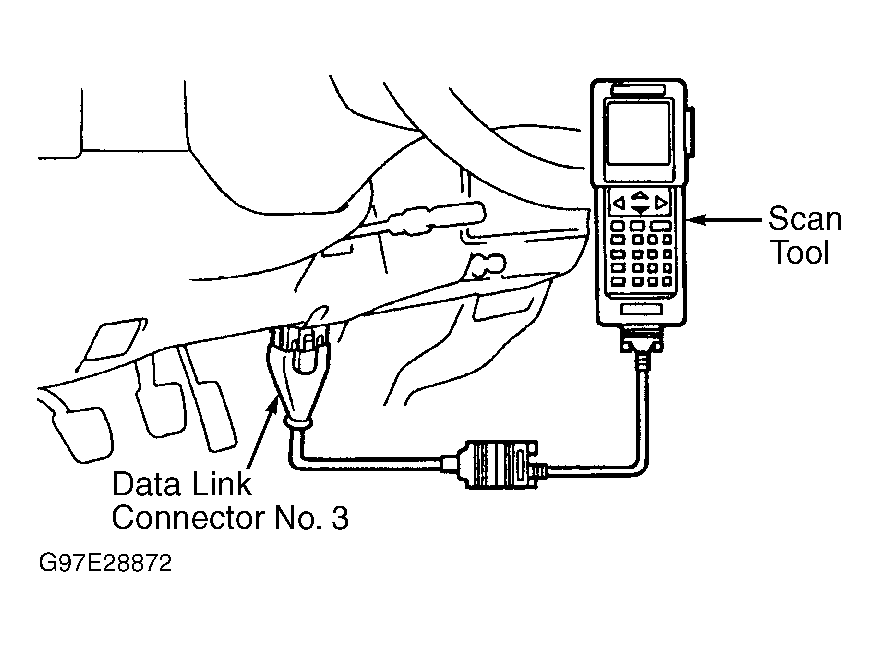

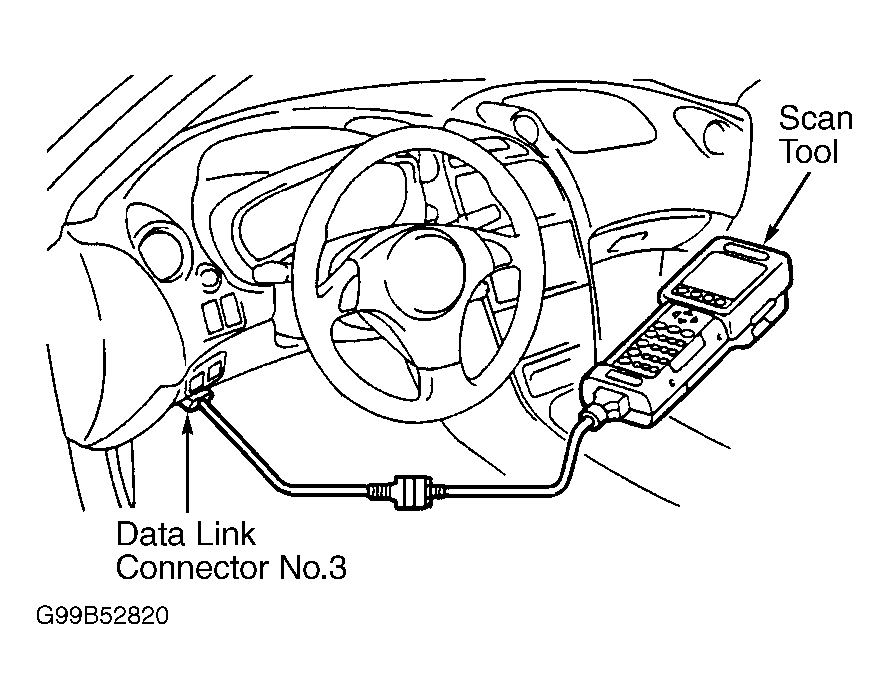

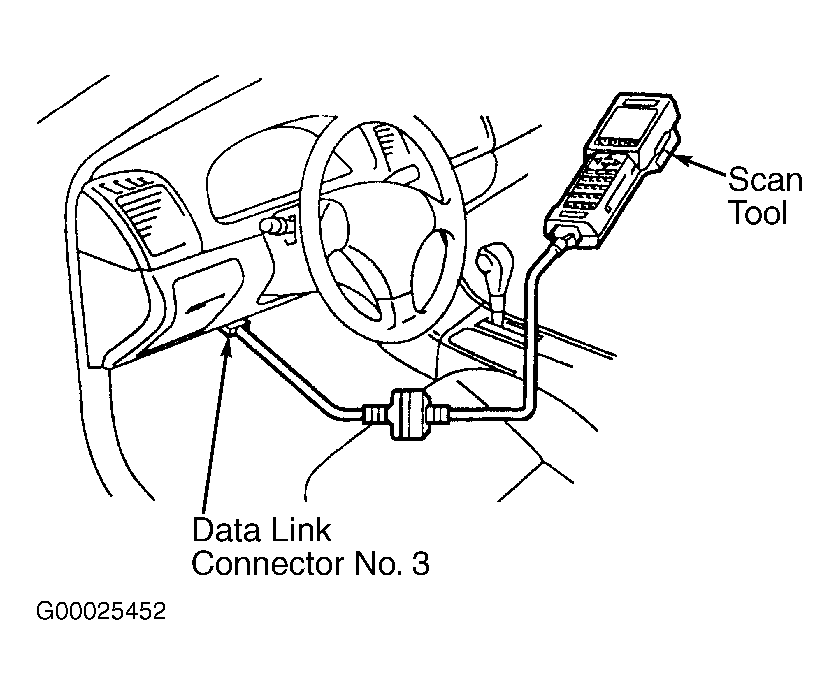

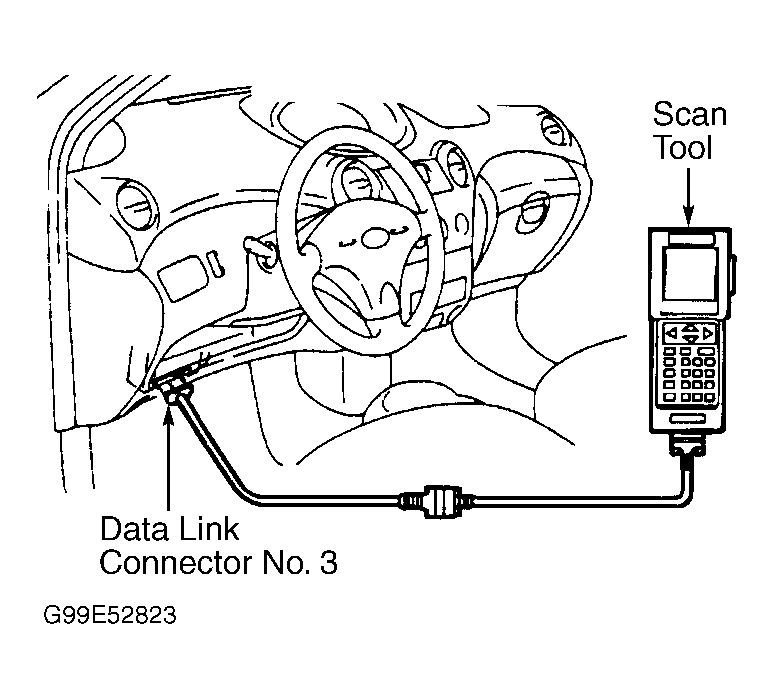

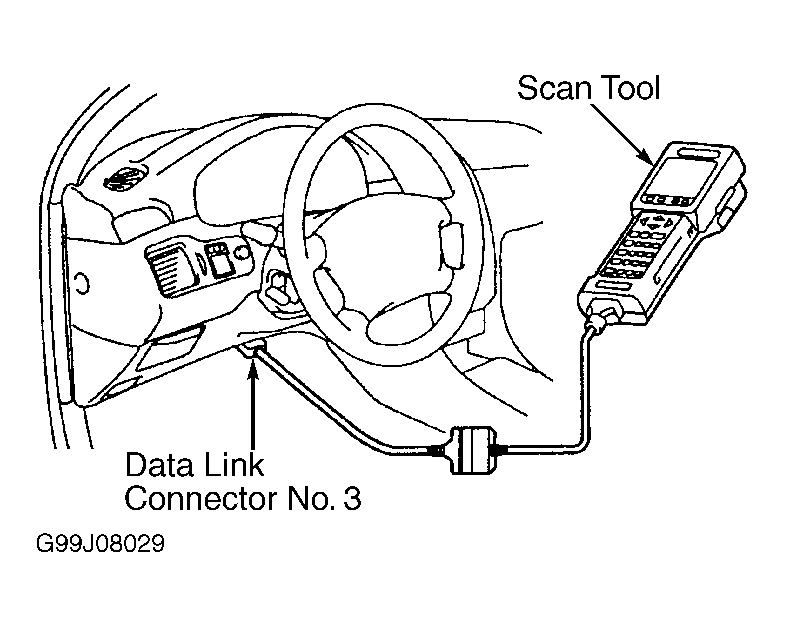

- Connect hand-held tester to data link connector No. 3 at driver's side of instrument panel. See Fig 10. Turn ignition on and then turn hand-held tester on. Read STA signal display on hand-held tester with ignition on, and with ignition switch in START position and engine cranking. STA signal display should read OFF with ignition on, and ON with ignition switch in START position. If STA signal display is not as specified, go to next step. If STA signal display is as specified, diagnose by symptom. See TROUBLE SHOOTING - NO CODES
article.
- Check for open in Black/White wire between park/neutral position switch (A/T) or clutch start switch (M/T) and terminal No. 7 at Engine Control Module (ECM) electrical connector E5. This is the starter signal circuit to ECM. See WIRING DIAGRAMS
article. ECM is located behind glove box. For illustration of ECM location, see THEORY & OPERATION

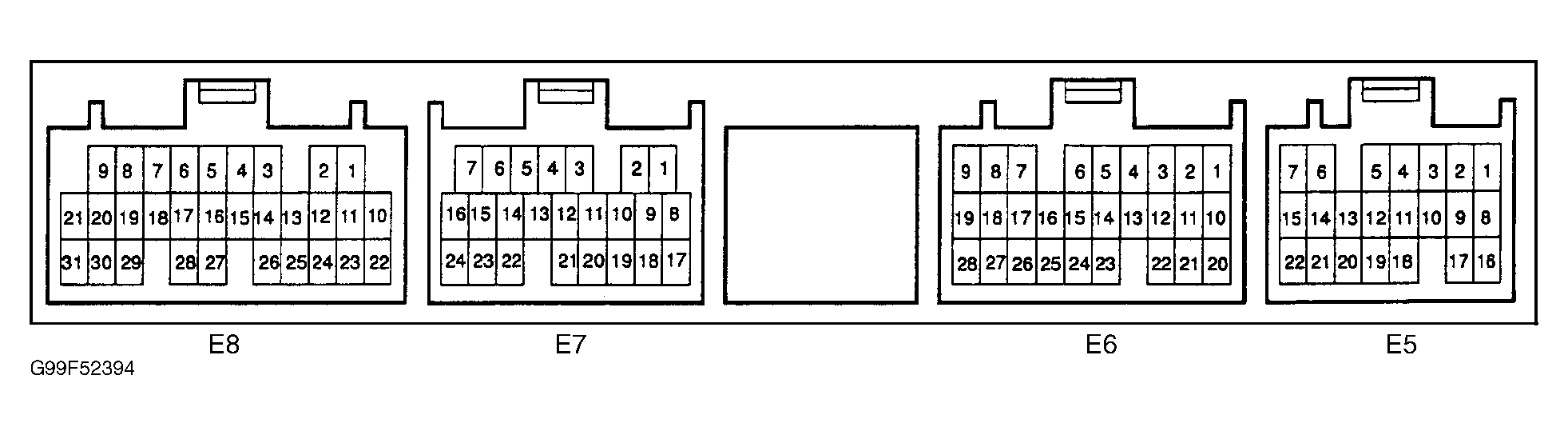

article. For ECM electrical connector terminal identification, see Figure. Park/neutral position switch is located on side of transmission and clutch start switch is located near top of clutch pedal.
- If wiring harness or electrical connector is defective, repair as necessary. If wiring harness and electrical connectors are okay, check ECM ground circuit. See WIRING DIAGRAMS
article. If ECM ground circuit is defective, repair ground circuit as necessary. If ECM ground circuit is okay, replace ECM.
- Remove glove box for access to Engine Control Module (ECM). For illustration of ECM location, see THEORY & OPERATION
article.

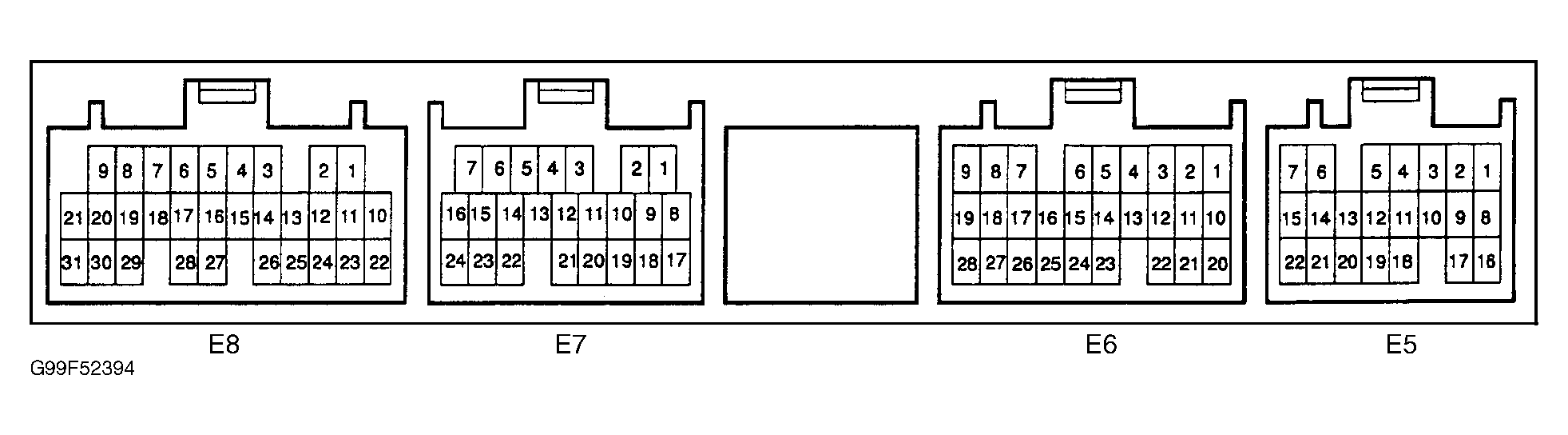

- Note ECM electrical connector terminals. See Figure. Using voltmeter, check voltage body ground and terminal No. 7 (Black/White wire) at ECM electrical connector E5 with ignition switch in START position and engine cranking. This is the STA terminal at ECM. Voltage should be 6 volts or more. If voltage is not within specification, go to next step. If voltage is within specification, diagnose by symptom. See TROUBLE SHOOTING - NO CODES
article.
- Check for open in Black/White wire between park/neutral position switch (A/T) or clutch start switch (M/T) and terminal No. 7 at ECM electrical connector E5. This is the starter signal circuit to ECM. See WIRING DIAGRAMS
article. Park/neutral position switch is located on side of transmission and clutch start switch is located near top of clutch pedal.
- If wiring harness or electrical connector is defective, repair as necessary. If wiring harness and electrical connectors are okay, check ECM ground circuit. See WIRING DIAGRAMS
article. If ECM ground circuit is defective, repair ground circuit as necessary. If ECM ground circuit is okay, replace ECM.
