Emission Systems & Sub-Systems: Notes

NOTE: For emission system component location, refer to illustrations. See Fig 1-Fig 8 . On Camry and Highlander, illustration was not available from manufacturer.

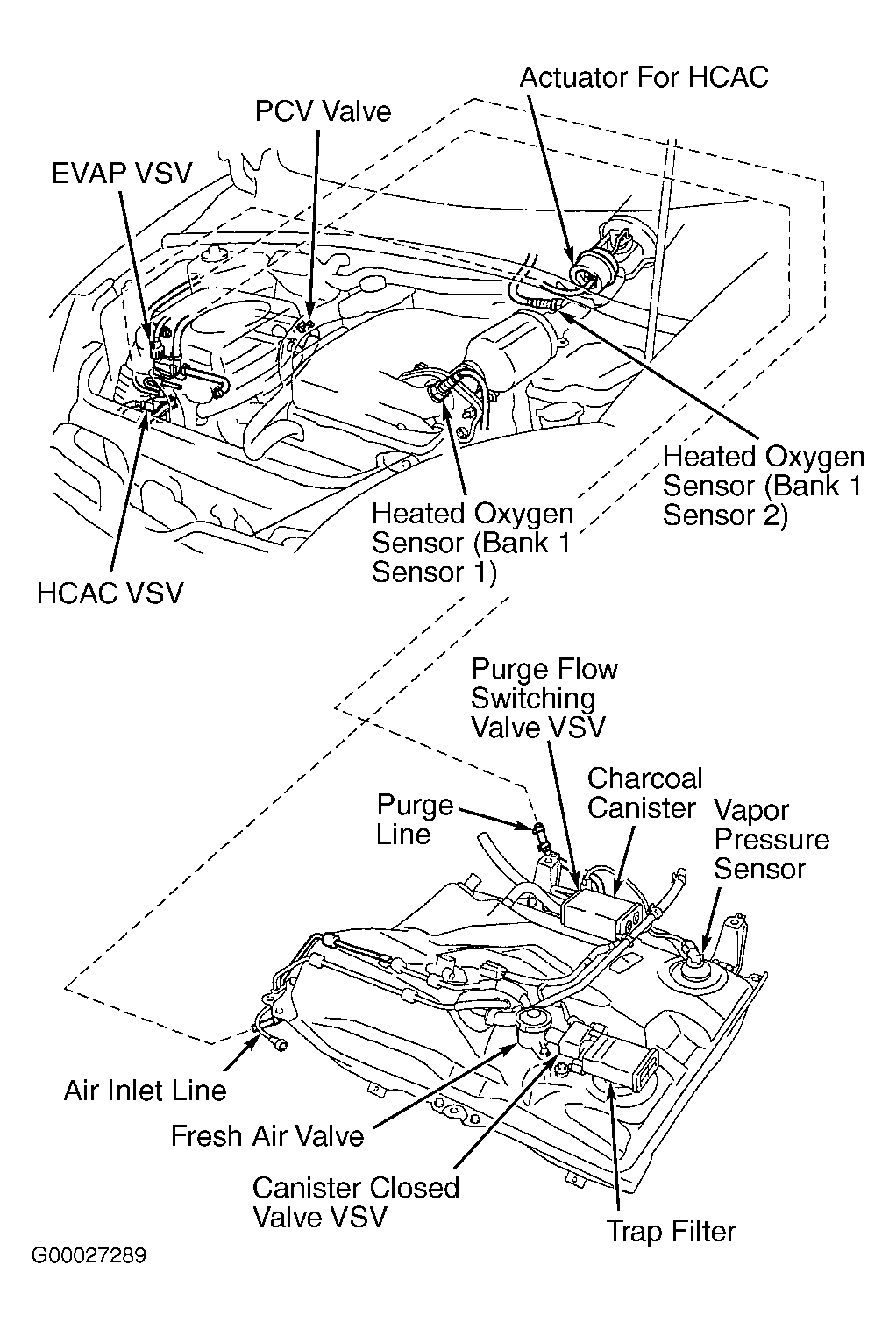

Fig 1: Locating Emission System Components (Camry Solara)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

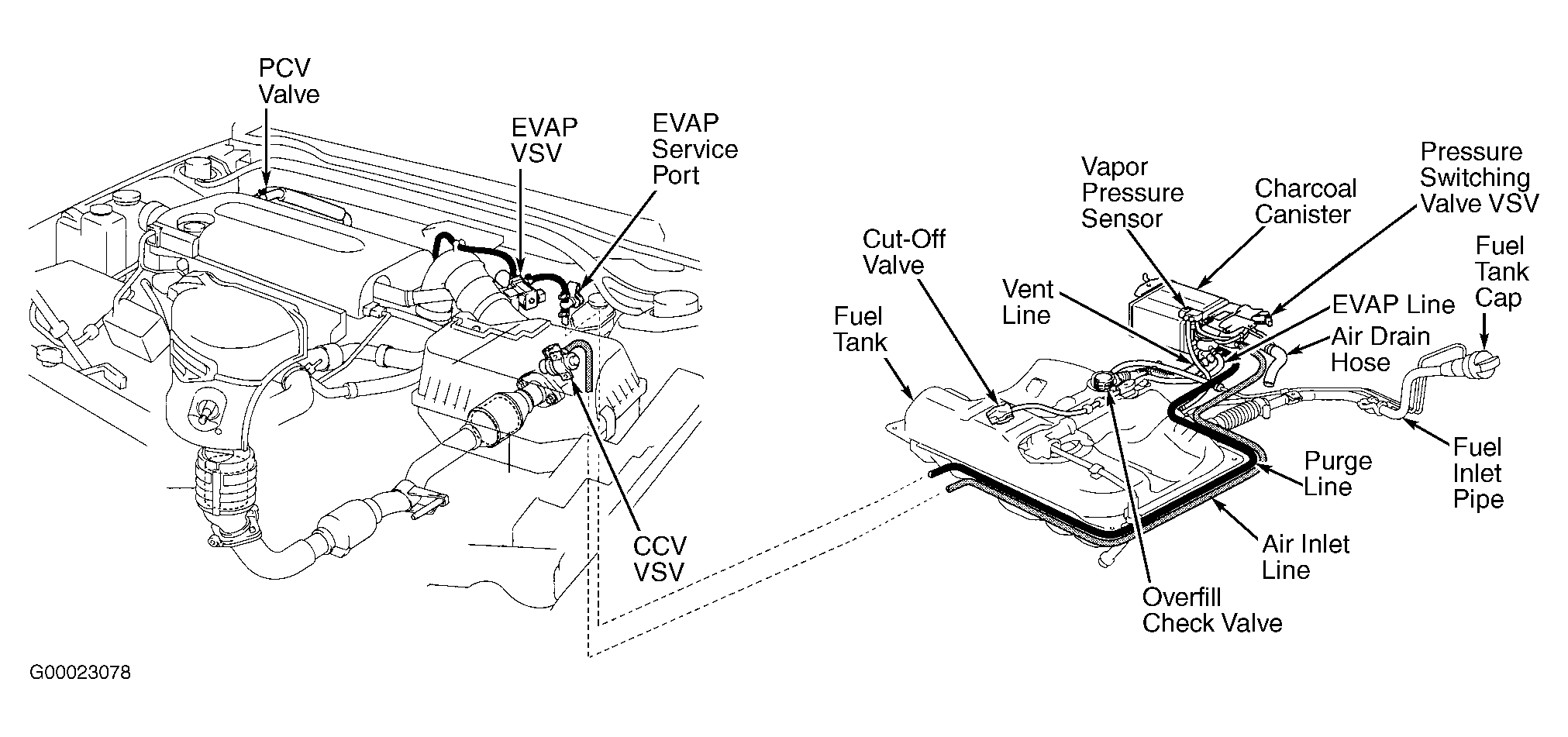

Fig 2: Locating Emission System Components (Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

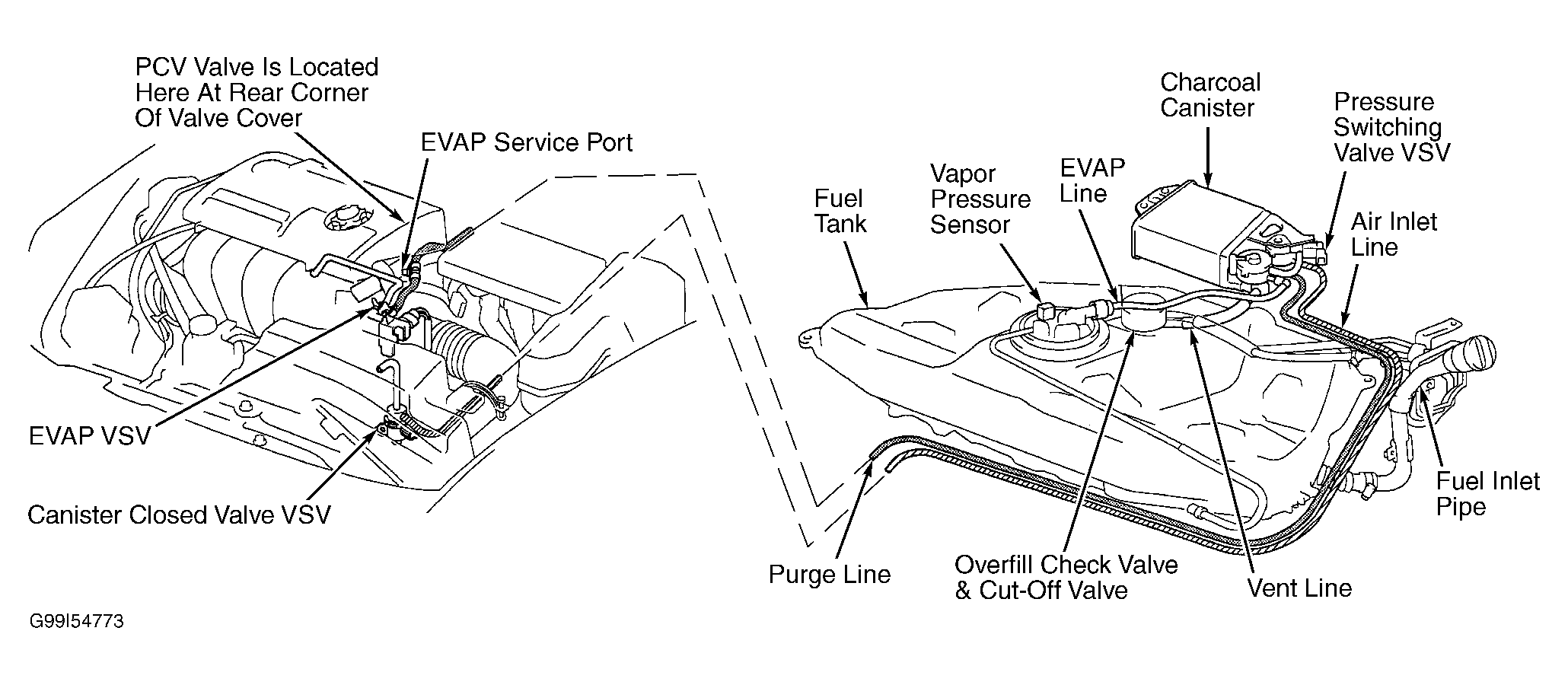

Fig 3: Locating Emission System Components (Corolla)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

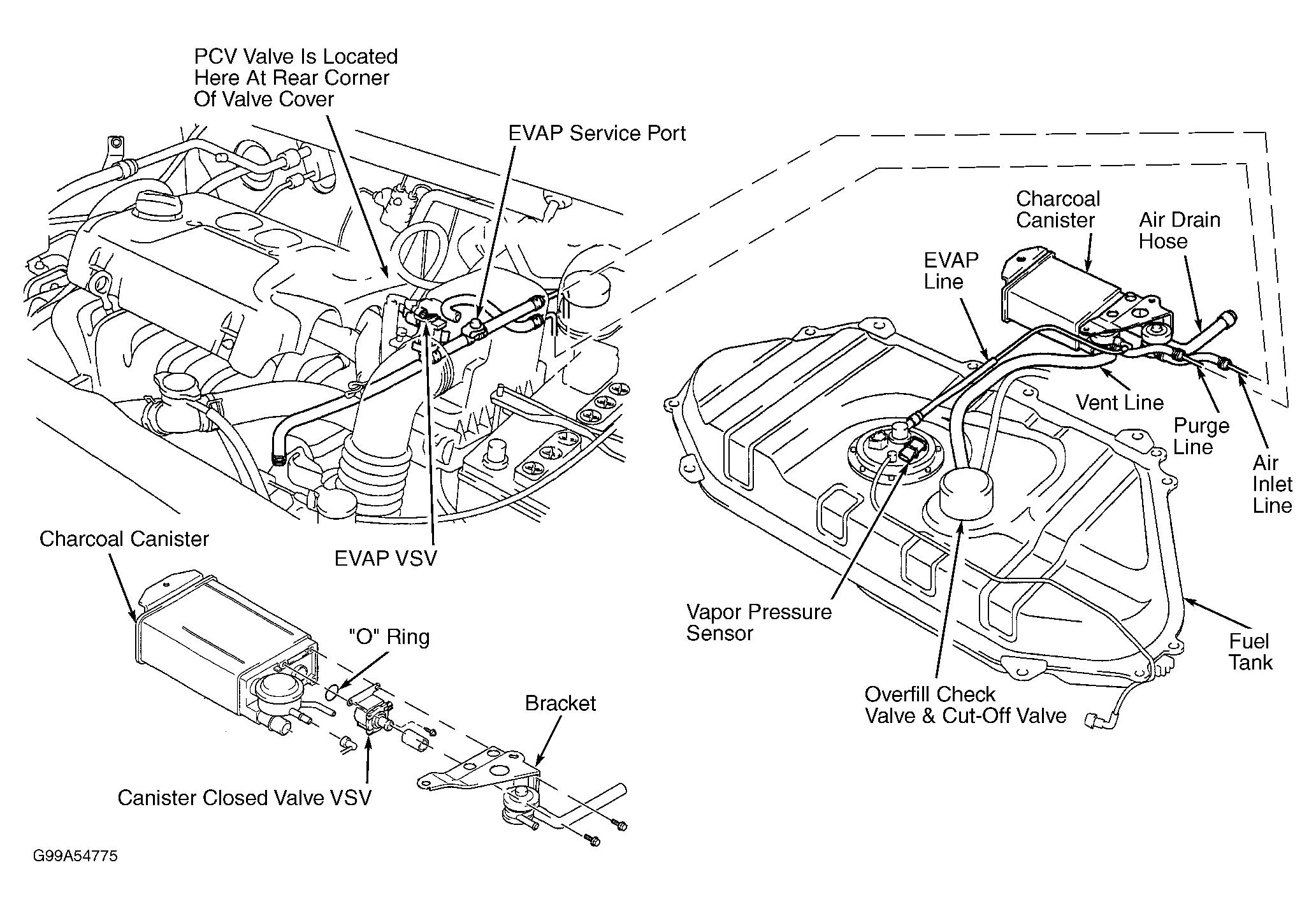

Fig 4: Locating Emission System Components (ECHO)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

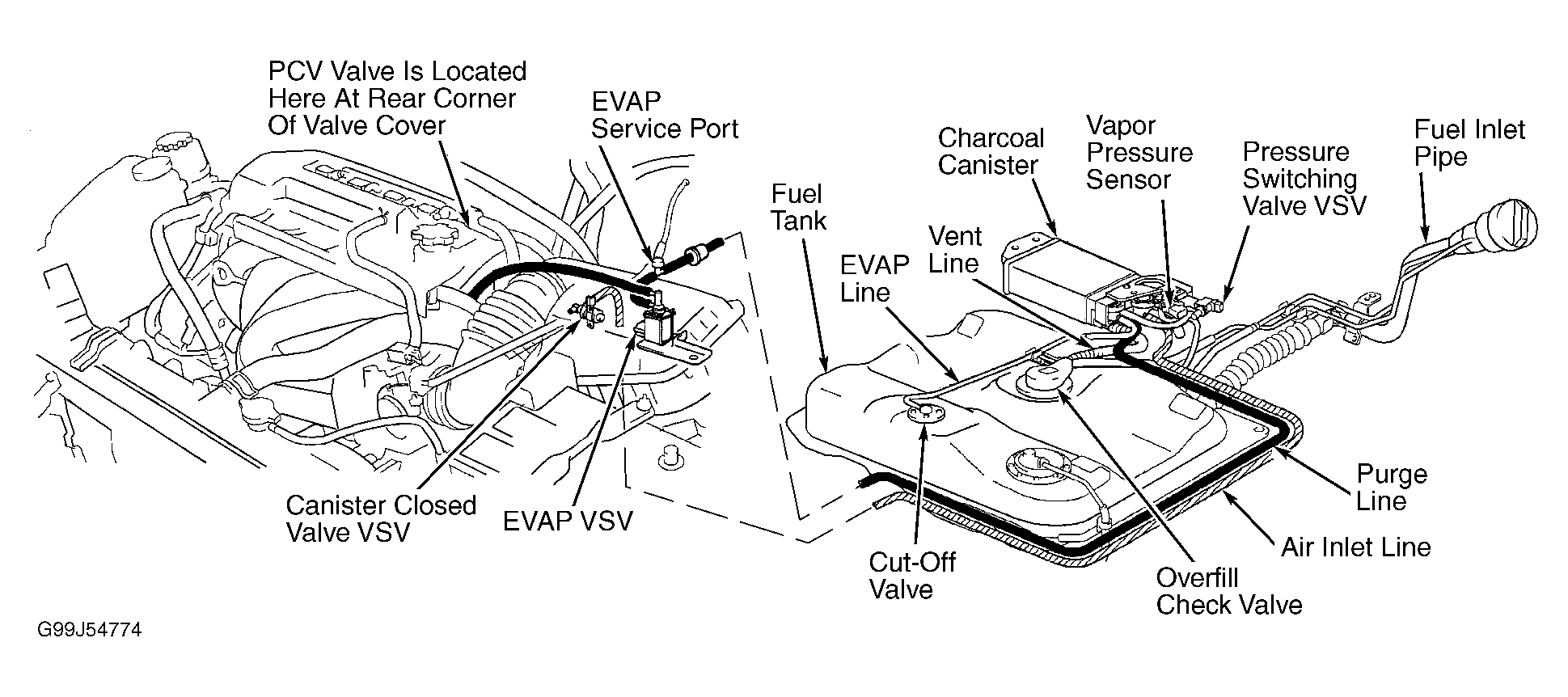

Fig 5: Locating Emission System Components (MR2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Locating Emission System Components (Prius)

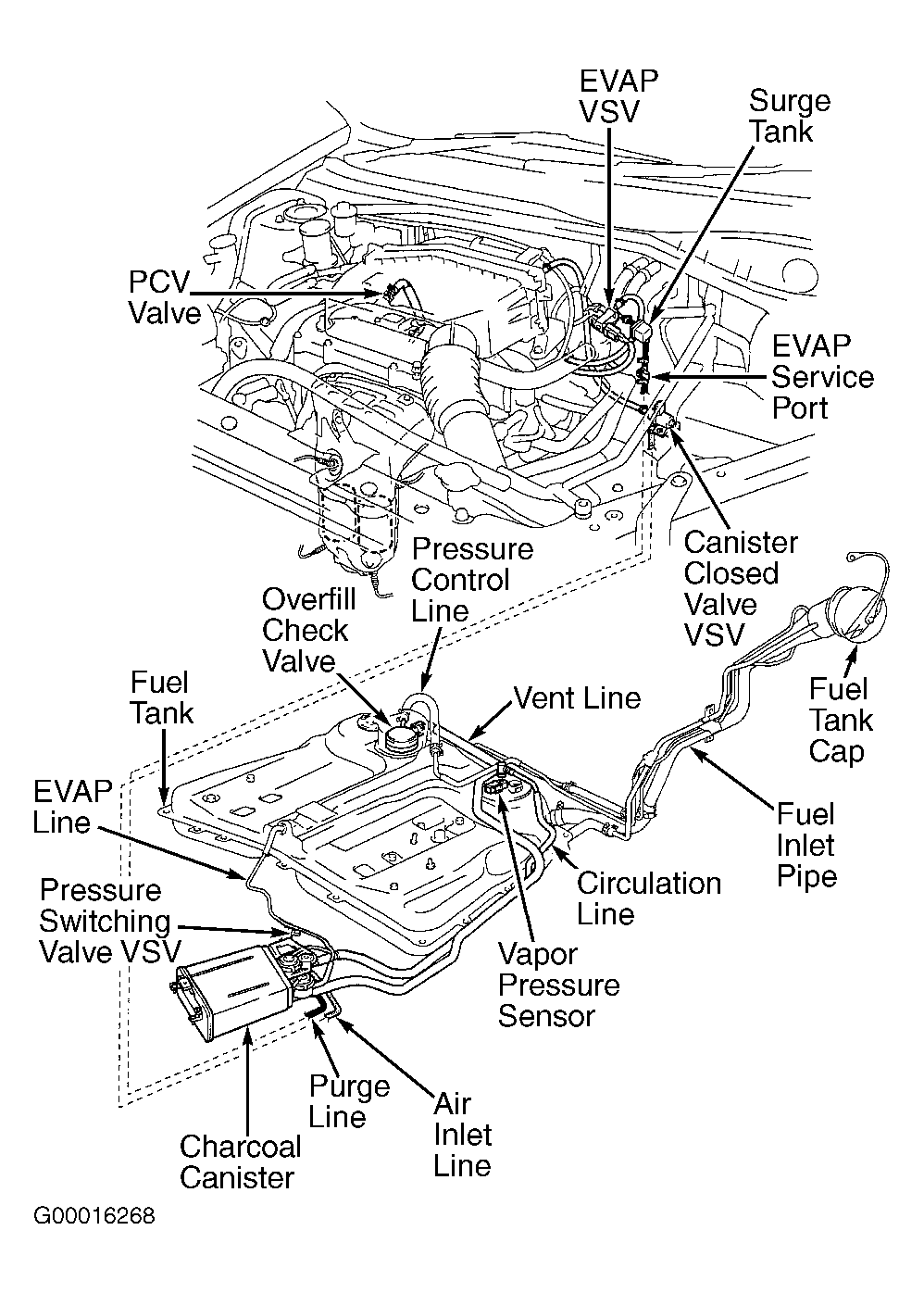

Fig 7: Locating Emission System Components (RAV4)

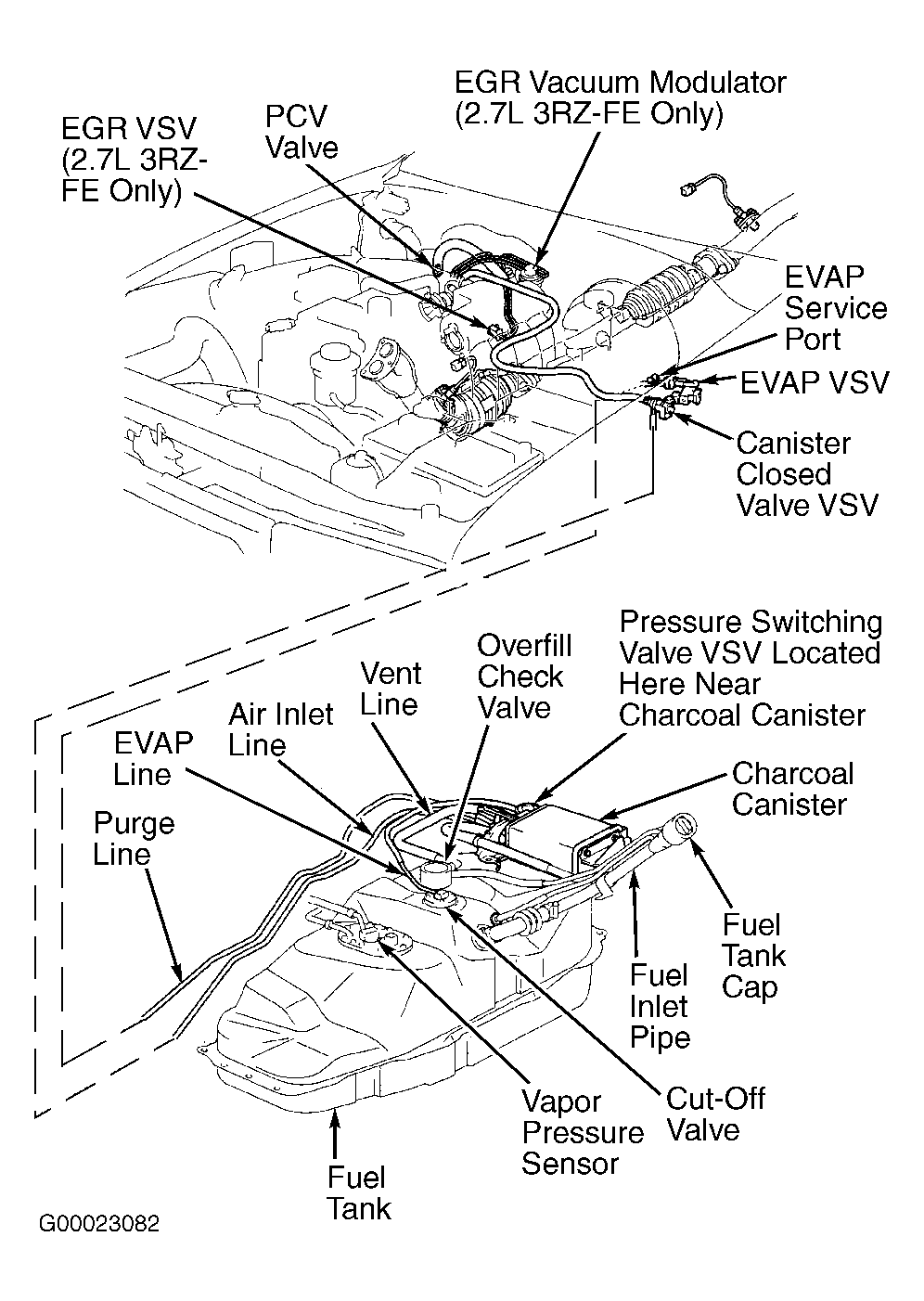

Fig 8: Locating Emission System Components (Tacoma)
