Idle Air Control Valve: RAV4

  1. Start engine and warm engine to normal operating temperature. Ensure idle speed is within specification. See IDLE SPEED & MIXTURE in ON-VEHICLE ADJUSTMENTS - 4-CYLINDER article.
  2. Turn ignition off. Apply parking brake and place transaxle in Neutral. Ensure A/C is off. Install Jumper Wire (SST 09843-18020 or SST 09843-18040) between terminals No. 4 (CG) and No. 13 (TC) on data link connector No. 3. See Figure. Data link connector No. 3 is located behind driver's side of instrument panel. See Figure.
  3. Start engine and note engine speed. Engine speed should increase to 900-1500 RPM for 5 seconds and then return to idle speed. If engine speed is as specified, turn ignition off and remove jumper wire. If engine speed is not as specified, turn ignition off and remove jumper wire. Go to next step.

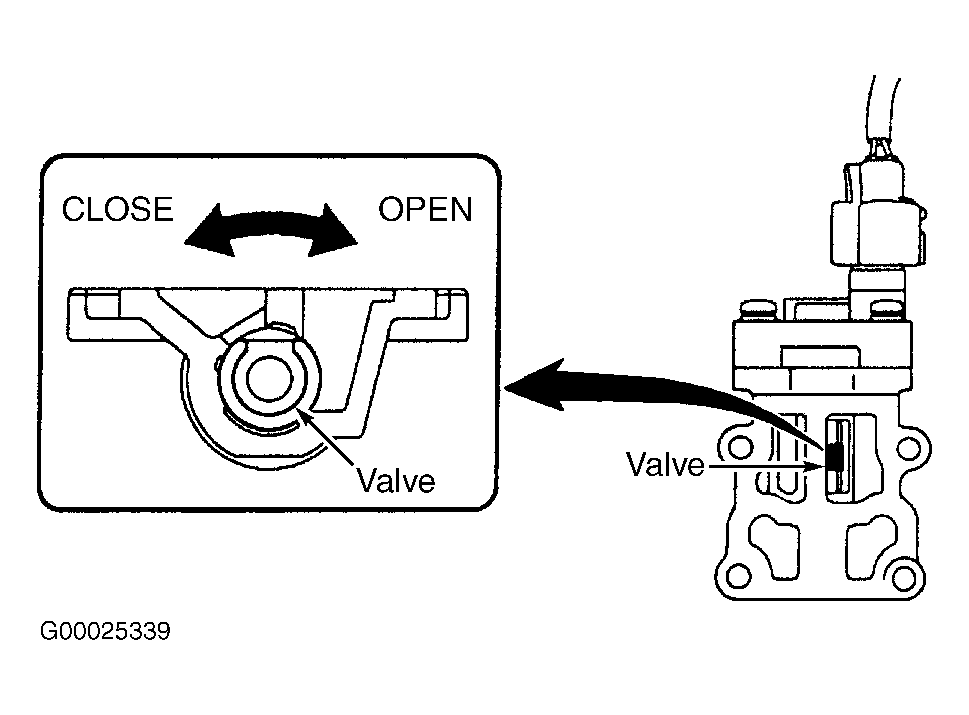

  4. To test Idle Air Control (IAC) valve operation, remove IAC valve from throttle body. See THROTTLE BODY under FUEL SYSTEMS in REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article. Check that valve on inside of IAC valve is half open. See Figure. Reinstall electrical connector on IAC valve.
  5. Turn ignition on. Check that valve on inside of IAC valve moves from half open to fully closed, fully open and then returns to half open within .5 seconds. See Figure. Turn ignition off.
  6. If IAC valve operates as specified, wiring circuit, Engine Control Module (ECM) and IAC valve are okay. If IAC valve does not operate, check wiring circuit between ECM and IAC valve. ECM is located behind passenger's side kick panel, just below instrument panel. For illustration of ECM location, see THEORY & OPERATION article. See WIRING DIAGRAMS article. If wiring circuit and ECM are okay, replace IAC valve.
