DTC P0120: Throttle/Pedal Position Sensor/Switch Circuit: Notes

WARNING: Read service precautions before proceeding with service procedure. See SERVICE PRECAUTIONS .

CAUTION: If Engine Control Module (ECM) replacement is instructed in following test, always ensure ECM electrical connectors and ground circuits are okay. If either are defective, repair and repeat testing to confirm ECM malfunction.

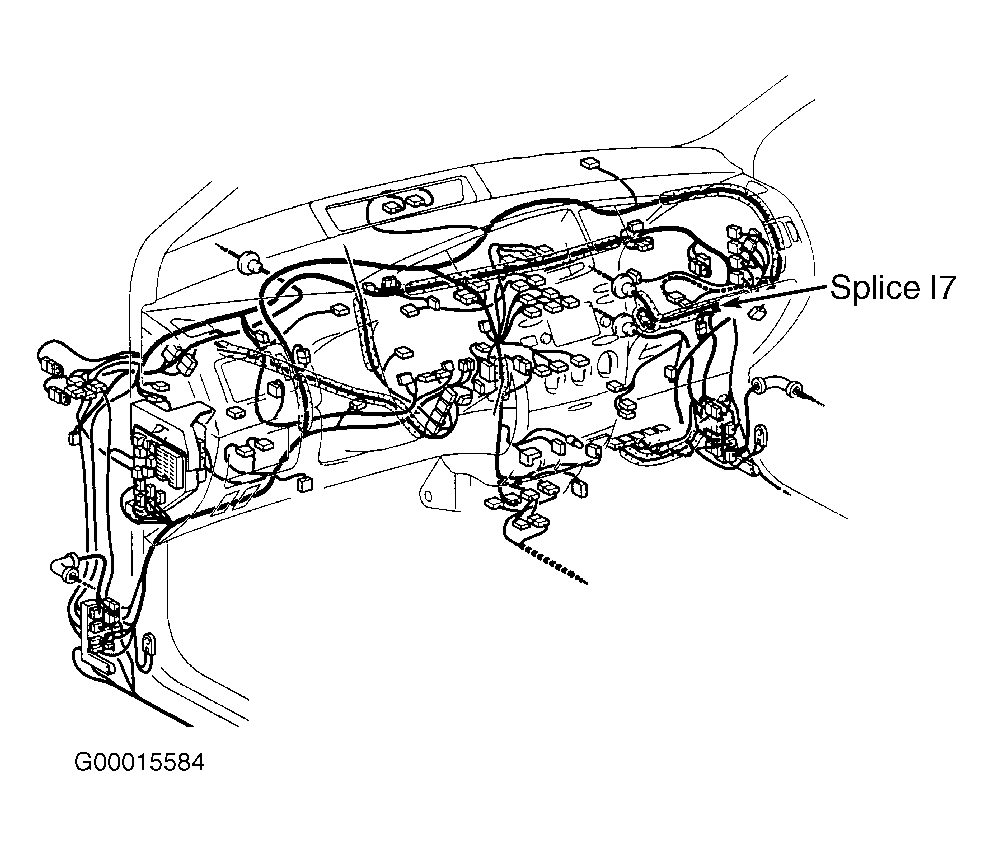

NOTE: If DTCs P0110, P0115, P0120 and P0450 are output simultaneously, the E2 sensor ground circuit at terminal No. 18 (Brown wire) at ECM electrical connector E8 may be open. See WIRING DIAGRAMS article. For ECM electrical connector terminal identification, see Figure. It may be necessary to check Brown wire between splice I7 and terminal No. 18 at ECM electrical connector E8. Splice I7 is located behind passenger's side of instrument panel. See Figure.
