How To Proceed With Troubleshooting: Notes

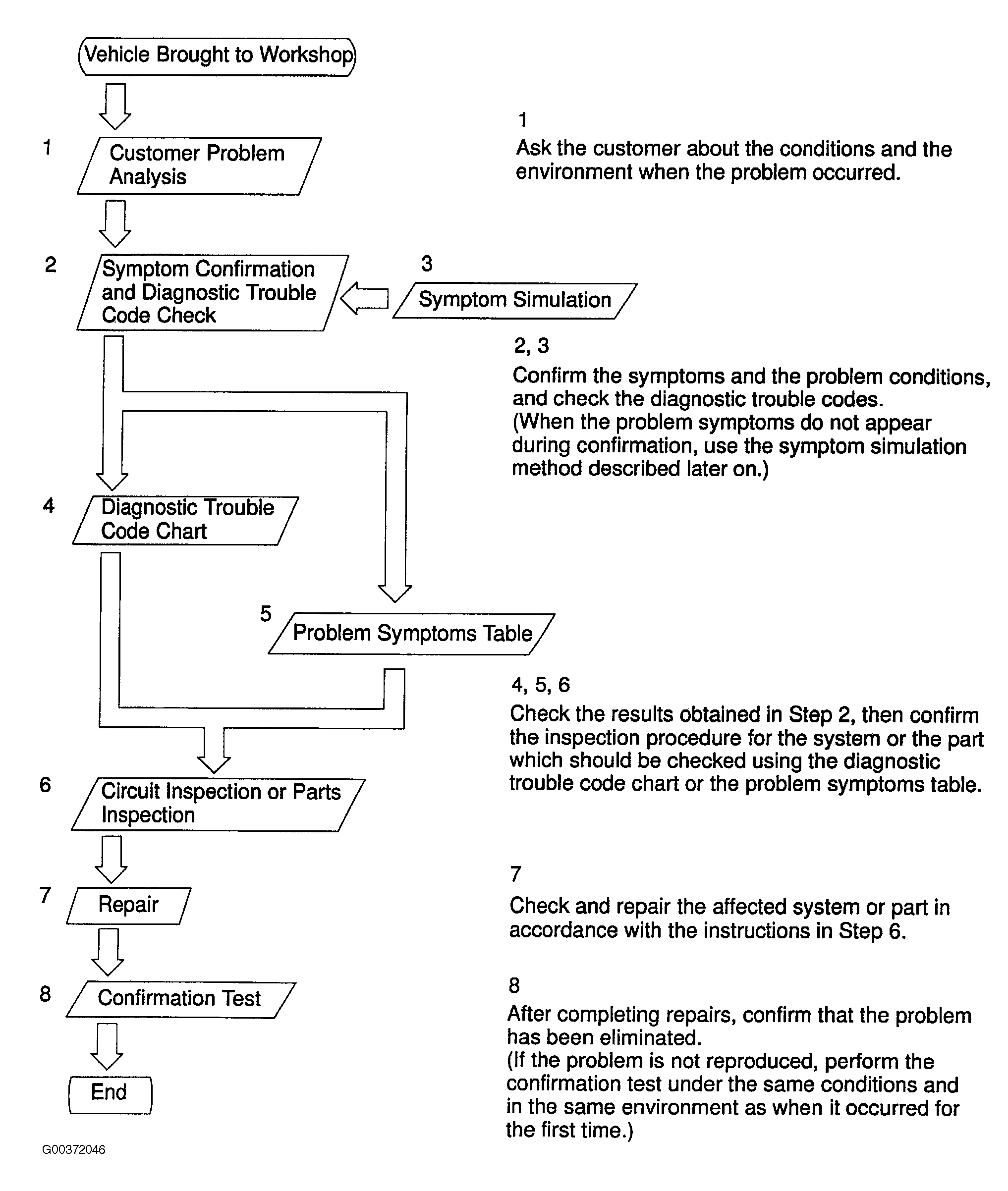

Carry out troubleshooting in accordance with the troubleshooting flowchart. Here, only the basic procedure is shown. Details are provided in Diagnostics articles, showing the most effective methods for each circuit. Confirm the troubleshooting procedures first for the relevant circuit before beginning troubleshooting of that circuit.
