Counter Drive Gear: Disassembly

Remove ball bearing LH (MG2 side) :
Using SST and a press, drive out the ball bearing.

SST 09950-00020, 09950-60010 (09951-00330), 09950-70010 (09951-07100).

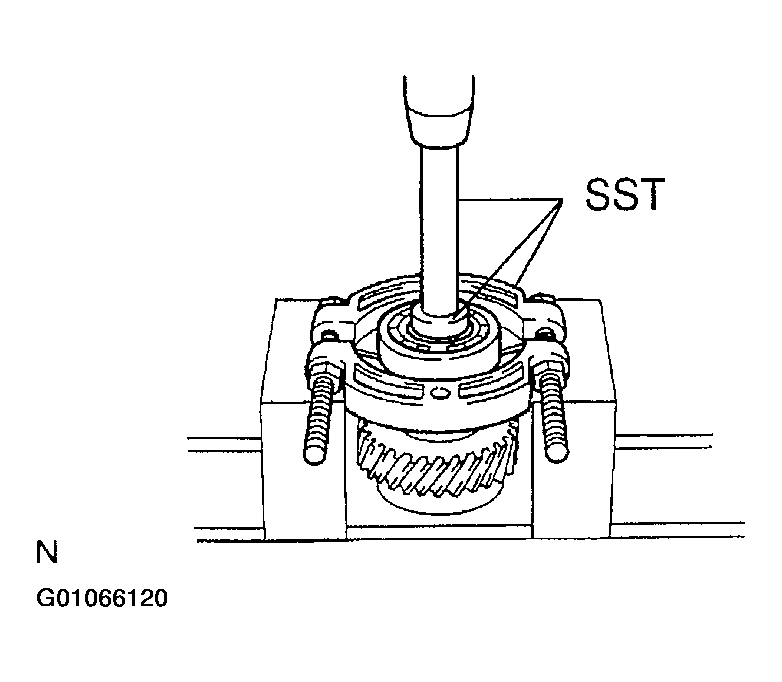

Fig 1: Pressing Left Side Counter Drive Gear Bearing Out (MG2 side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove ball bearing RH (MG2 side) :
Using SST and a press, drive out the ball bearing.

SST 09950-00020, 09950-60010 (09951-00330), 09950-70010 (09951-07100).

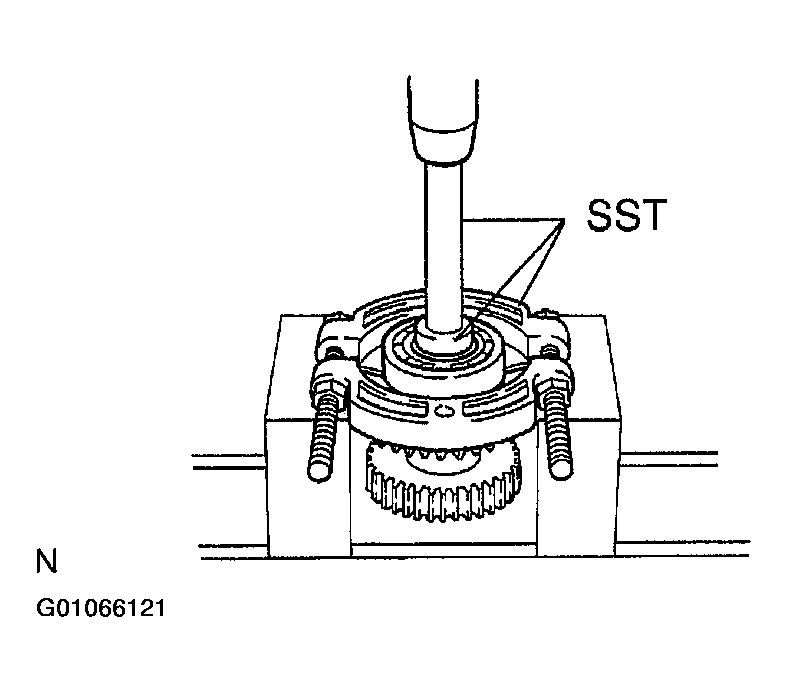

Fig 2: Pressing Right Side Counter Drive Gear Bearing Out (MG1 side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
