Counter Driven Gear: Disassembly

Remove tapered roller bearing (MG1 side) .
Using SST and a press, remove the tapered roller bearing.

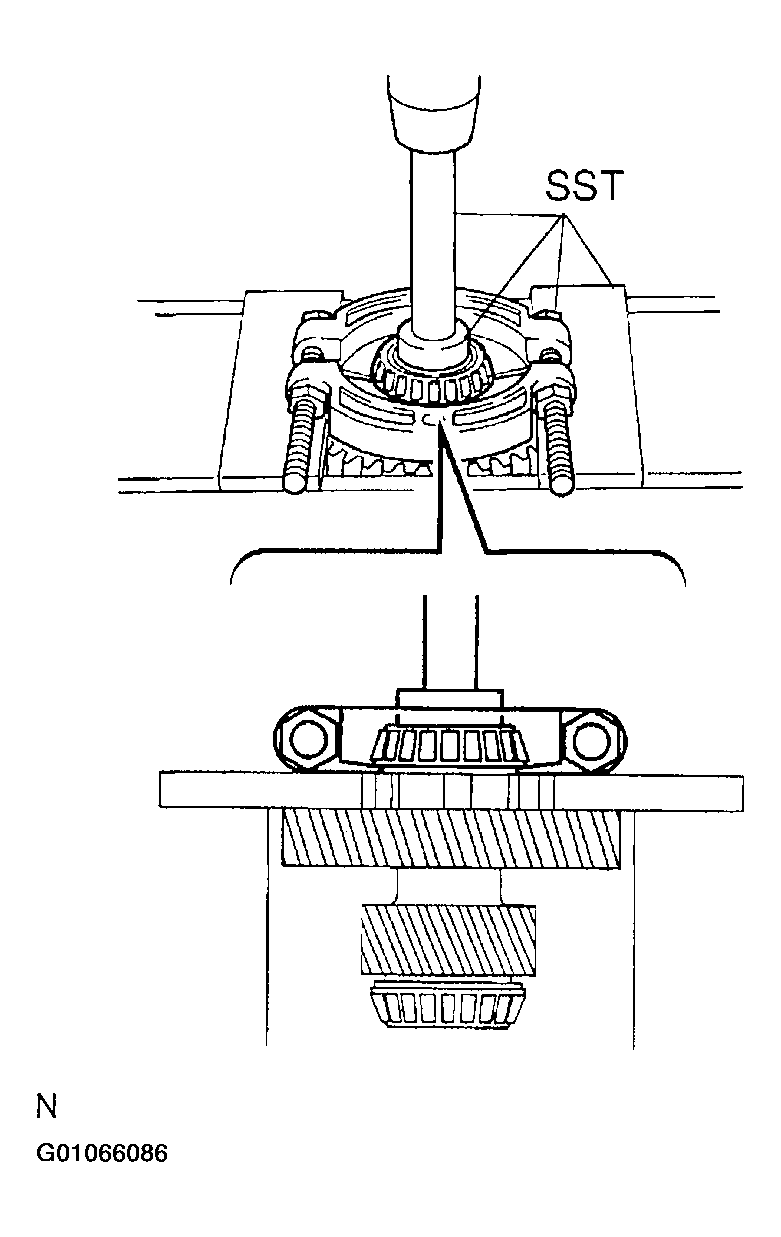

Fig 1: Pressing Counter Driven Gear Tapered Roller Bearing Out (MG1 side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09527-10011, 09950-00020, 09950-60010 (09951-00360), 09950-70010 (09951-07100)
Remove tapered roller bearing (MG2 side) .
Using SST and a press, remove the tapered roller bearing.

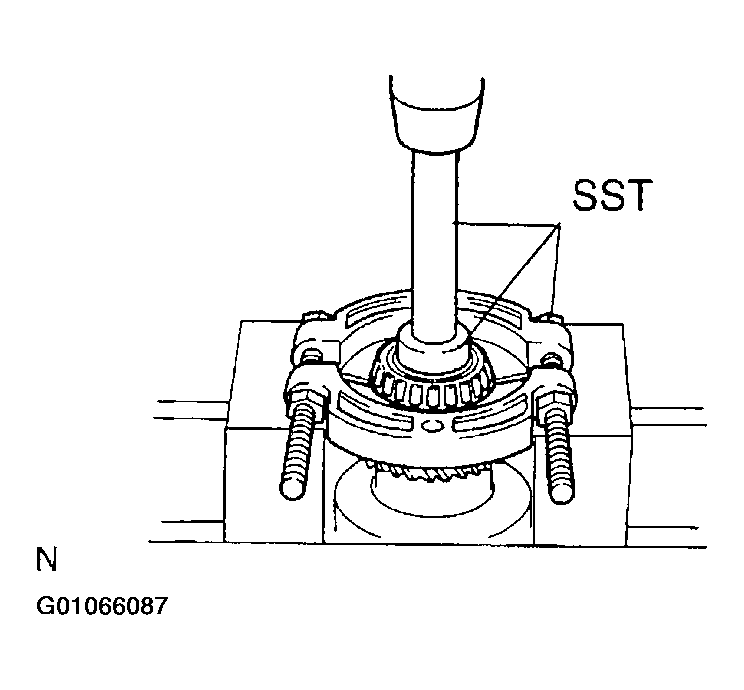

Fig 2: Pressing Counter Driven Gear Tapered Roller Bearing Out (MG2 side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09950-00020, 09950-60010 (09951-00360), 09950-70010 (09951-07100)
