Counter Driven Gear: Reassembly

Install new tapered roller bearing (MG1 side) .
Using SST and a press, press in a new tapered roller bearing.

SST 09608-06041.

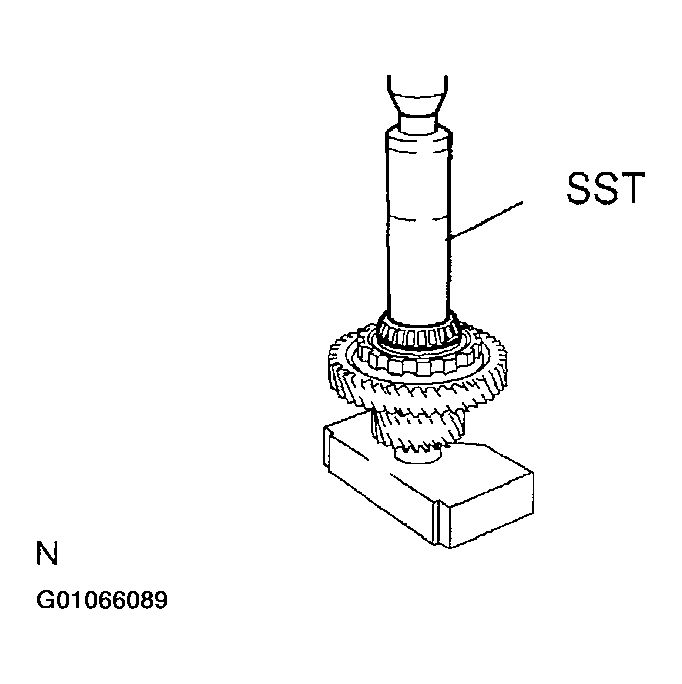

Fig 1: Pressing Counter Driven Gear Tapered Roller Bearing In (MG1 side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install new tapered roller bearing (MG2 side) .
Using SST and a press, press in a new tapered roller bearing.

SST 09608-06041, 09950-60010 (09951-00370).

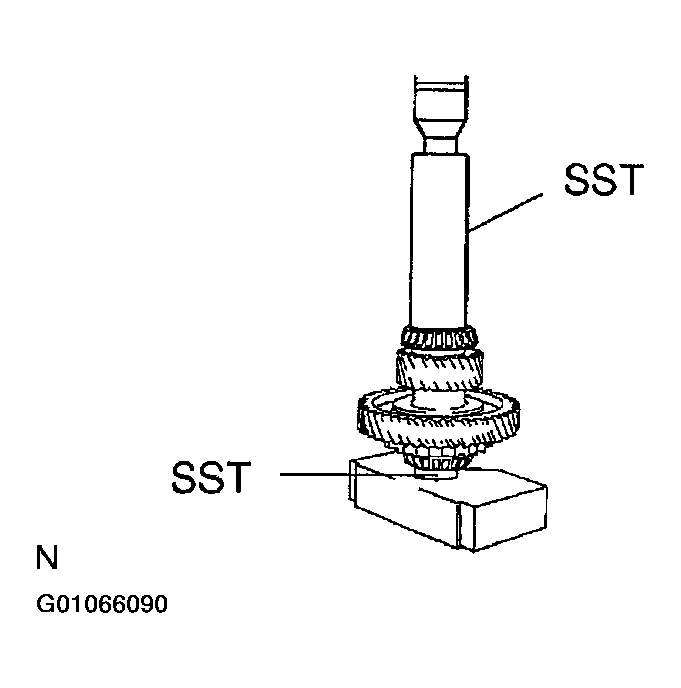

Fig 2: Pressing Counter Driven Gear Tapered Roller Bearing In (MG2 side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
