Differential Case: Disassembly

Using SST, remove the tapered roller bearing RH.

SST 09950-40011 (09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04060, 09958-04010)

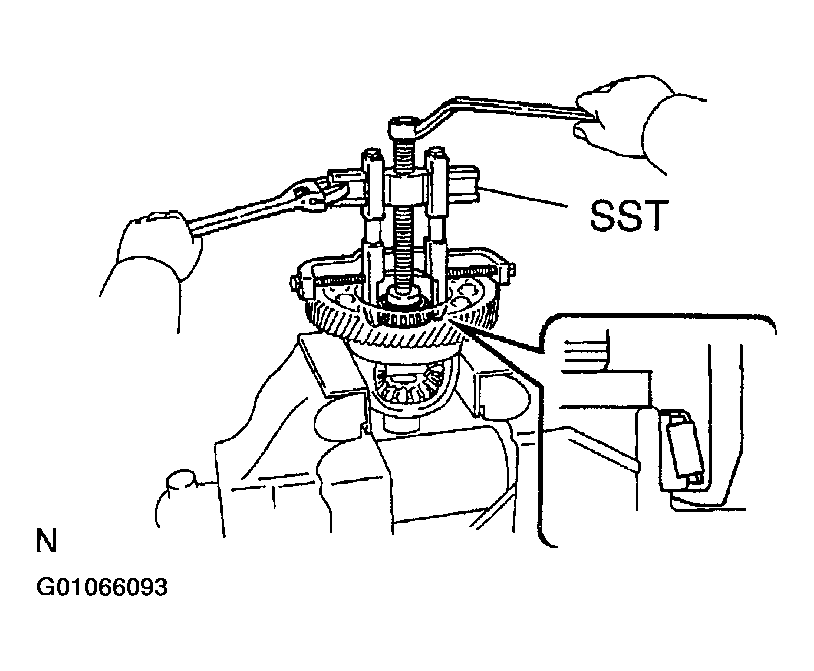

Fig 1: Pressing Differential Case Tapered Roller Bearing Out (Right Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using SST, remove the tapered roller bearing LH.

SST 09950-40011 (09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04060, 09958-04010)

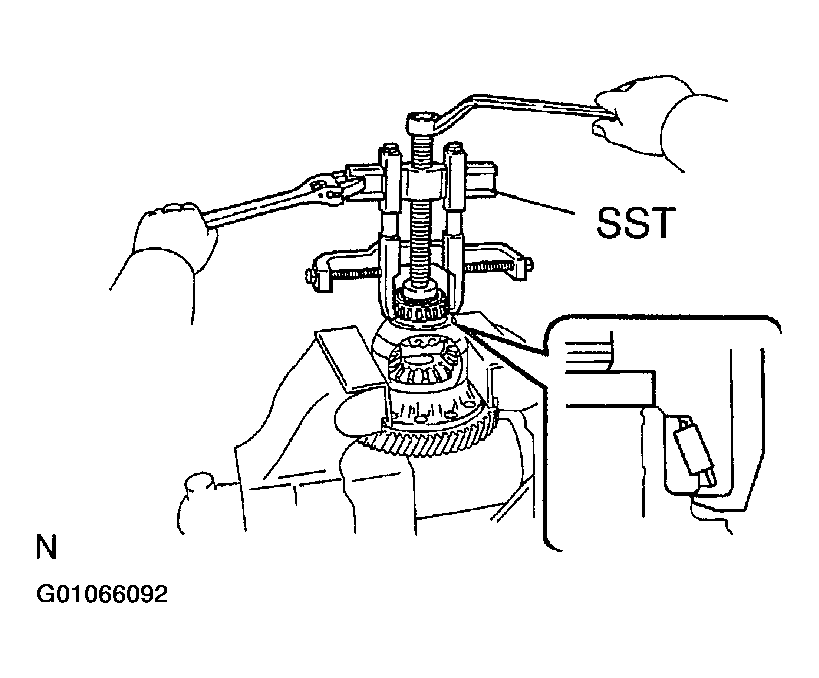

Fig 2: Pressing Differential Case Tapered Roller Bearing Out (Left Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a pin punch and a hammer, drive out the straight pin.

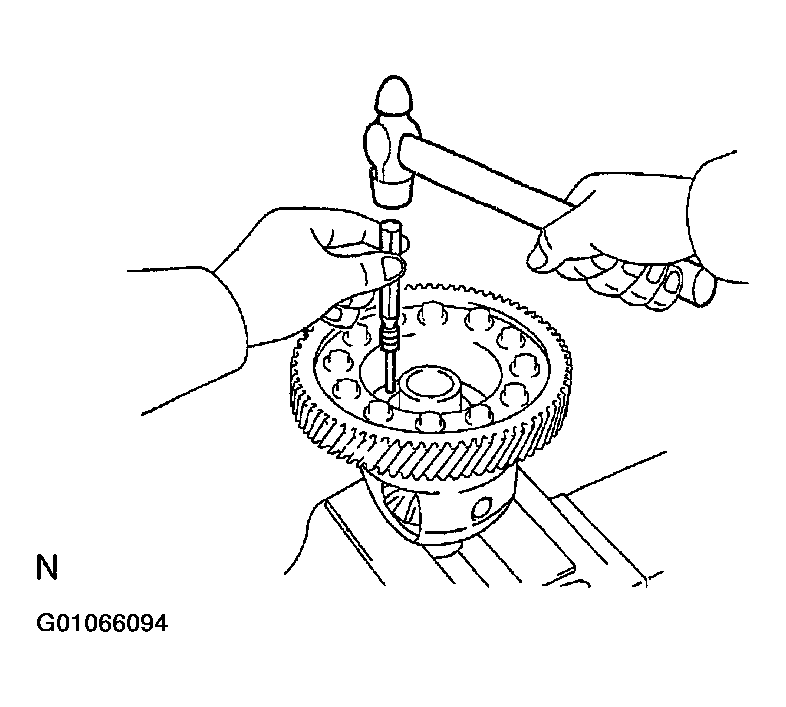

   Fig 3: Punching Straight Pin out

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the pinion shaft, 2 pinions, 2 pinion thrust washers, 2 side gears and 2 side gear thrust washers from the case. See Figure.
