Remove Needle Bearing

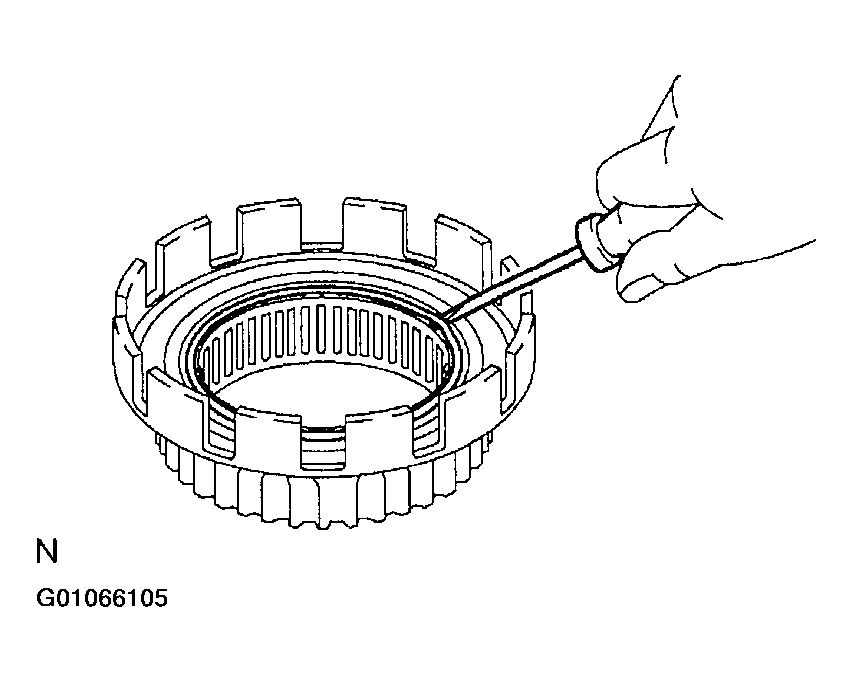

  1. Using a screwdriver, remove the snap ring.
    Fig 1: Identifying Drive Sprocket Snap Ring
    G01066105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

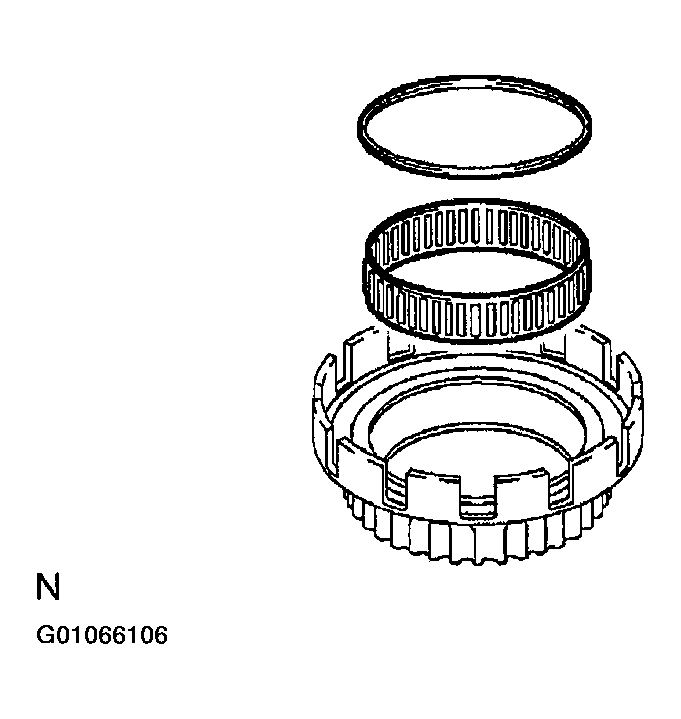

  2. Remove the needle bearing and spacer.
    Fig 2: Exploded View Drive Sprocket, Needle Bearing & Spacer
    G01066106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
