Input Shaft: Disassembly

  1. Remove planetary sun gear from input shaft  .

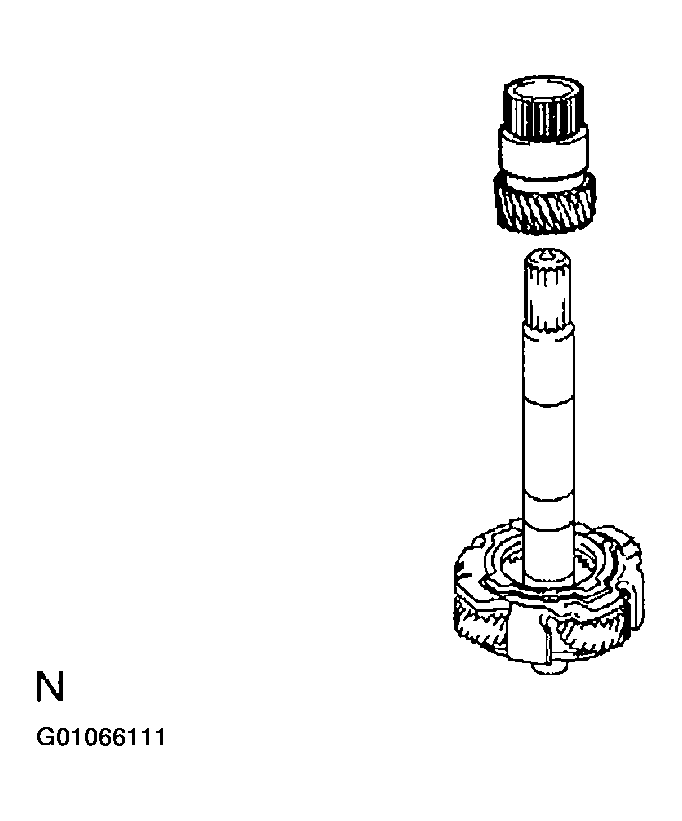

    Fig 1: Identifying Sun Gear & Input Shaft
    G01066111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove needle roller bearing and bearing race  :

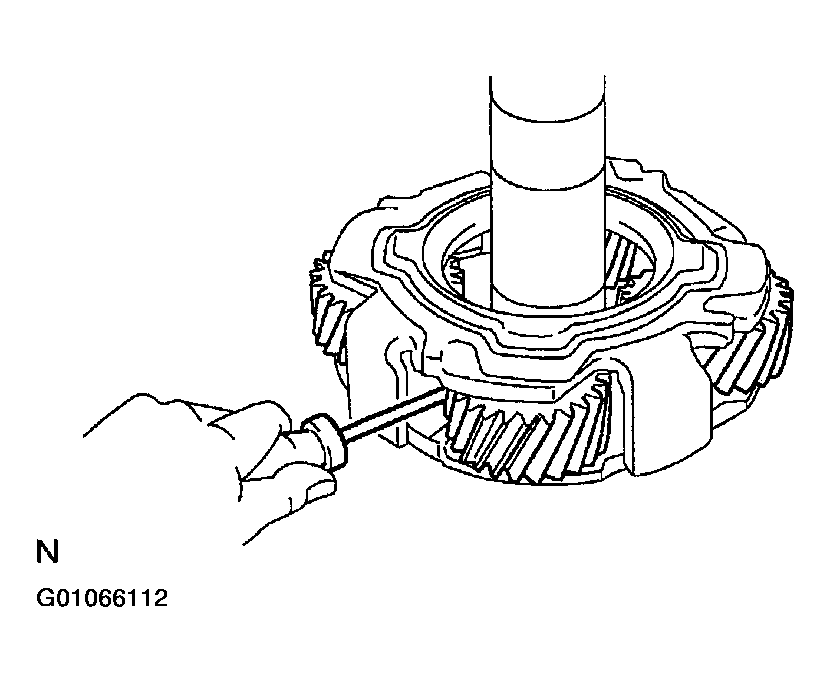

    Using a screwdriver, remove the needle roller bearing and 2 bearing races. See Figure.

    Fig 2: Removing Needle Bearing & Race
    G01066112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
