On-Vehicle Repair

Remove Engine Under Cover LH.
Remove oil pump:
1. Remove the plug.
2. Remove the O-ring from the plug.

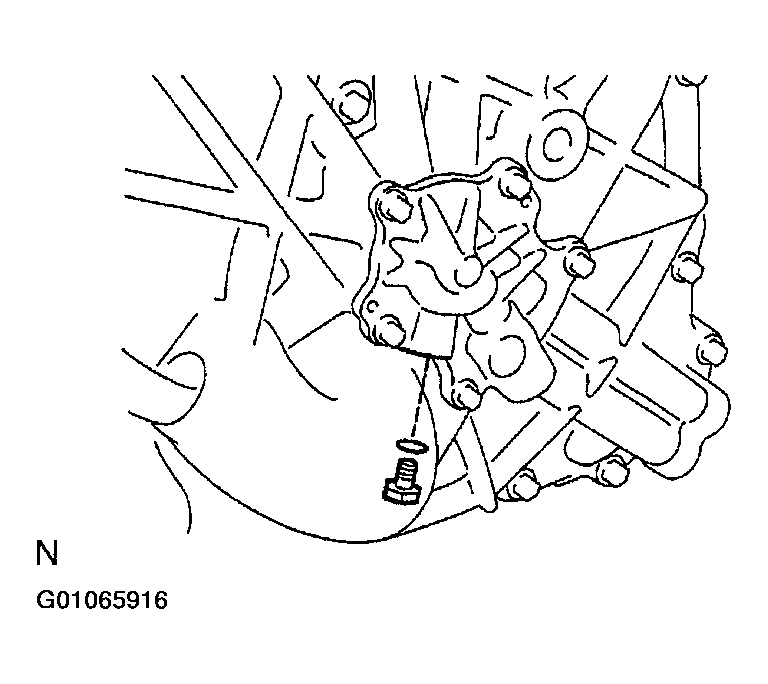

  Fig 1: Identifying Oil Pump Cover Plug & Plug "O" Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

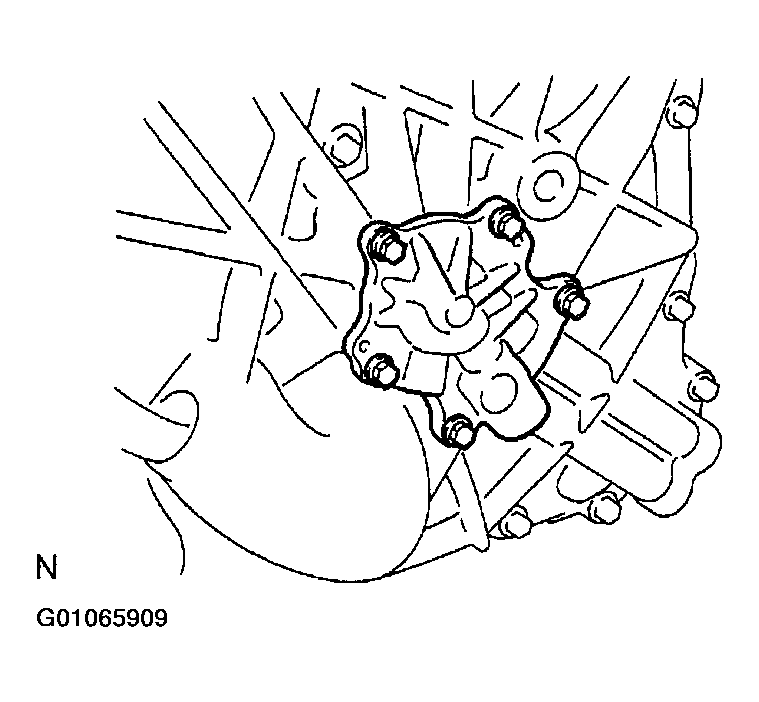

3. Remove the 5 bolts and oil pump cover.

  Fig 2: Identifying Oil Pump Cover & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the "O" ring.

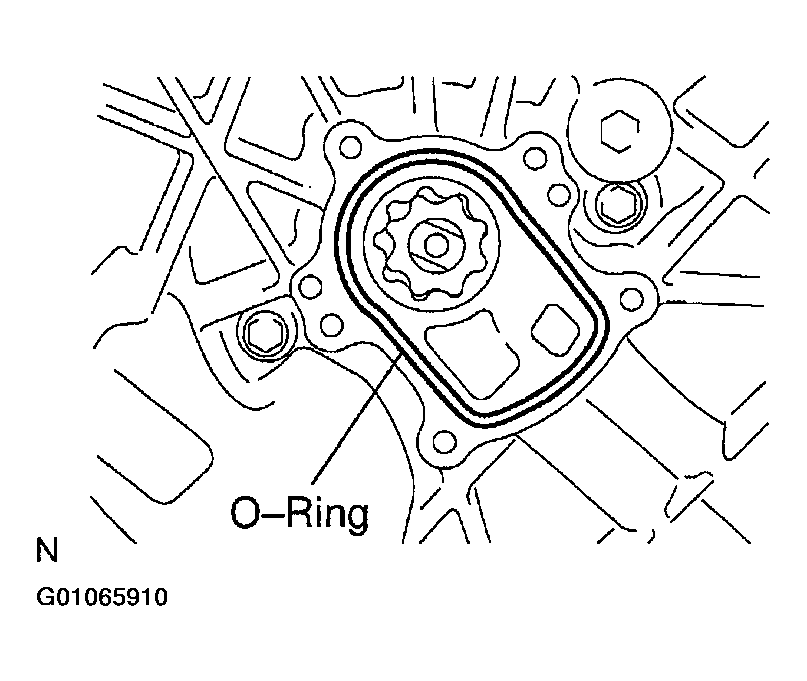

  Fig 3: Identifying Oil Pump Cover "O" Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the oil pump driven rotor and drive rotor.

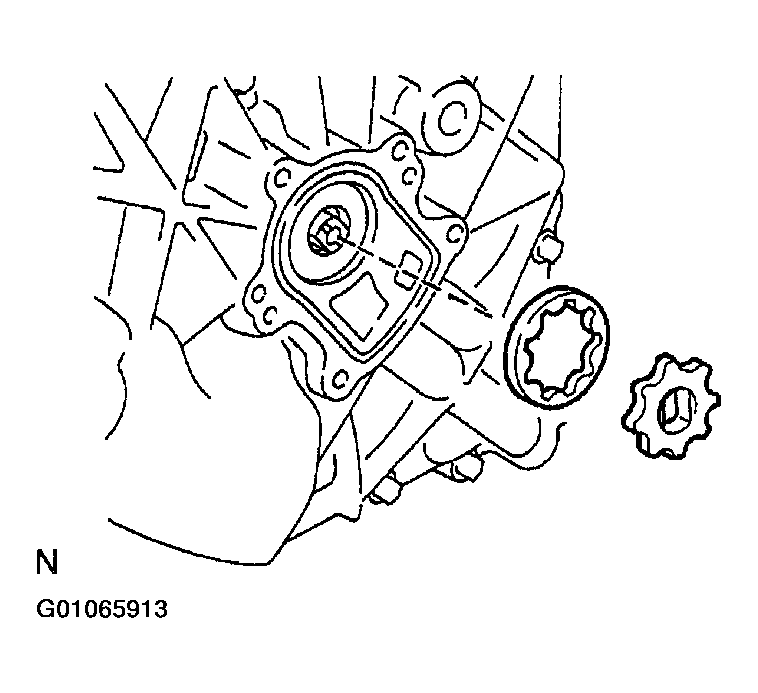

  Fig 4: Identifying Oil Pump Driven Rotor & Drive Rotor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the oil pump drive shaft. See Fig 5.
Install oil pump:
1. Apply ATF to each sliding part.
2. Install the oil pump drive shaft.

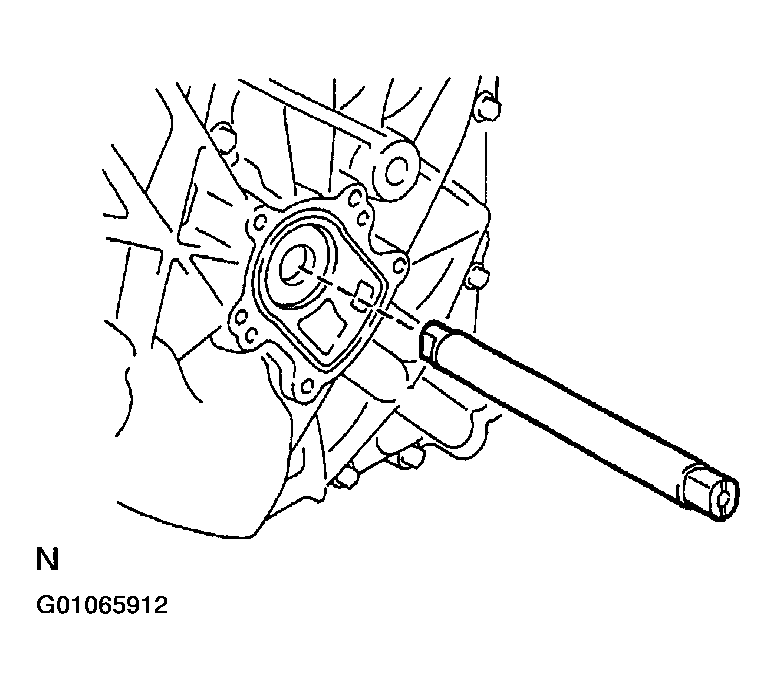

  Fig 5: Identifying Oil Pump Drive Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the oil pump driven rotor and drive rotor.

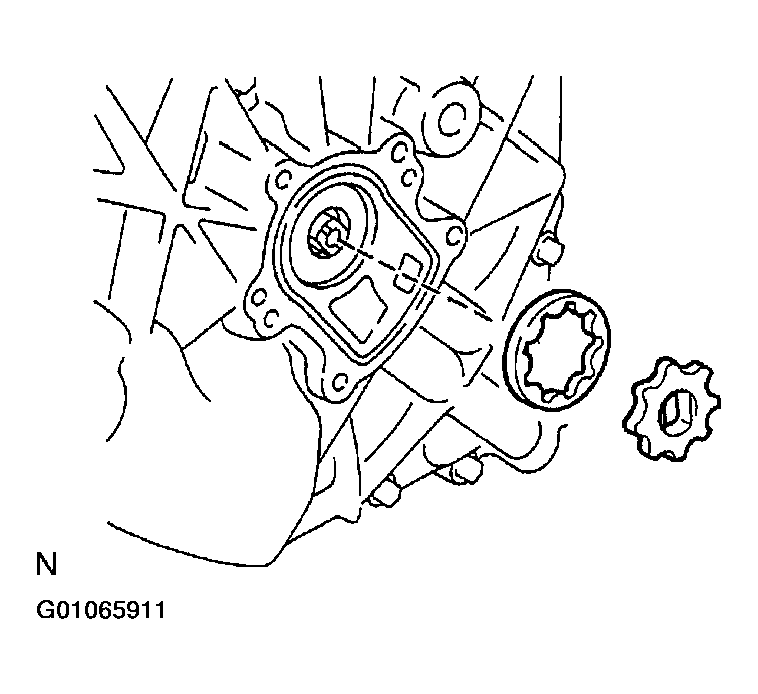

  Fig 6: Identifying Oil Pump Driven Rotor & Drive Rotor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install a new "O" ring.

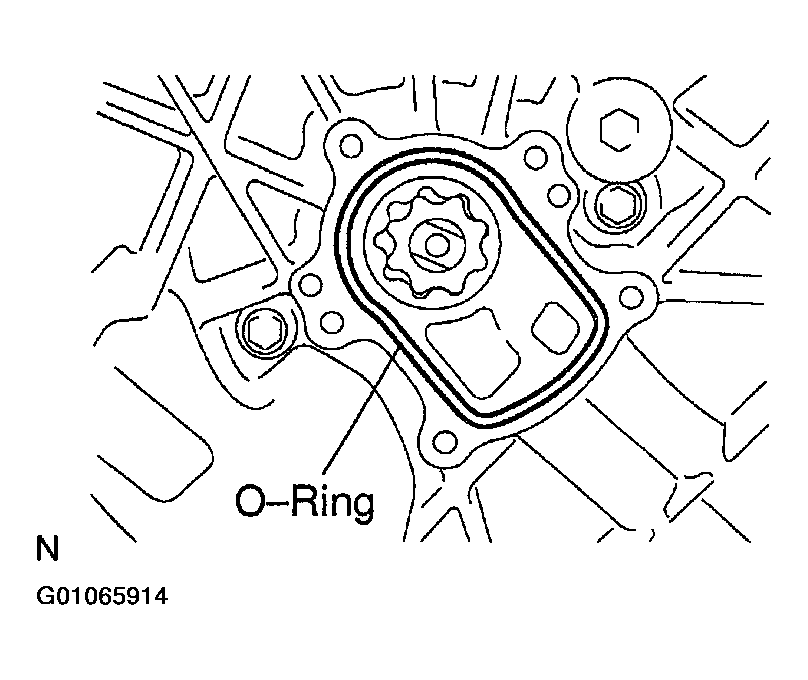

  Fig 7: Identifying Oil Pump Cover "O" Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Apply liquid sealer to 2 or 3 threads of the bolt end.
  Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent.
6. Install the oil pump cover with the 5 bolts.
  Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf) .

  Fig 8: Identifying Oil Pump Cover & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Install a new "O" ring and the plug.

  Fig 9: Identifying Oil Pump Cover Plug & Plug "O" Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 7.35 N.m (75 kgf.cm, 65 in.lbf) .
Install Engine Under Cover LH.
