Shift Lock System Inspection

  1. Inspect shift position sensor:
    1. Remove the steering column upper cover and lower cover.
    2. Disconnect the shift position sensor connector.
    3. Check continuity between terminals shown below when the shift lever is moved to each position

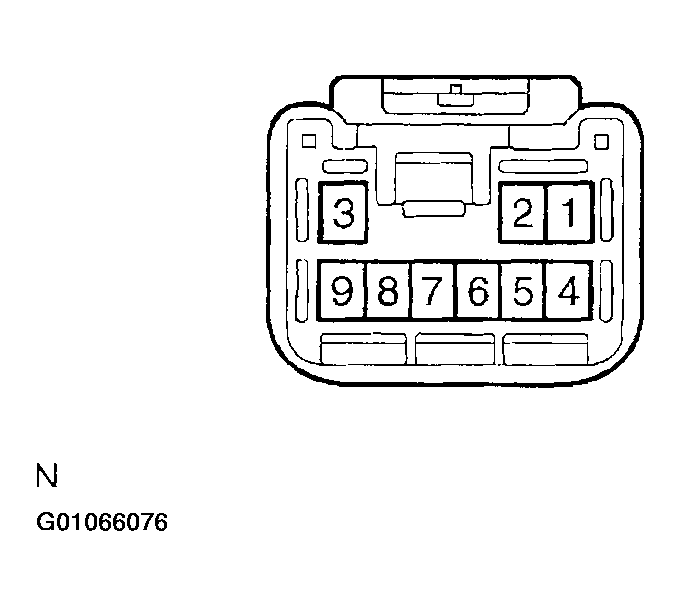

      Fig 1: Identifying Shift Position Sensor Connector Terminals
      G01066076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

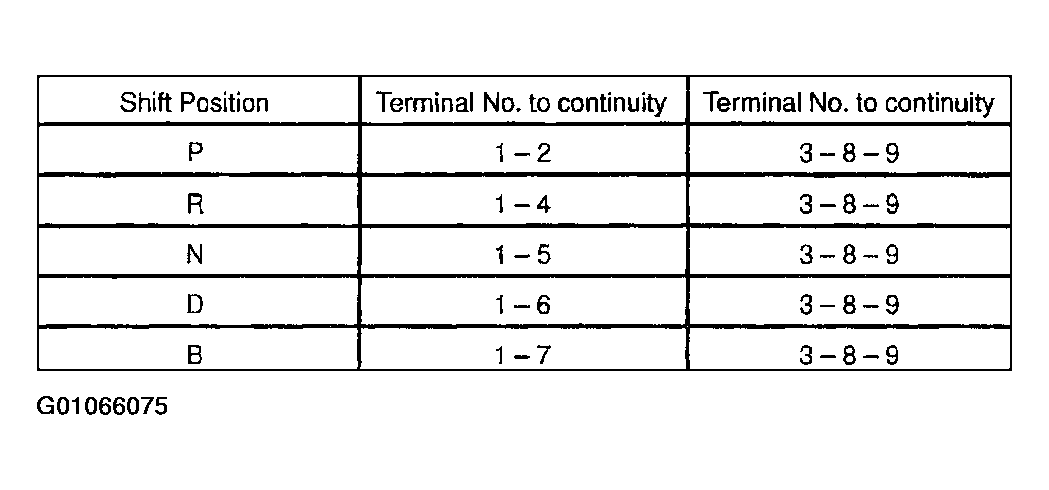

      Fig 2: Shift Position Sensor Connector Terminal Specifications
      G01066075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the shift position sensor connector.
    5. Install the steering column upper cover and lower cover.
  2. Inspect shift lock control ECU.

    Using a voltmeter, measure the voltage at each terminal.

    Do not disconnect the ECU connector.

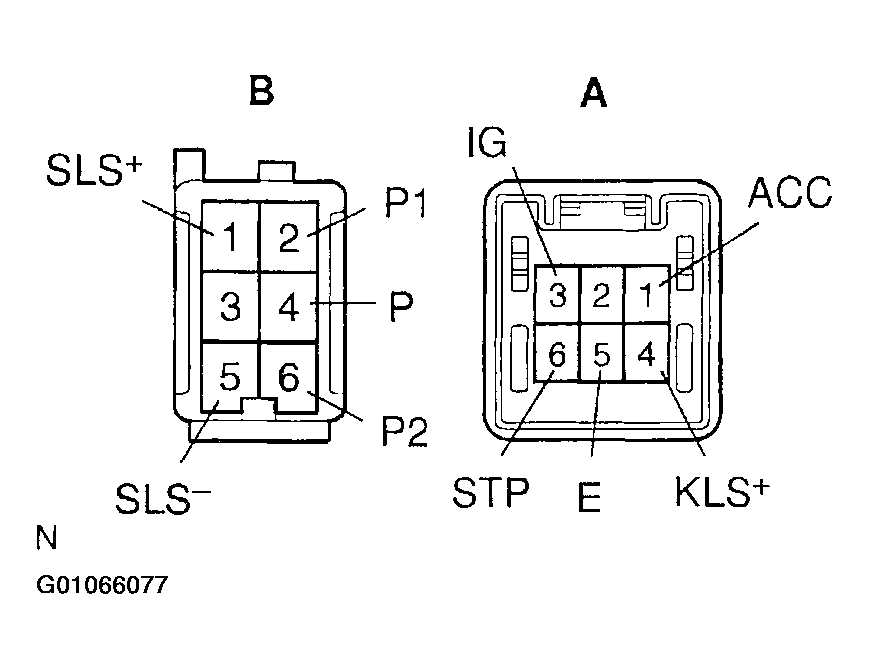

    Fig 3: Identifying Shift Lock Control ECU Terminals (Connector Connected)
    G01066077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

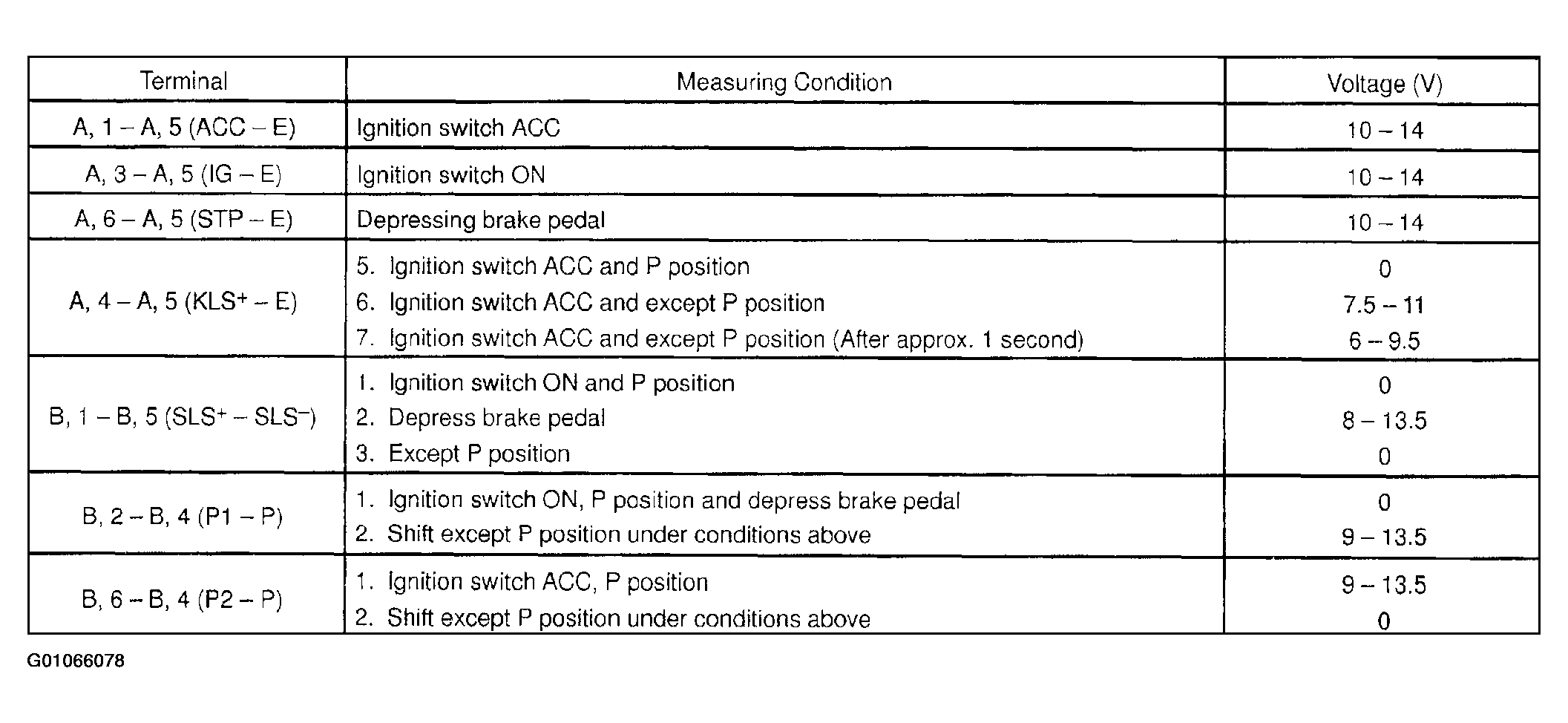

    Fig 4: Shift Lock Control ECU Terminal Specifications (Connector Connected)
    G01066078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Inspect shift lock solenoid:
    1. Disconnect the solenoid connector.
    2. Using an ohmmeter, measure the resistance between terminals.

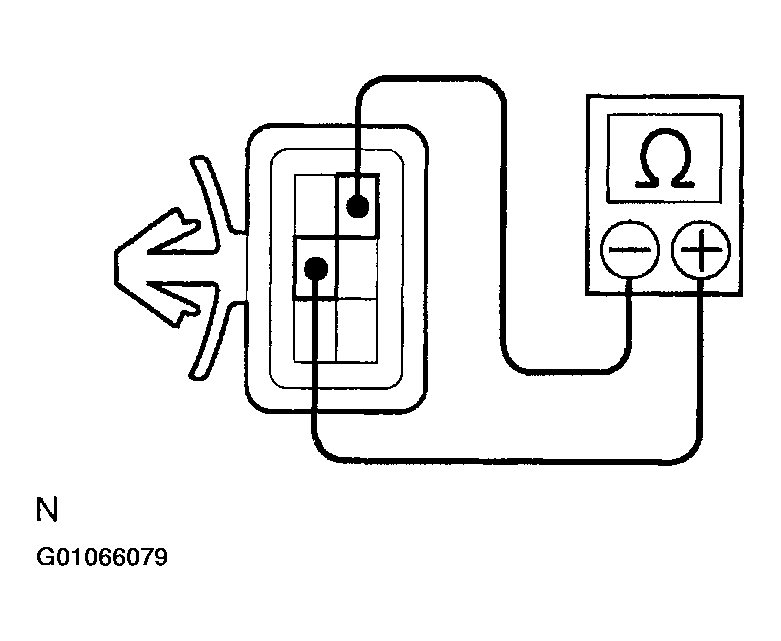

      Fig 5: Testing Shift Solenoid Continuity
      G01066079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance: 29 - 35 Ω  .

      If the resistance value is not as specified, replace the solenoid.

    3. Apply battery positive voltage between terminals. Check the operation.

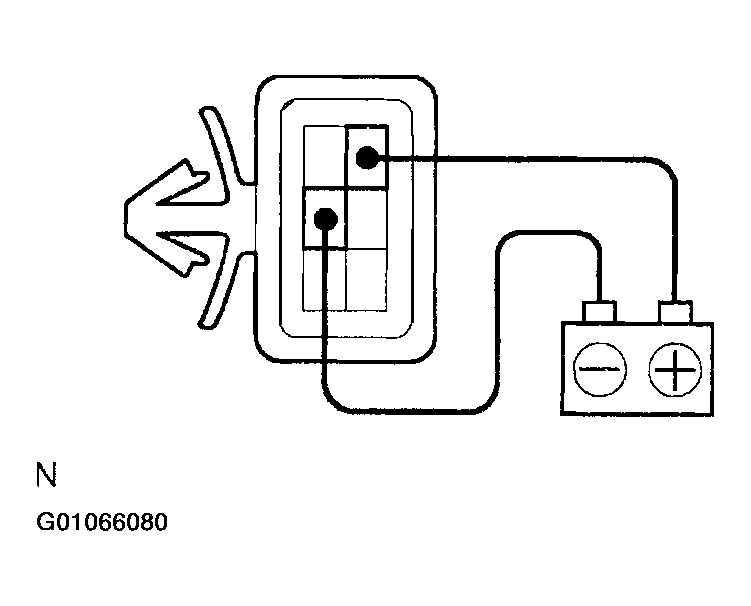

      Fig 6: Testing Shift Solenoid Operation
      G01066080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the solenoid does not operate, replace the solenoid noise can be heard from the solenoid.

  4. Inspect key interlock solenoid:
    1. Disconnect the solenoid connector.
    2. Using an ohmmeter, measure the resistance between terminals 3 and 4.

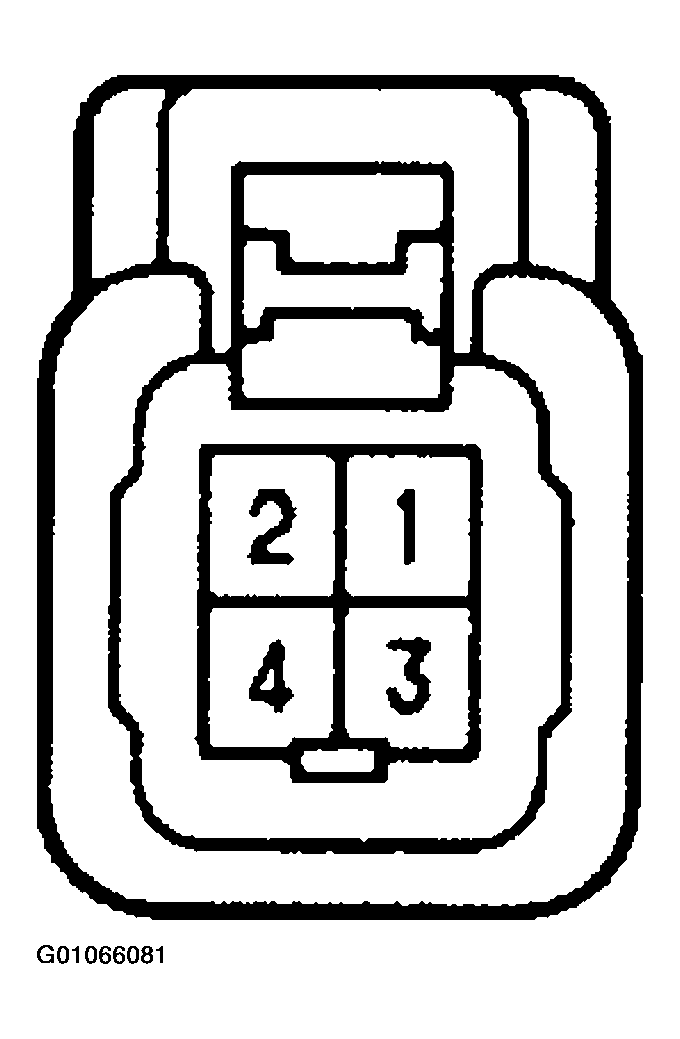

      Fig 7: Identifying Key Interlock Solenoid Terminals
      G01066081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance: 12.5 - 16.5Ω  .

      If the resistance value is not as specified, replace the solenoid.

    3. Apply battery positive voltage between the terminals 3 and 4. Check that an operation sound can be heard from the solenoid.

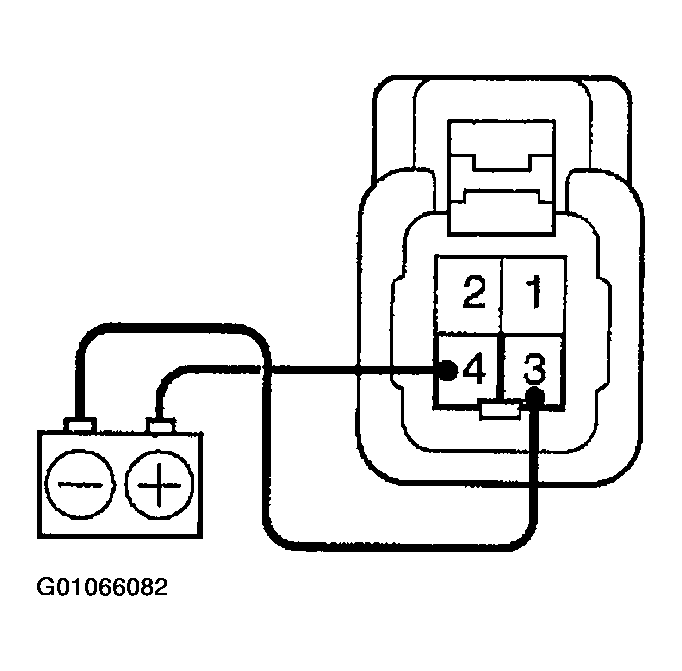

      Fig 8: Testing Key Interlock Solenoid Operation
      G01066082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the solenoid does not operate, replace the solenoid.

  5. Inspect Shift Lock Control Switch:

    Check that there is continuity between terminals.

    Fig 9: Identifying Shift Lock Control Switch Terminals
    G01066084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

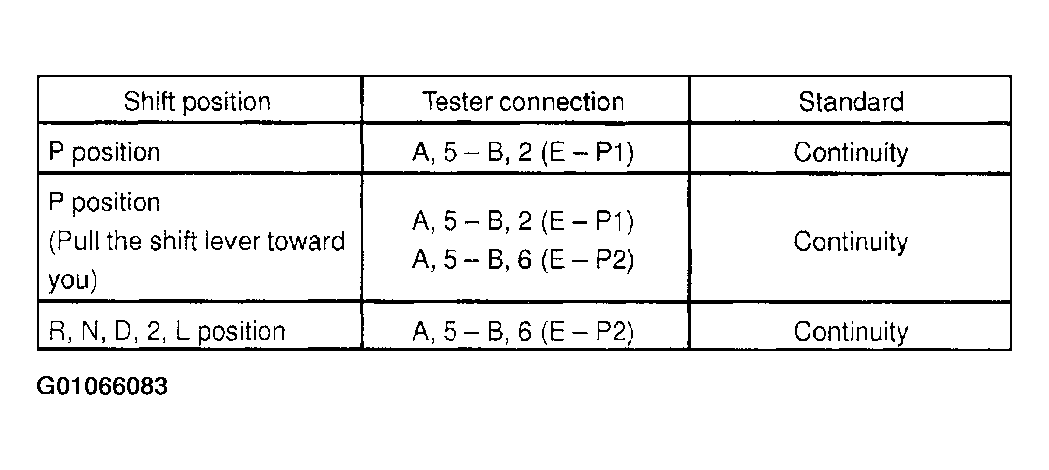

    Fig 10: Shift Lock Control Switch Specification
    G01066083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not identified, replace the switch.
