Tilt Steering Column: Components

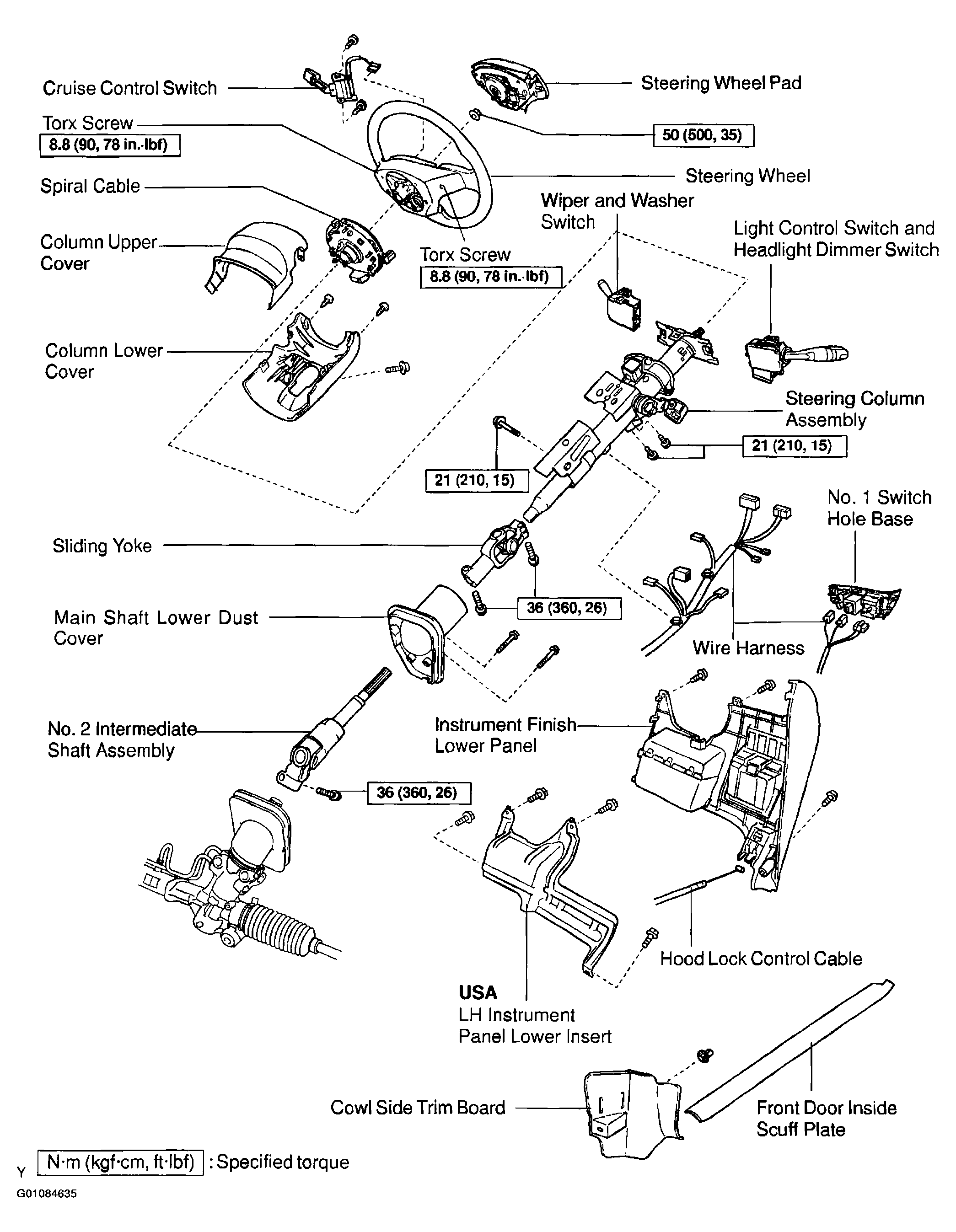

Fig 1: Displaying Tilt Steering Column Components (1 Of 2)
G01084635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

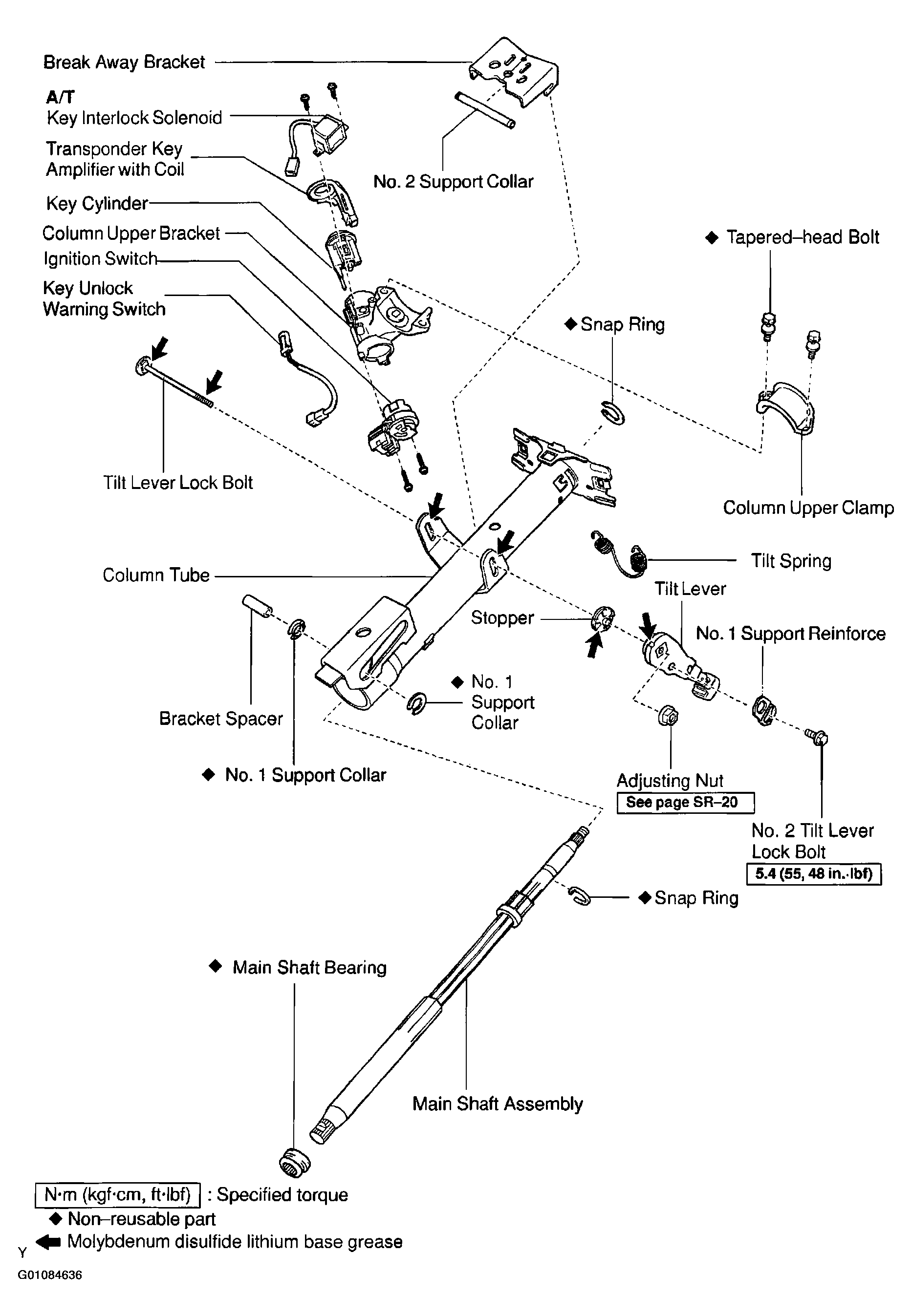

Fig 2: Displaying Tilt Steering Column Components (2 Of 2)
G01084636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
