Step 5 - Inspect Power Main Relay Continuity

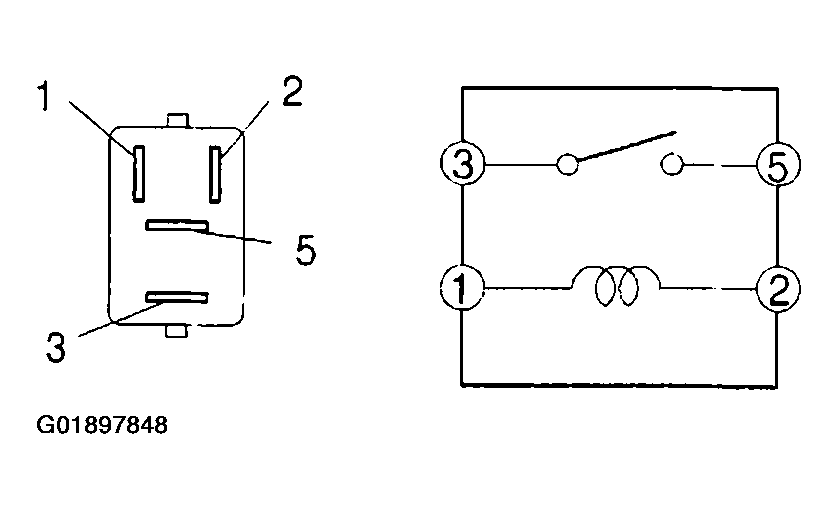

Fig 1: Identifying Power Main Relay Terminals
G01897848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

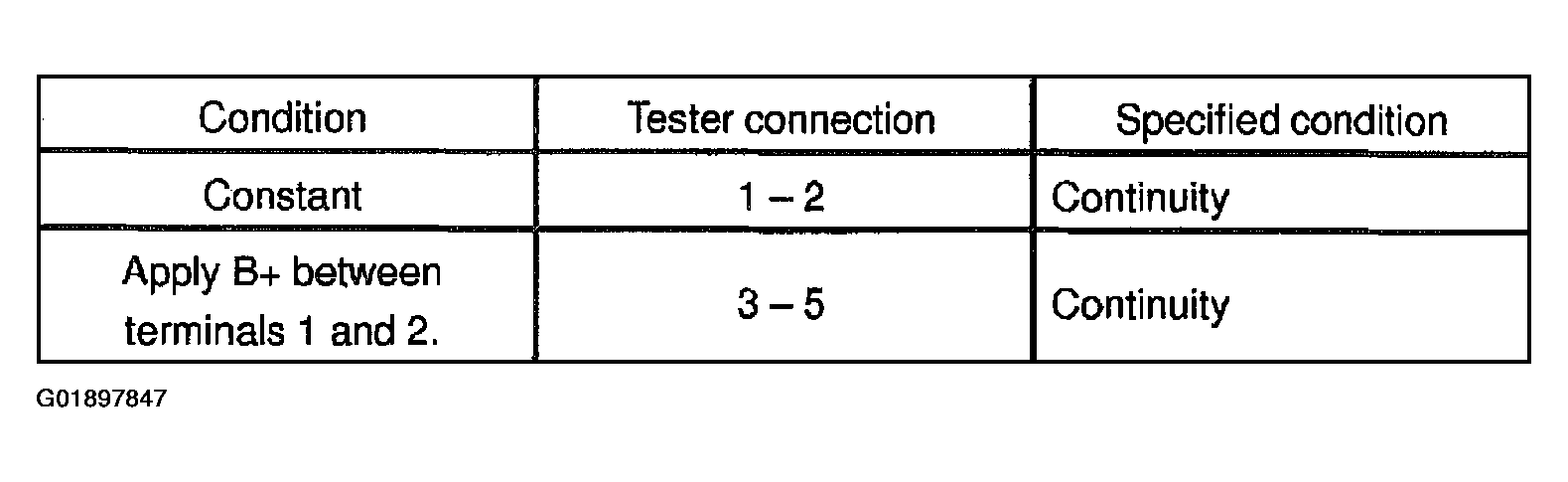

Fig 2: Power Main Relay Terminal Specifications
G01897847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
