Body & Frame: Windows: Windshield: Components

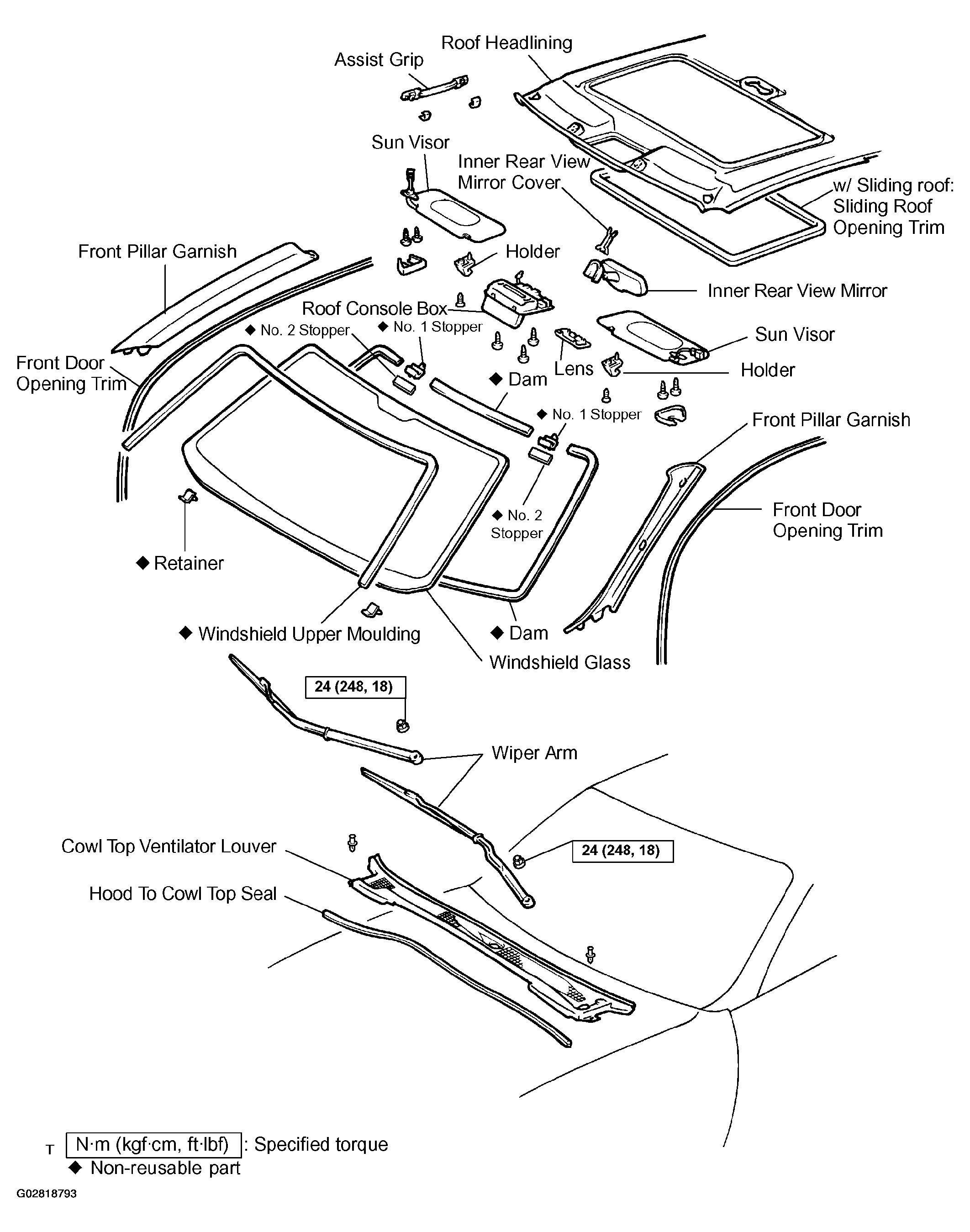

Fig 1: Identifying Windshield Components
G02818793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
