Basic Inspection

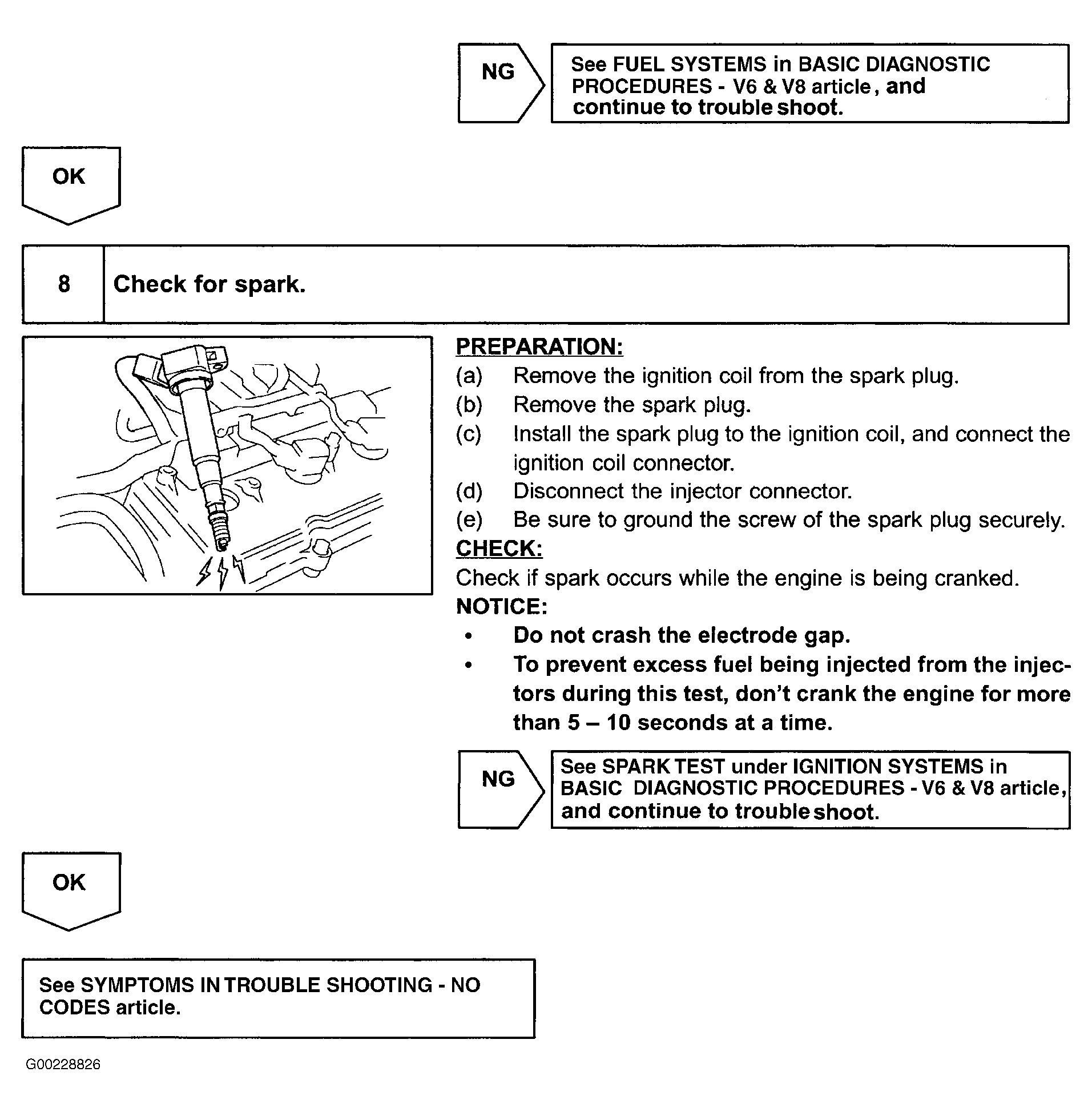

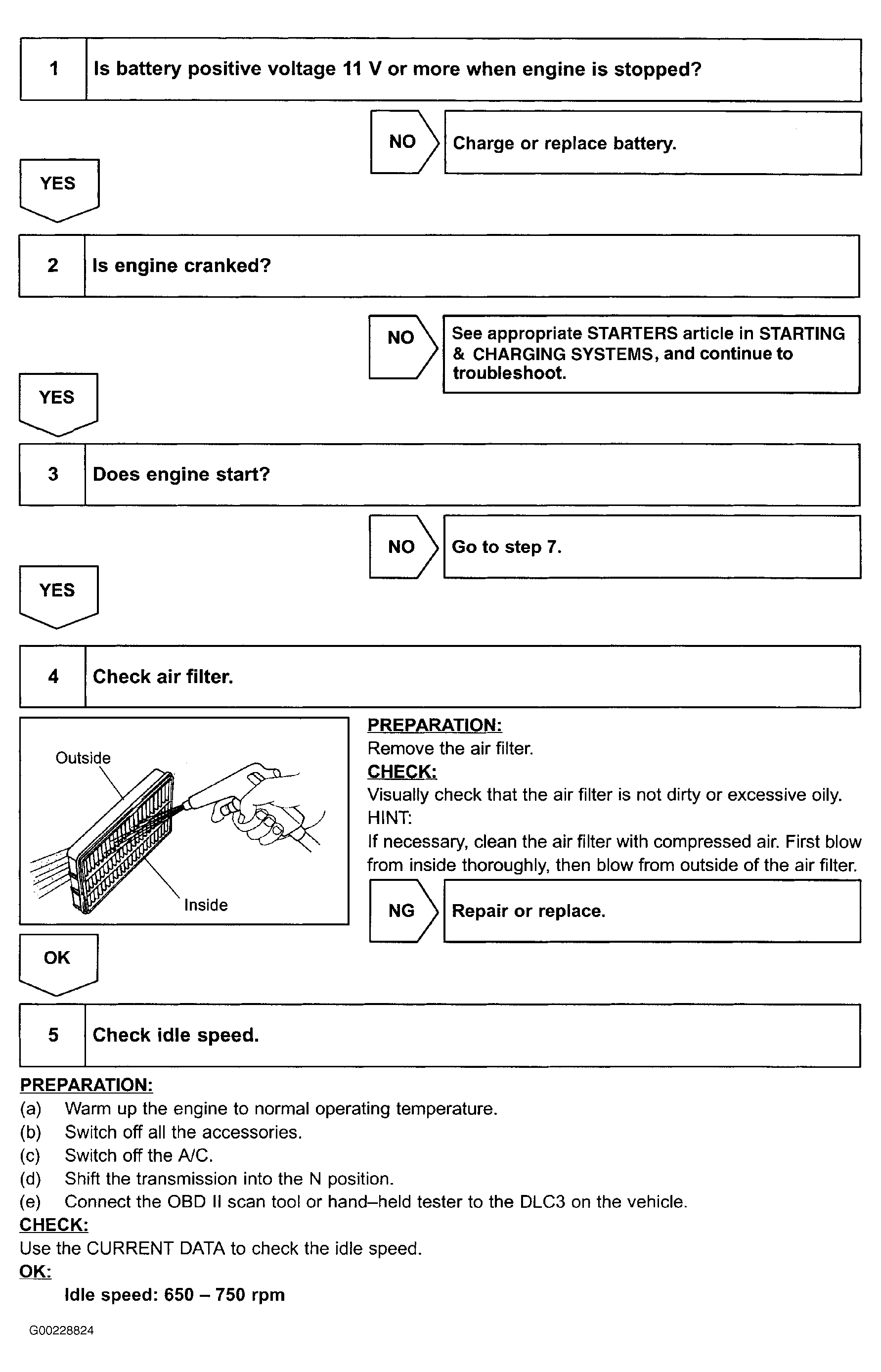

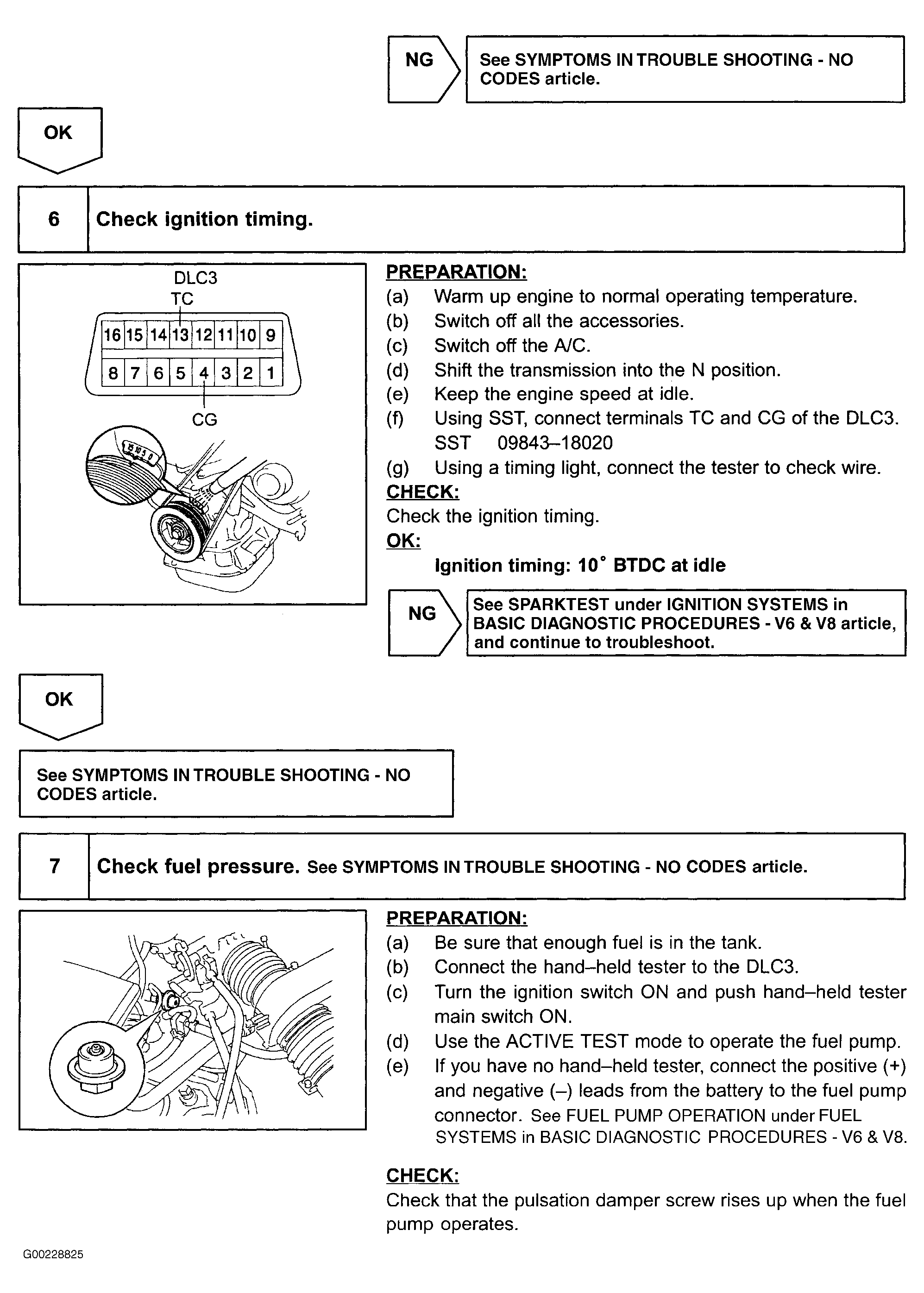

When the malfunction code is not confirmed in the DTC check, trouble shooting should be performed in order for all possible circuits to be considered as the cause of the problems. In many cases, by carrying out the basic engine check shown in the following flowchart, the location causing the problem can be found quickly and efficiently. Therefore, use of this check is essential in engine trouble shooting. See Fig 1-Fig 3 .
