Testing Procedure

To ensure correct diagnosis and repair, testing should be done in the following sequence:

1. Record Customer Complaint

   Ensure all customer complaints or observations are recorded. Test drive vehicle with customer when necessary for malfunction verification.
2. DLC3 Inspection

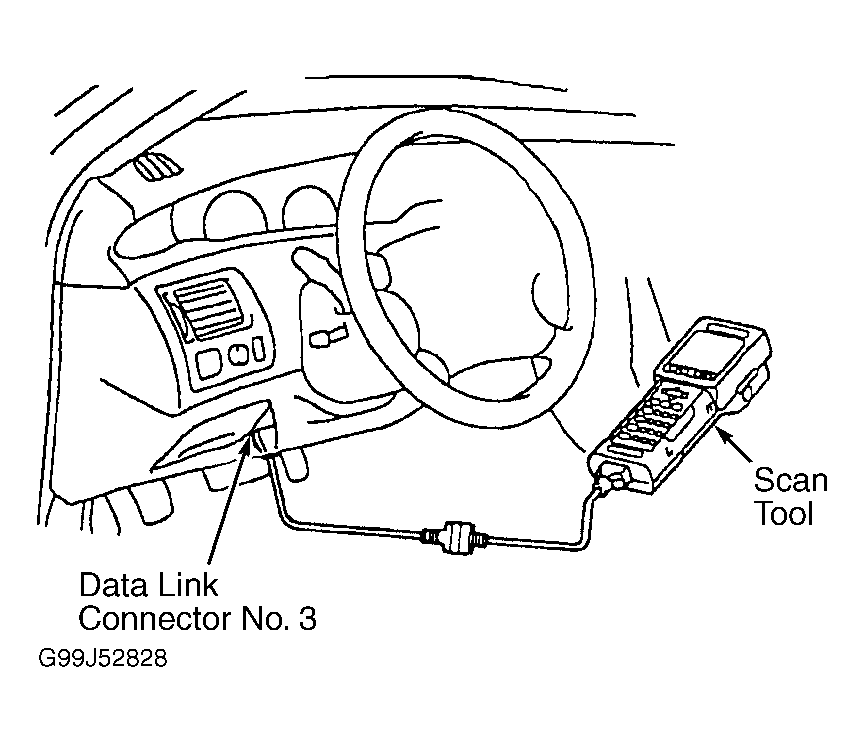

   Connect the OBD II scan tool or hand-held tester to DLC3. See Figure. If the display indicates a communication fault in the tool, inspect DLC3. See DATA LINK CONNECTOR NO. 3 INSPECTION  under SCAN TOOL PROBLEMS.
3. Retrieve DTCs & Freeze Frame Data

   Using Toyota hand-held tester or scan tool, retrieve diagnostic trouble codes (DTC) from engine control module (ECM) and record any freeze frame data (if applicable). See RETRIEVING DIAGNOSTIC TROUBLE CODES  and FREEZE FRAME DATA  .
4. Clear DTCs & Freeze Frame Data

   Using Toyota hand-held tester or scan tool, clear DTCs and freeze frame data from ECM. See CLEARING DIAGNOSTIC TROUBLE CODES .
5. Visual Inspection

   Inspect all electrical connectors and wiring for suspected circuit or component. Ensure all electrical connections are clean and tight.
6. Check Mode Diagnosis

   Set the check mode diagnosis. See TWO-TRIP DETECTION LOGIC .
7. Confirm Symptoms

   If the engine does not start, perform steps  9 and  10 first. If a malfunction occurs, go to the next step. If a malfunction does not occur, simulate symptom. Perform road test. Determine if original symptoms still exist, then go to the next step.
8. DTC Check

   Check DTC. See SYSTEM OVERVIEW . If DTC is normal, go to the next step. If there is a malfunction code, go to step  11.
9. Basic Inspection

   Perform basic inspection. See BASIC INSPECTION . If results are OK, go to the next step. If results are not good, inspect parts, then go to step  13.
10. Determine Symptom

    If no DTCs are present and a driveability condition exists, diagnosis by symptom (i.e., ROUGH IDLE, ENGINE STALLS, etc.). See SYMPTOMS in appropriate TROUBLE SHOOTING - NO CODES article. If circuits are OK, inspect parts and go to step  13. If circuits are not good, go to the next step.
11. Diagnose & Repair Diagnostic Trouble Codes

    For DTC descriptions, see DIAGNOSTIC TROUBLE CODE DEFINITIONS . Perform appropriate DTC test. See DIAGNOSTIC TESTS . If no DTCs are present and a no start condition exists, proceed to appropriate BASIC DIAGNOSTIC PROCEDURES - V6 & V8 article. If results are OK, go to step  13. If the results are not good, go to the next step.
12. Intermittent Problem Check

    Check for intermittent problems. See INTERMITTENT PROBLEMS CHECK (HAND-HELD TESTER ONLY) .
13. Verification Procedure

    Identify problem and make necessary adjustments and repairs. After repairs have been completed, clear all DTCs from ECM. See CLEARING DIAGNOSTIC TROUBLE CODES . Perform road test. Ensure no DTCs exist and all symptoms and/or complaints have been repaired.
