Identification Information Vehicle Identification And Engine Serial Number

  1. VEHICLE IDENTIFICATION NUMBER

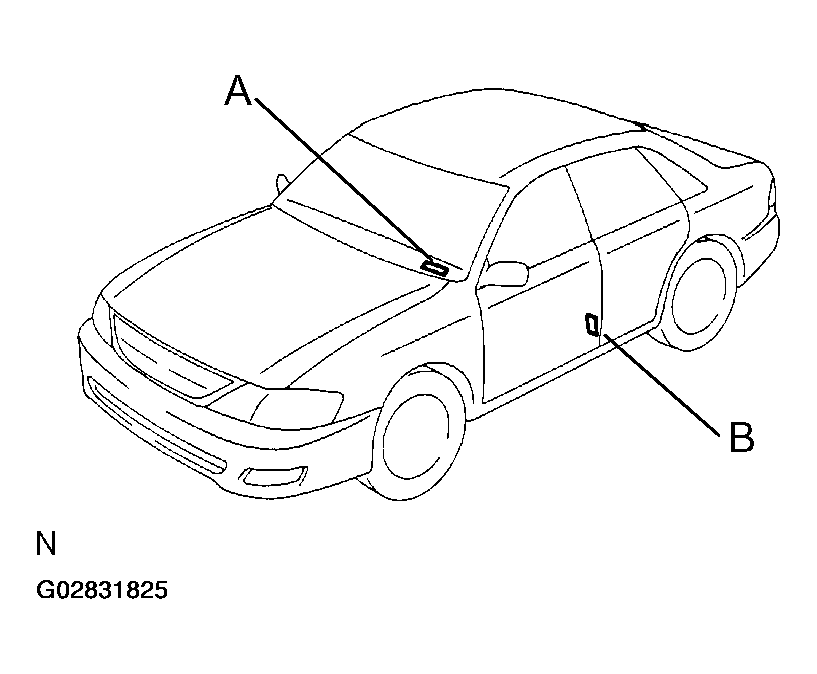

    Fig 1: Locating Vehicle Identification Number
    G02831825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    The vehicle identification number is stamped on the vehicle identification number plate and the certification label, as shown in the illustration.

    1. Vehicle Identification Number Plate
    2. Certification Label

  2. ENGINE SERIAL NUMBER

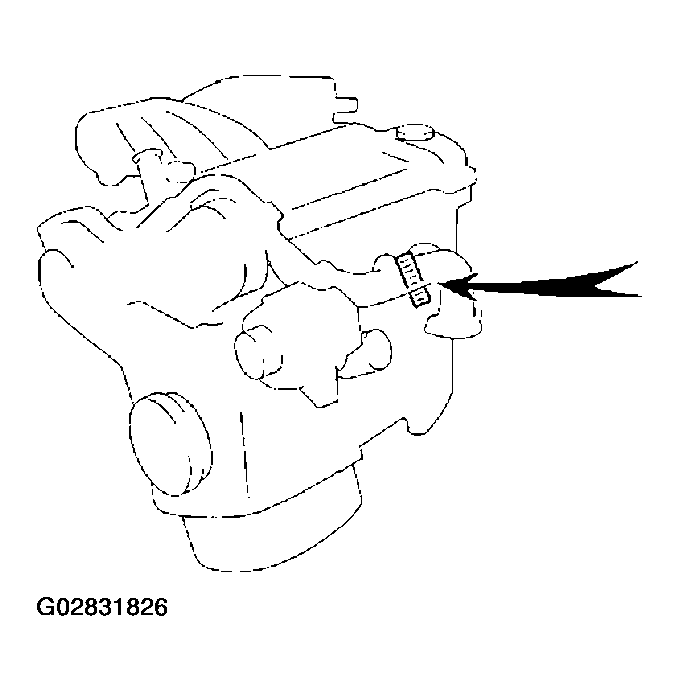

  3. Fig 2: Identifying Engine Serial Number
    G02831826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The engine serial number is stamped on the engine block, as shown in the illustration.
