Vehicle Lift And Support Locations

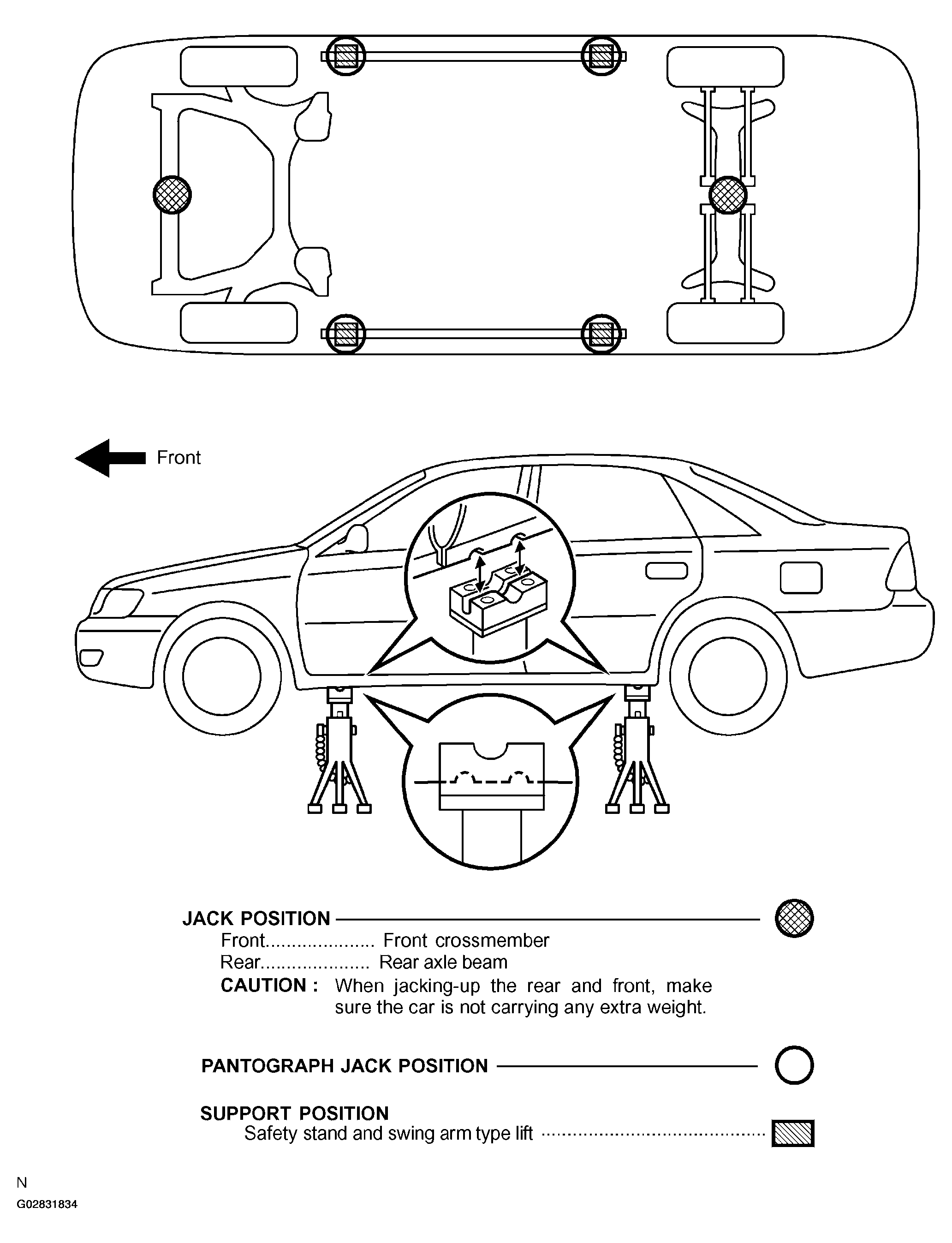

Fig 1: Vehicle Lift & Support Locations
G02831834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

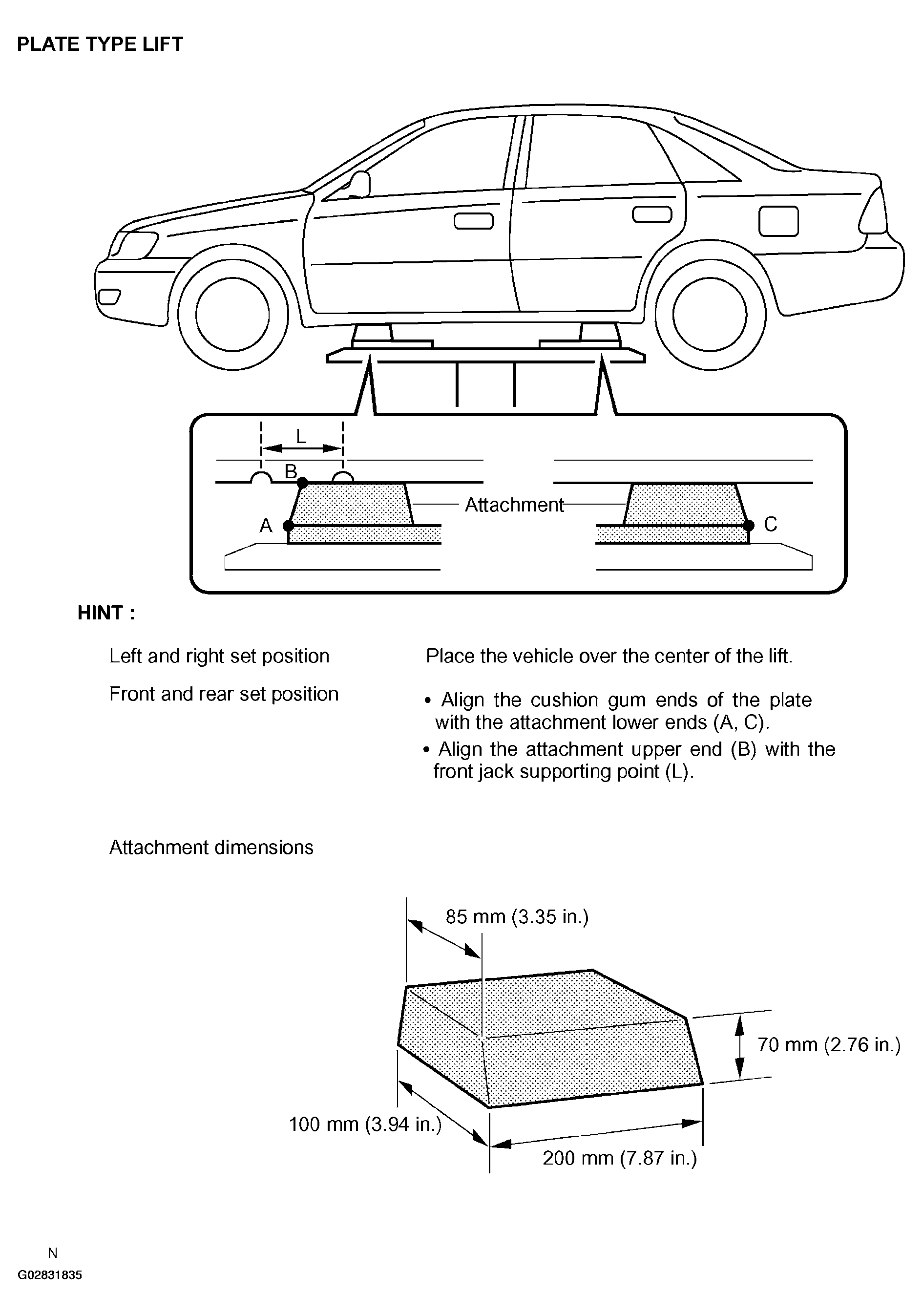

Fig 2: Vehicle Lift & Support Locations (Plate Type Lift)
G02831835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
