Power Window Control System: Inspection

POWER WINDOW SYSTEM CIRCUIT

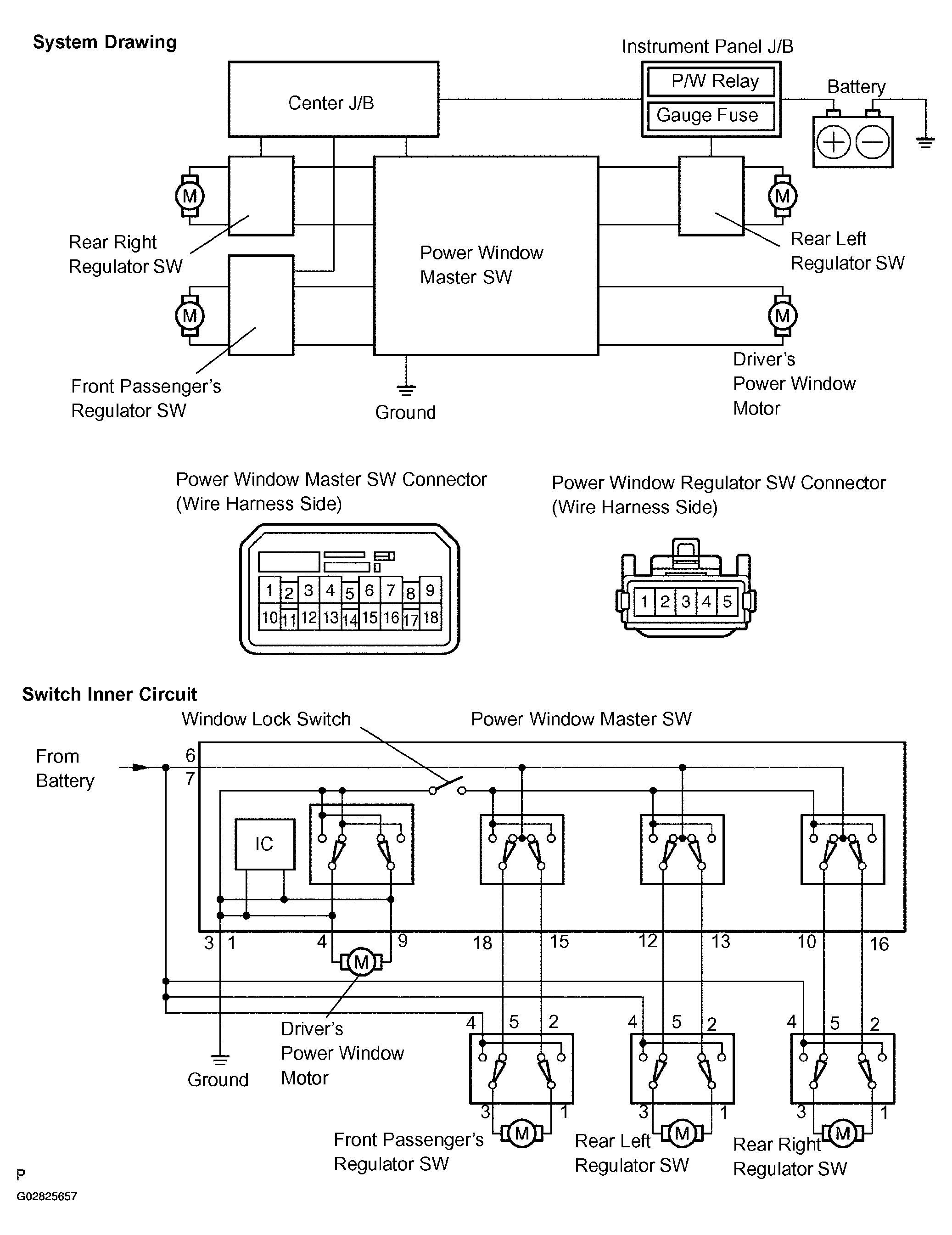

Fig 1: Identifying Power Window System Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY
1. Inspect the master switch continuity.
  [Driver's switch (Window unlock and lock)]

  Standard:

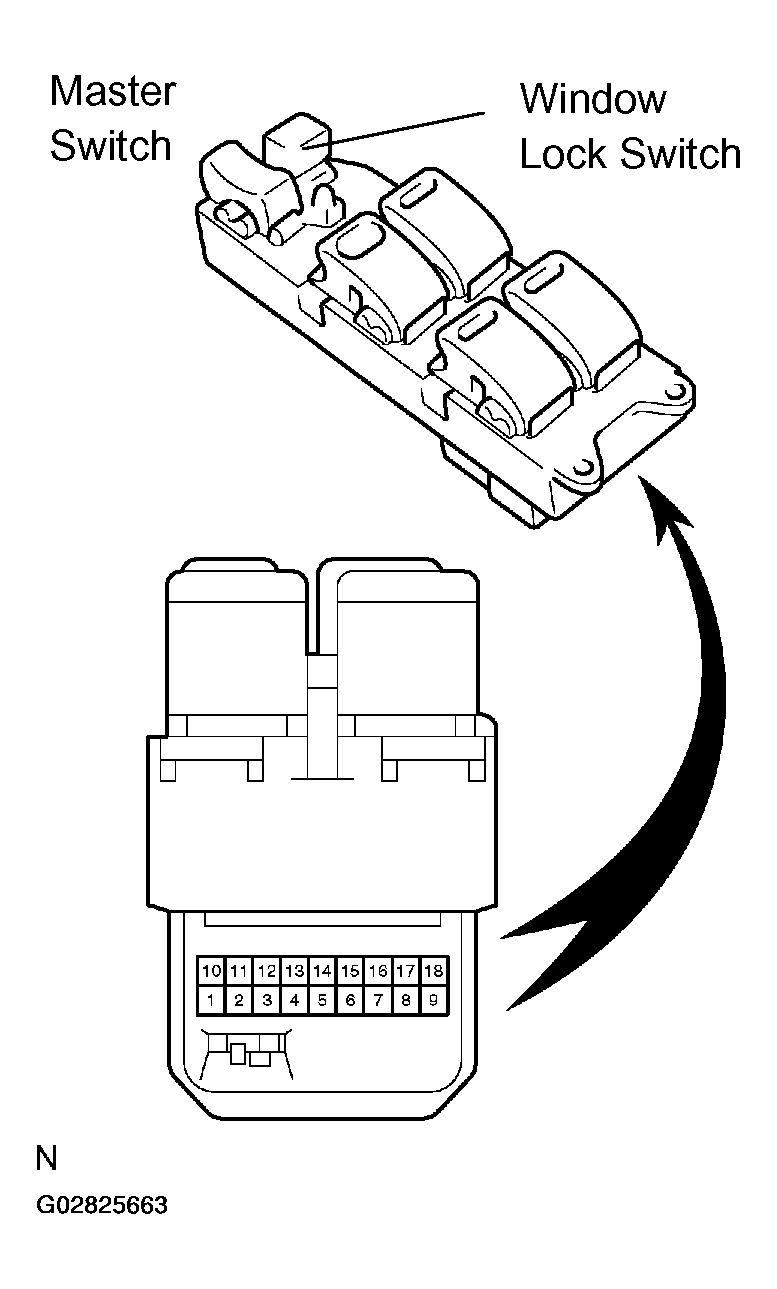

  Fig 2: Identifying Master Switch Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

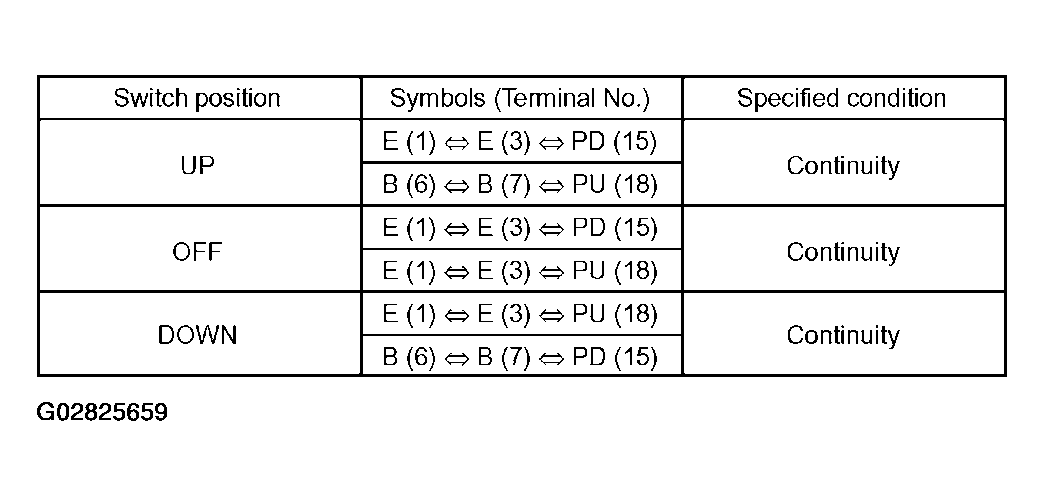

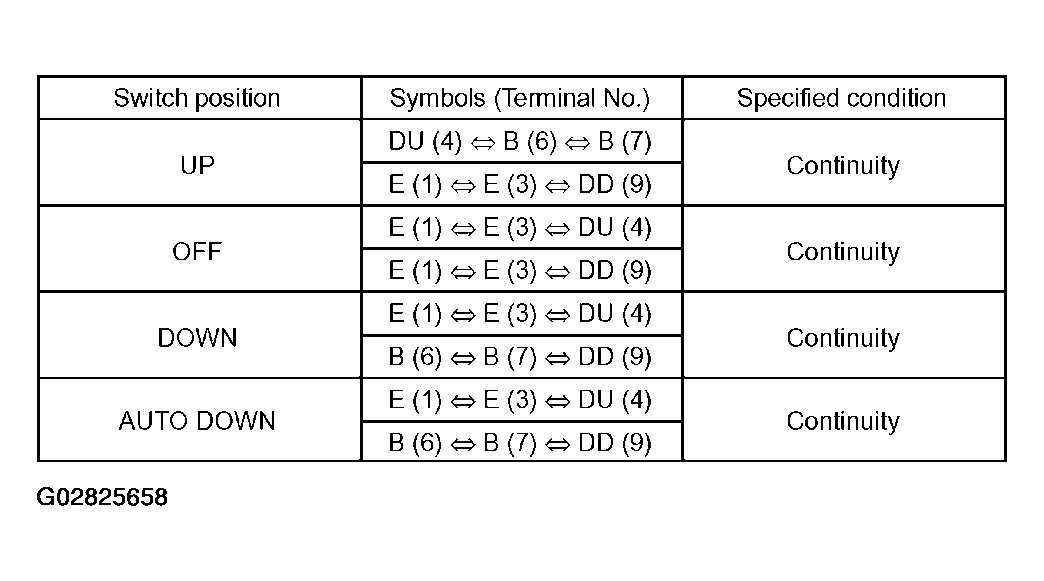

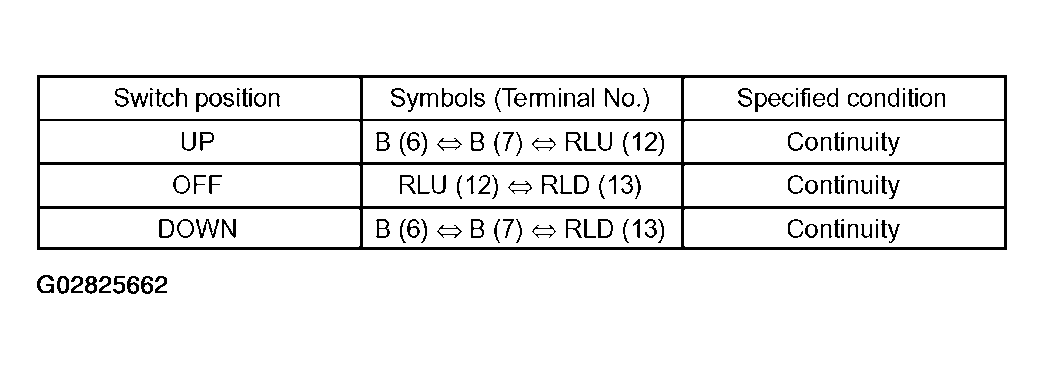

  Fig 3: Driver's Switch (Window Unlock And Lock) Continuity Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  [Front passenger's switch (Window unlock)]

  Standard:

  Fig 4: Front Passenger's Switch (Window Unlock) Continuity Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  [Front passenger's switch (Window lock)]

  Standard:

  Fig 5: Front Passenger's Switch (Window Lock) Continuity Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  [Rear left switch (Window unlock)]

  Standard:

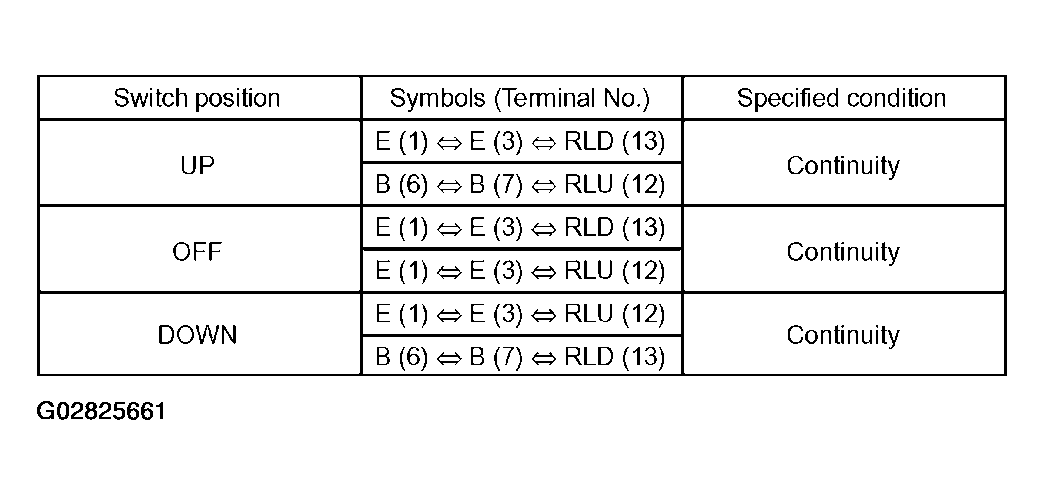

  Fig 6: Rear Left Switch (Window Unlock) Continuity Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  [Rear left switch (Window lock)]

  Standard:

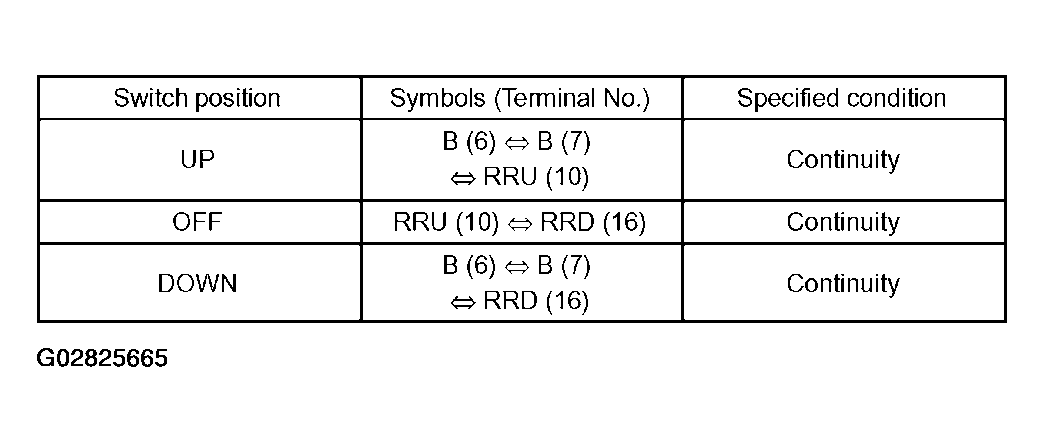

  Fig 7: Rear Left Switch (Window Lock) Continuity Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  [Rear right switch (Window unlock)]

  Standard:

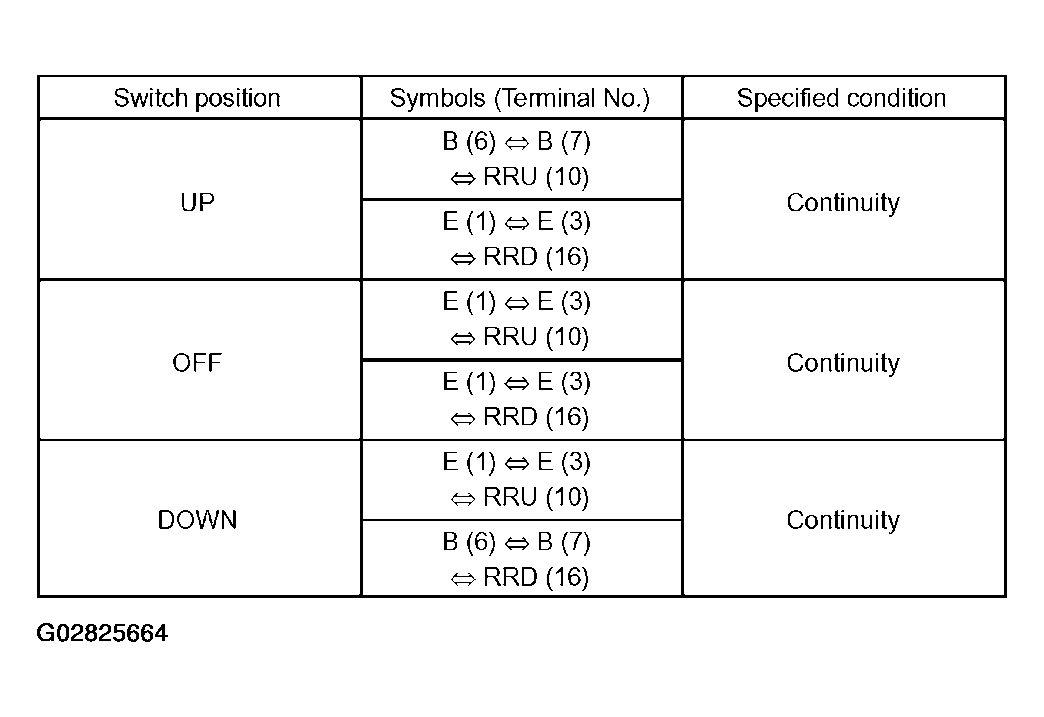

  Fig 8: Rear Right Switch (Window Unlock) Continuity Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  [Rear right switch (Window lock)]

  Standard:

  Fig 9: Rear Right Switch (Window Lock) Continuity Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the master switch.
2. Inspect the master switch illumination.
  Standard:

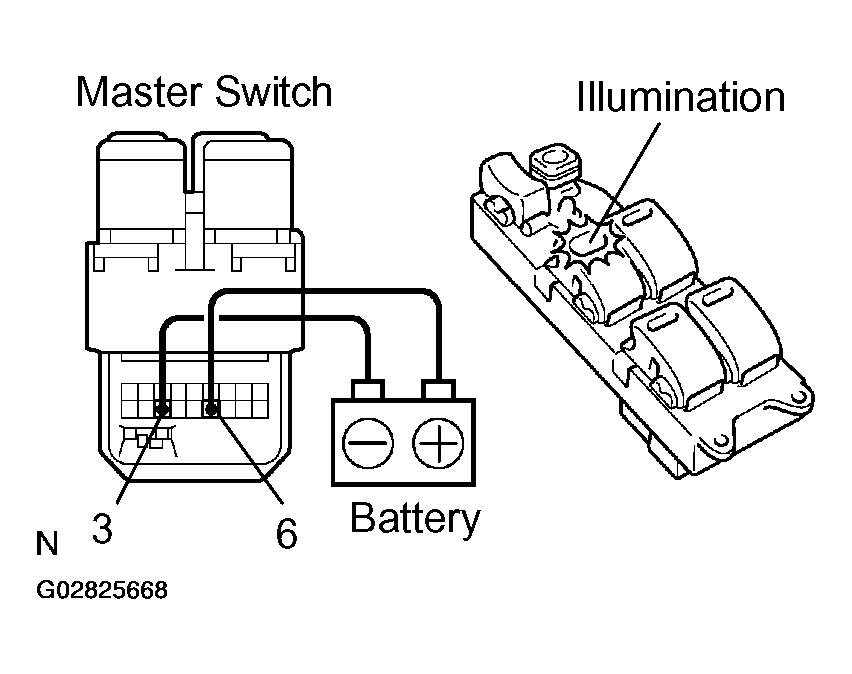

  Fig 10: Identifying Master Switch Terminals No. 3 And 6
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

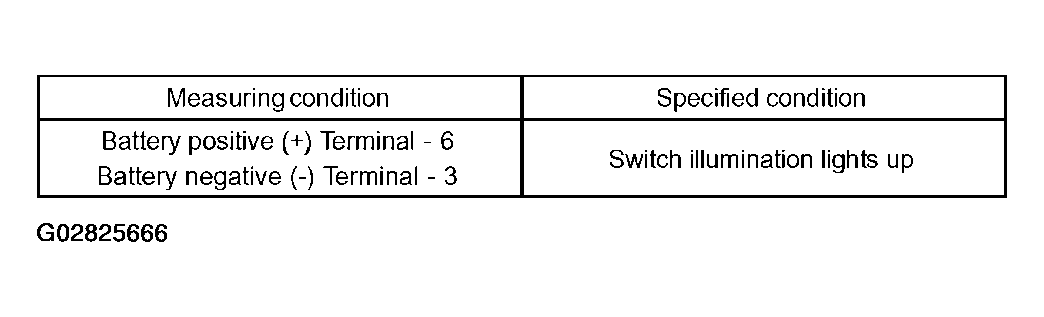

  Fig 11: Master Switch Illumination Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the master switch.
INSPECT POWER WINDOW REGULATOR SWITCH ASSY
HINT:

All the regulator switches (front passenger's, rear left, rear right) should be inspected in the same procedure.
1. Inspect the regulator switch continuity.
  Standard:

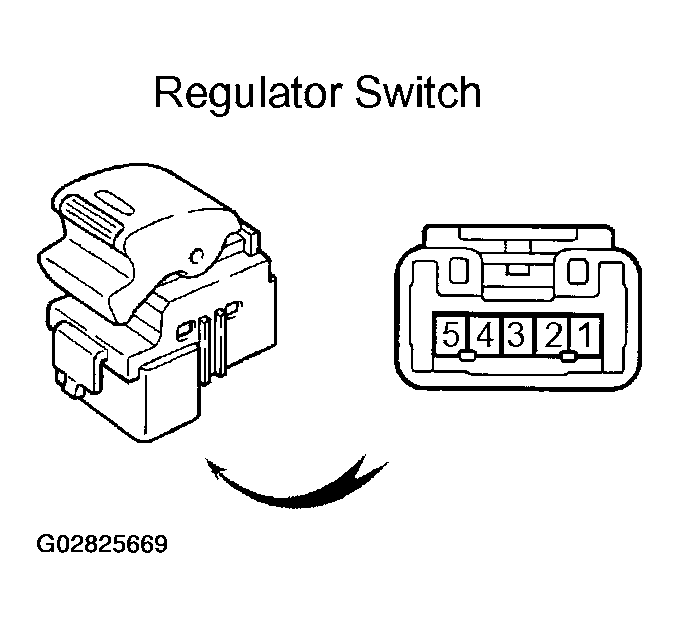

  Fig 12: Identifying Regulator Switch Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

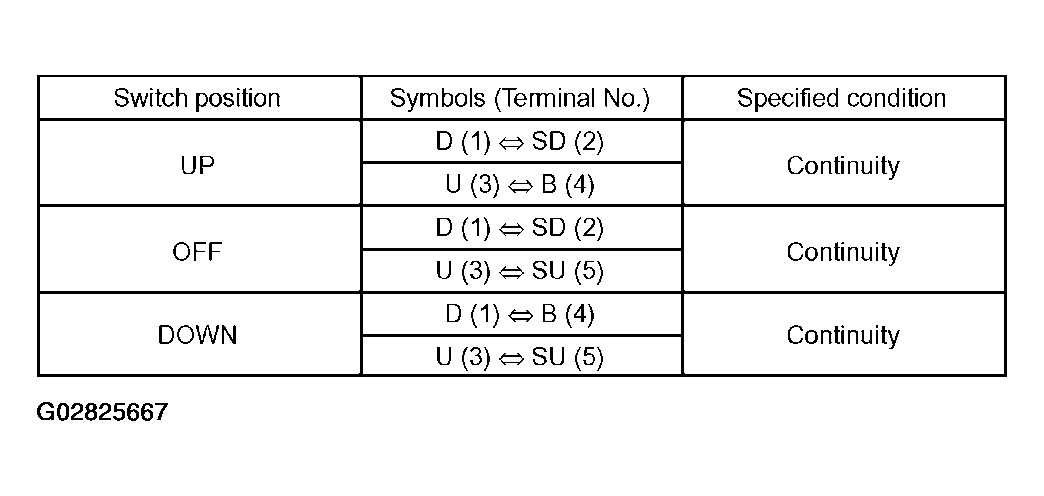

  Fig 13: Regulator Switch Continuity Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the regulator switch.
INSPECT POWER WINDOW REGULATOR MOTOR
1. Inspect the regulator motor operation.
  HINT:
  - Driver's side and rear RH regulator motors should be inspected in the same procedure.
  - Passenger's side and rear LH regulator motors should be inspected in the same procedure.
  1. Check that the motor operates smoothly when the battery positive voltage is applied to each terminal of the connector.

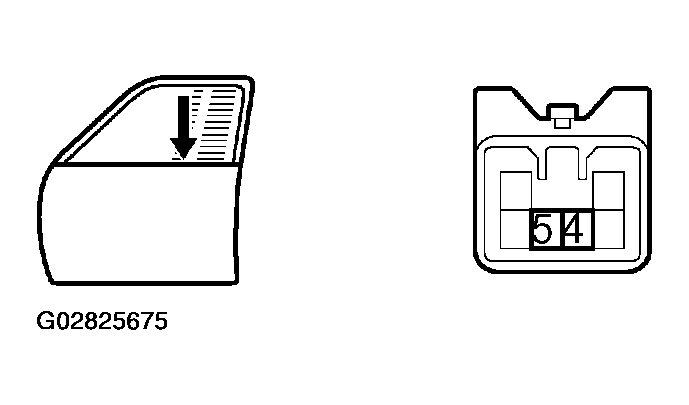

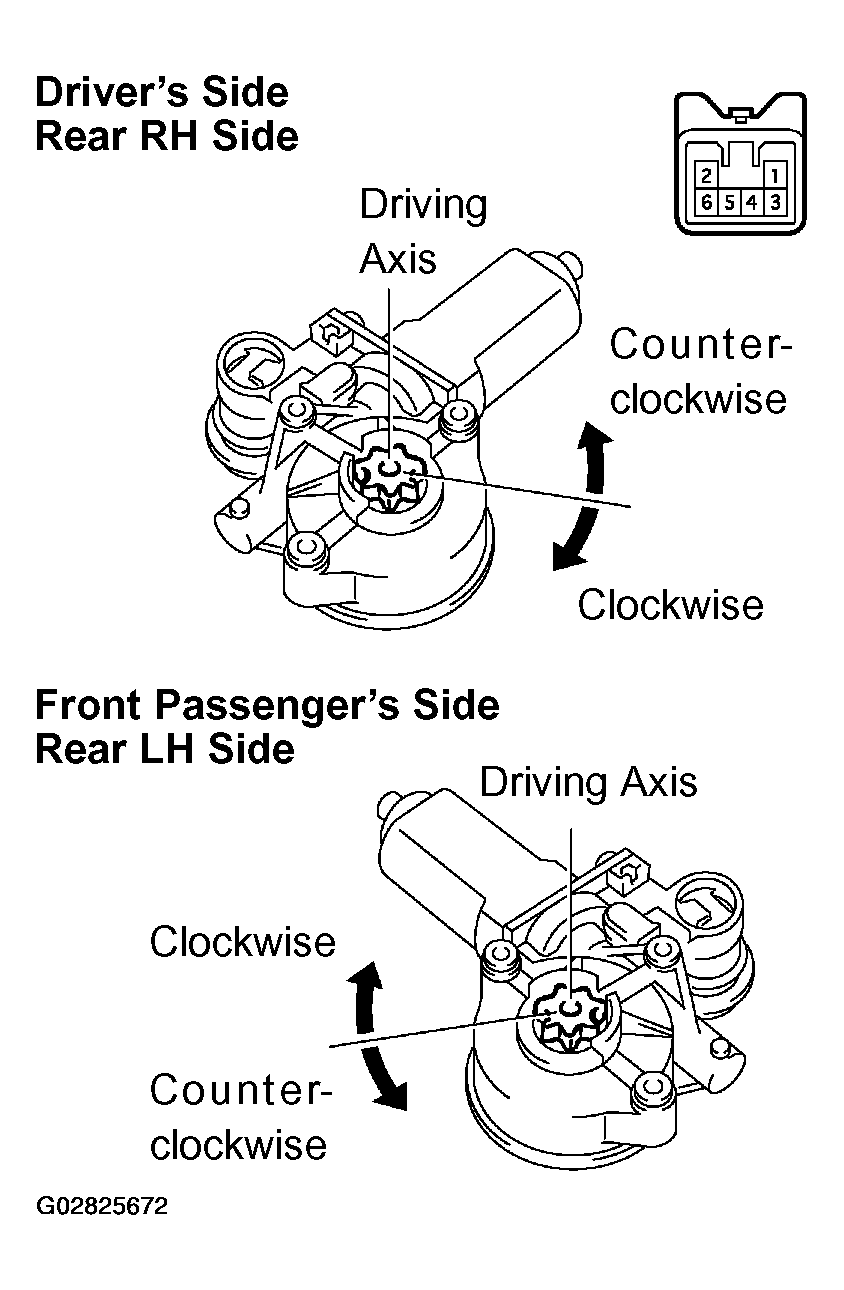

    Fig 14: Checking Regulator Motor Operation
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard [Driver's side and rear RH side]:

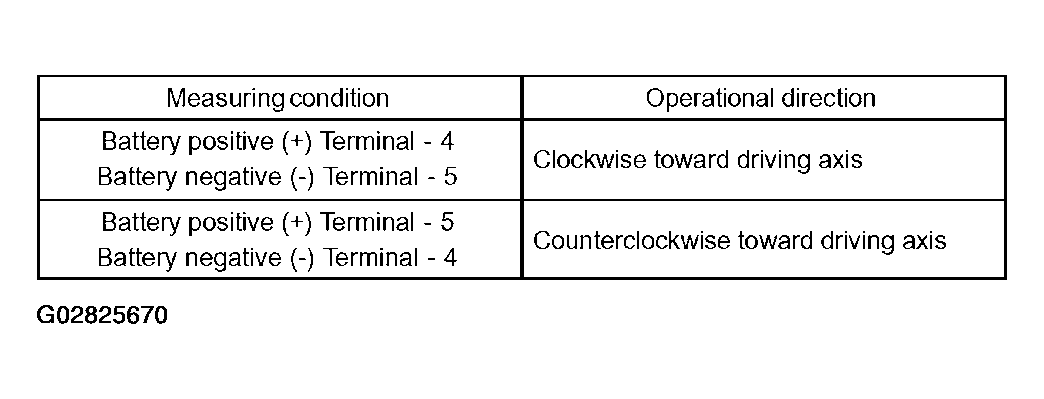

    Fig 15: Driver's Side And Rear RH Side Power Window Regulator Operation Table
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard [Front passenger's side and rear LH side]:

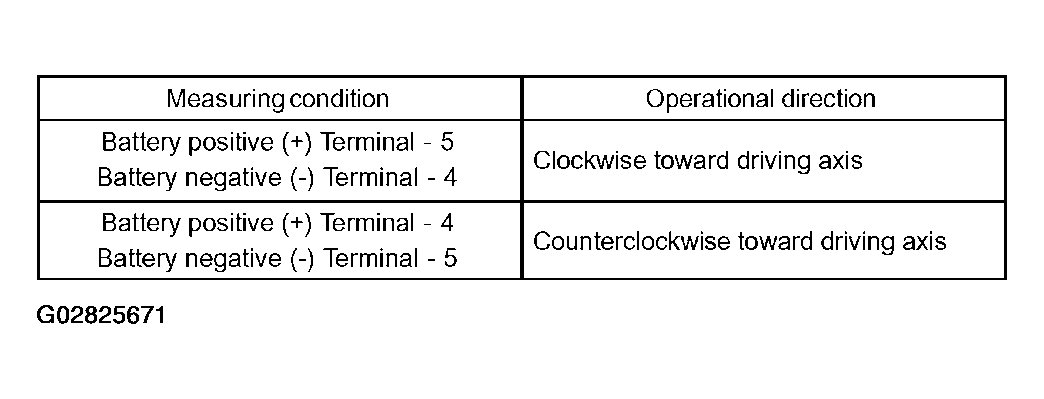

    Fig 16: Front Passenger's Side And Rear LH Side Power Window Regulator Operation Table
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the result is not as specified, replace the motor.
2. Inspect the PTC operation inside the regulator motor.
  NOTE: The inspection should be performed with the power window regulator and door glass installed to the vehicle.
  1. Set a DC 400 A probe of the TOYOTA electrical tester in the wire harness of terminal 4 or 5.
    NOTE: Match the arrow mark of the probe with the current direction.

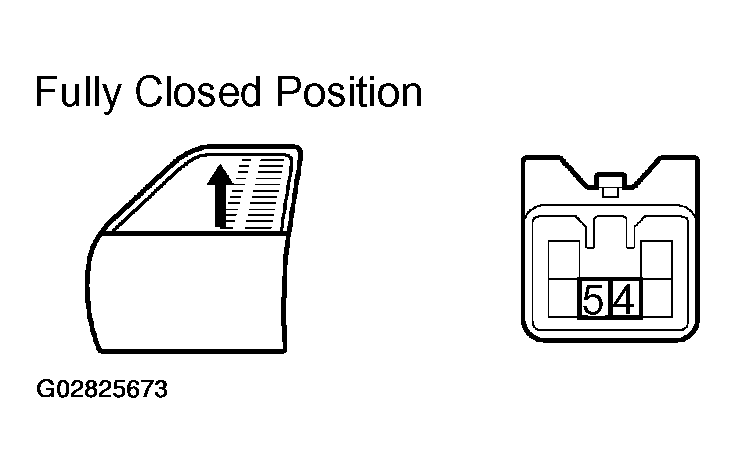

    Fig 17: Checking PTC Operation (1 Of 2)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Set the door glass in the fully closed position.
  3. When 60 seconds have elapsed after the door glass is fully closed, check how long it takes for the current to change from approximately 16-34 A into 1 A or less when the power window switch is turned UP once again.
    Standard: Approximately 4-90 seconds
  4. When approximately 60 seconds have elapsed after the inspection of the current cut-off, check that the door glass goes down when the power window regulator switch is turned DOWN.
    If the result is not as specified, replace the motor.

    Fig 18: Checking PTC Operation (2 Of 2)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT RELAY (Making: P/W)
1. Remove the power window relay from the instrument panel J/B.
2. Inspect the power window relay.
If the result is not as specified, replace the relay.

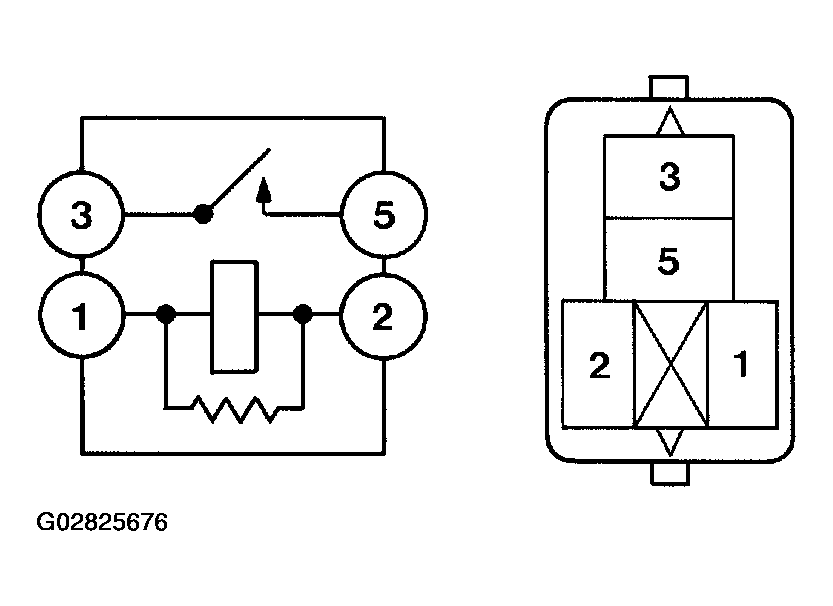

Fig 19: Identifying Power Window Relay Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

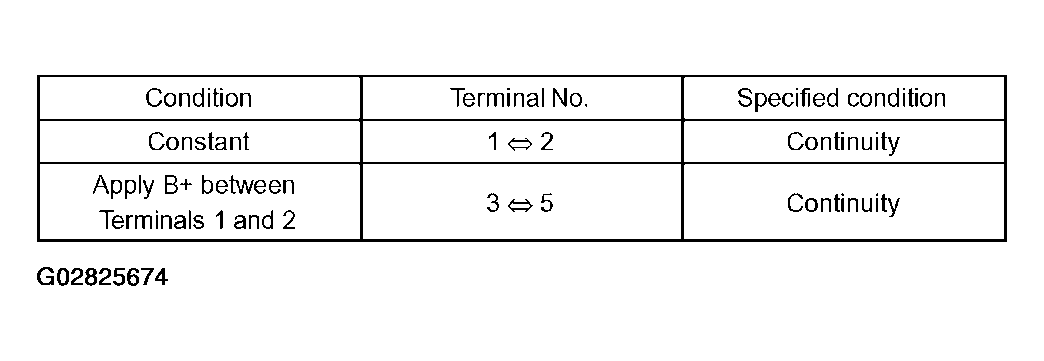

Fig 20: Power Window Relay Continuity Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
