Power Window Control System: Inspection

INSPECT POWER WINDOW REGULATOR SWITCH ASSY
1. Check continuity.
  1. Check the continuity between the terminals when battery voltage is applied to terminals 1 and 8.

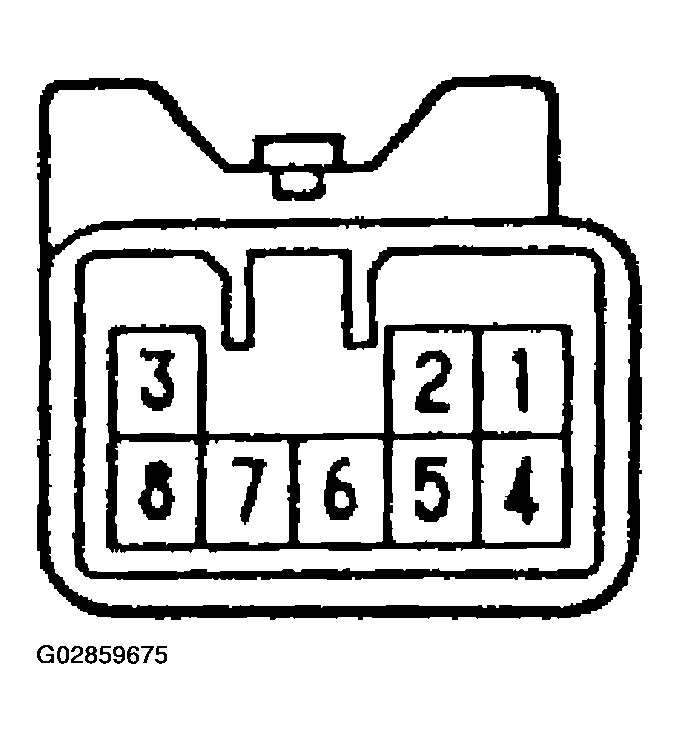

    Fig 1: Identifying Power Window Regulator Switch Terminals
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard:

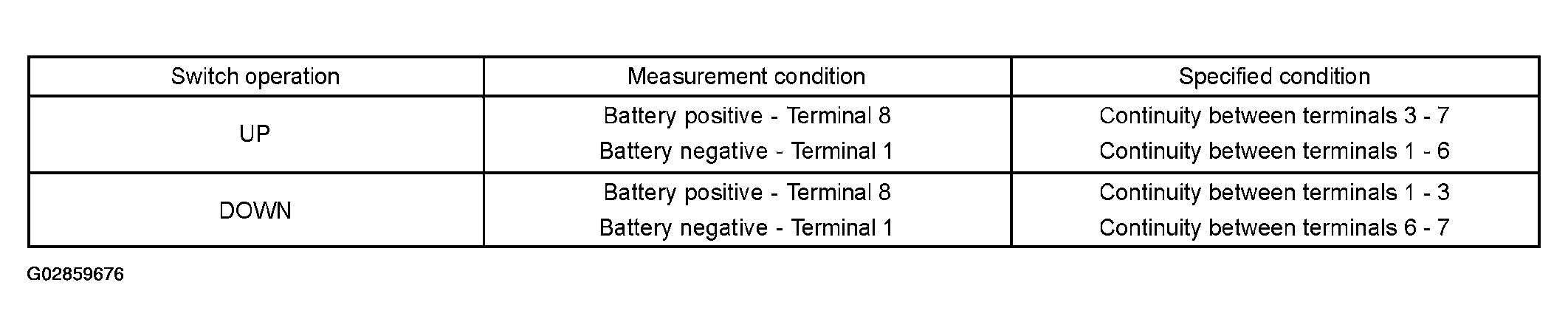

    Fig 2: Power Window Regulator Switch Specifications
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the continuity is not as specified, replace the switch.
