Circuit Inspection

How to read and use each section is shown here in Fig 1.

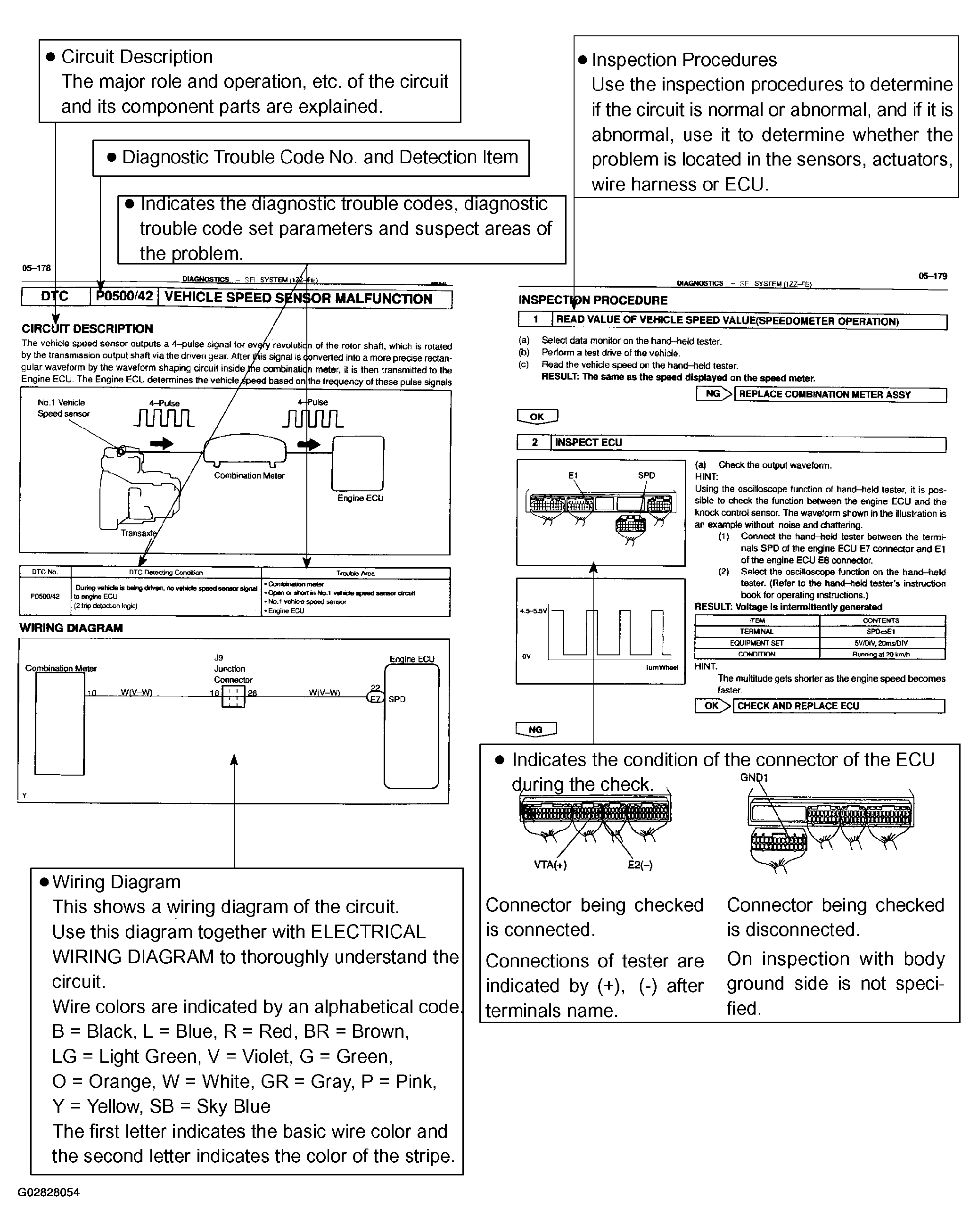

Fig 1: Circuit Inspection Description Chart (Example)
G02828054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
