Accessory Cut Relay

  1. Locate and remove accessory cut relay. See Fig 1.
  2. Using an ohmmeter, check that there is continuity across terminals 1 and 2. See Fig 2. Continuity should not exist across terminals 3 and 5. If relay operates as specified, go to step  3.
  3. Using an ohmmeter, check that there is continuity between terminals 3 and 5 when battery voltage is applied across terminals 1 and 2. See Fig 2. If continuity is not present across terminals 3 and 5, replace the relay.
  4. If relay operates as specified, reinstall engine cut relay.

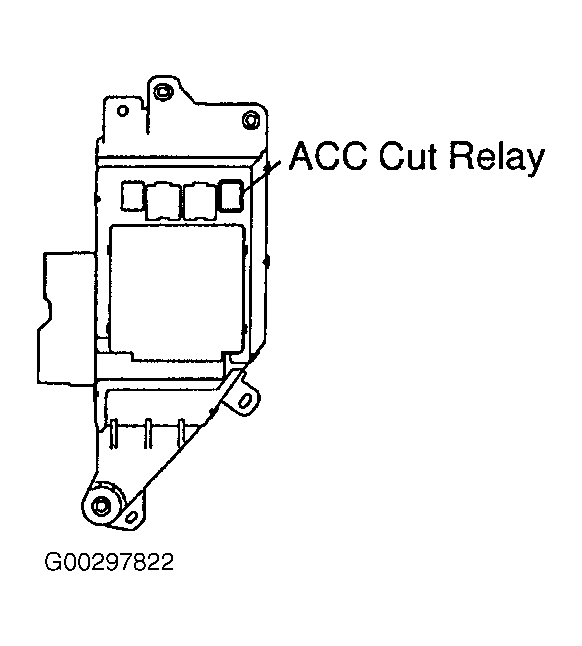

Fig 1: Locating Accessory Cut Relay
G00297822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

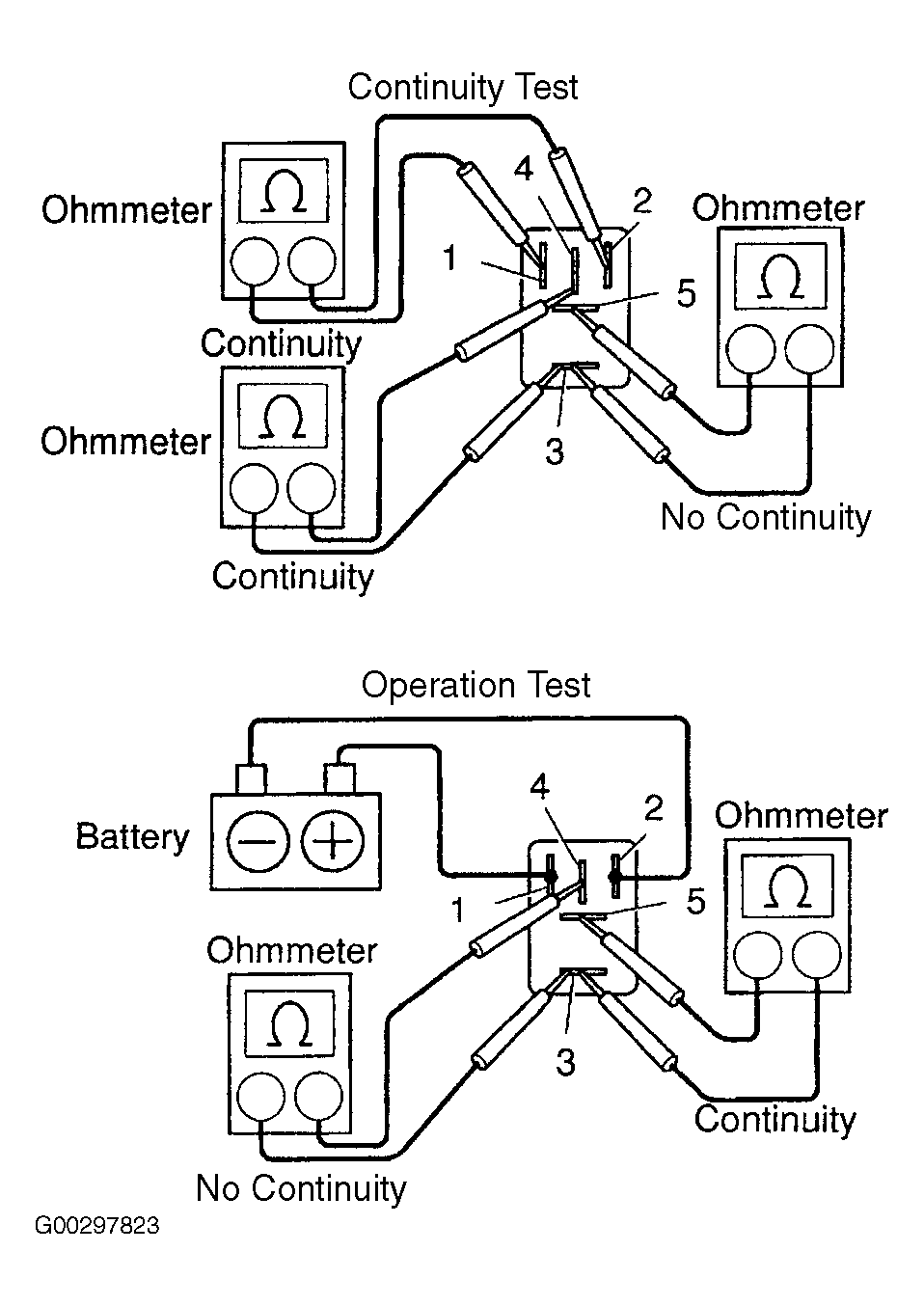

Fig 2: Testing Accessory Cut Relay
G00297823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
