Catalyst Monitor & Drive Cycle Pattern
For catalyst monitor and drive cycle pattern, see
Fig 1
.

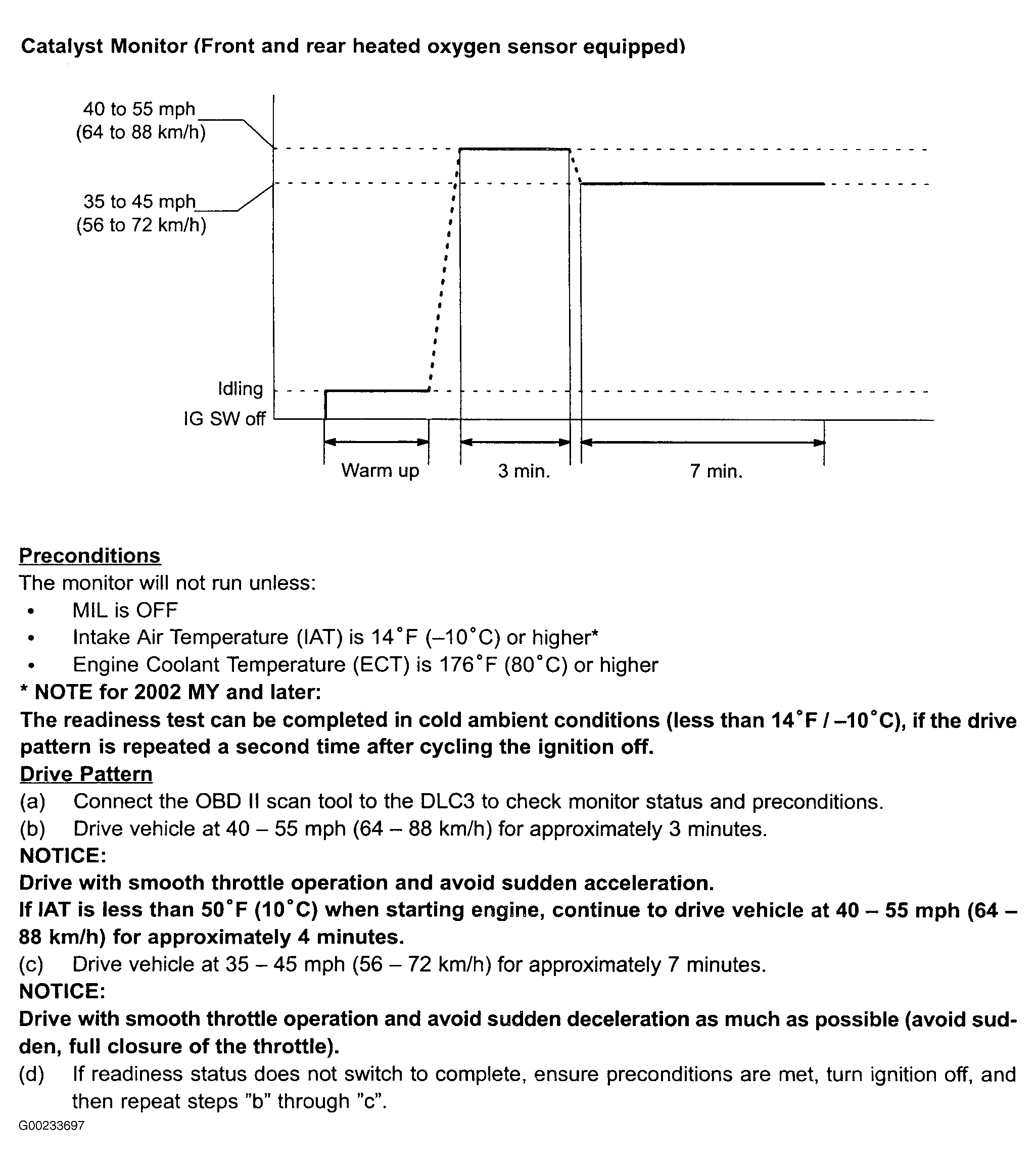

Fig 1: Catalyst Monitor & Drive Cycle Pattern
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
