Vehicle Lift And Support Locations

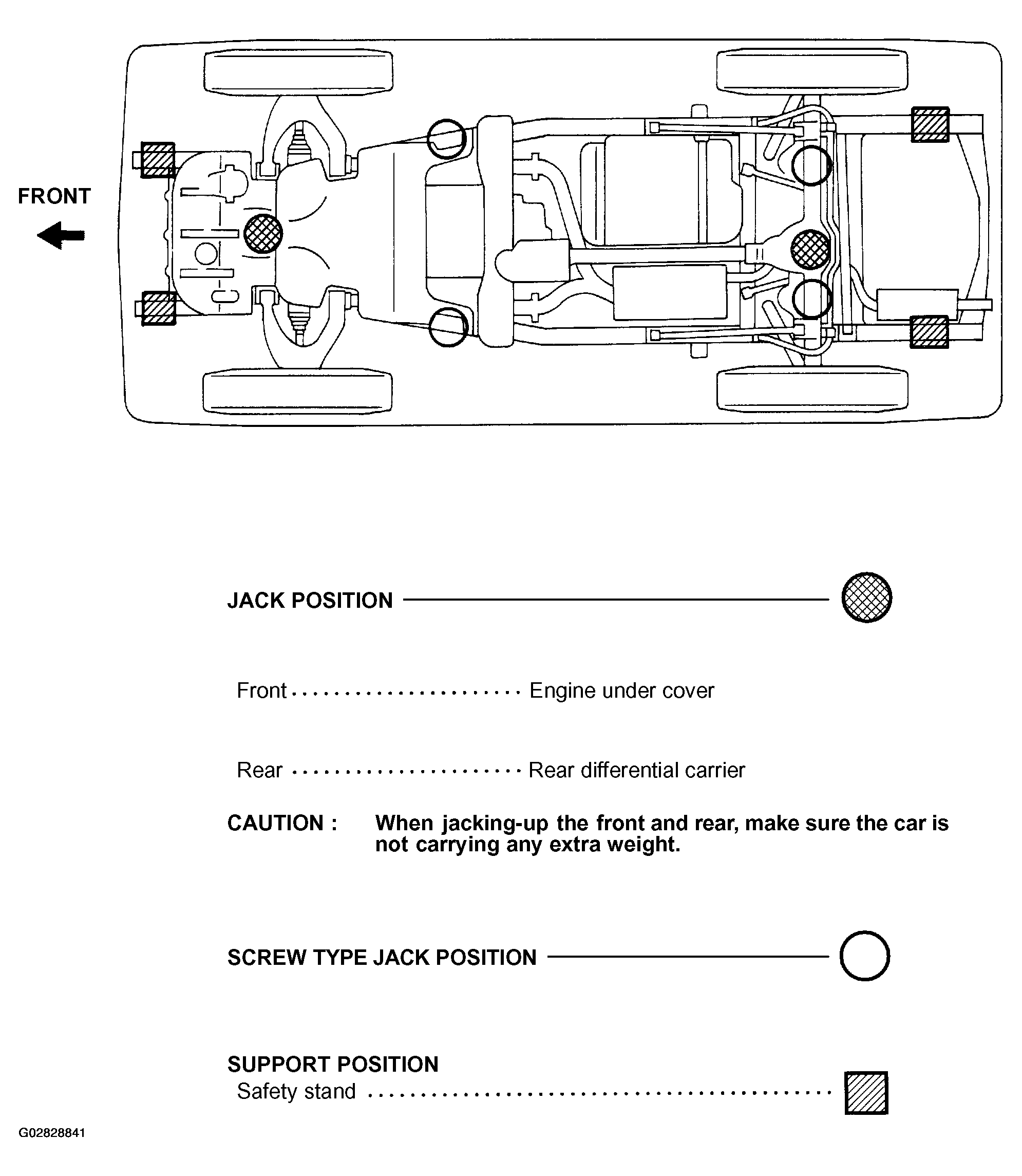

Fig 1: Locating Vehicle Lift And Support Position
G02828841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

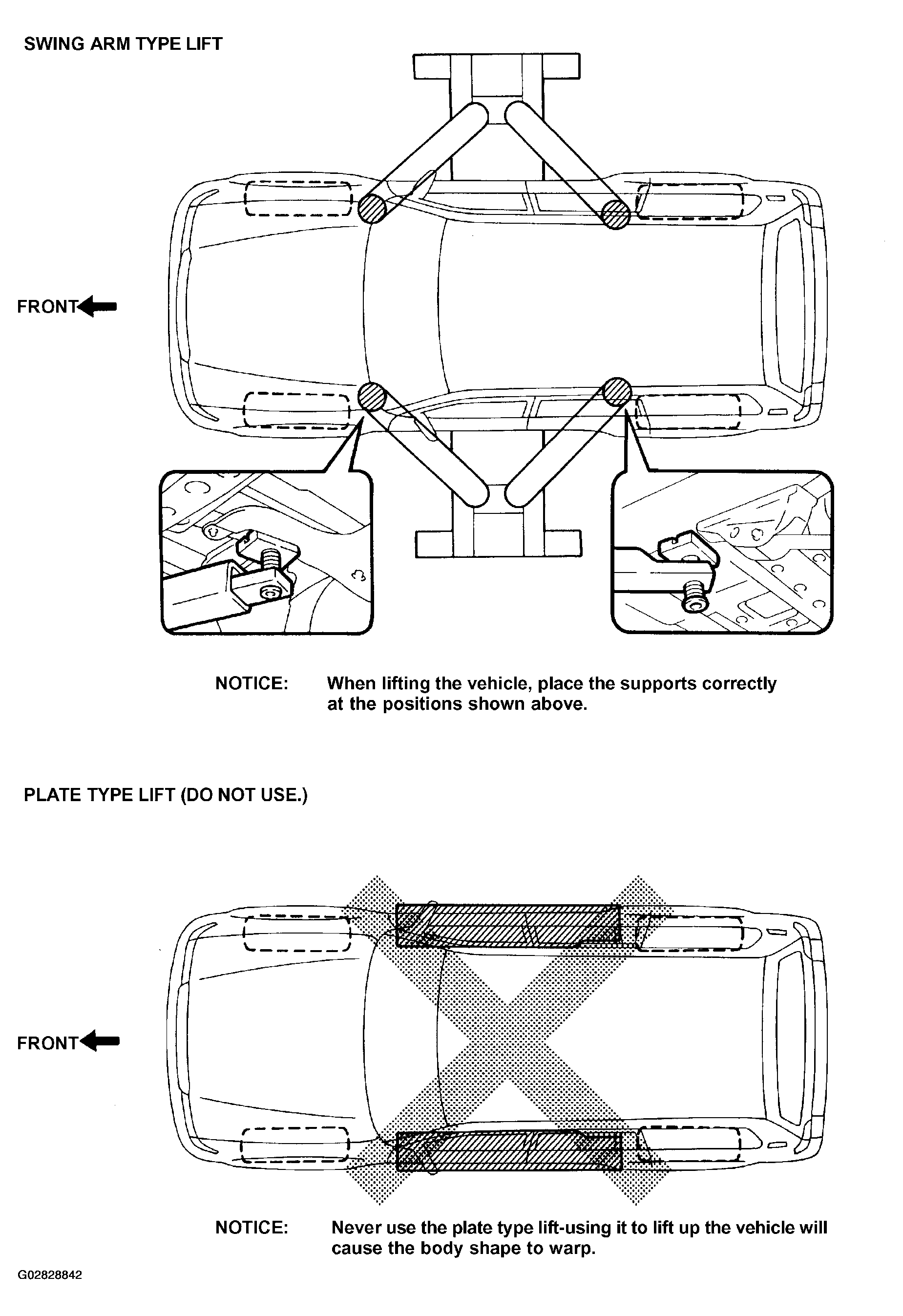

Fig 2: Placing Supports Correctly
G02828842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
