Power Window Control System: Inspection

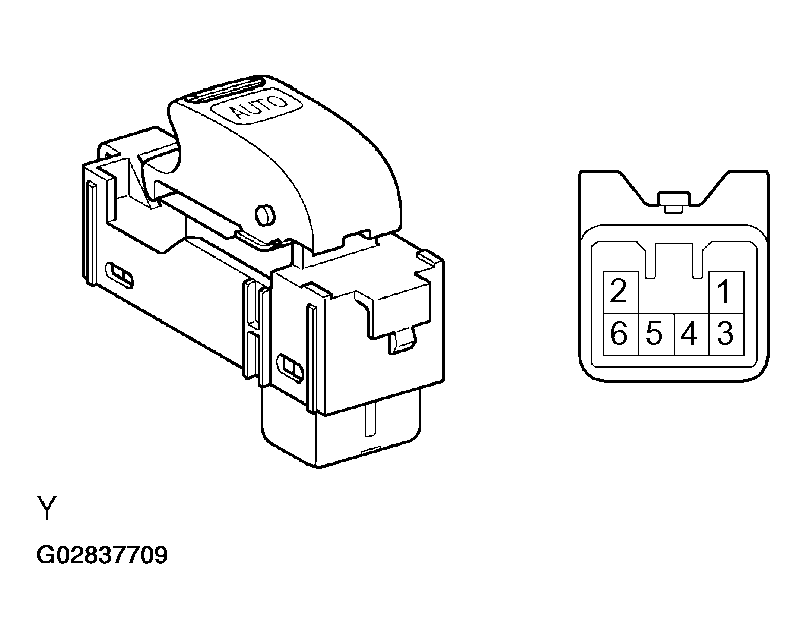

Driver side: INSPECT POWER WINDOW CONTROL SWITCH CONTINUITY

POWER WINDOW CONTROL SWITCH CONTINUITY SPECIFICATIONS

Switch position	Tester connection	Specified condition
UP MANUAL	3 - 6	Continuity
OFF	-	No Continuity
DOWN MANUAL	3-4	Continuity
DOWN AUTO	3 - 4, 3 - 5	Continuity

If the continuity is not as specified, replace the switch.

Fig 1: Inspecting Power Window Control Switch Continuity (Driver Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

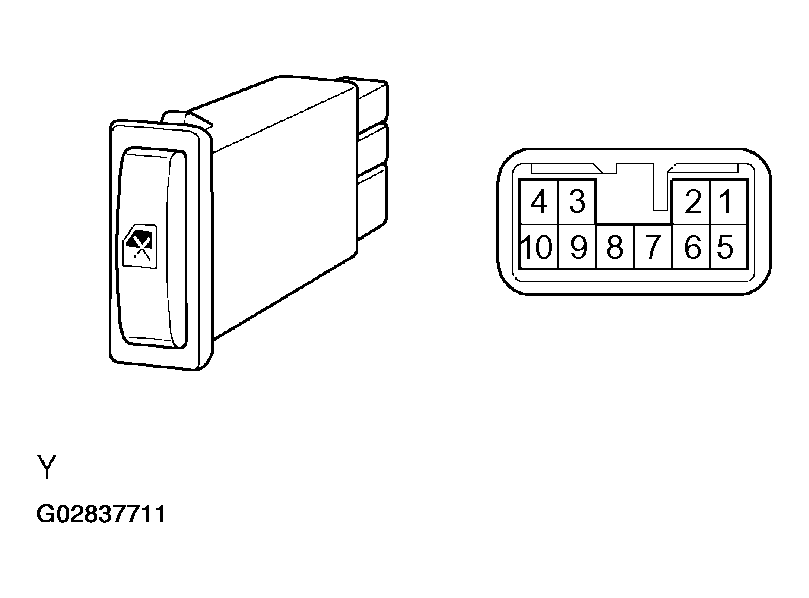

Passenger side: INSPECT POWER WINDOW CONTROL SWITCH CONTINUITY

POWER WINDOW CONTROL SWITCH CONTINUITY SPECIFICATIONS

Switch position	Tester connection	Specified condition
UP	1 - 2, 3 - 4	Continuity
OFF	1 - 2, 3 - 5	Continuity
DOWN	1 - 4, 3 - 5	Continuity

If the continuity is not as specified, replace the switch.

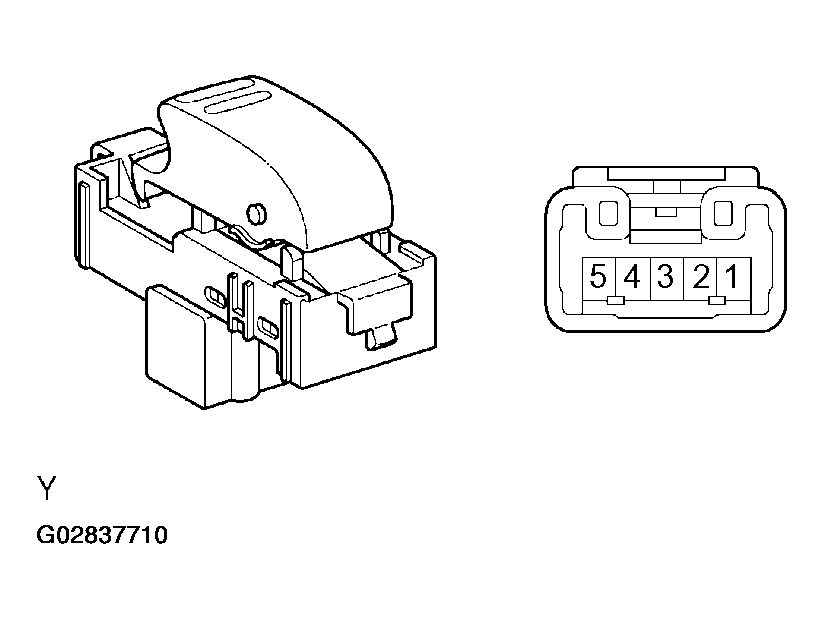

Fig 2: Inspecting Power Window Control Switch Continuity (Passenger Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Only for passenger side power window: INSPECT POWER WINDOW LOCK SWITCH CONTINUITY

POWER WINDOW LOCK SWITCH CONTINUITY SPECIFICATIONS

Switch position	Tester connection	Specified condition
ON	7 - 10	Continuity
OFF	7 - 10	No Continuity

If the continuity is not as specified, replace the switch.

Fig 3: Inspecting Power Window Lock Switch Continuity (Passenger Side)

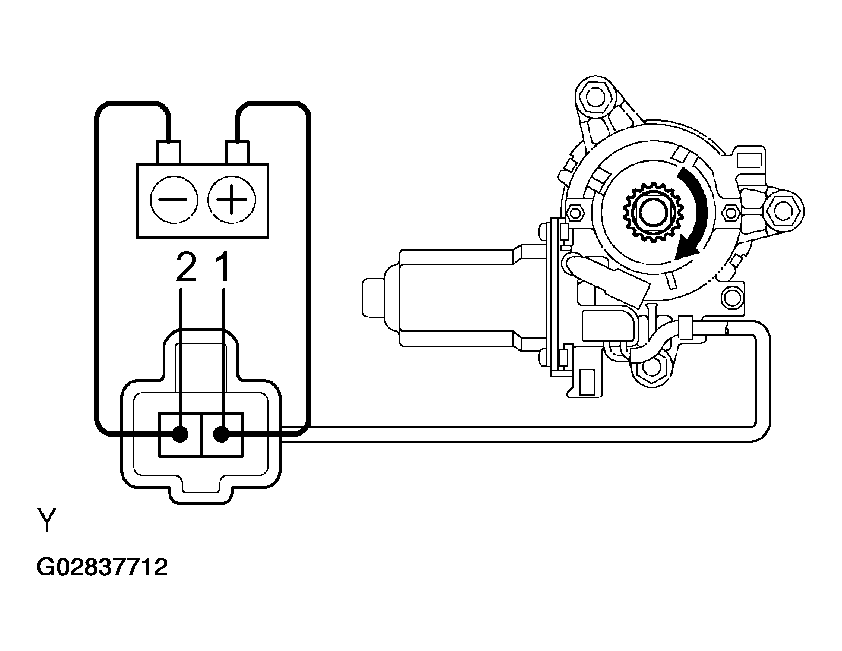

Driver side door: INSPECT POWER WINDOW MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, check that the motor turns clockwise.

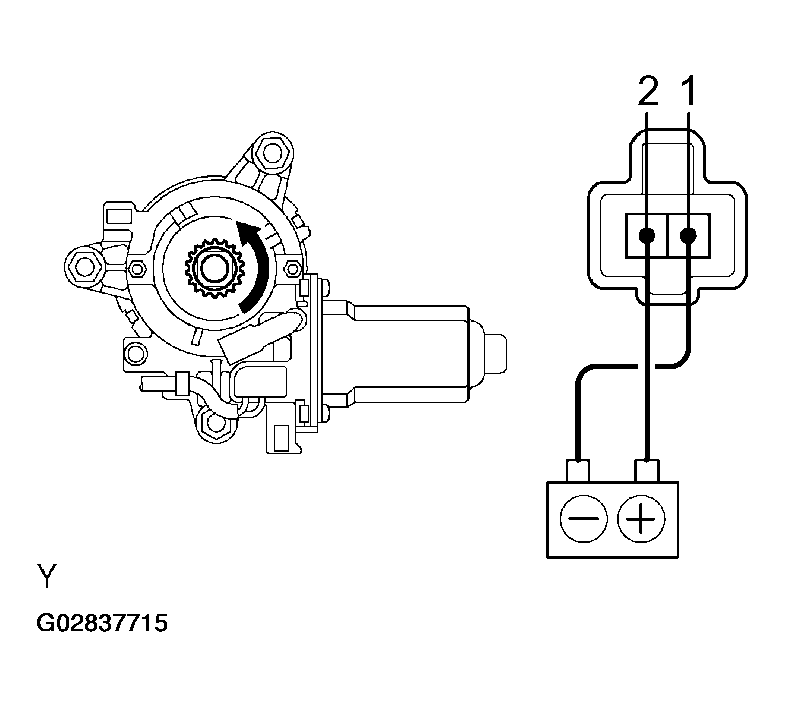

  Fig 4: Inspecting Power Window Motor Operation (Driver Side Door - 1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

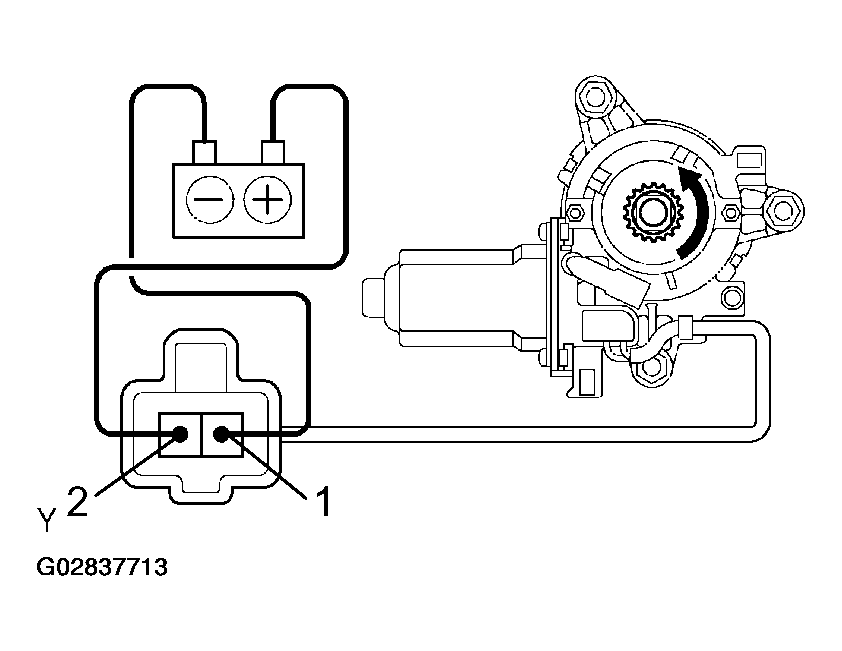

2. Reverse the polarity, check that the motor turns counterclockwise. If the operation is not as specified, replace the motor.

  Fig 5: Inspecting Power Window Motor Operation (Driver Side Door - 2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

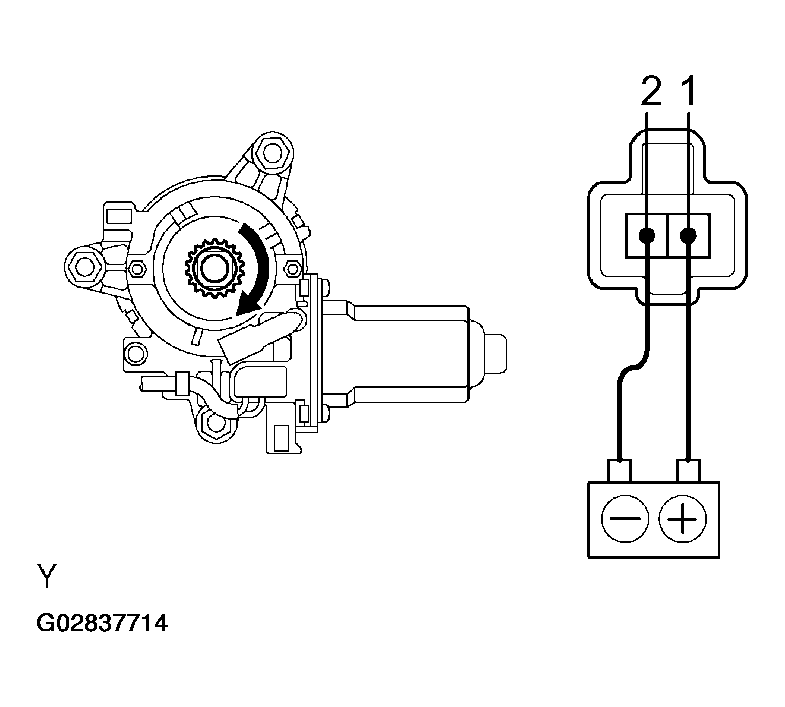

Passenger side door: INSPECT POWER WINDOW MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, check that the motor turns clockwise.

  Fig 6: Inspecting Power Window Motor Operation (Passenger Side Door - 1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity, check that the motor turns counterclockwise.
  If the operation is not as specified, replace the motor.

  Fig 7: Inspecting Power Window Motor Operation (Passenger Side Door - 2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

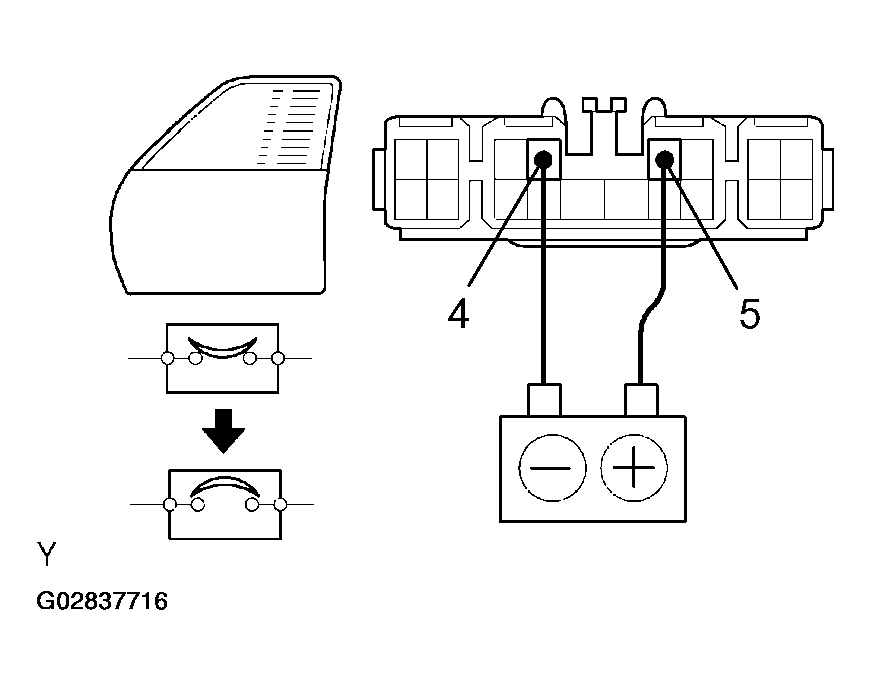

Driver side door: INSPECT POWER WINDOW MOTOR PTC OPERATION
1. Disconnect the B6 connector from the body ECU.
2. Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 4 on the wire harness side connector, and raise the window to fully closed position.

  Fig 8: Inspecting Power Window Motor PTC Operation (Driver Side Door - 1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

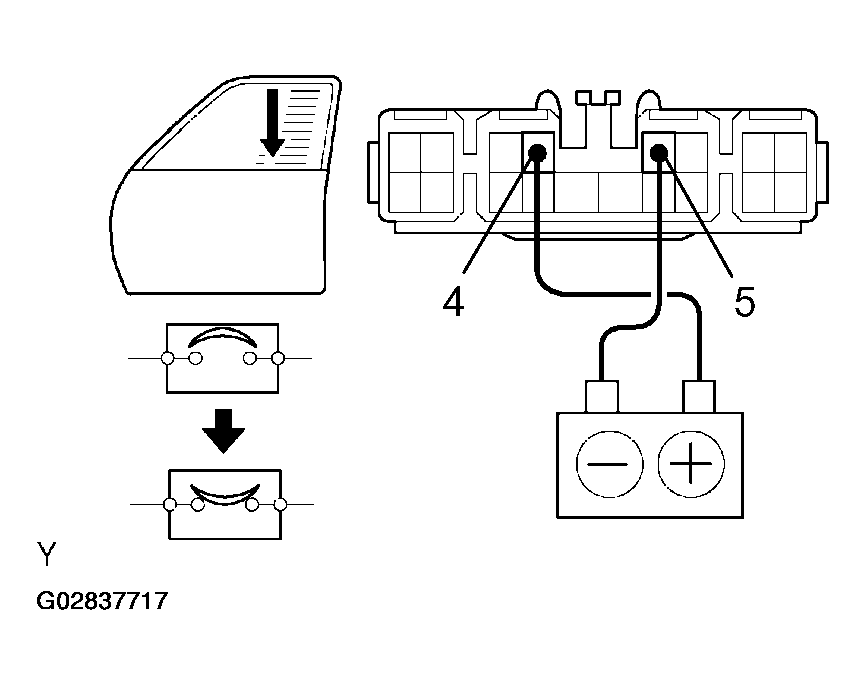

3. Continue to apply voltage, check that a circuit breaker operation noise is heard within approximately 4 to 90 seconds.
4. Reverse the polarity, check that the window begins to descend within approximately 60 seconds.
  If the operation is not as specified, replace the motor.

  Fig 9: Inspecting Power Window Motor PTC Operation (Driver Side Door - 2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

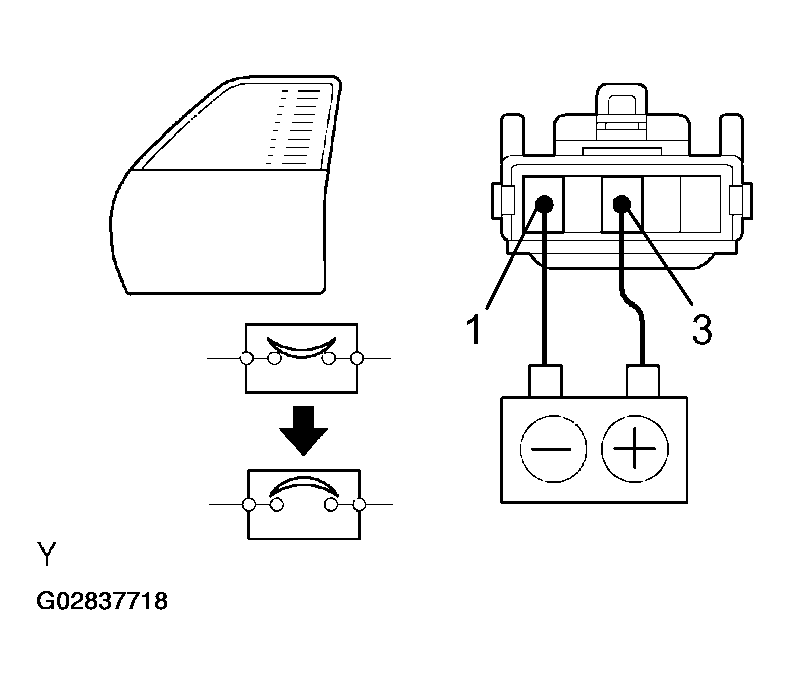

Passenger side door: INSPECT POWER WINDOW MOTOR PTC OPERATION
1. Disconnect the connector from the power window switch.
2. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 1 on the wire harness side connector, and raise the window to fully closed position.

  Fig 10: Inspecting Power Window Motor PTC Operation (Passenger Side Door - 1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Continue to apply voltage, check that circuit breaker operation noise is heard within approximately 4 to 90 seconds.
4. Reverse the polarity, check that the window begins to descend within approximately 60 seconds.
  If the operation is not as specified, replace the motor.

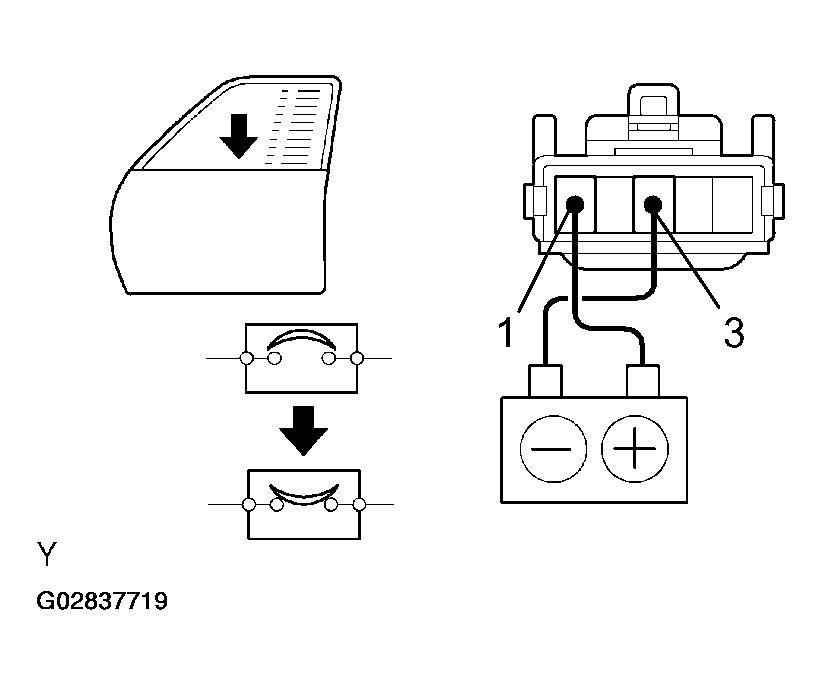

  Fig 11: Inspecting Power Window Motor PTC Operation (Passenger Side Door - 2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
