Ignition Coil: Components

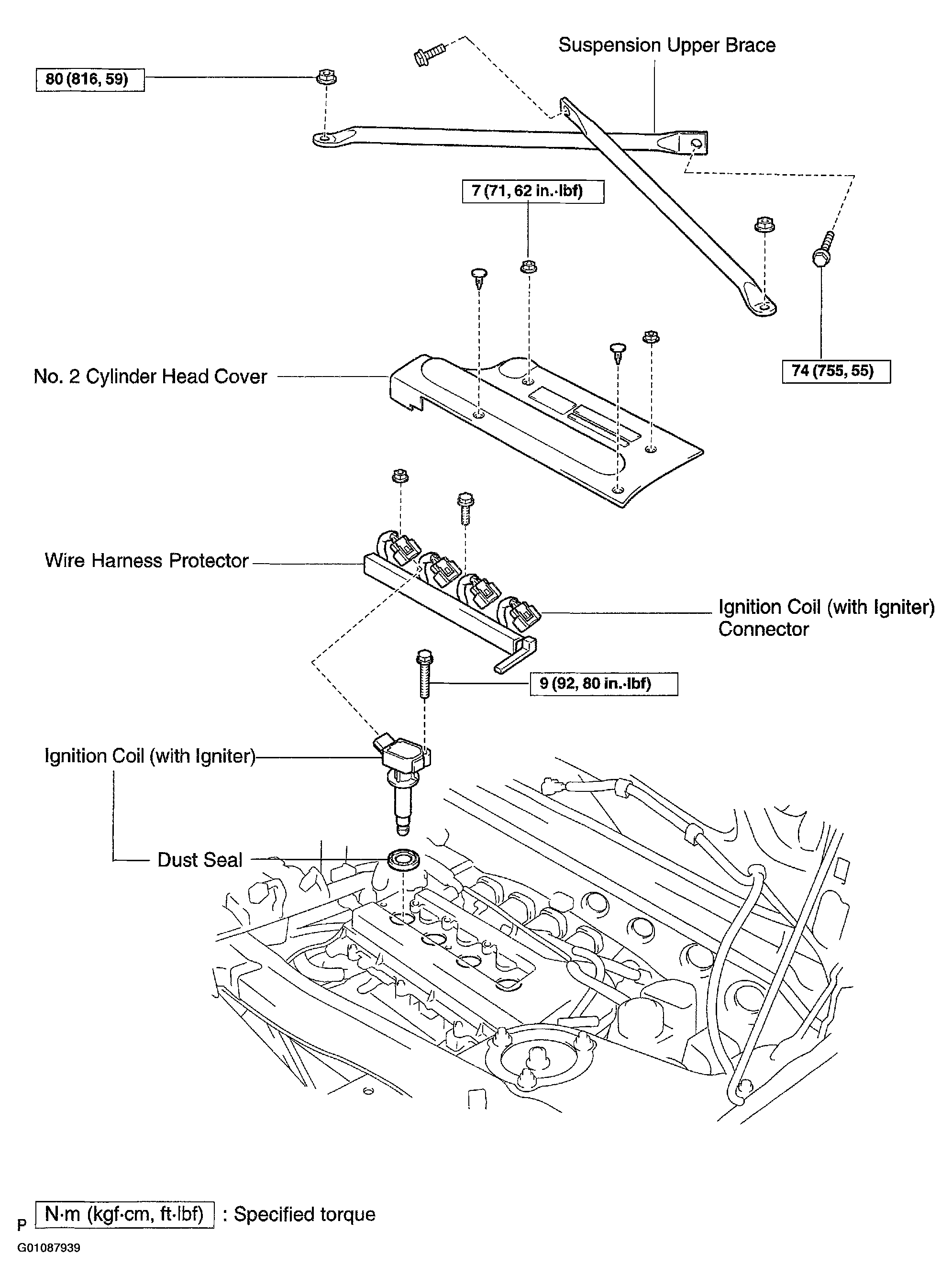

Fig 1: Identifying Components To Remove To Access Ignition Coils
G01087939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
