Front Wheel Alignment: Inspection

Vehicle height:

If the vehicle height is not the specified value, try to adjust it by pushing down on or lifting the body.

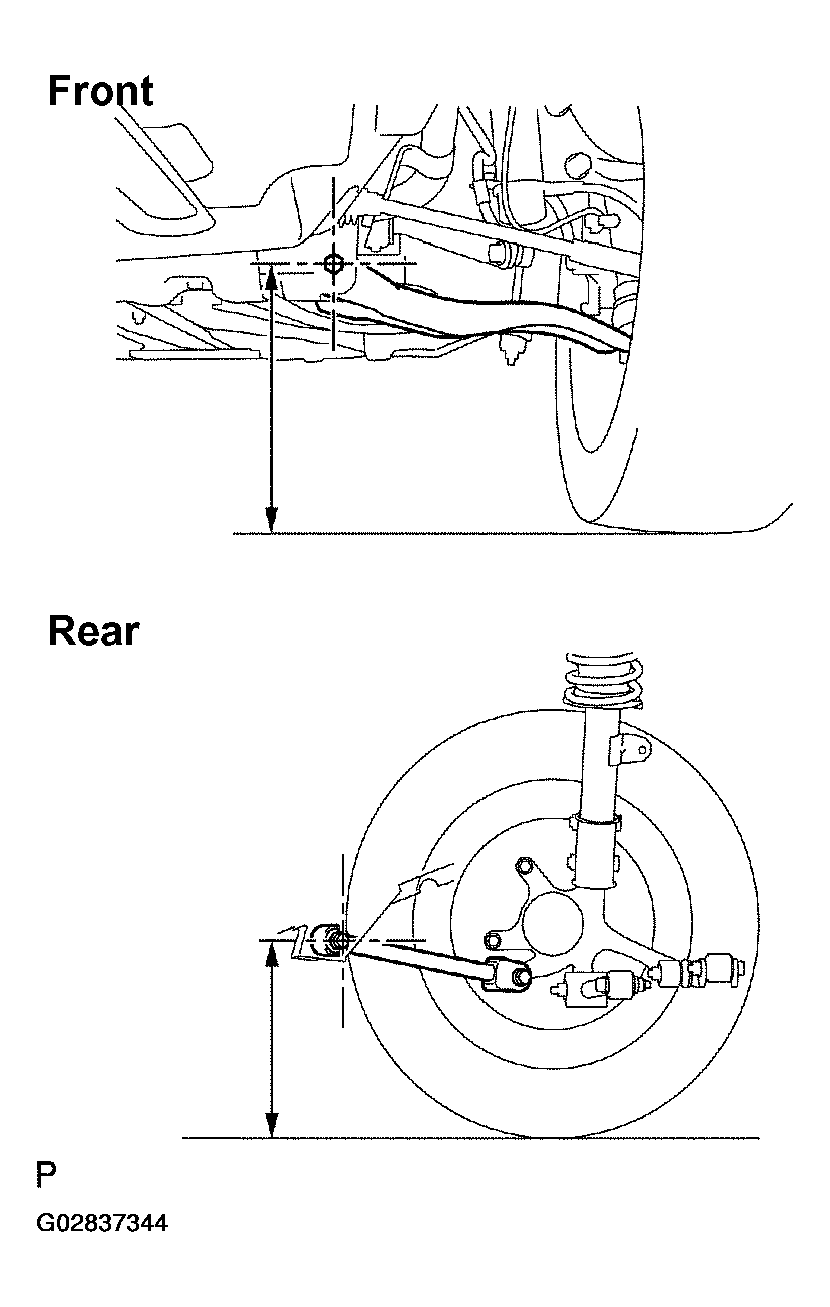

Fig 1: Measuring Distance From Ground To Center Of Strut Rod Mounting Bolt (Front And Rear)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Follow the specific instructions of the equipment manufacturer.

Camber caster and steering axis inclination:

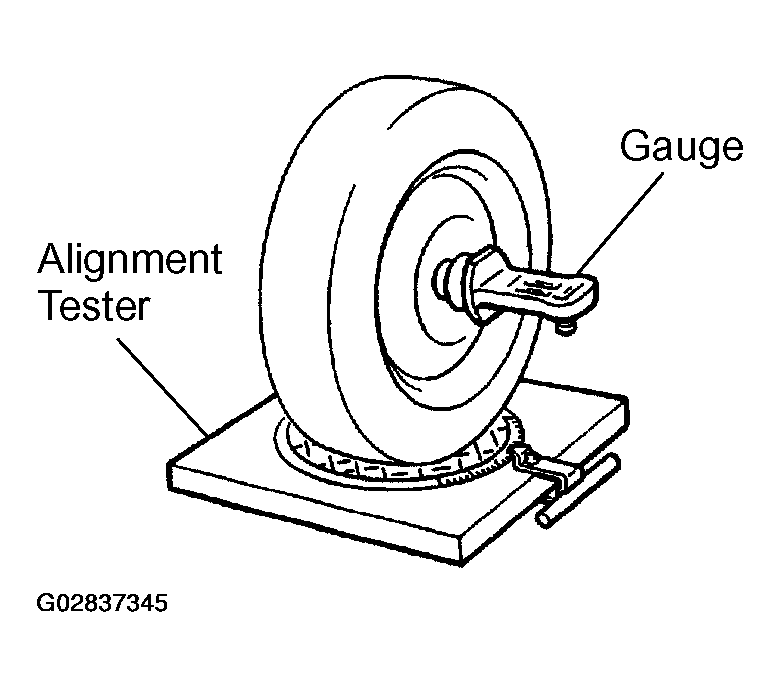

Fig 2: Installing Camber-Caster-Kingpin Gauge Or Position Vehicle On Wheel Alignment Tester

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the caster and steering axis inclination are not within the specified values, after the camber has been correctly adjusted, re-check the suspension parts for damaged and/or worn out parts.

1. Remove the front wheel.

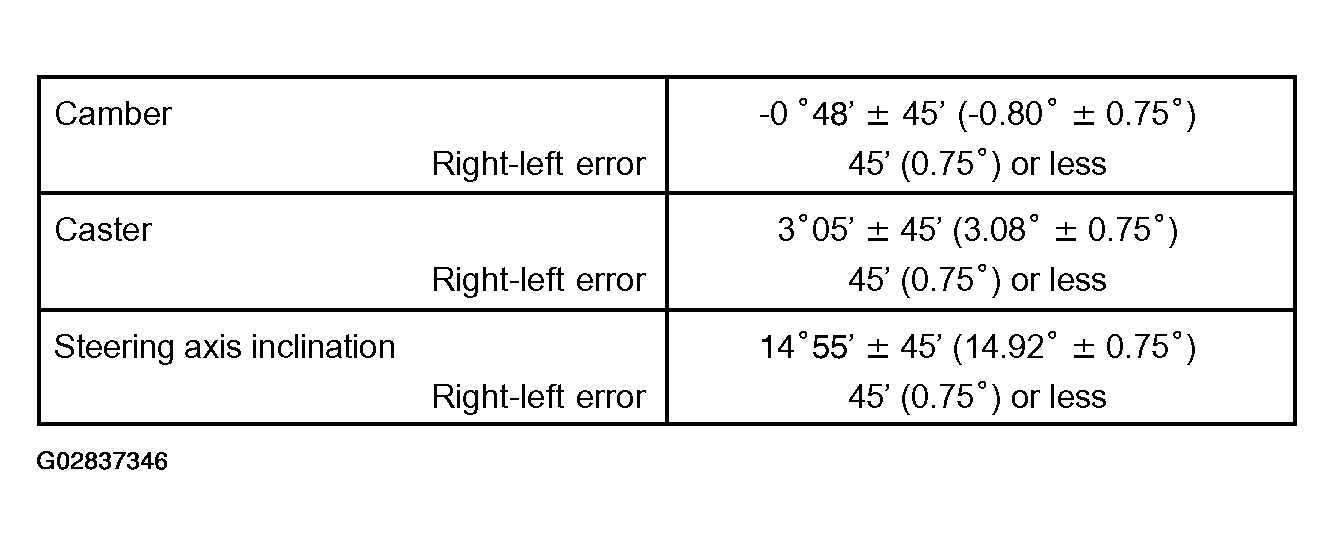

   Fig 3: Inspecting Camber, Caster And Steering Axis Inclination Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 nuts on the lower side of the shock absorber.
3. Coat the threads of the nuts with engine oil.
4. Temporarily install the 2 nuts.

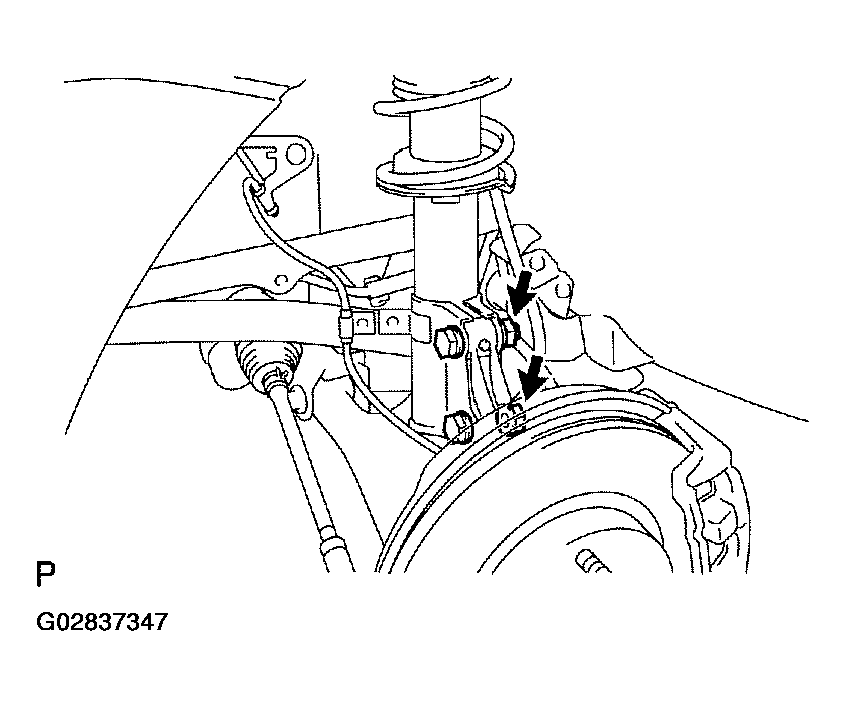

   Fig 4: Removing 2 Nuts On Lower Side Of Shock Absorber

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Adjust the camber by pushing or pulling the lower side of the shock absorber in the direction in which the camber adjustment is required.
6. Tighten the nuts.

   Torque: 140 N.m (1,430 kgf.cm, 103 ft.lbf)

7. Install the front wheel.

   Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

8. Check the camber.

   HINT:

   • Try to adjust the camber to the center of the specified value.
   • Adjusting value for the set bolts is 6' - 30' (0.1 ° - 0.5°).

   If the camber is not within the specified value, using the following table, estimate how much additional camber adjustment will be required, and select the camber adjusting bolt.

   NOTE: Tighten the adjusting bolt with a washer and a new nut.

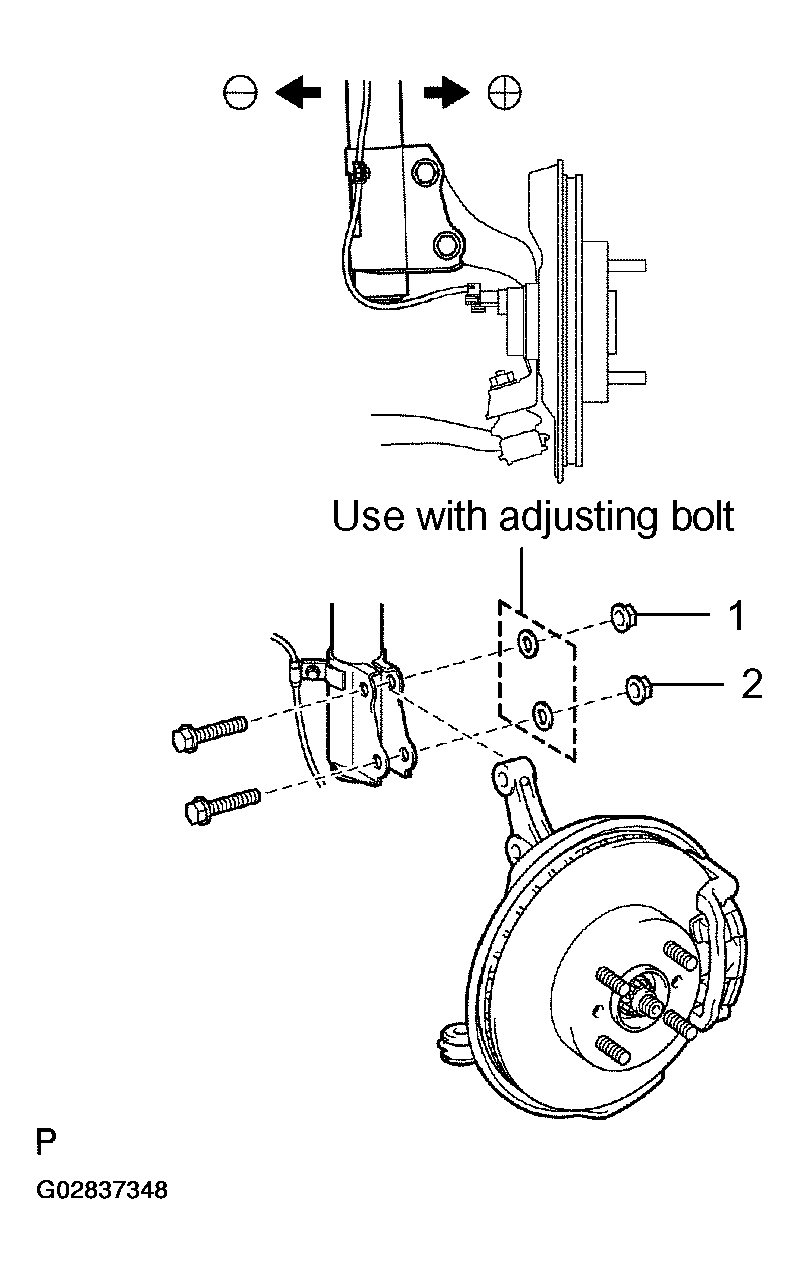

   Fig 5: Adjusting Camber By Tightening Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

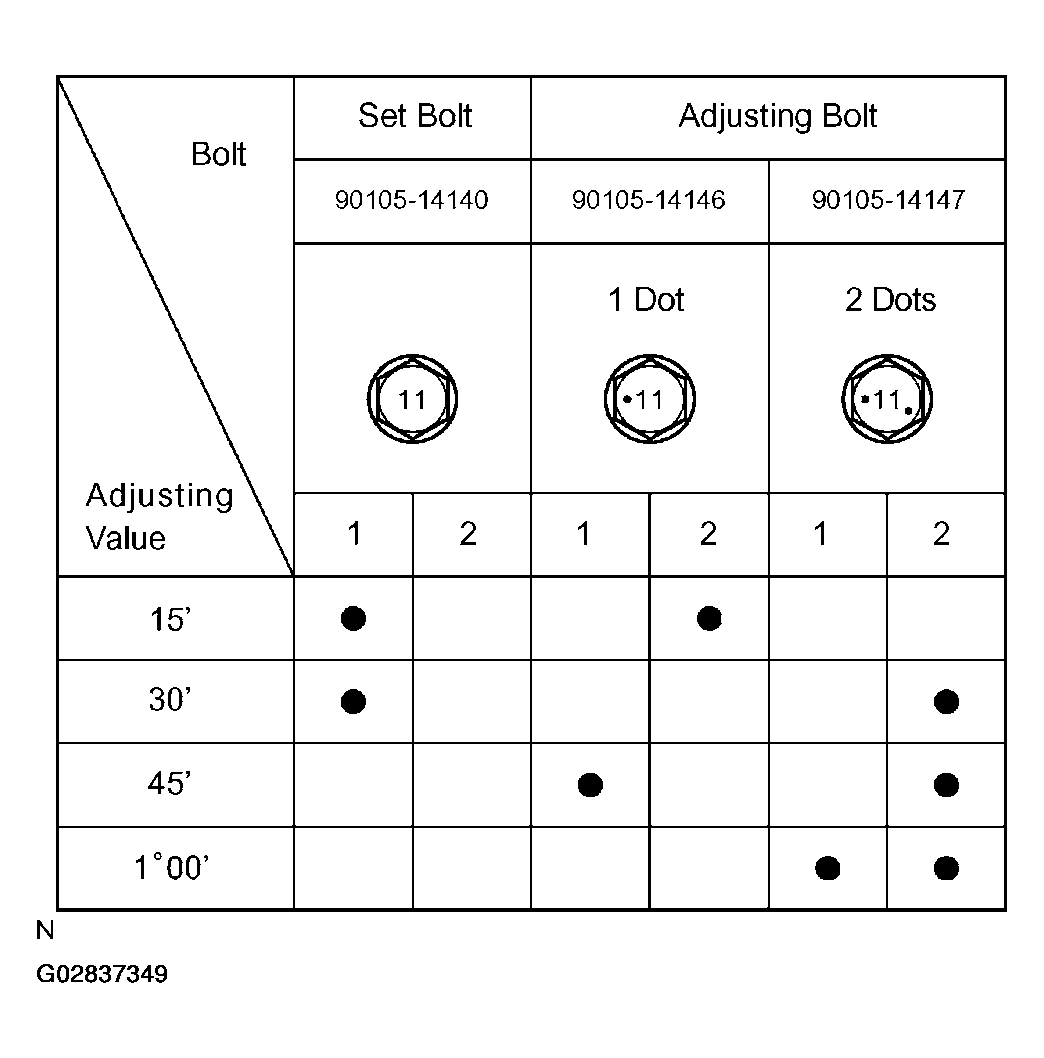

   Fig 6: Adjusting Bolt Specification Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Do the steps mentioned above again. Between step (b)and (c), replace 1 or 2 selected bolts.

   HINT:

   When replacing the 2 bolts, replace 1 bolt for each time.

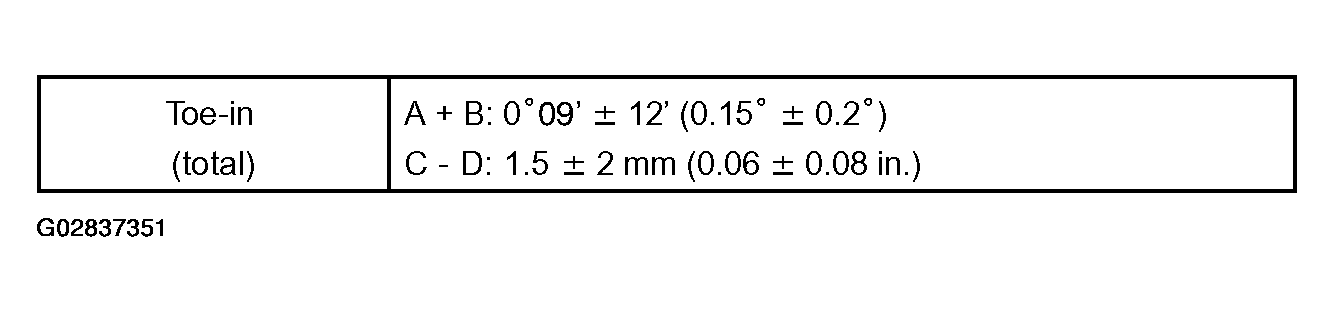

Toe-in

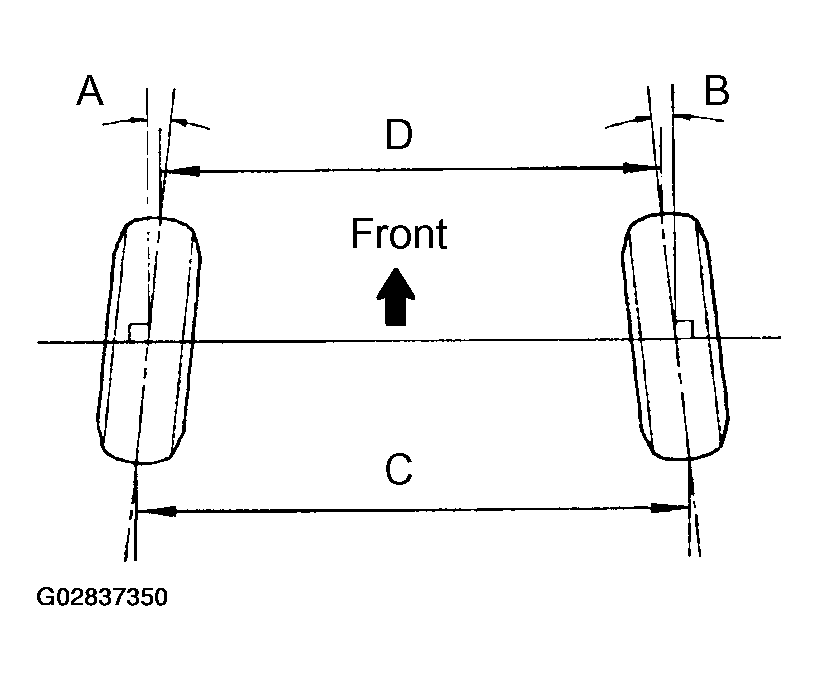

Fig 7: Inspecting Toe-In

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

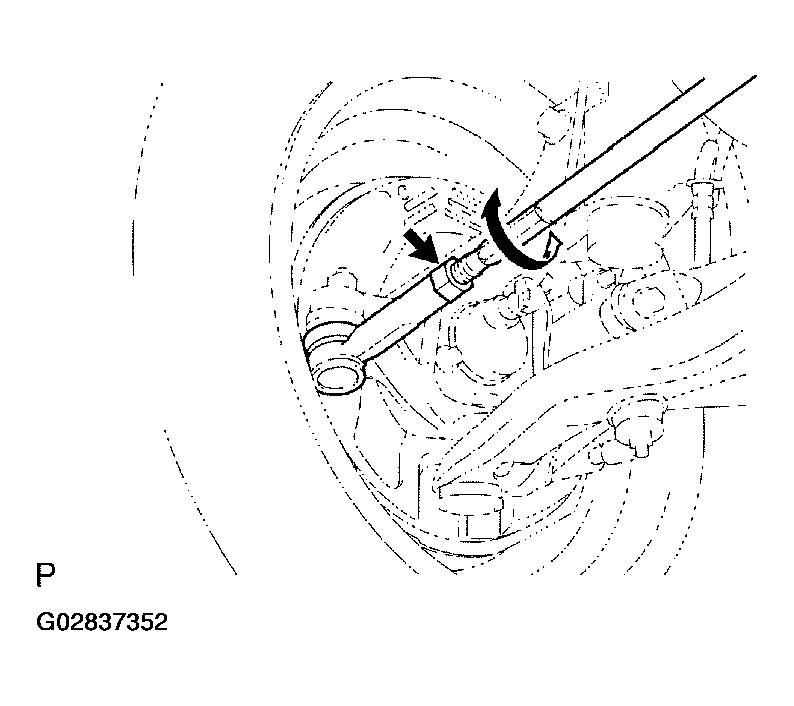

Fig 8: Turning Right And Left Rack Ends By An Equal Amount To Adjust Toe-In

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the toe-in is not within the specified value, adjust it at the rack ends.

1. Remove the rack boot set clips.
2. Loosen the tie rod end lock nuts.
3. Turn the right and left rack ends by an equal amount to adjust the toe-in.

   HINT:

   Try to adjust the toe-in to the center of the specified value.

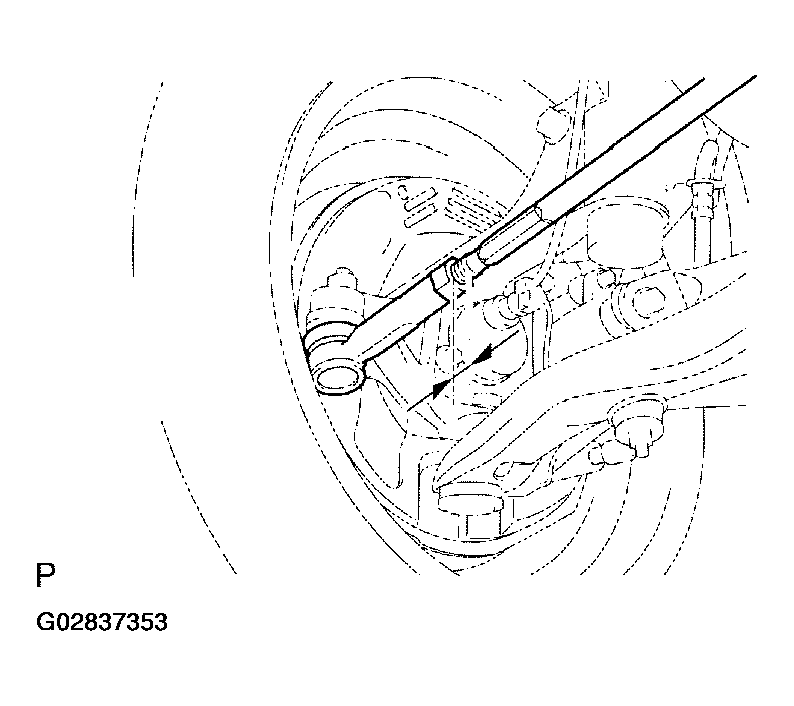

   Fig 9: Identifying Lengths Of Right And Left Rack Ends

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Make sure that the lengths of the right and left rack ends are the same.

   Rack end length difference: 1.5 mm (0.059 in.) or less

5. Torque the tie rod end lock nuts.

   Torque: 47 N.m (479 kgf.cm, 35 ft.lbf)

6. Place the boots on the seats and install the clips.

   HINT:

   Make sure that the boots are not twisted.

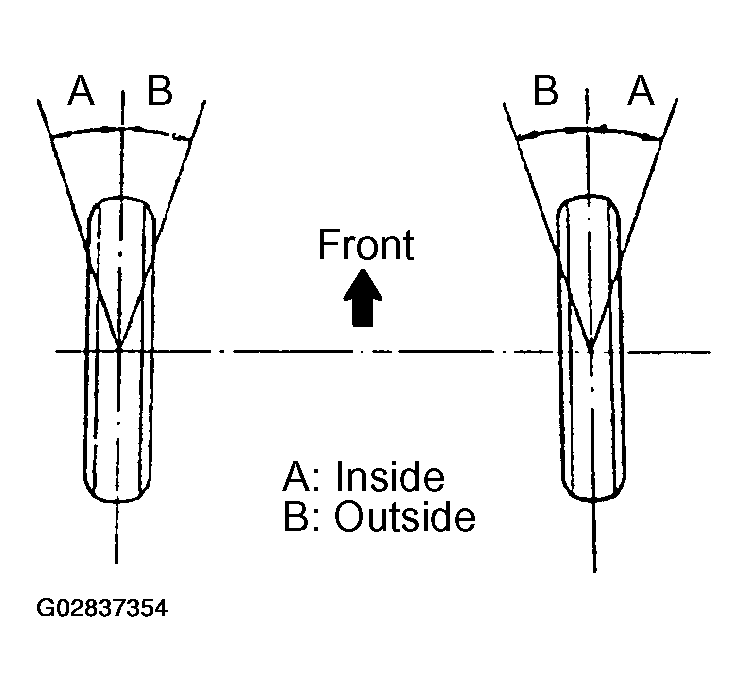

   Fig 10: Identifying Wheel Angle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Turn the steering wheel fully, and measure the turning angle.

Wheel turning angle:

Fig 11: Wheel Turning Angle Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the right and left inside wheel angles differ from the specified value, check the right and left rack end lengths.
