Ignition Or Starter Switch Assembly: Inspection

  1. INSPECT IGNITION OR STARTER SWITCH ASSY
    1. Inspect the ignition switch continuity.

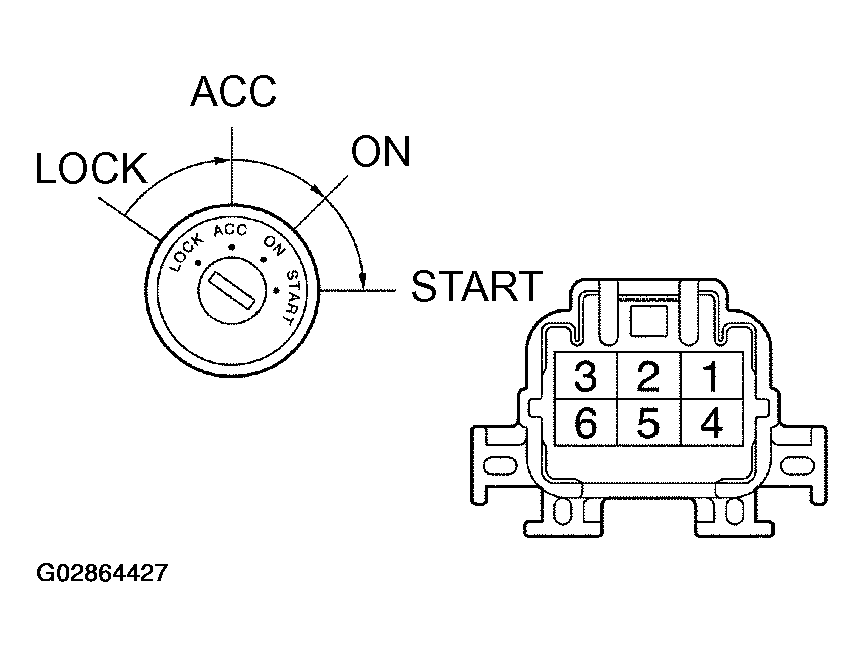

      Fig 1: Identifying Ignition Switch Position & Connector Terminals
      G02864427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

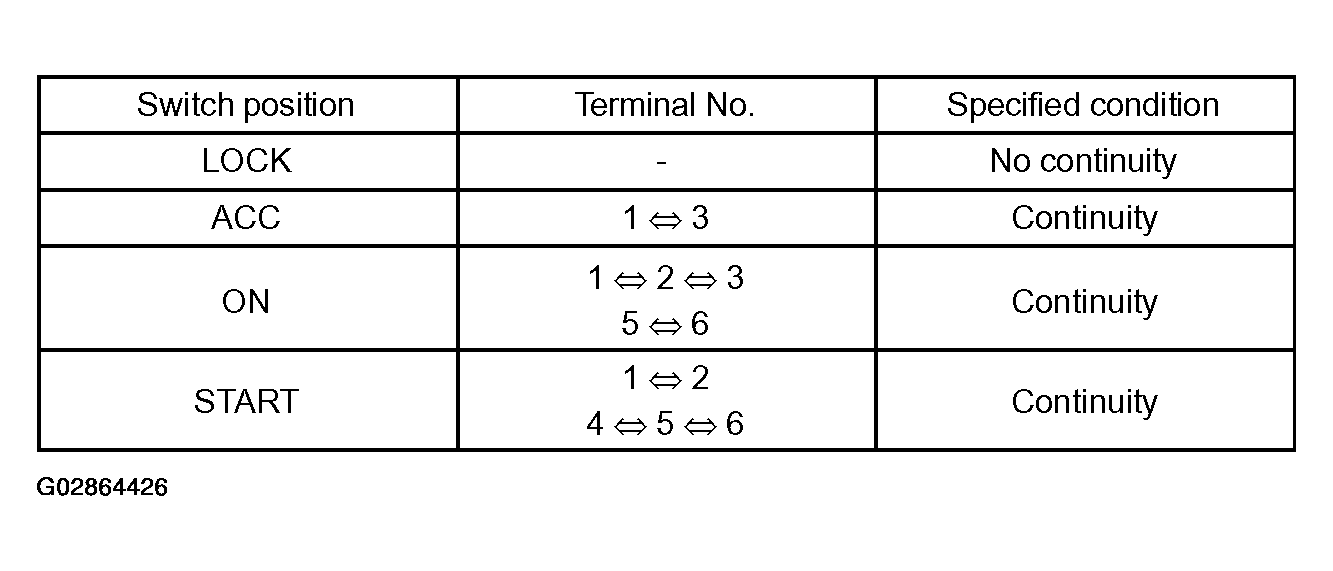

      Fig 2: Ignition Switch Terminal Specifications
      G02864426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the result is not as specified, replace the switch.
