Inner Rear View Mirror Assembly: Replacement

NOTE: Installation is in the reverse order of the removal.

INNER REAR VIEW MIRROR ASSY
1. Remove the screw.
2. w/ Electric chromic mirror:
  Disconnect the connector.
3. Remove the rear view inner mirror assembly.

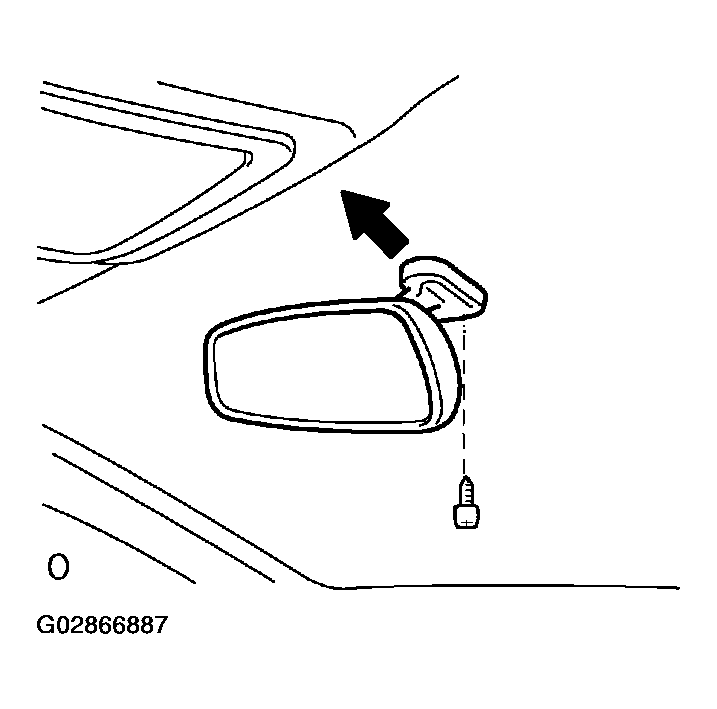

  Fig 1: Removing Rear View Inner Mirror Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
