Power Window Control System: Location

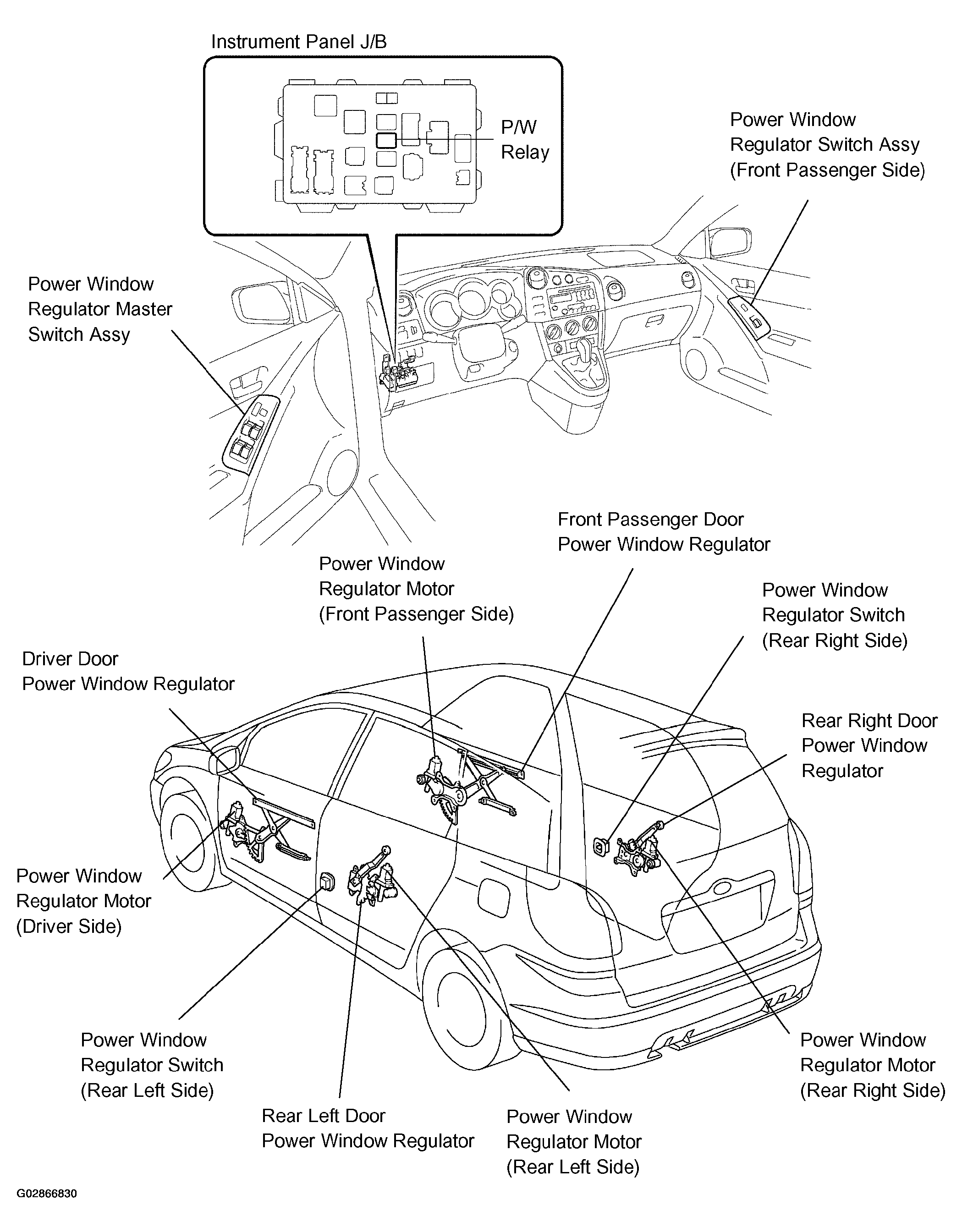

Fig 1: Identifying Power Window Control System Component Locations
G02866830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
