Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|

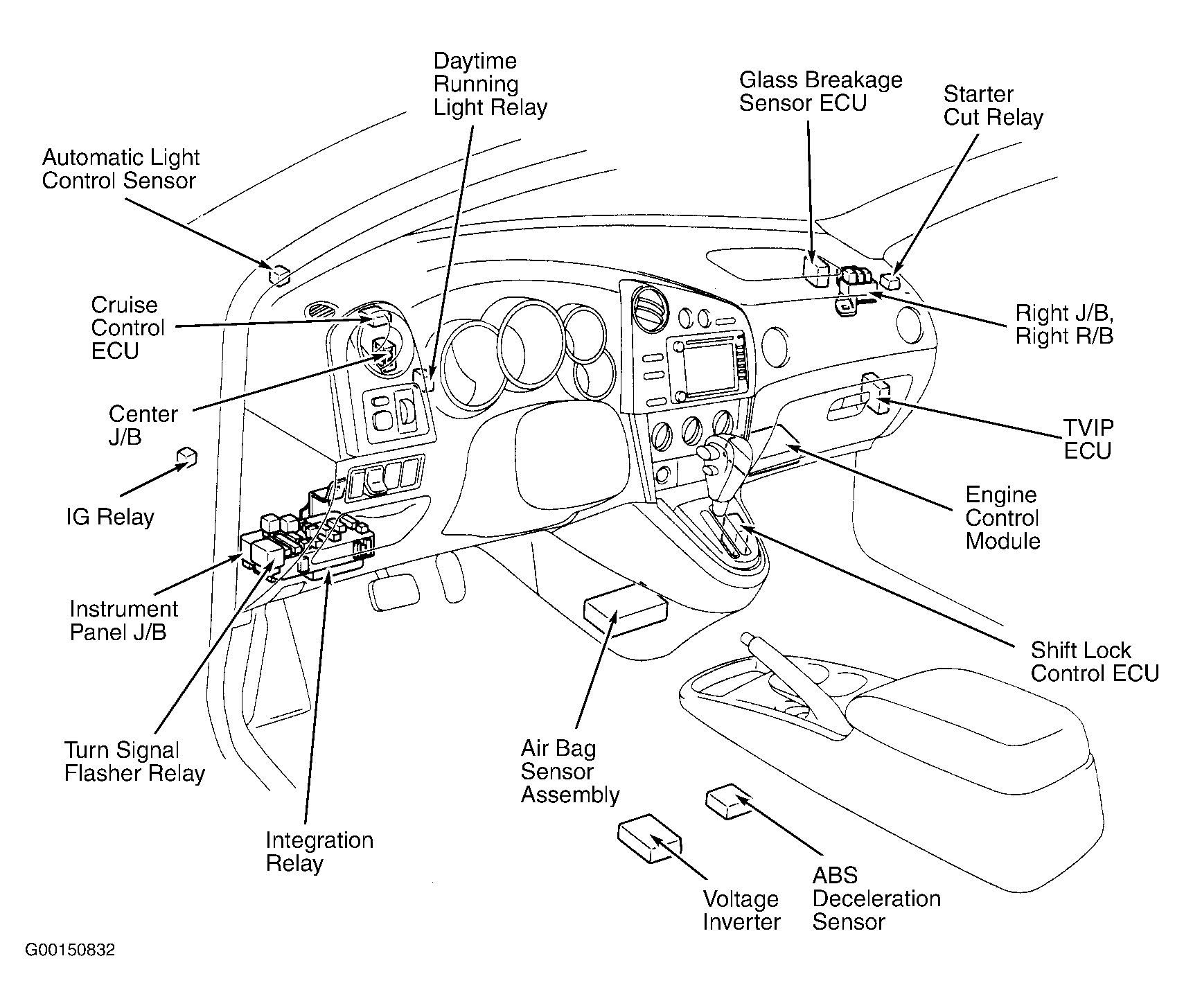

| Air Bag Sensor Assembly | Below center of dash. See Figure. |
| Cruise Control ECU | Behind left side of dash. See Figure. |
| Engine Control Module | Behind right side of dash, below glove box. See Figure. |
| Glass Breakage Sensor ECU | Behind upper right side of dash. See Figure. |
| Shift Lock Control ECU | Below center of dash. See Figure. |

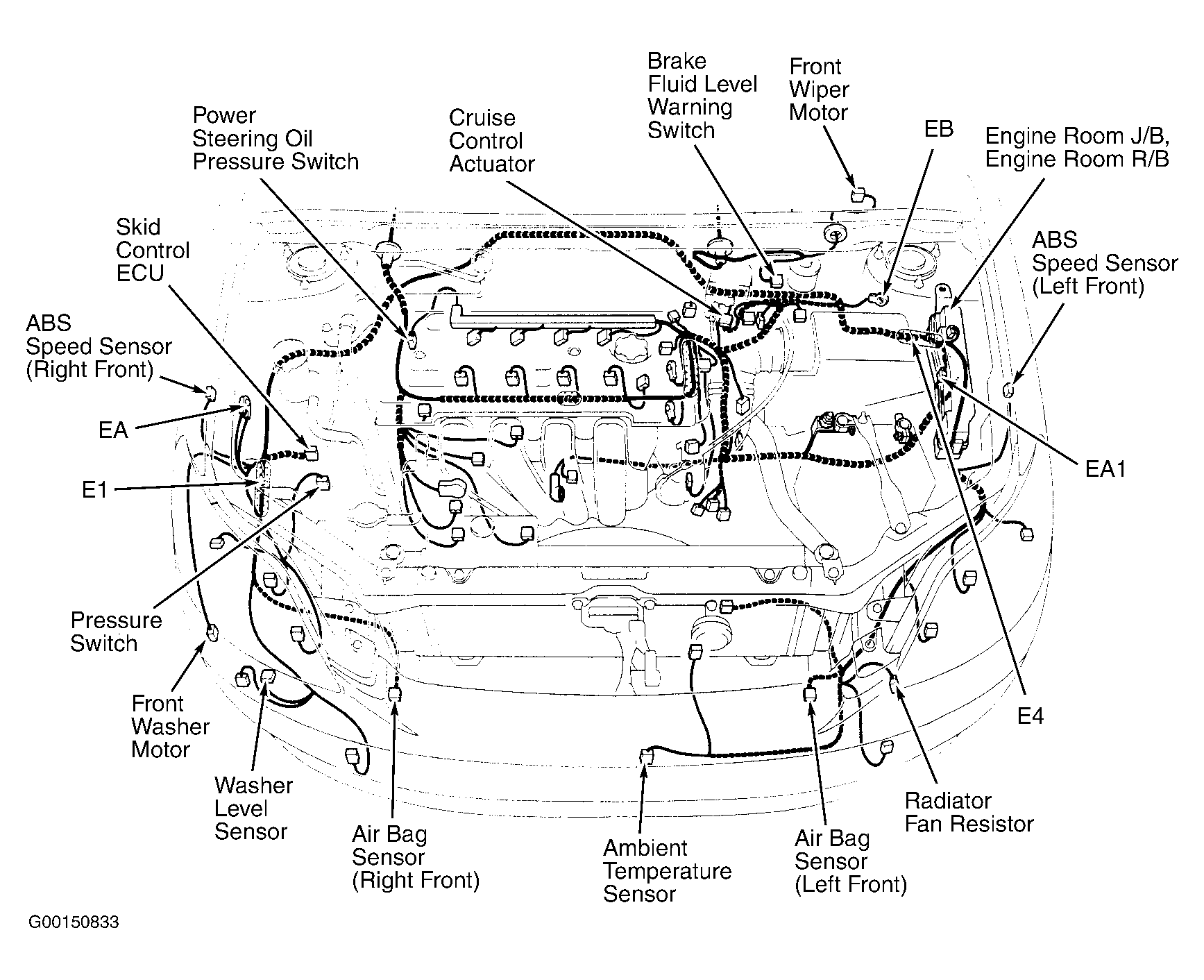

| Skid Control ECU | At right front side of engine compartment. See Figure. |
| TVIP ECU | Behind right side of dash. See Figure. |
