Repair and Diagnosis: Electrical: Horns: Location

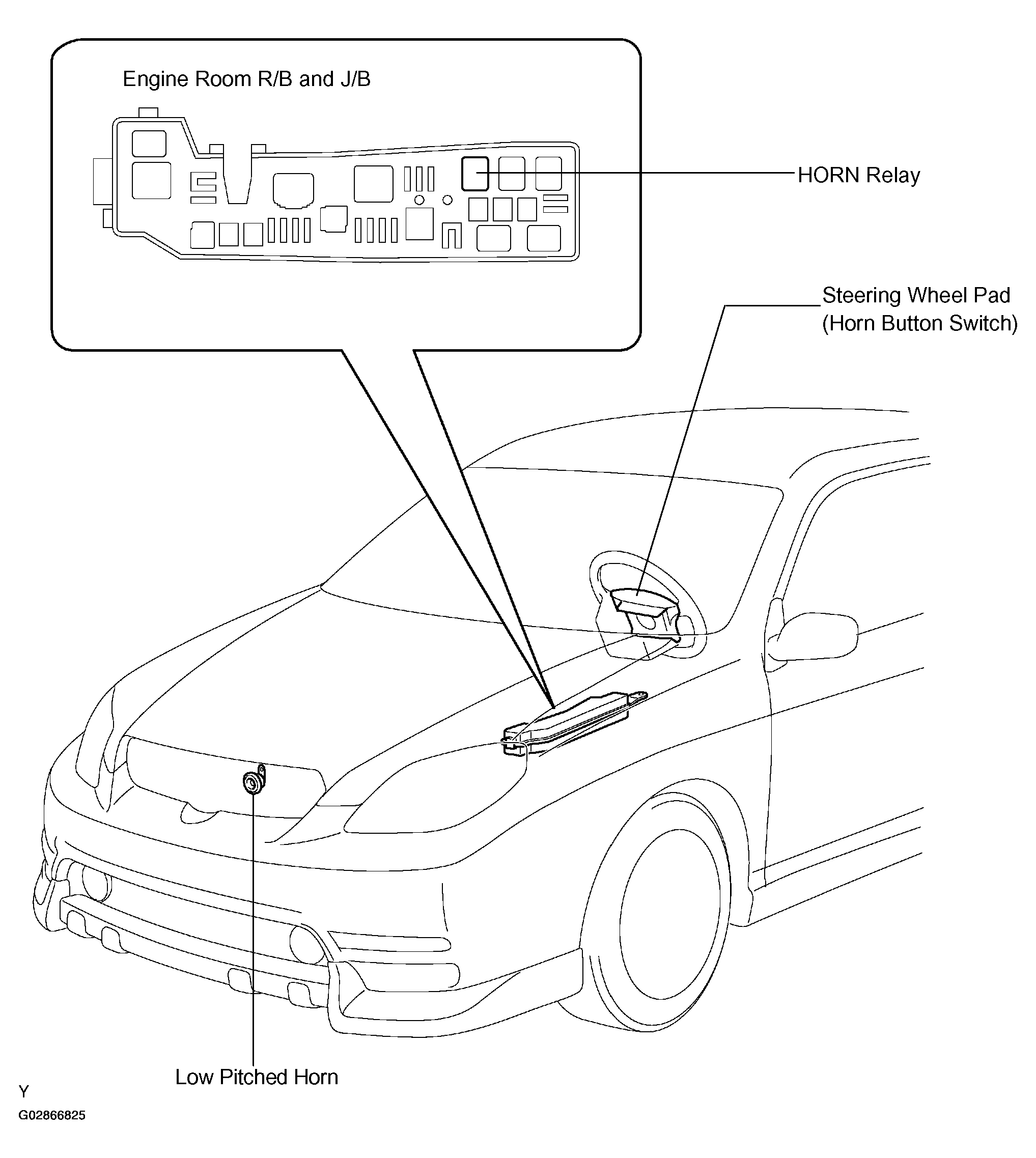

Fig 1: Identifying Horn System Components Location
G02866825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
