Starter Relay Test

  1. Locate and remove starter relay. Starter relay is marked "ST". Using ohmmeter, verify continuity between relay terminals No. 1 and 2. See Fig 1. Continuity should not exist between terminals No. 3 and 5. If continuity is not as specified, replace relay.
  2. Check relay operation by applying battery voltage through terminals No. 1 and 2. See Fig 1. Continuity should now exist between terminals No. 3 and 5. If relay does not test as indicated, replace relay.

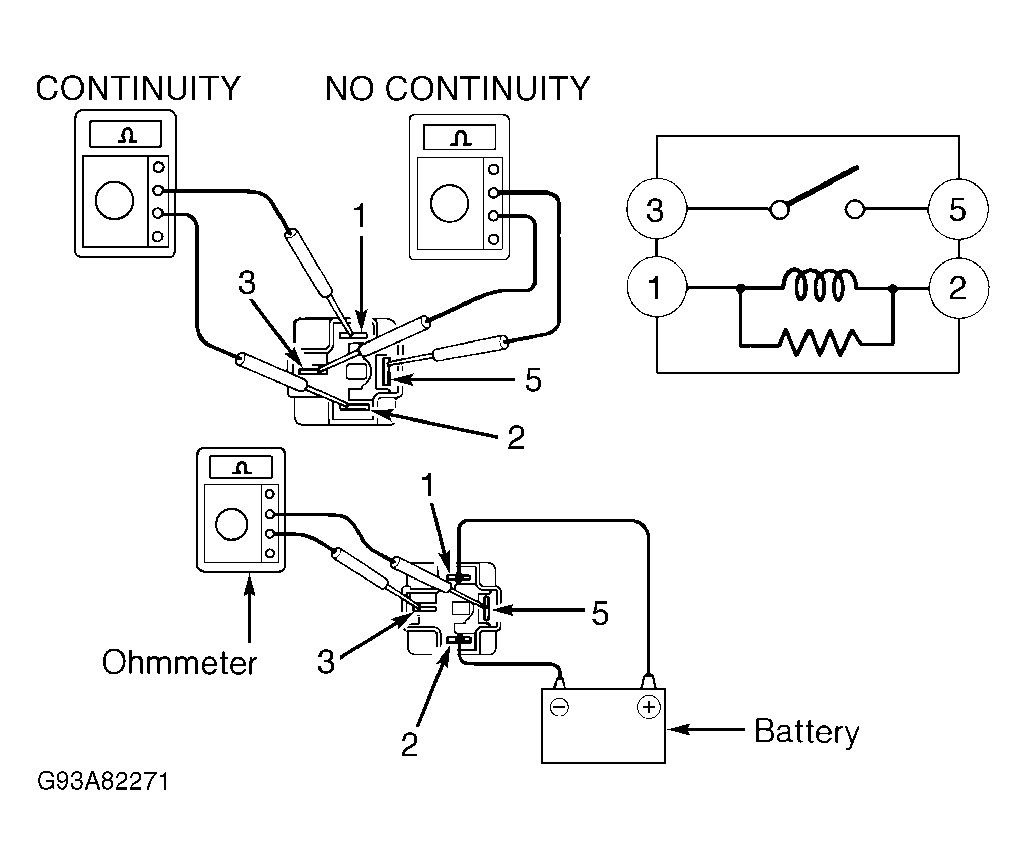

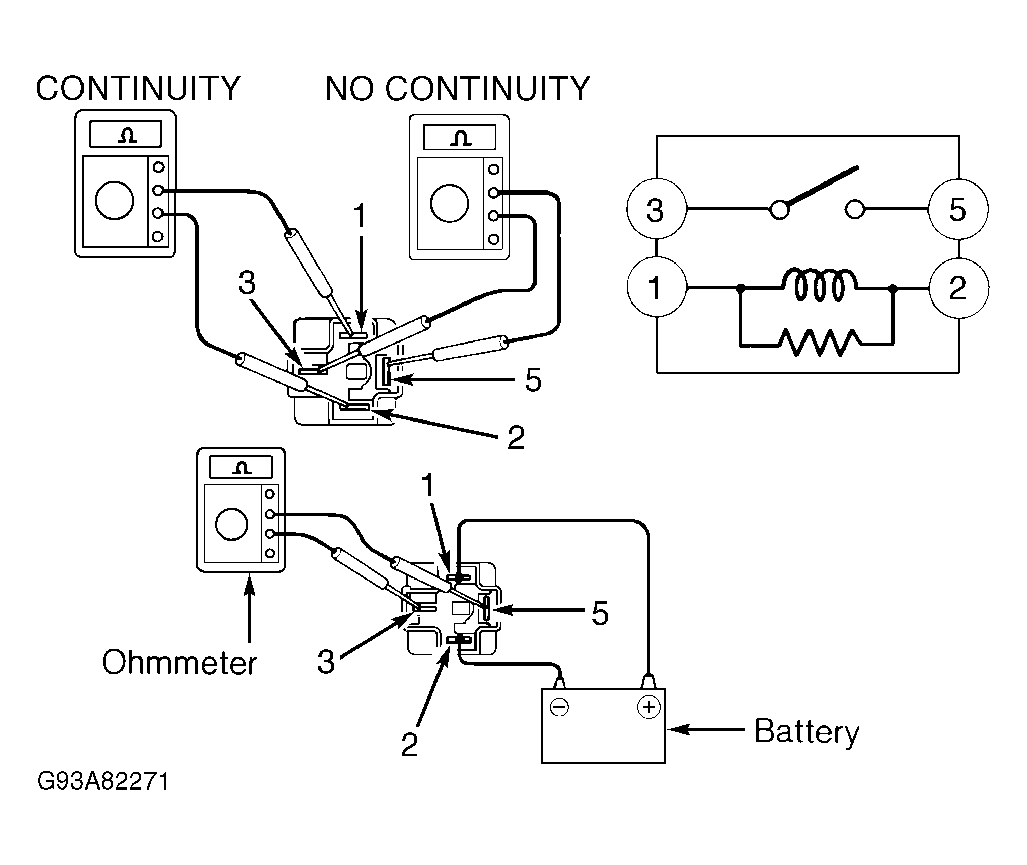

Fig 1: Testing Starter Relay
G93A82271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
