Engine Serial Number Location

Engine serial number is located on cylinder block. See Fig 1-Fig 11 .

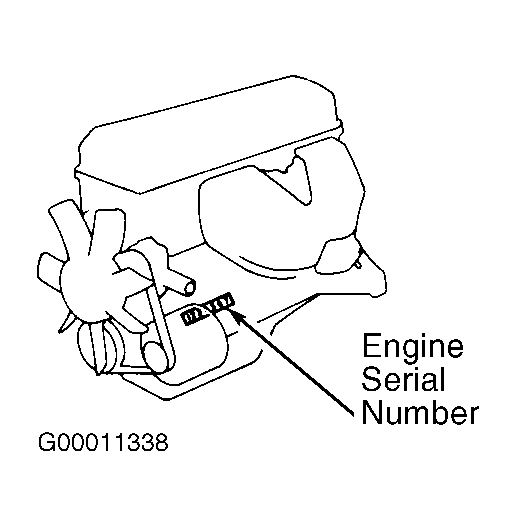

Fig 1: Locating 1.5L Engine Serial Number (ECHO)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Locating 1.5L Engine Serial Number (Prius)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

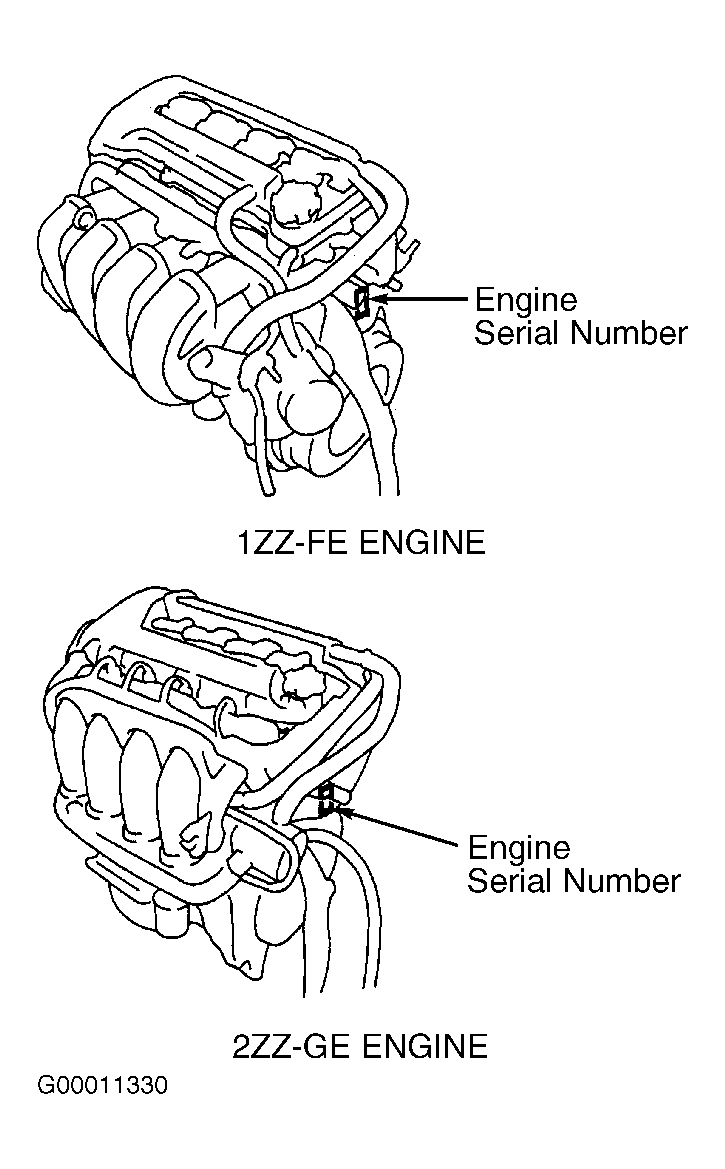

Fig 3: Locating 1.8L Engine Serial Number (Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

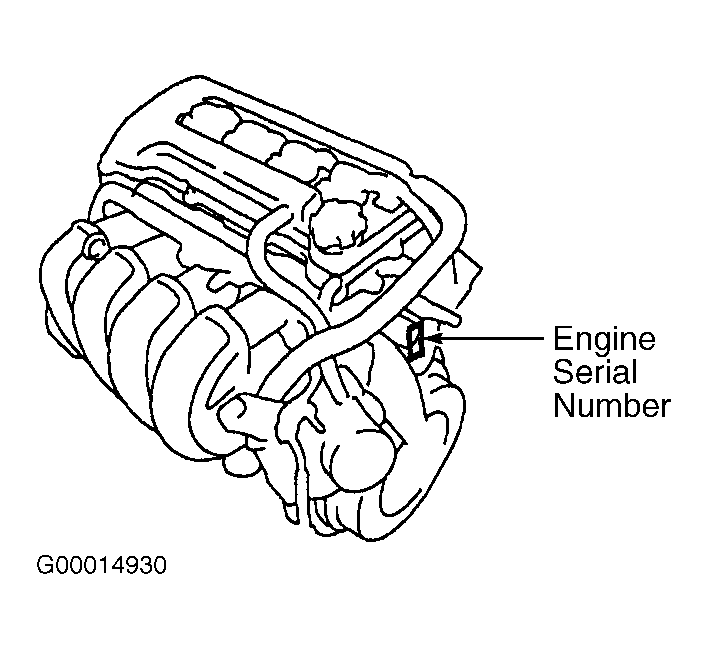

Fig 4: Locating 1.8L Engine Serial Number (Corolla & Matrix)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

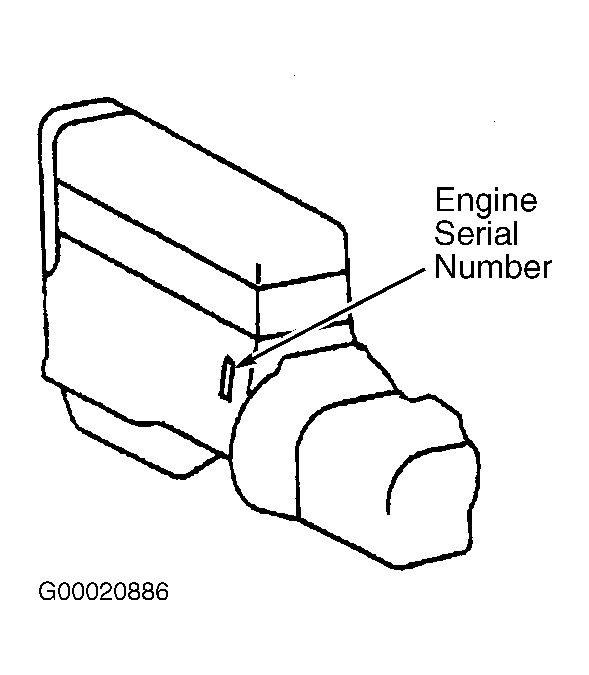

Fig 5: Locating 1.8L Engine Serial Number (MR2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

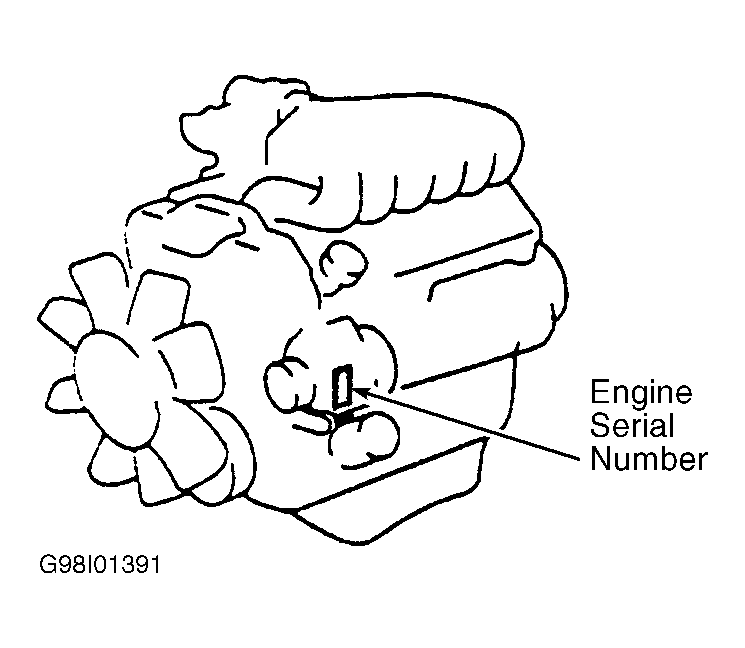

Fig 6: Locating 2.0L Engine Serial Number (RAV4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

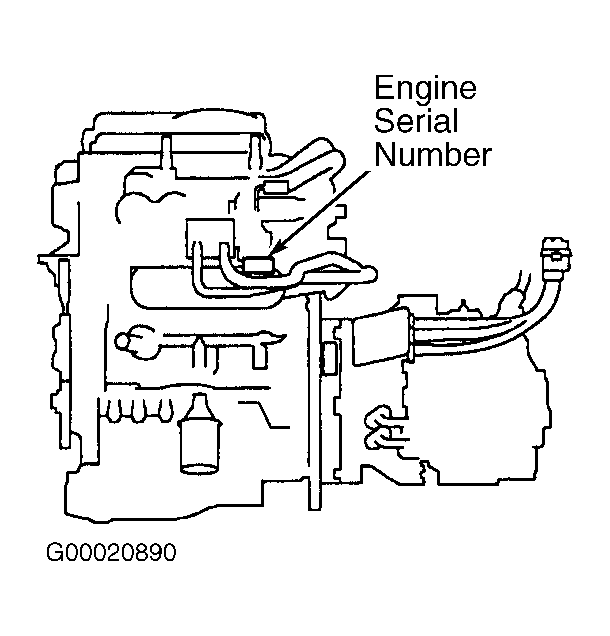

Fig 7: Locating 2.4L Engine Serial Number (Camry, Camry Solara & Highlander)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Locating 2.4L & 2.7L Engine Serial Number (Tacoma)

Fig 9: Locating 3.0L Engine Serial Number (Avalon, Camry, Camry Solara, Highlander & Sienna)

Fig 10: Locating 3.4L Engine Serial Number (Tacoma, Tundra & 4Runner)

Fig 11: Locating 4.7L Engine Serial Number (Land Cruiser, Sequoia & Tundra)
