Firing Order & Timing Marks: Notes

FIRING ORDER

Application

Firing Order

4-Cylinder ⁽¹⁾

Camry & Camry Solara

⁽²⁾⁽³⁾ 1-3-4-2

Celica, Corolla, ECHO, Highlander, Matrix, MR2, Prius, RAV4 & Tacoma

⁽²⁾⁽³⁾ 1-3-4-2

V6 ⁽⁴⁾

Avalon & Camry Solara

⁽²⁾⁽⁵⁾ 1-2-3-4-5-6

Camry

⁽⁶⁾ 1-2-3-4-5-6

Highlander

⁽²⁾⁽⁵⁾ 1-2-3-4-5-6

Sienna

⁽²⁾⁽⁵⁾ 1-2-3-4-5-6

Tacoma, Tundra

⁽⁸⁾ 1-2-3-4-5-6

4Runner

⁽²⁾⁽⁵⁾ 1-2-3-4-5-6

V8 ⁽⁹⁾

Land Cruiser, Sequoia, Tundra & 4Runner

⁽²⁾⁽¹⁰⁾ 1-8-4-3-6-5-7-2

⁽¹⁾	Cylinder No. 1 is located at timing chain end of engine. Cylinder No. 4 is located at flywheel end of engine.

⁽²⁾	System uses a Distributorless Ignition System (DIS) with ignition coil on spark plug for each cylinder.

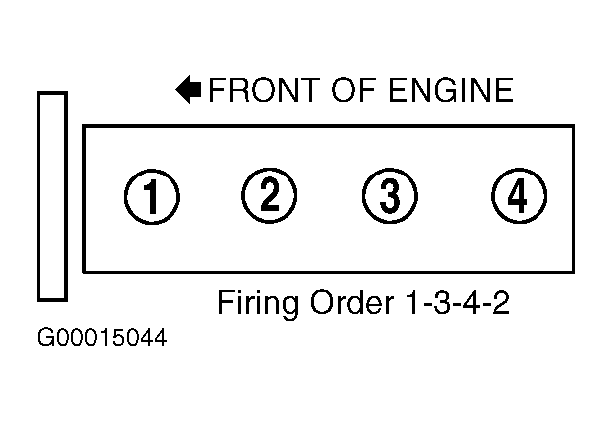

⁽³⁾	See Figure.

⁽⁴⁾

Cylinder No. 1 is front cylinder on right side of engine when viewed from flywheel end of engine. Cylinder No. 2 is front cylinder on left side of engine when viewed from flywheel end of engine. Cylinders No. 1, 3 and 5 are on right side of engine. Cylinders No. 2, 4 and 6 are on left side of engine.

⁽⁵⁾	See Figure.

⁽⁶⁾	See Figure.

⁽⁷⁾	System uses a Distributorless Ignition System (DIS) with 3 ignition coils. Two cylinders fire simultaneously using same ignition coil. See Figure.

⁽⁸⁾	System uses a Distributorless Ignition System (DIS) with 3 ignition coils. Two cylinders fire simultaneously using same ignition coil. See Figure.

⁽⁹⁾

Cylinder No. 1 is front cylinder on left side of engine when viewed from flywheel end of engine. Cylinder No. 2 is front cylinder on right side of engine when viewed from flywheel end of engine. Cylinders No. 1, 3, 5 and 7 are on left side of engine. Cylinders No. 2, 4, 6 and 8 on right side of engine.

⁽¹⁰⁾	See Figure.
