Engine Control Module Location

For ECM location, see Fig 1.

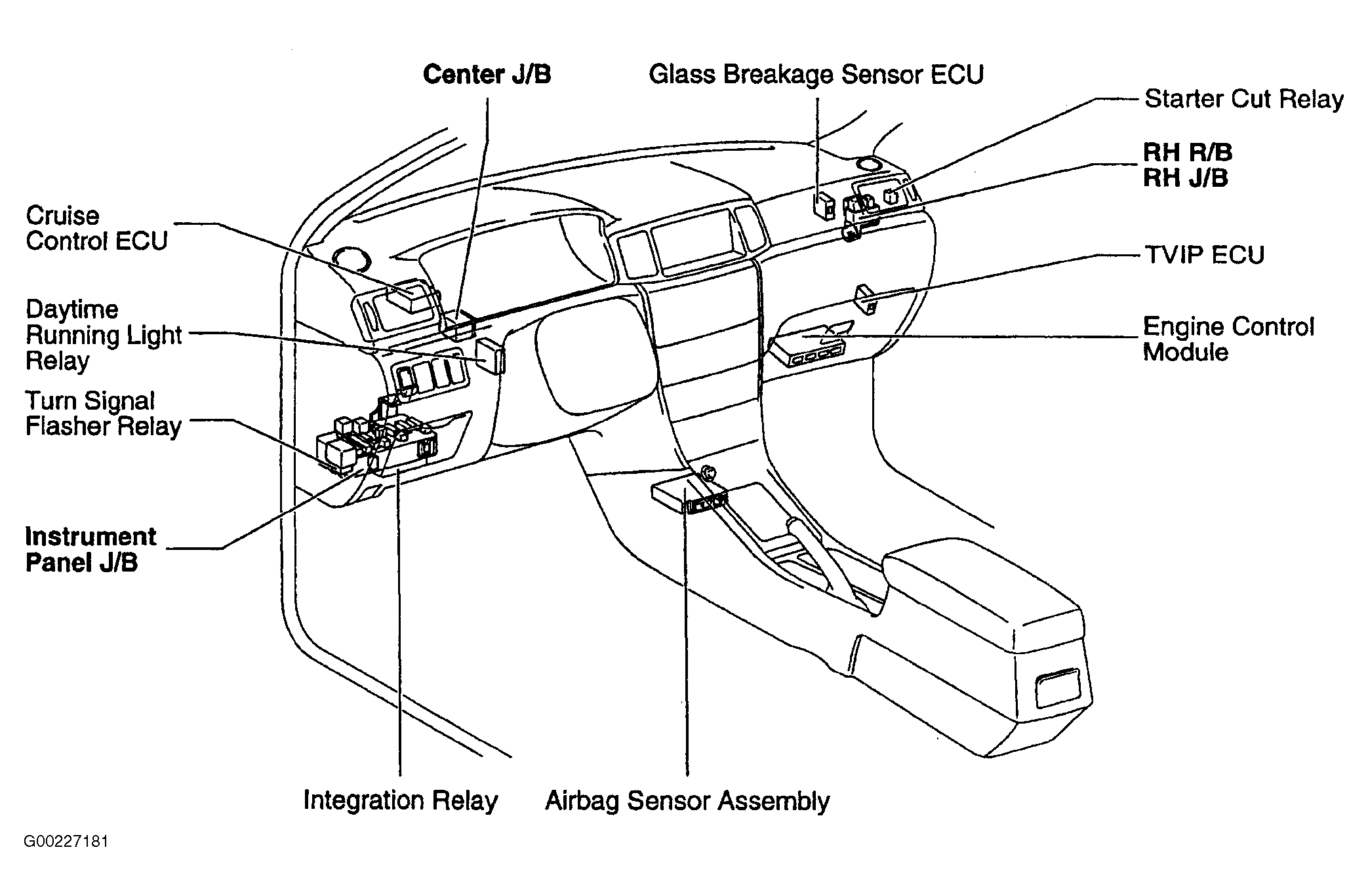

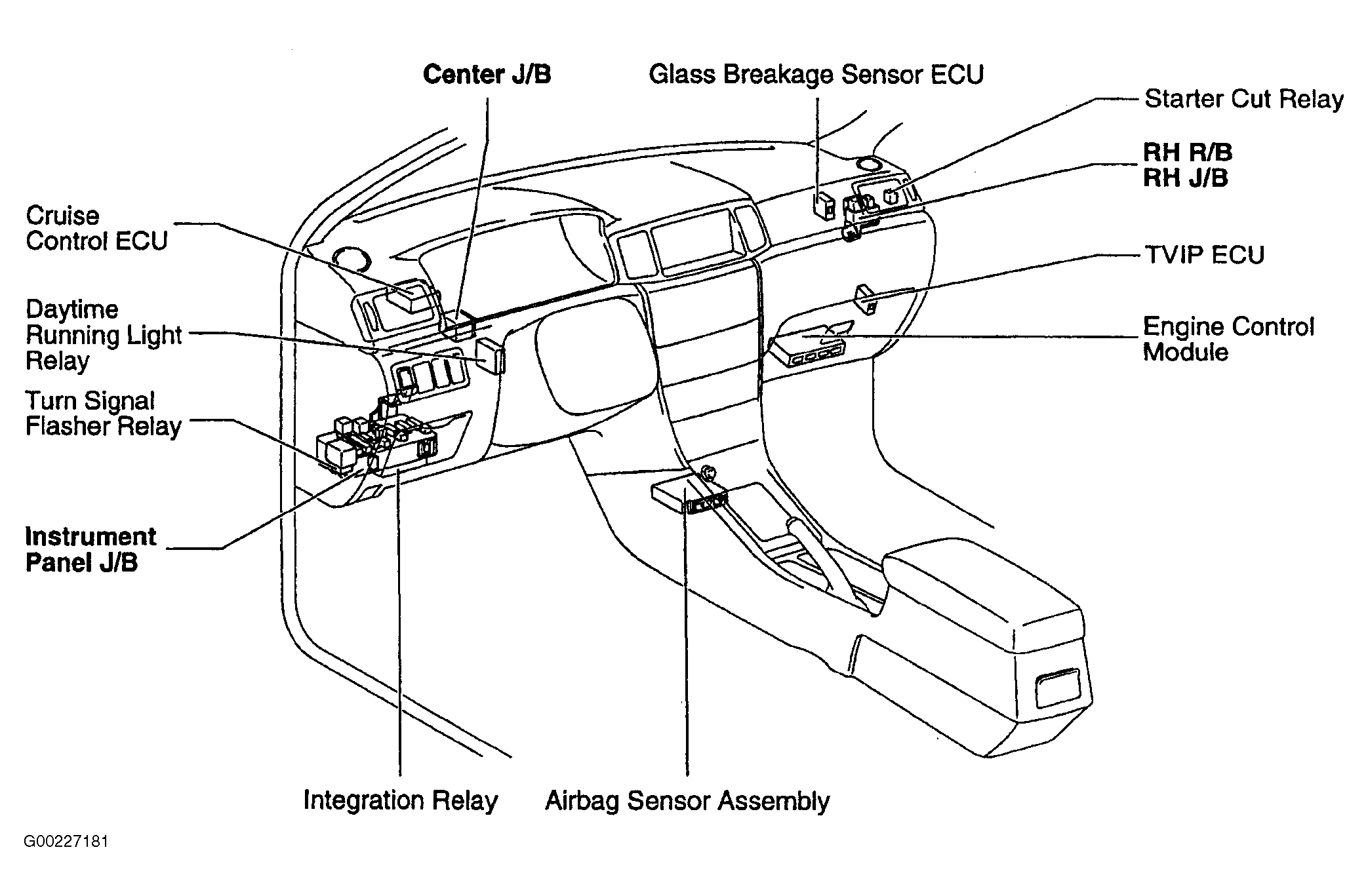

Fig 1: Locating Engine Control Module
G00227181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
