Engine Control System

For engine control system component locations, see Fig 1-Fig 10 .

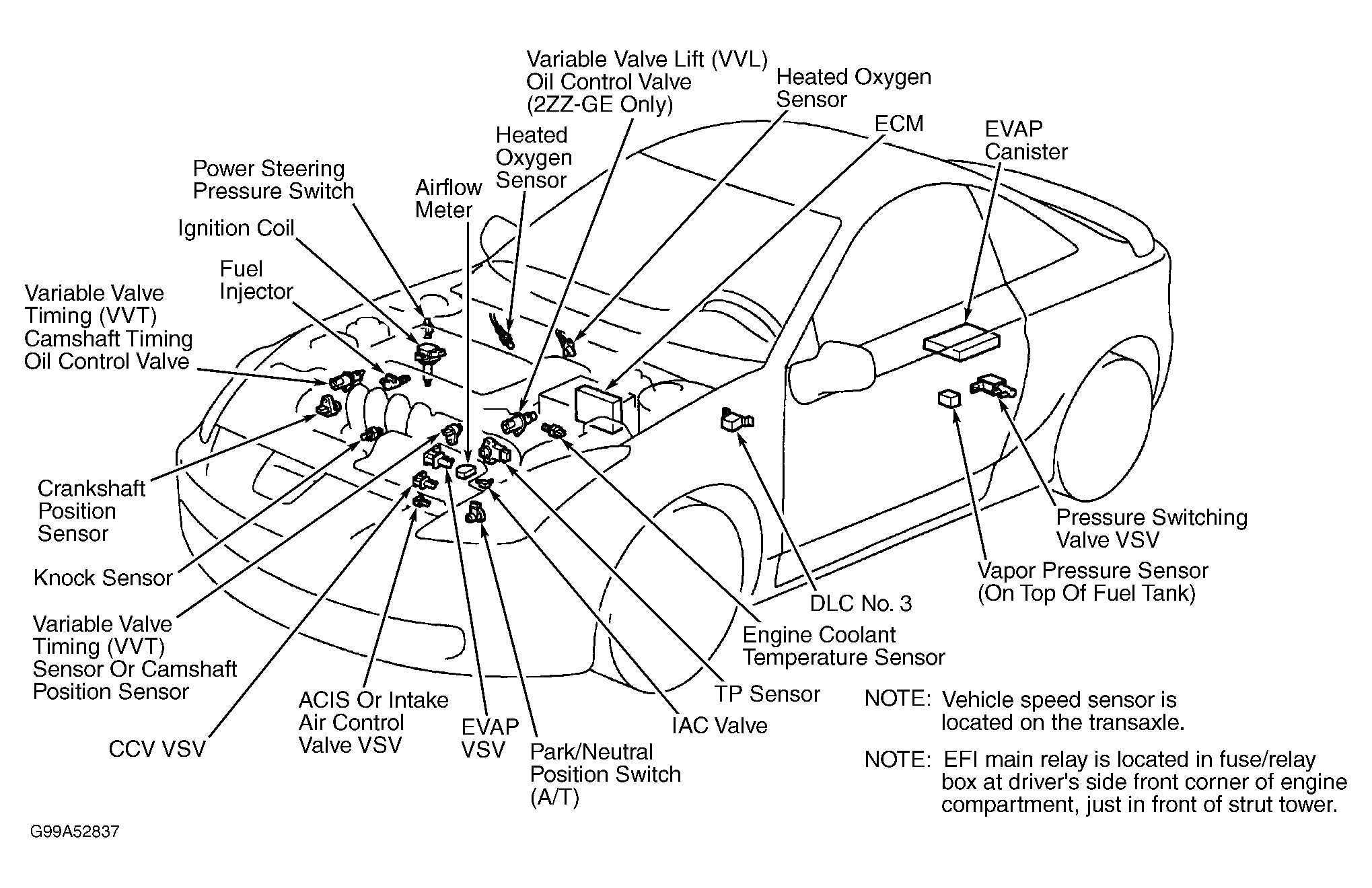

Fig 1: Locating Engine Control System Components (Camry)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

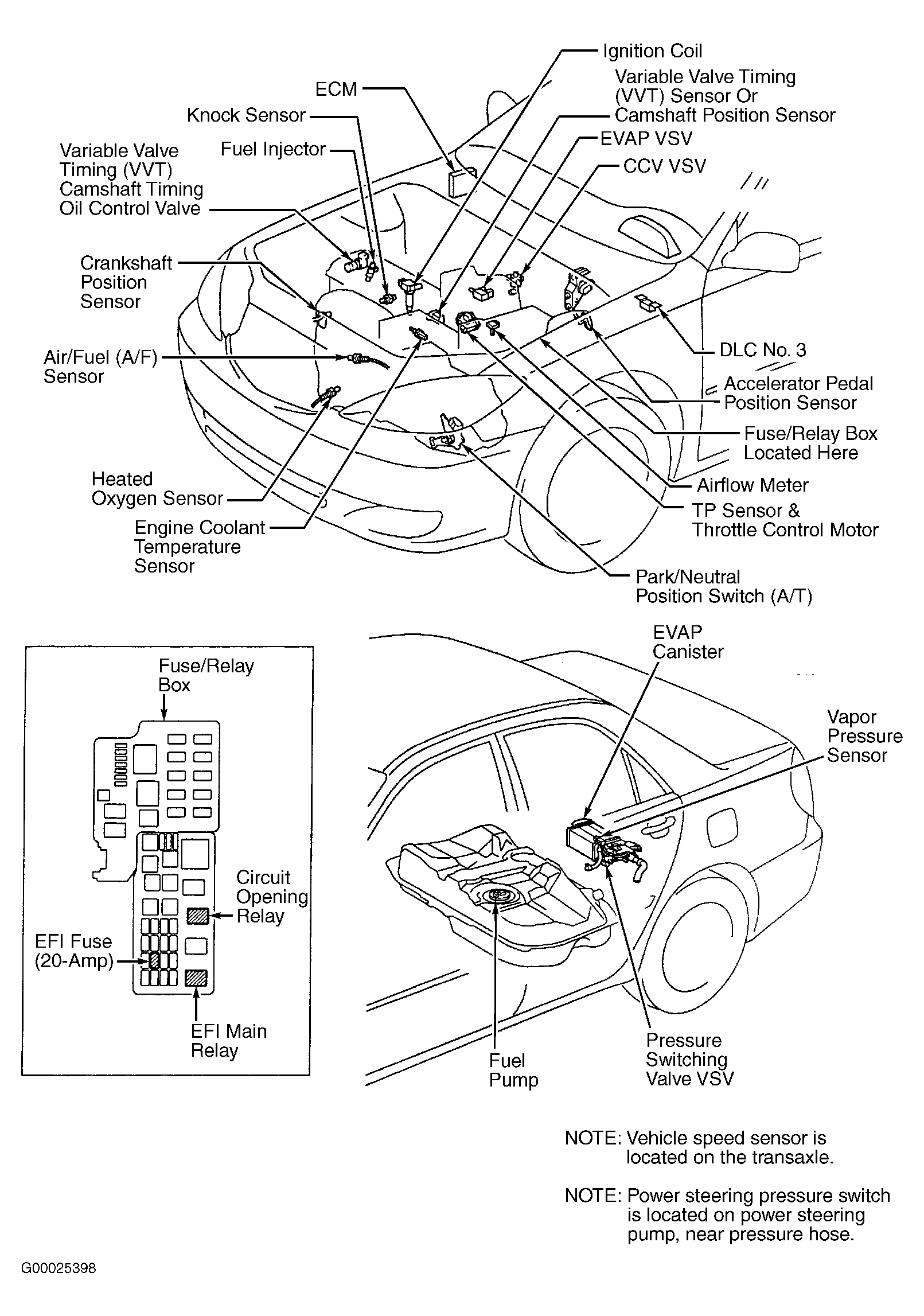

Fig 2: Locating Engine Control System Components (Camry Solara)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

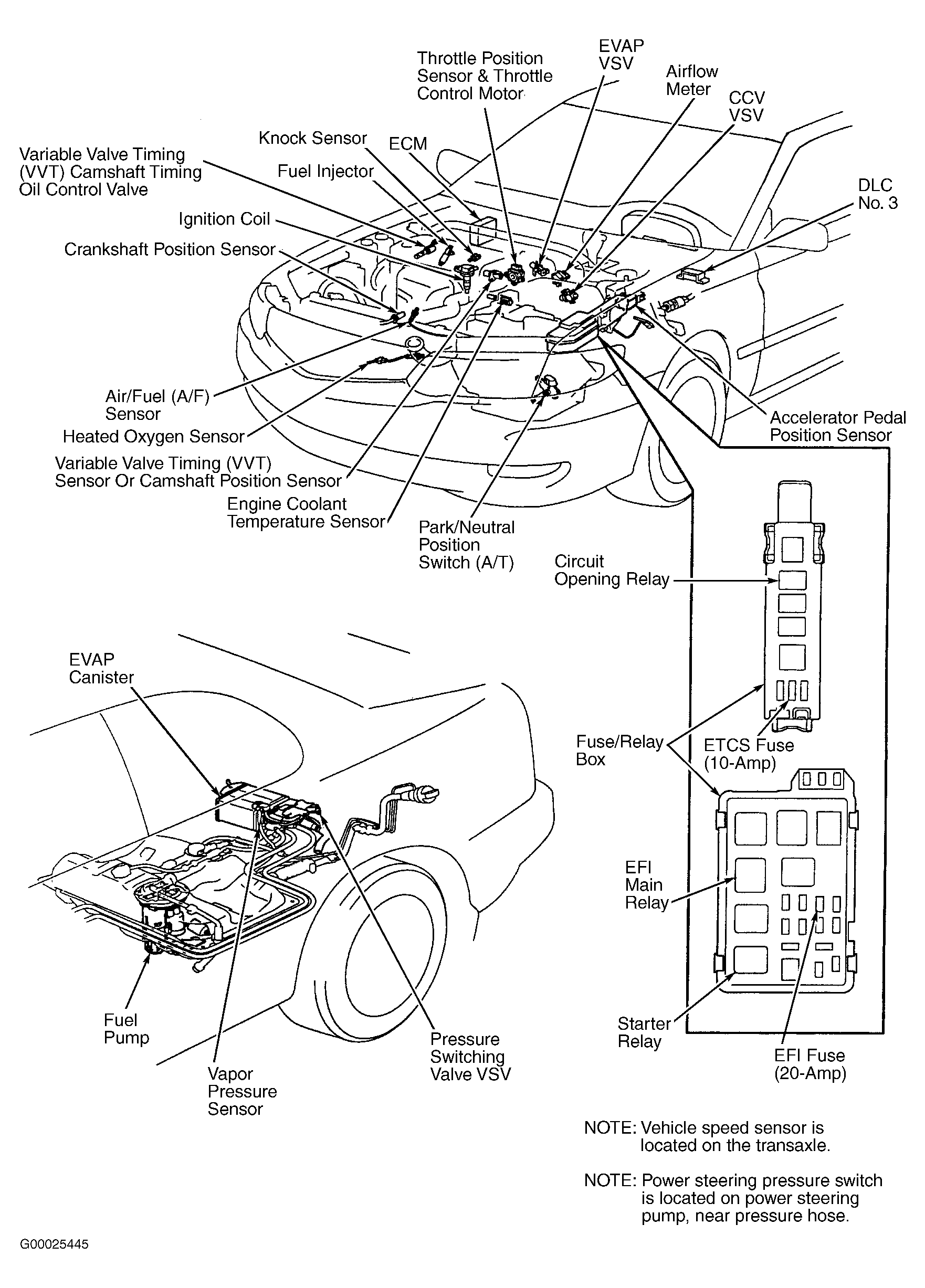

Fig 3: Locating Engine Control System Components (Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

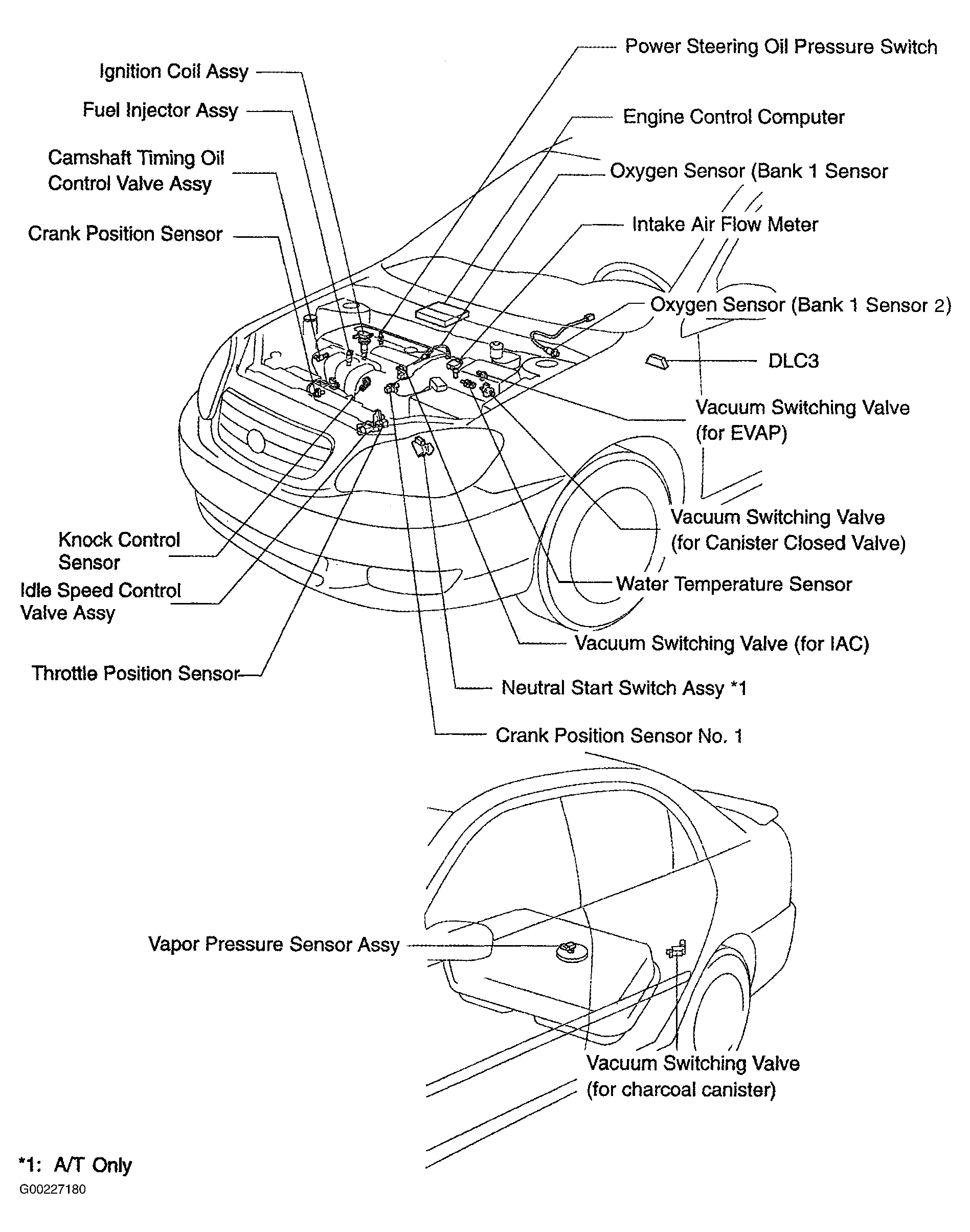

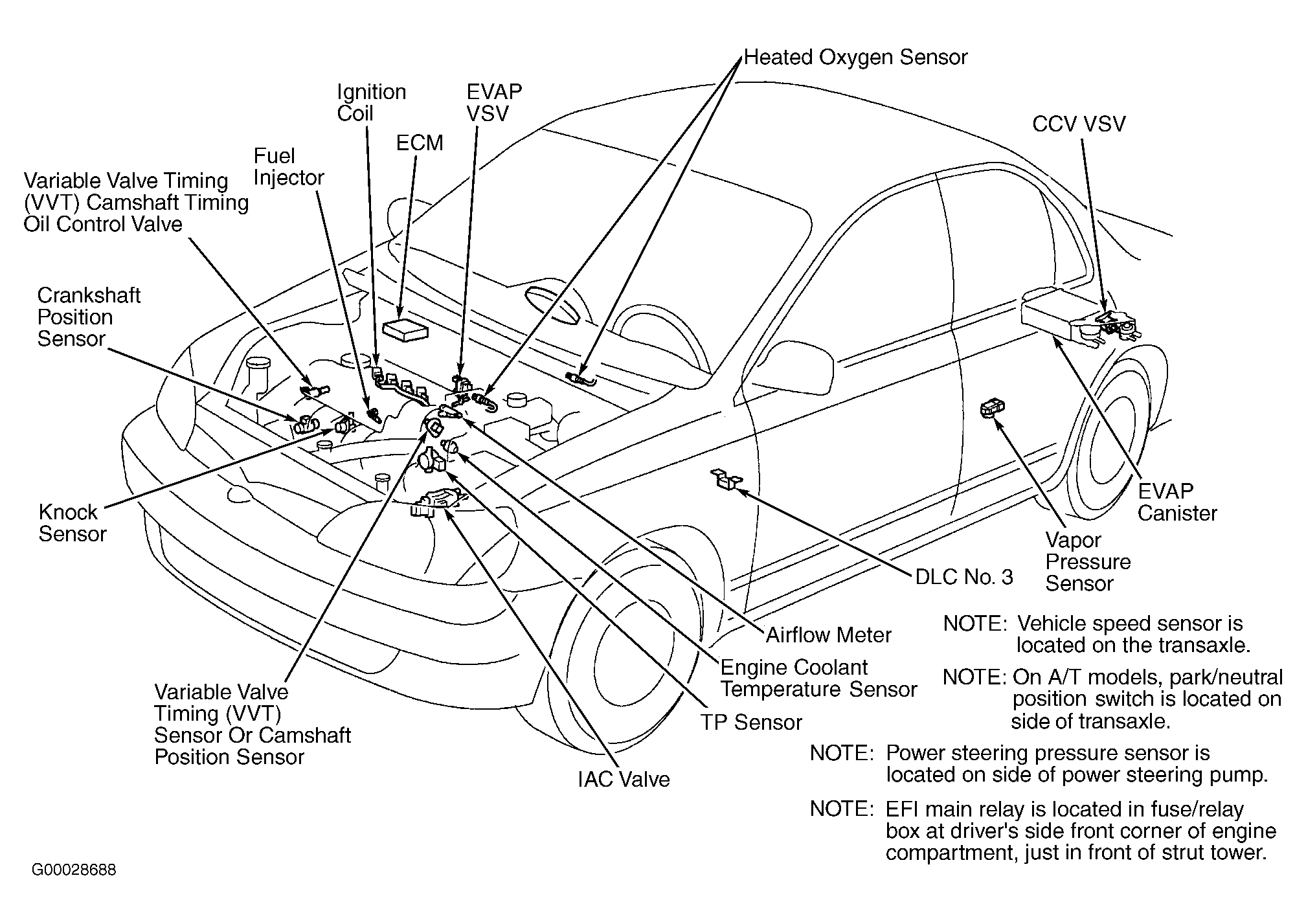

Fig 4: Locating Engine Control System Components (Corolla & Matrix)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Locating Engine Control System Components (ECHO)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

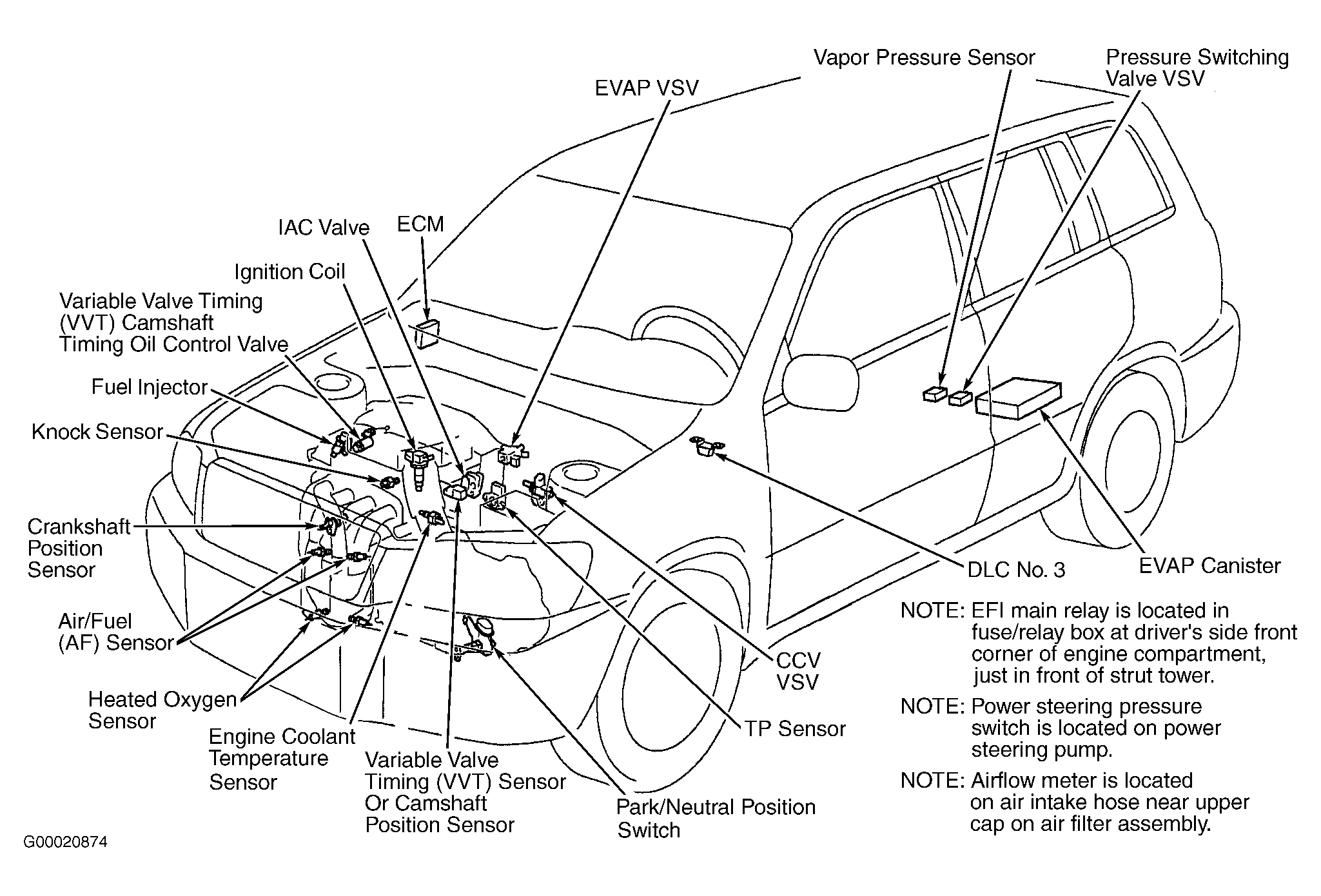

Fig 6: Locating Engine Control System Components (Highlander)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

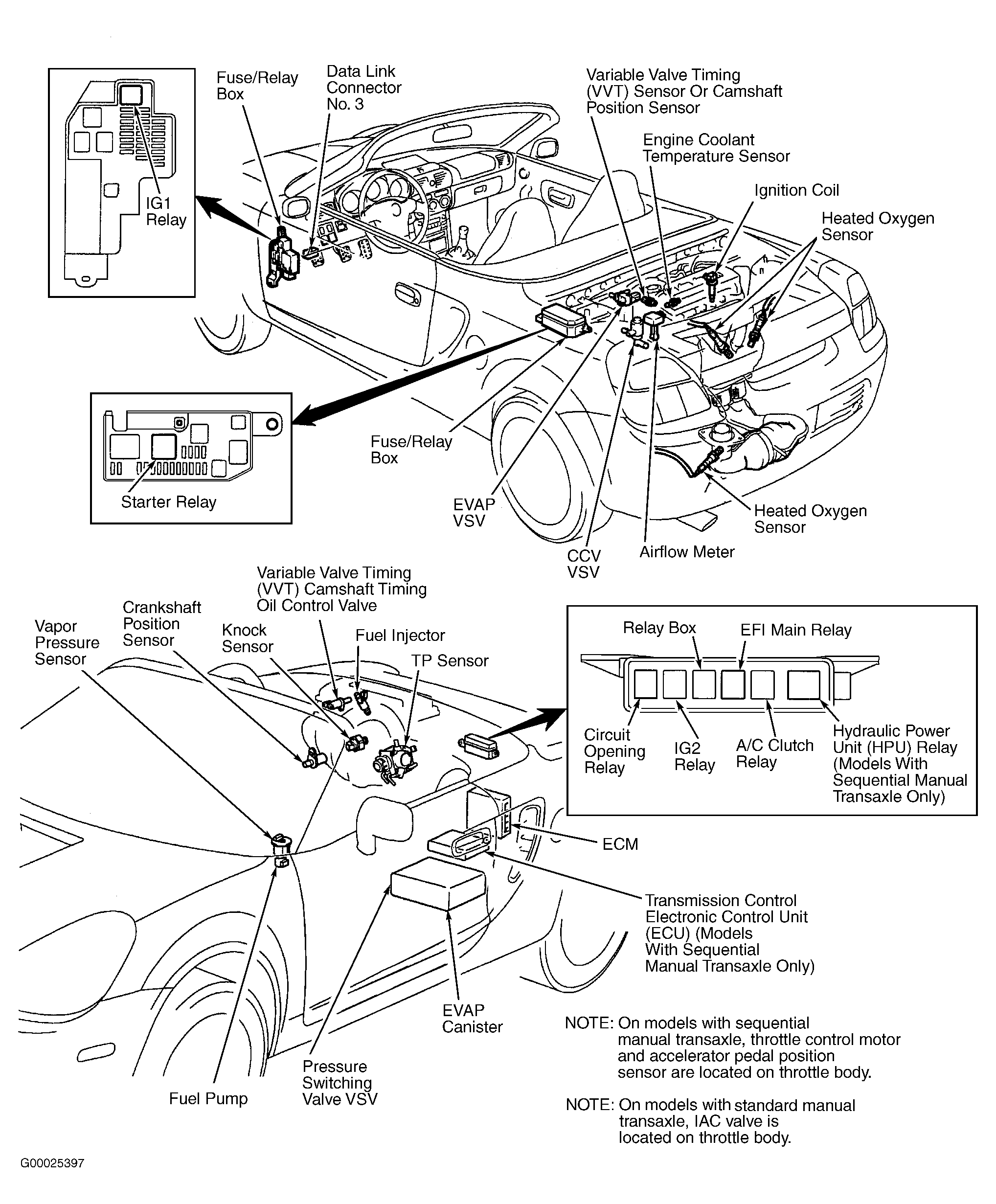

Fig 7: Locating Engine Control System Components (MR2)

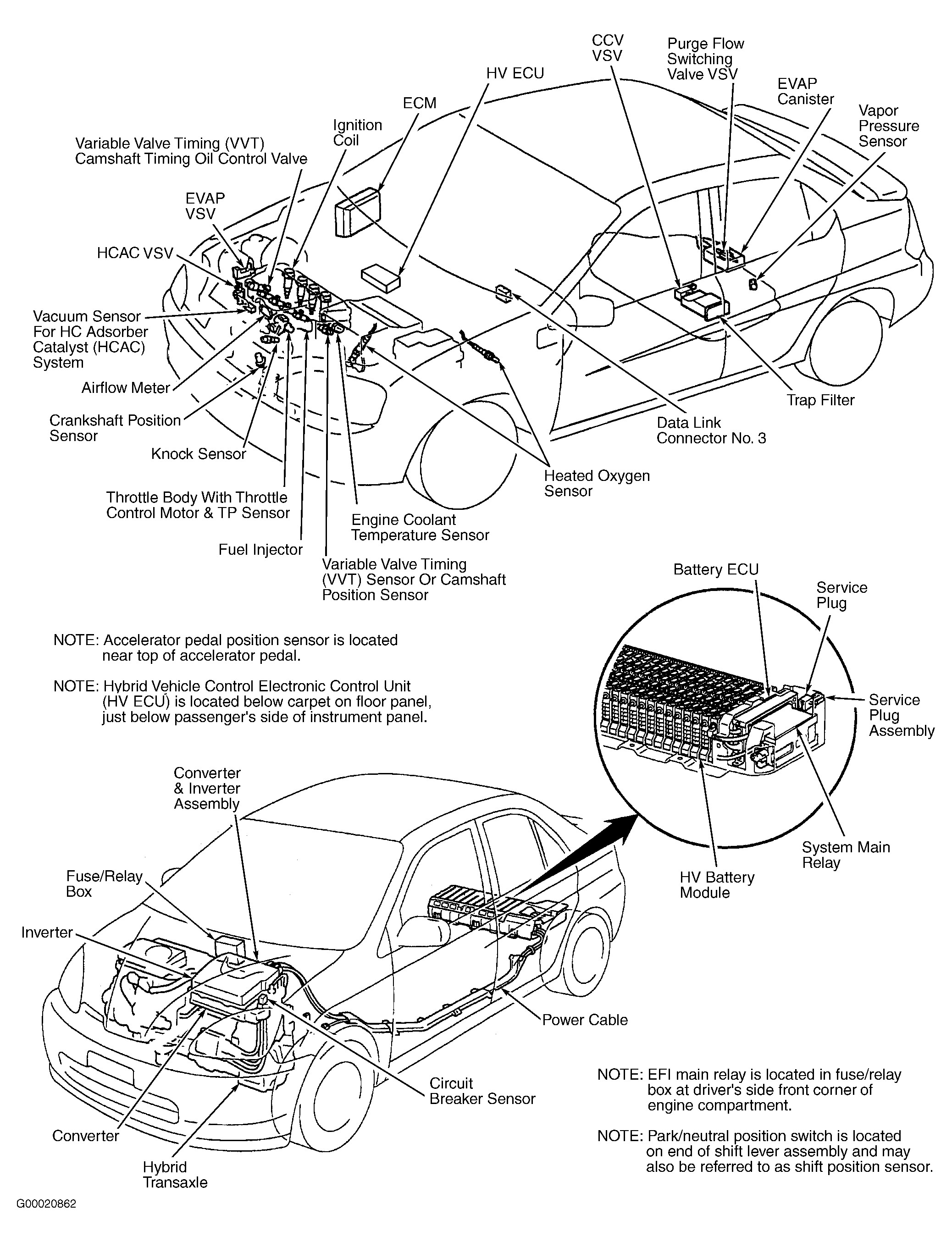

Fig 8: Locating Engine Control System Components (Prius)

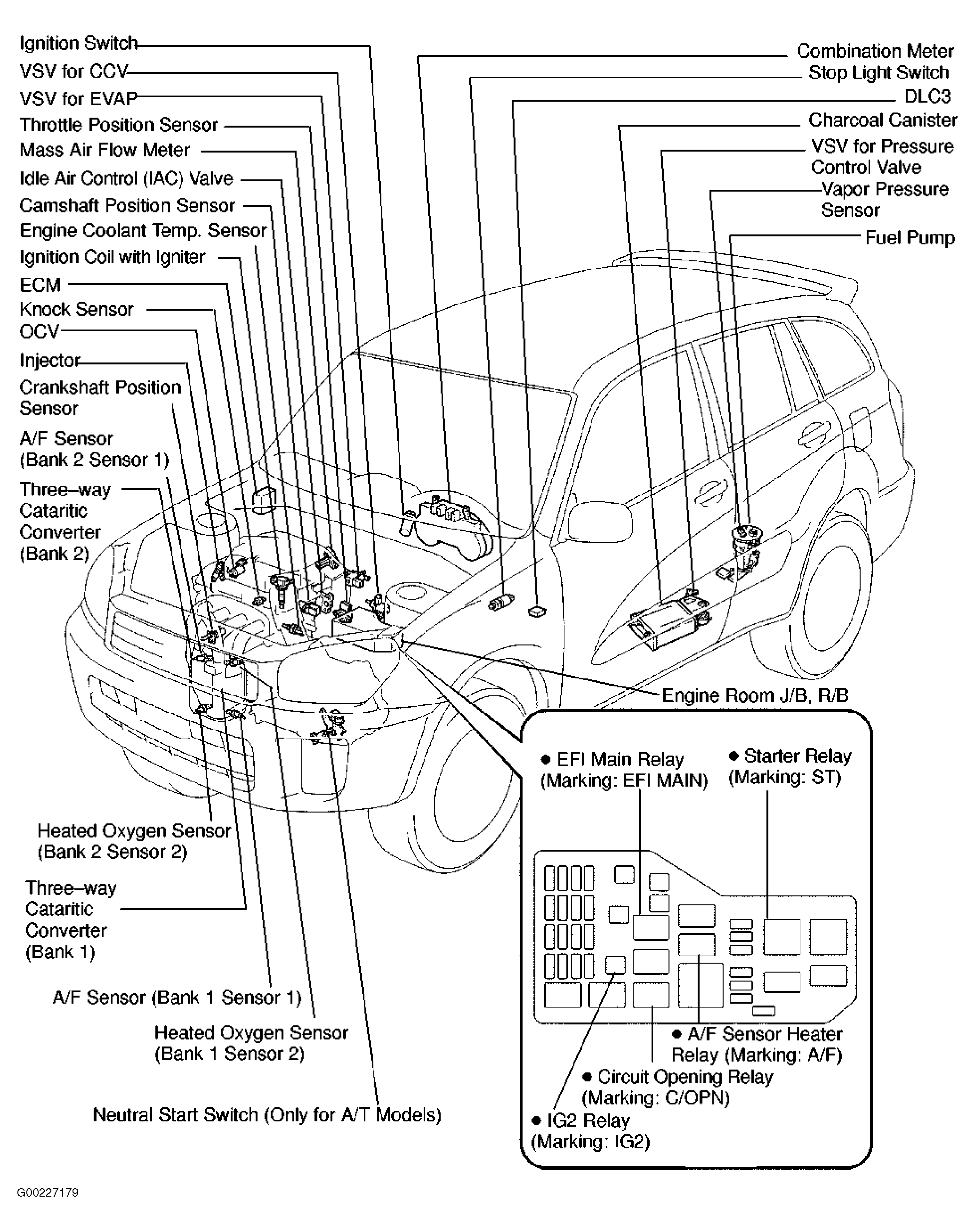

Fig 9: Locating Engine Control System Components (RAV4)

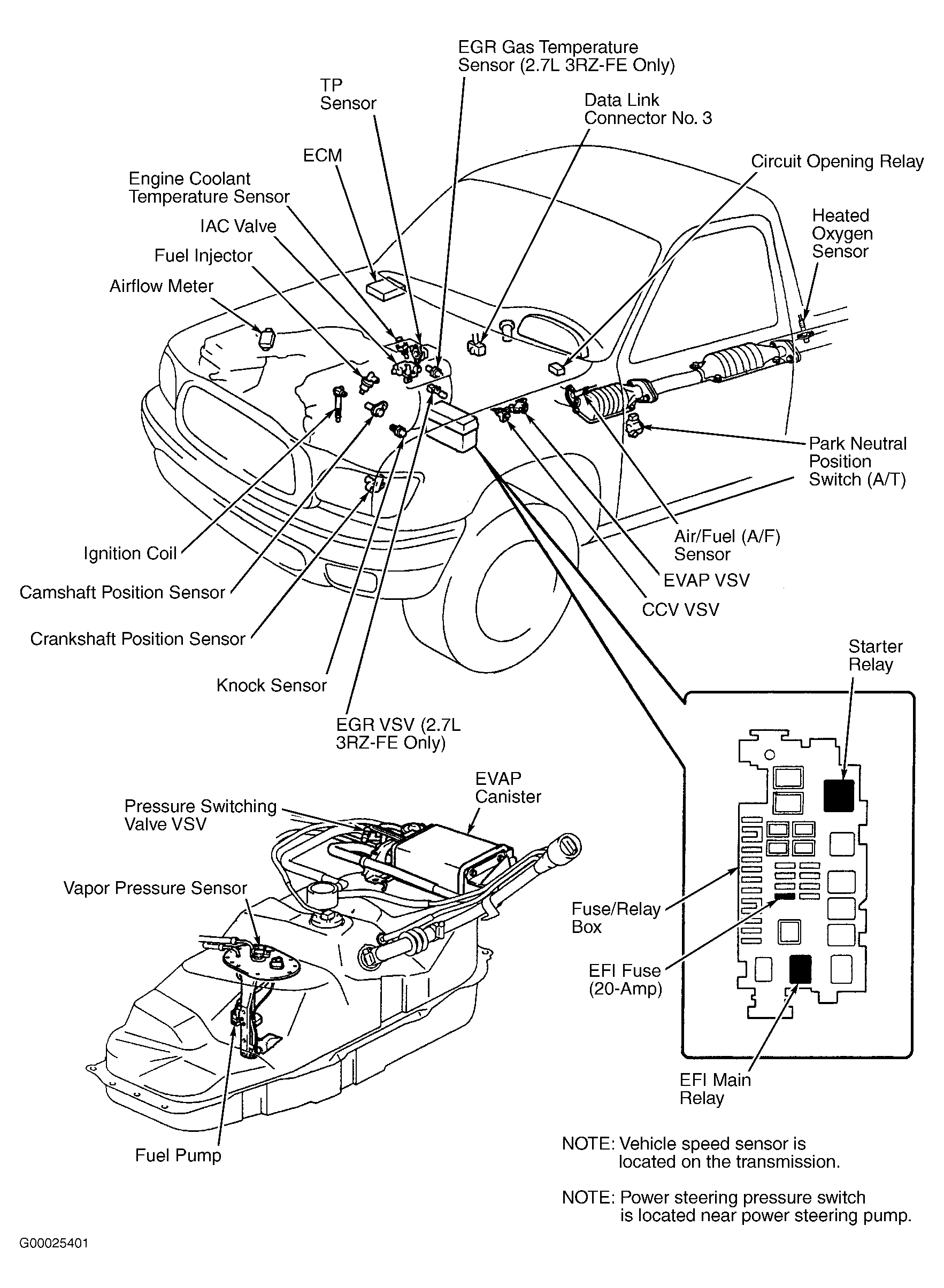

Fig 10: Locating Engine Control System Components (Tacoma)
