A/C Evaporator Temperature Sensor Circuit: RAV4

For A/C evaporator temperature sensor inspection, see Fig 1.

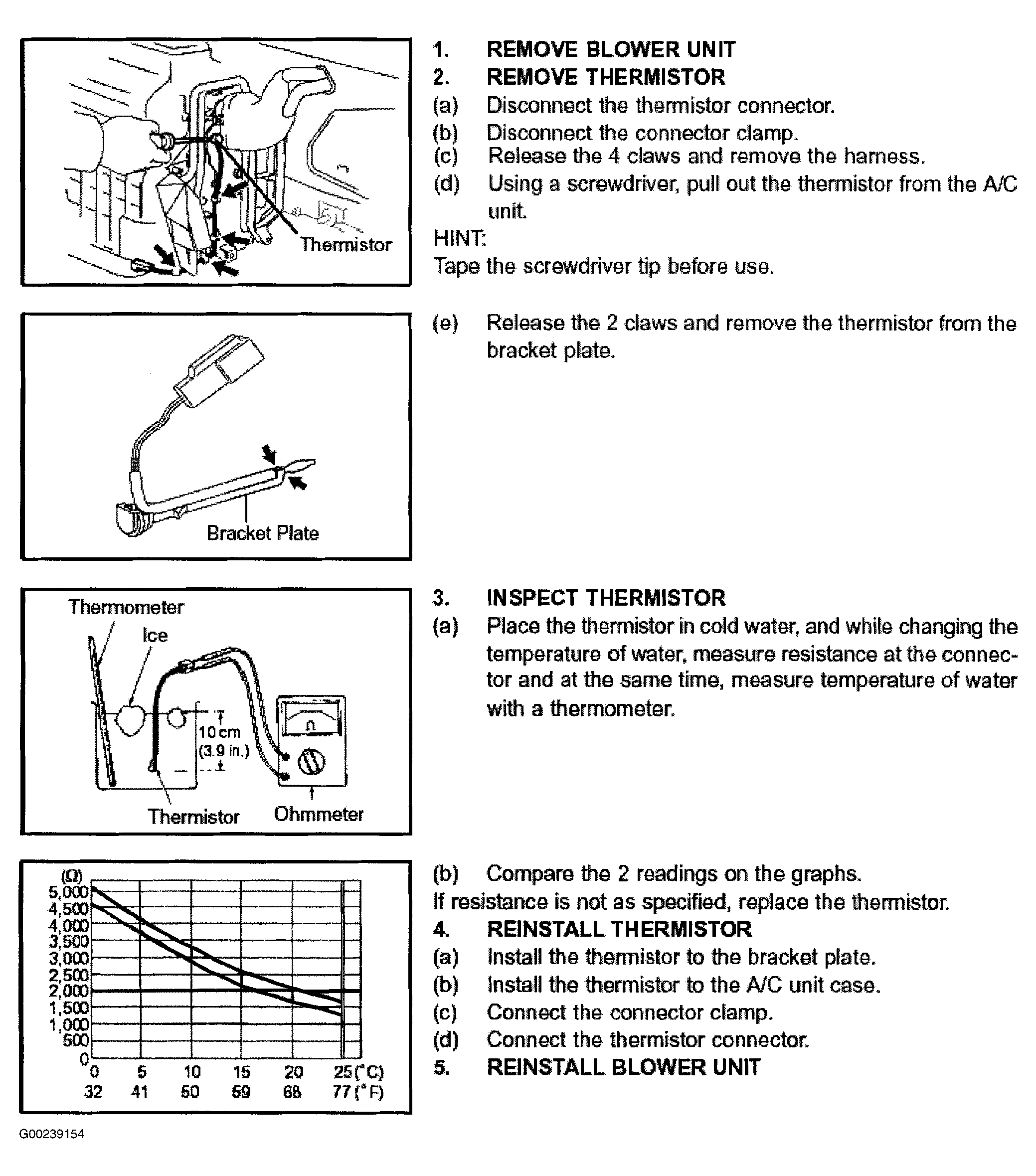

Fig 1: A/C Evaporator Temperature Sensor Inspection (RAV4)
G00239154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
