Engine Control Module Power Source Circuit: RAV4

NOTE: Parenthesis are used in RAV4 wiring diagram to indicate different wiring and/or connectors when the vehicle model, engine type or specification is different.

For engine control module power source circuit inspection, see Fig 1-Fig 5 . Before replacing ECM, check ECM connectors and ground circuits. See ENGINE CONTROL MODULE POWER & GROUND CIRCUITS .

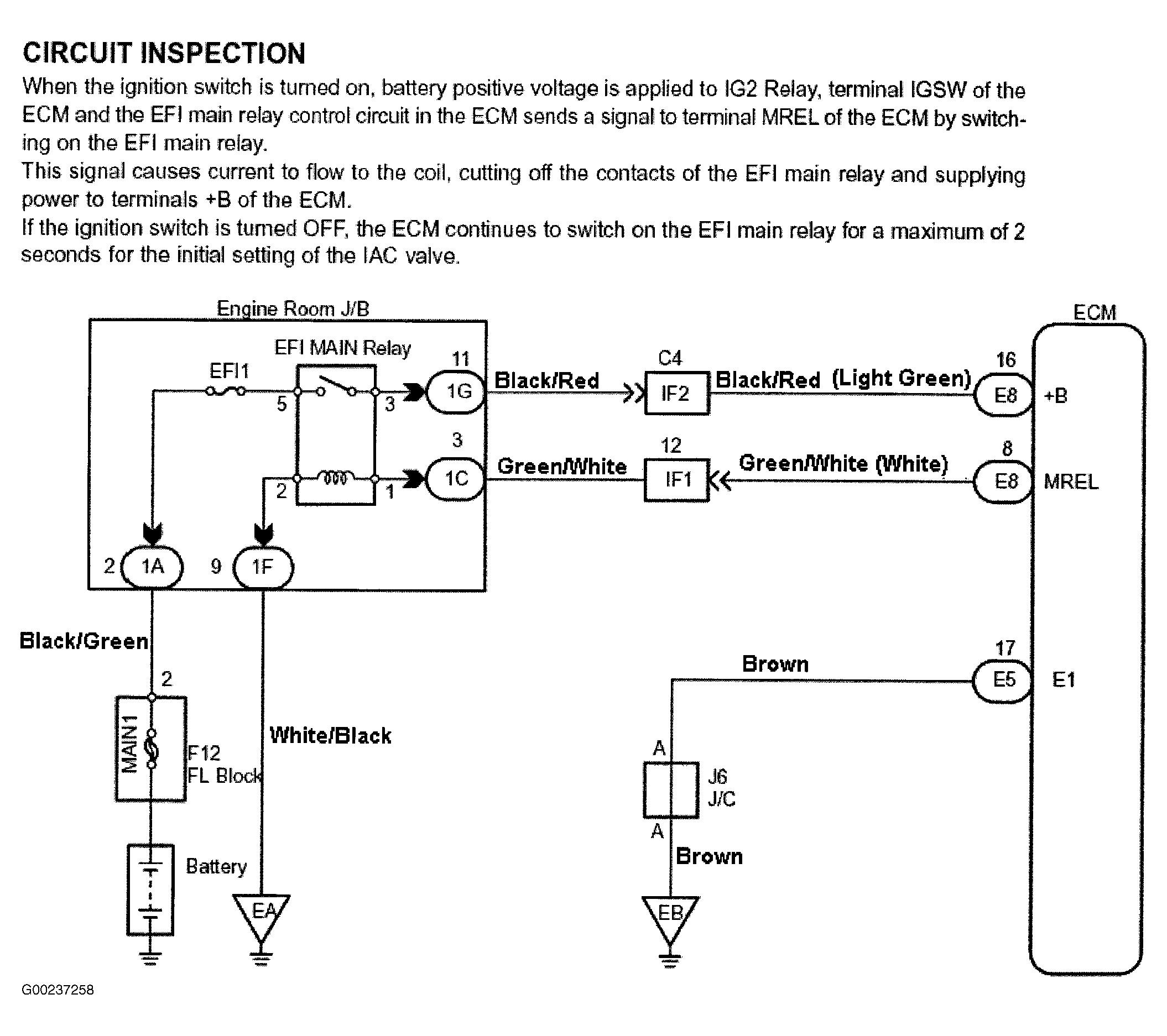

Fig 1: Engine Control Module Power Source Circuit Description & Diagram (RAV4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

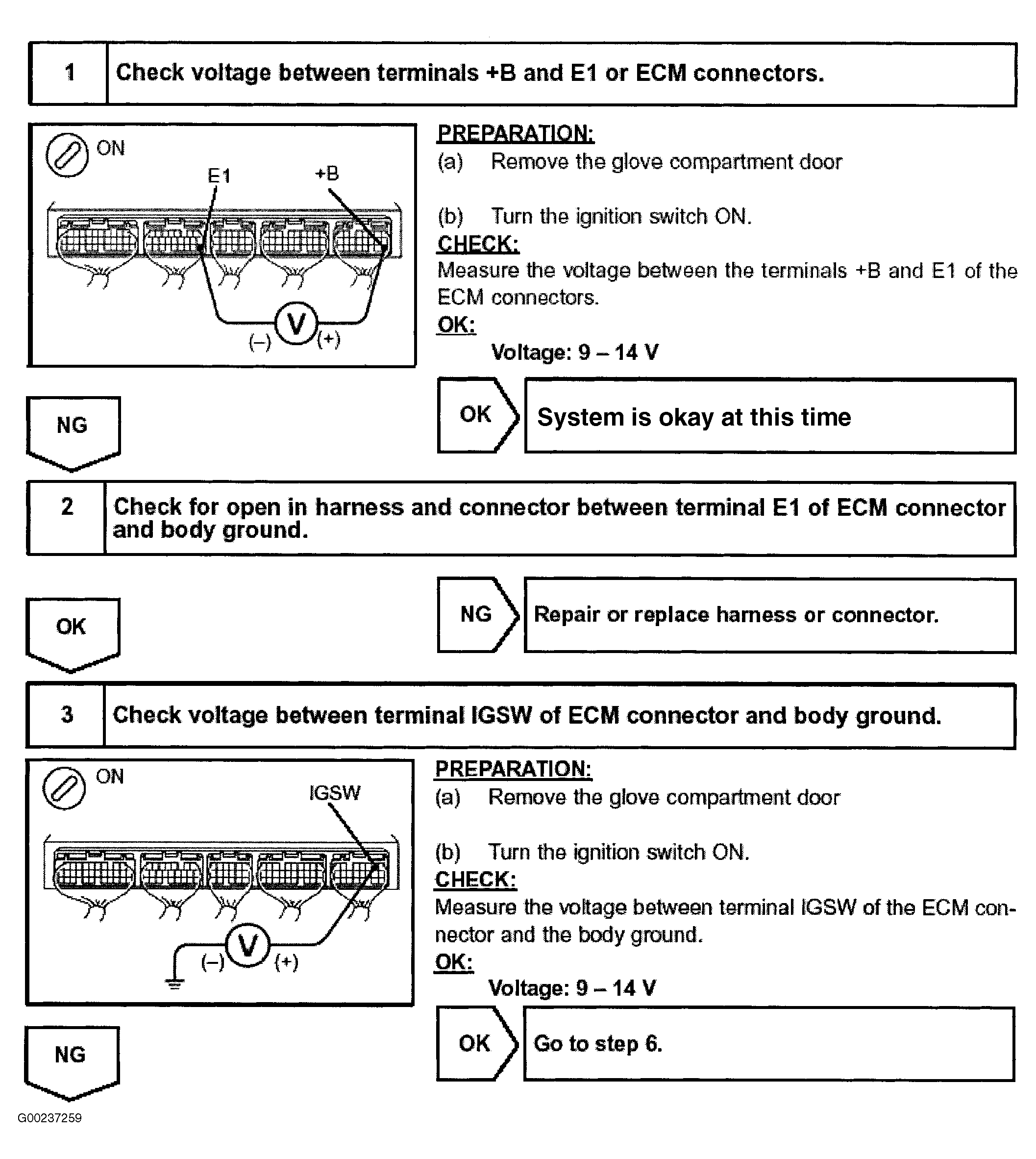

Fig 2: Engine Control Module Power Source Circuit Inspection - Steps 1-3 (RAV4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

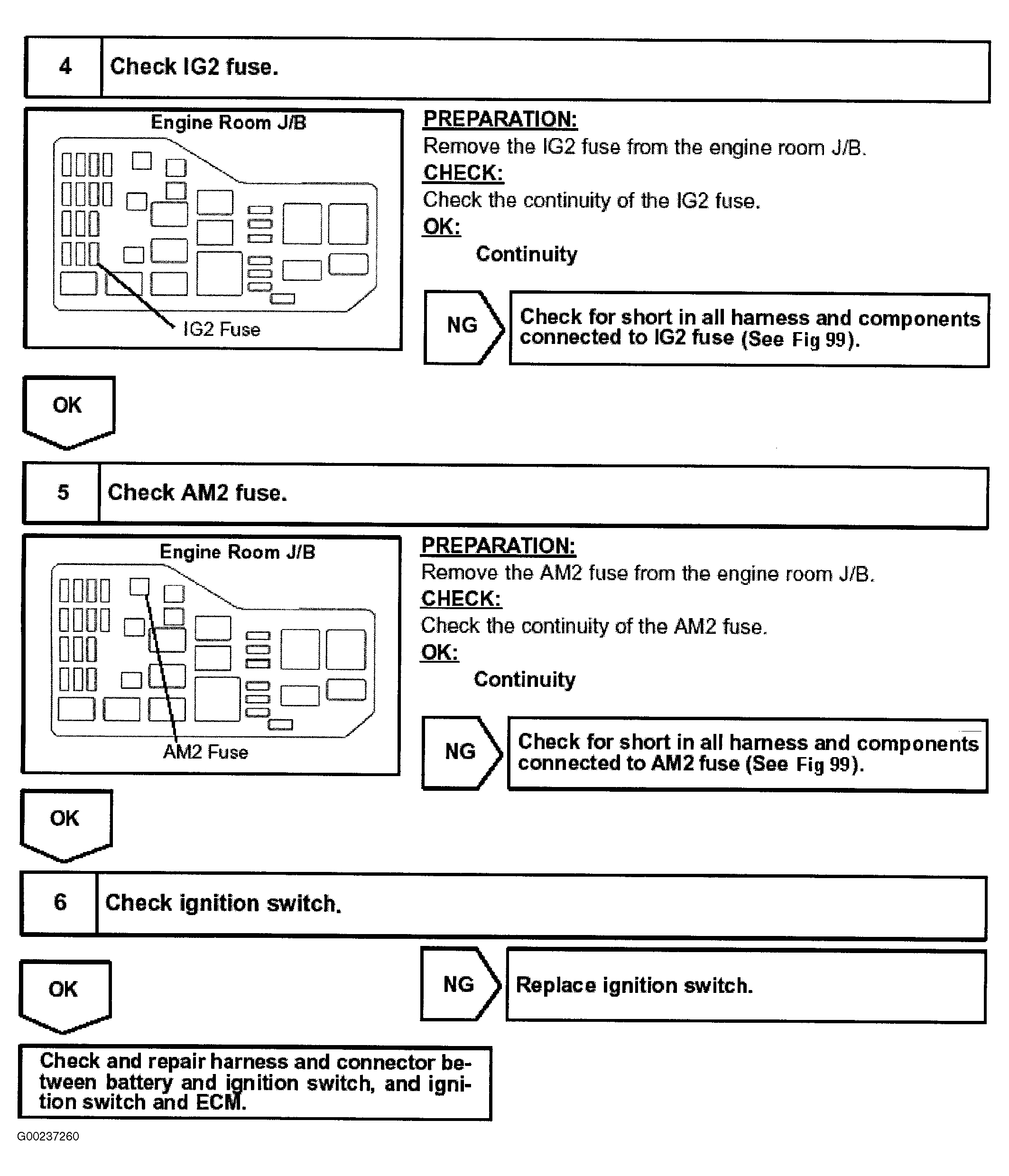

Fig 3: Engine Control Module Power Source Circuit Inspection - Steps 4-6 (RAV4)

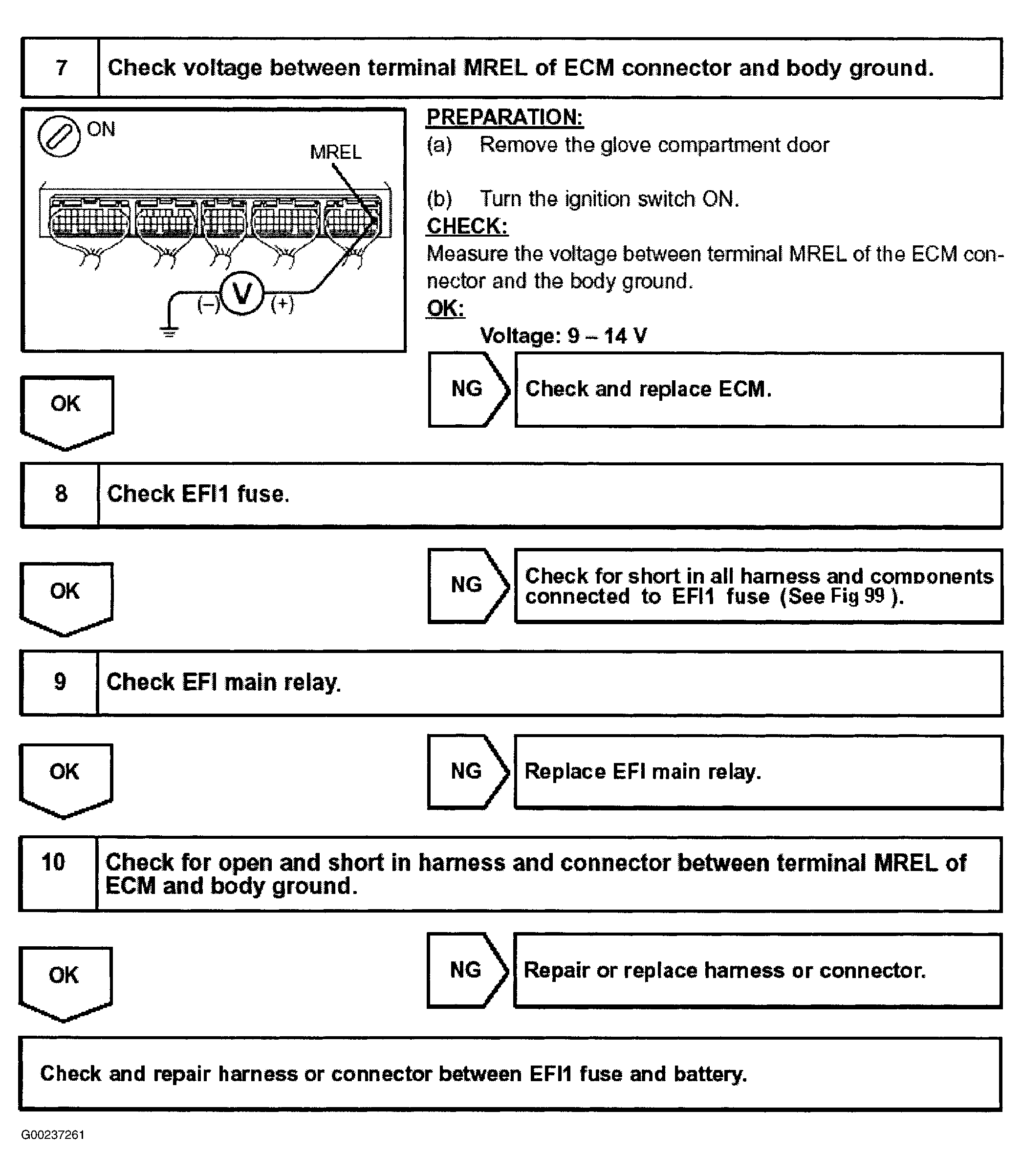

Fig 4: Engine Control Module Power Source Circuit Inspection - Steps 7-10 (RAV4)

Fig 5: Identifying Engine Control Module Electrical Connector Terminals (RAV4)
