Fuel Pump Control Circuit: Tacoma

For fuel pump control circuit inspection and wiring diagram, see Fig 1-Fig 6 . Before replacing ECM, check ECM connectors and ground circuits. See ENGINE CONTROL MODULE POWER & GROUND CIRCUITS .

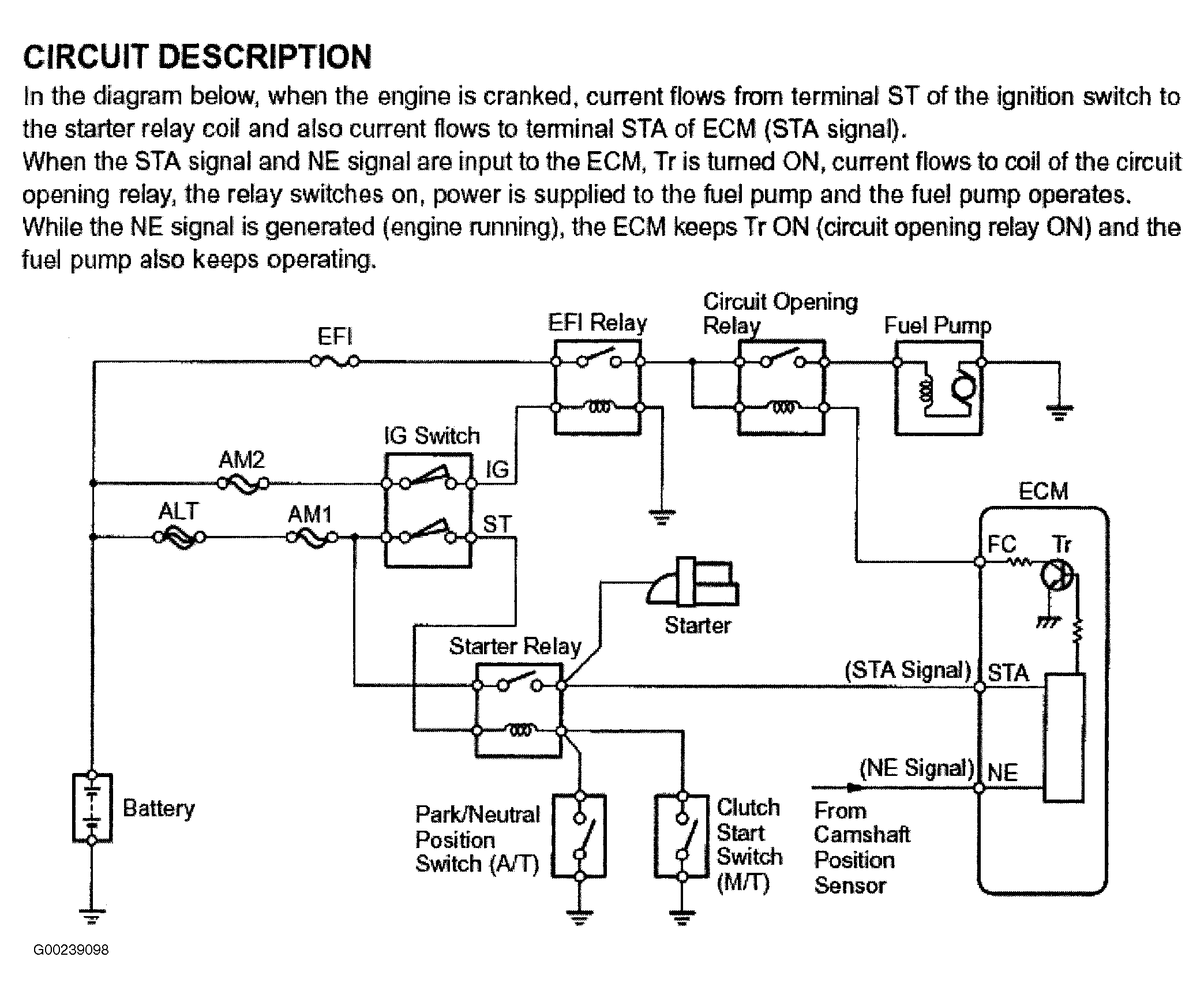

Fig 1: Fuel Pump Control Circuit Description & Diagram (Tacoma)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

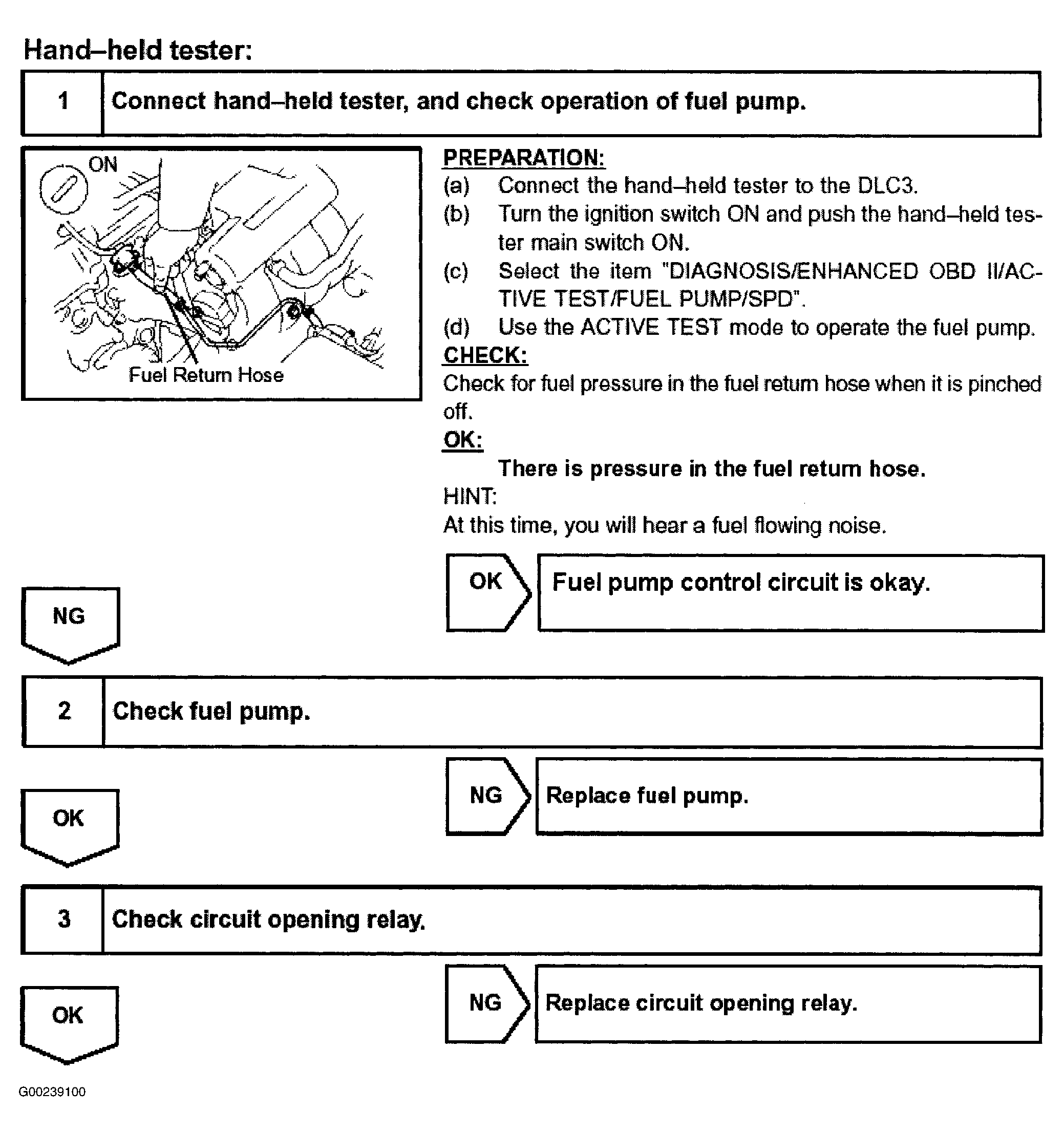

Fig 2: Fuel Pump Control Circuit Inspection Using Toyota Hand Held Tester - Steps 1-3 (Tacoma)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

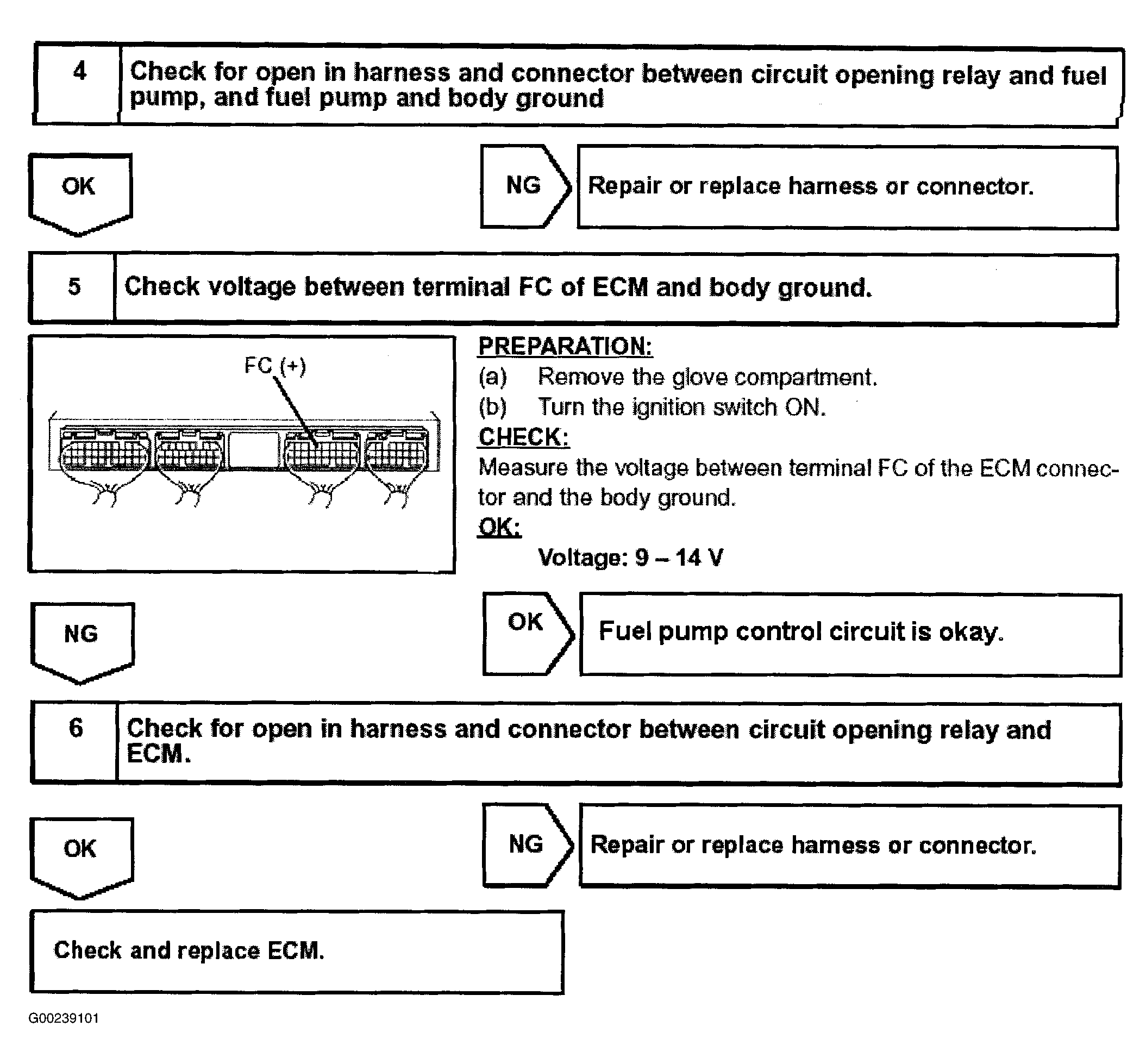

Fig 3: Fuel Pump Control Circuit Inspection Using Toyota Hand Held Tester - Steps 4-6 (Tacoma)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

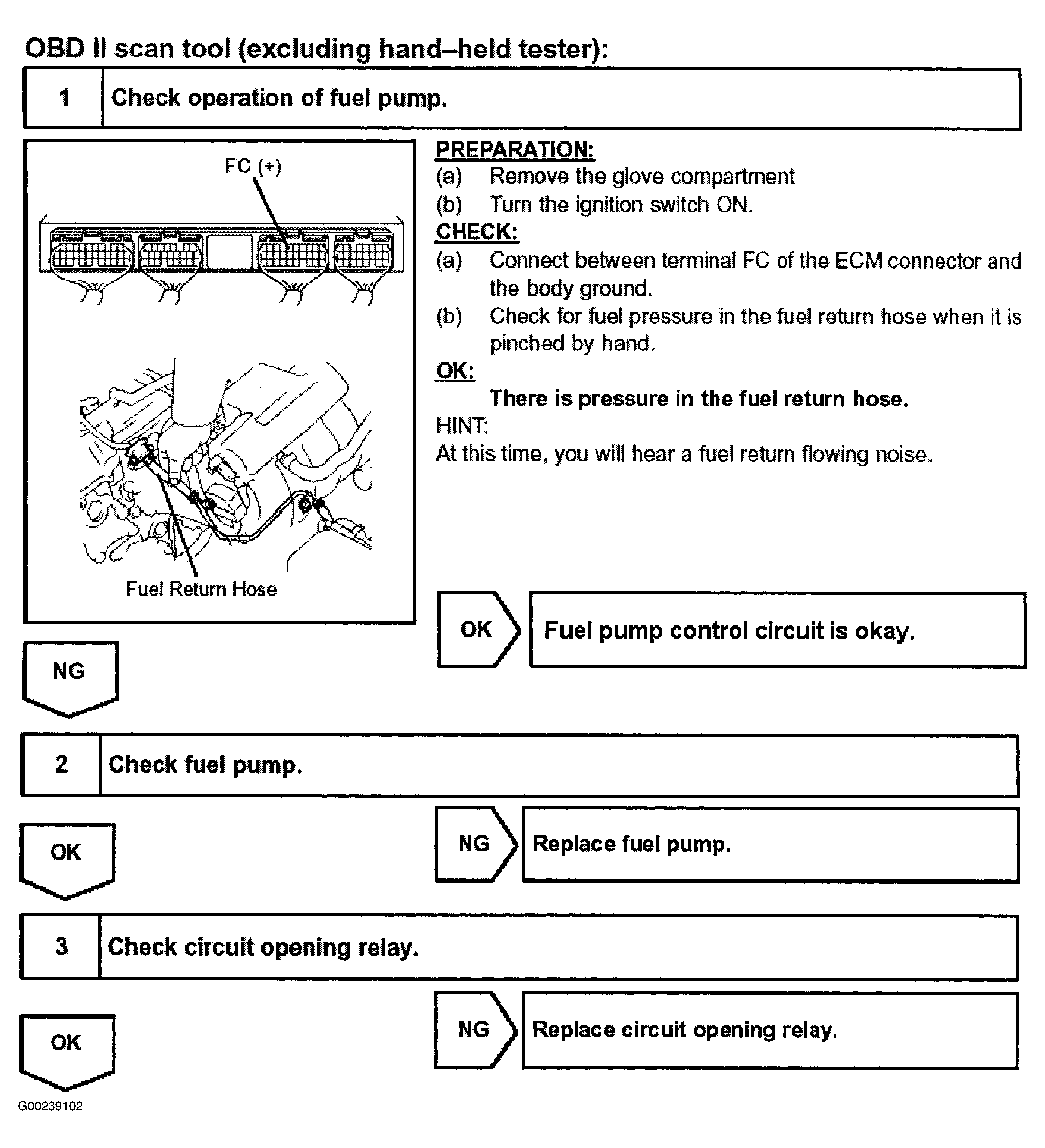

Fig 4: Fuel Pump Control Circuit Inspection Using OBD II Scan Tool - Steps 1-3 (Tacoma)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

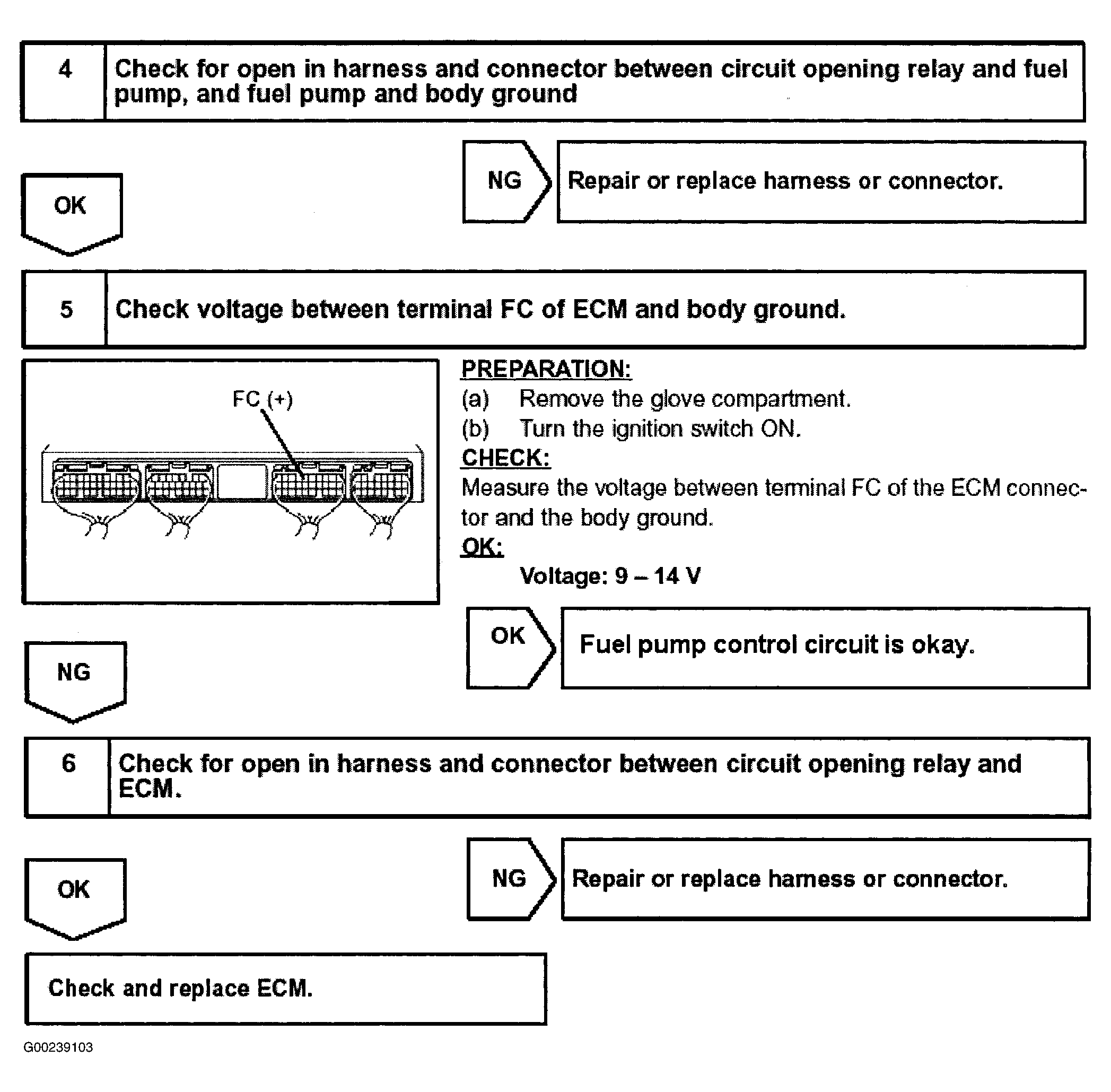

Fig 5: Fuel Pump Control Circuit Inspection Using OBD II Scan Tool - Steps 4-6 (Tacoma)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

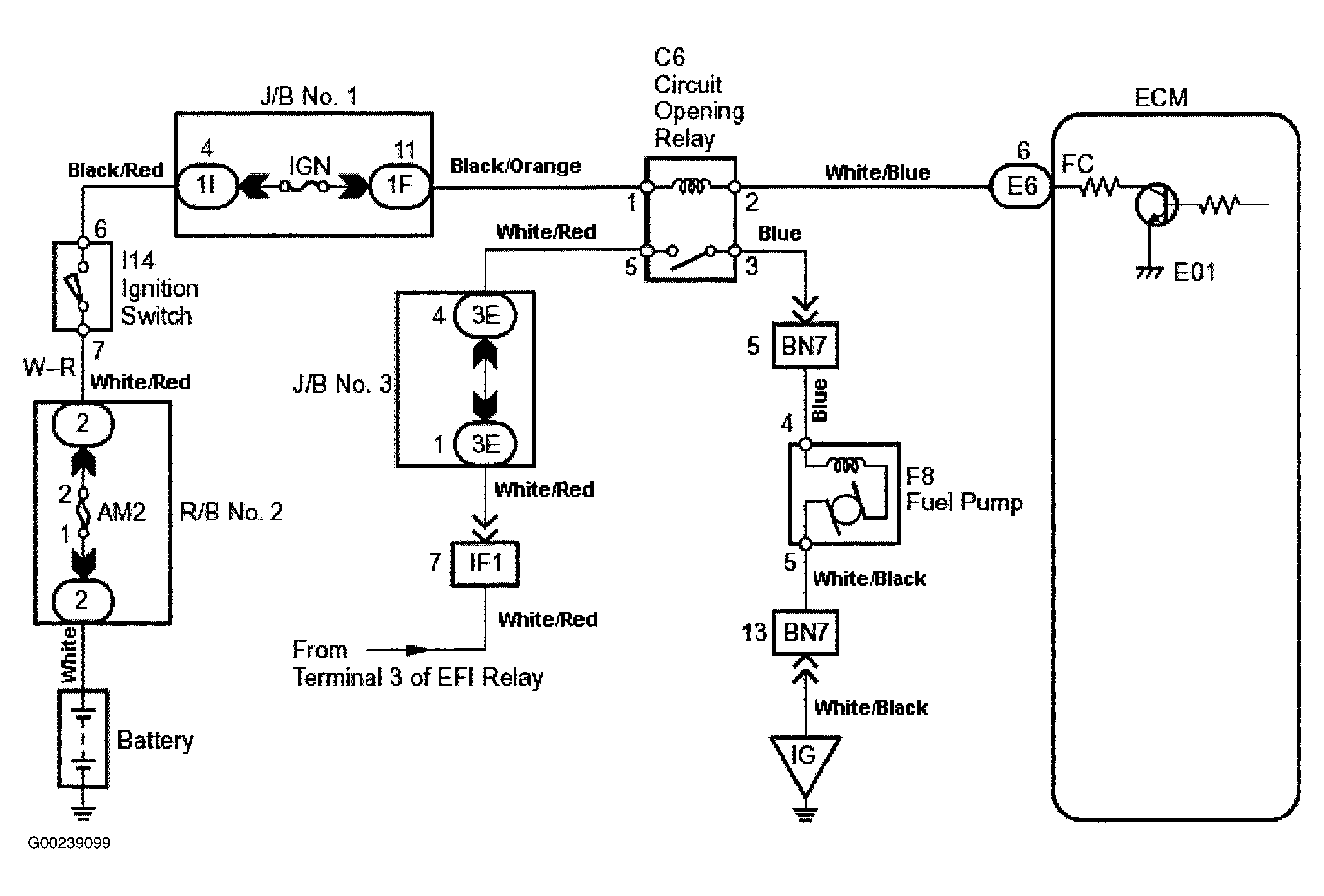

Fig 6: Fuel Pump Control Wiring Diagram (Tacoma)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
