Idle Air Control Valve: Camry

For Idle Air Control (IAC) system testing procedures, see Fig 1-Fig 3 . Before replacing ECM, check ECM connectors and ground circuits. See ENGINE CONTROL MODULE POWER & GROUND CIRCUITS .

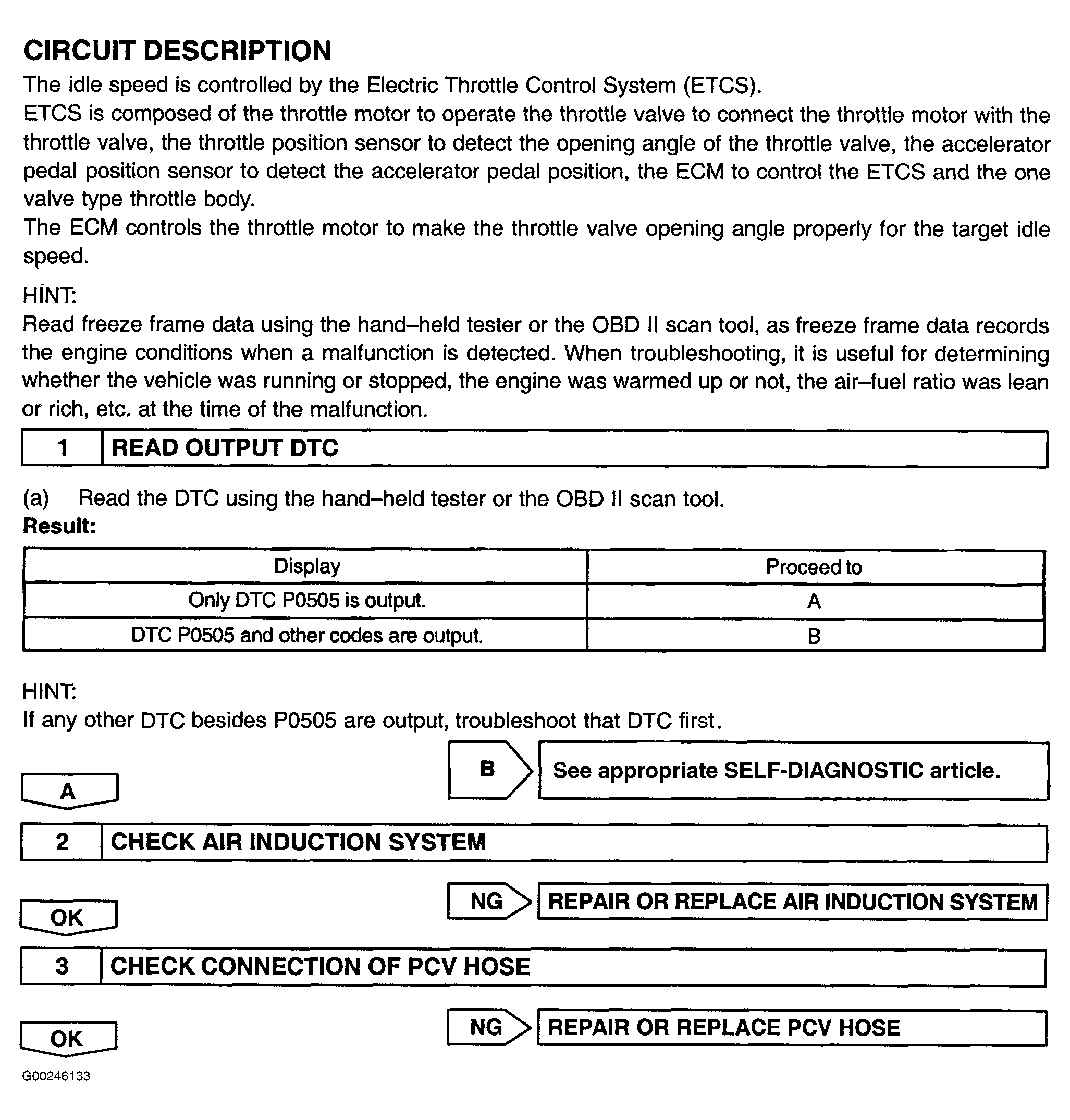

Fig 1: Testing Idle Air Control System - Circuit Description & Steps 1-3 (Camry)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

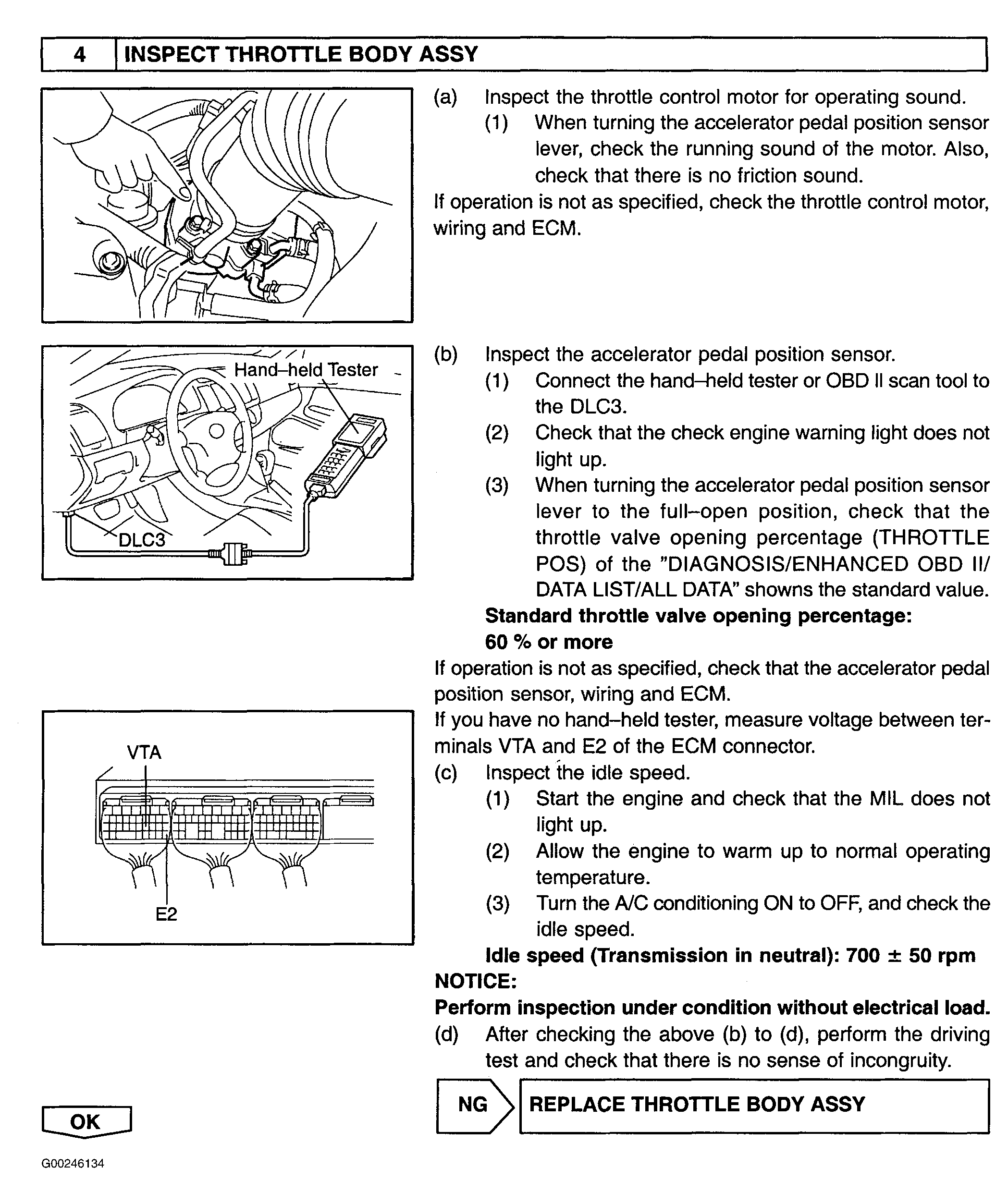

Fig 2: Testing Idle Air Control Stem - Step 4 (Camry)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

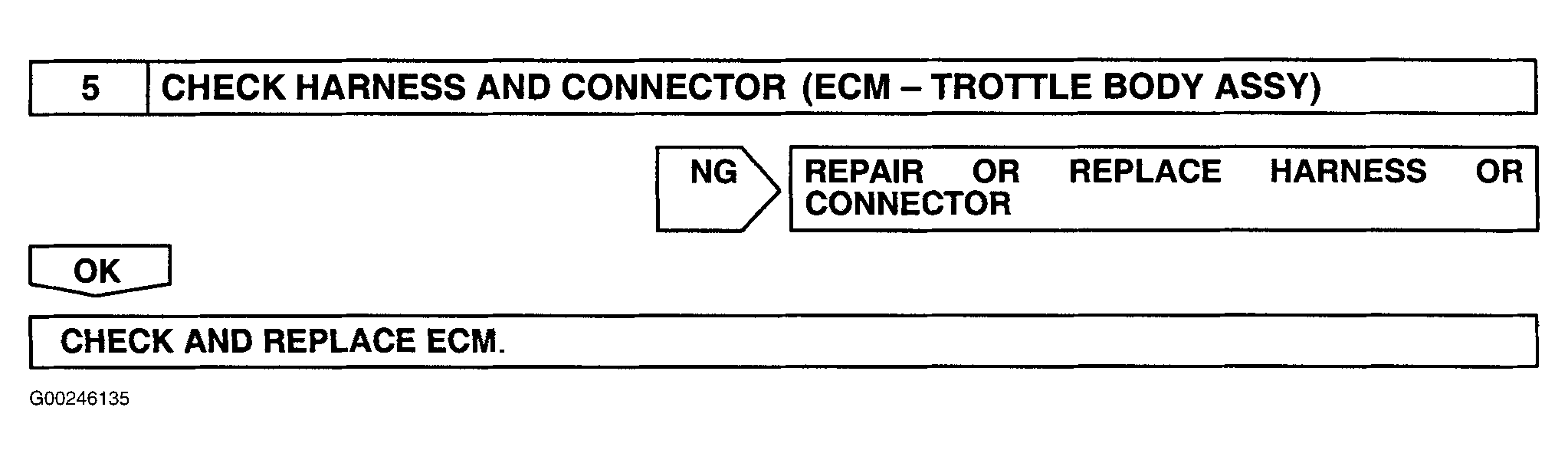

Fig 3: Testing Idle Air Control Stem - Step 5 (Camry)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
